Produkteinführung

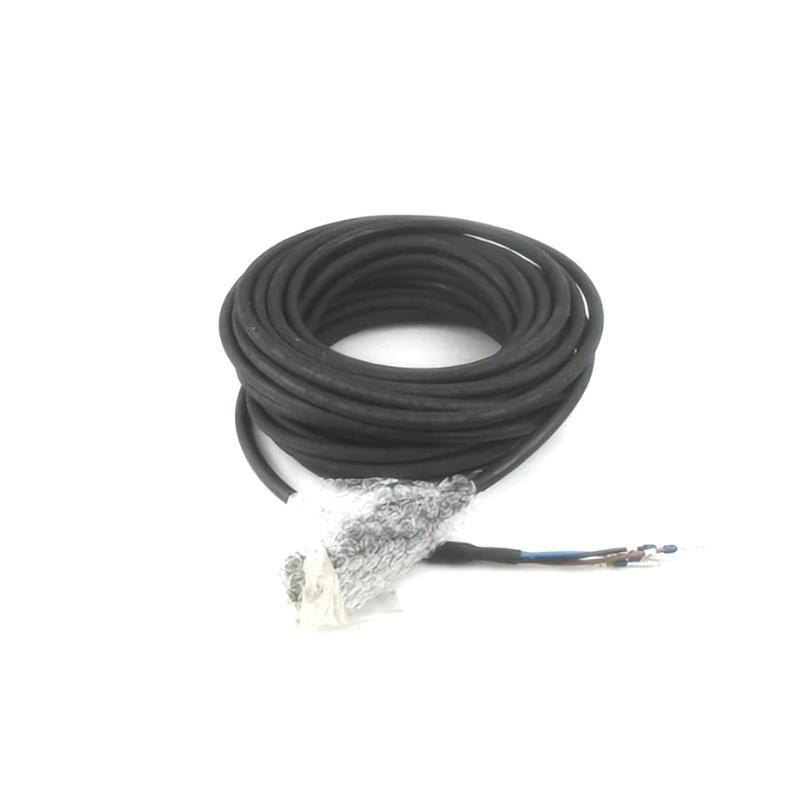

The HIMA Z7127/6217/C5/1/R2 Cable Plug is a specialized industrial connector engineered for use in high-reliability safety and automation systems. As part von HIMA’s extensive range von safety instrumented system components, this cable plug ensures secure, robust, and reliable electrical connections. It is designed to maintain signal integrity under demanding conditions, vonfering exceptional mechanical stability and environmental resistance.
This model supports complex multi-pin connections and is optimized for ease von installation and maintenance in safety-critical environments such as power plants, chemical processing facilities, and transportation systems. Its robust construction combined with advanced contact materials ensures long-term performance, minimal downtime, and compliance with stringent safety standards.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | Z7127/6217/C5/1/R2 |
| Product Type | Cable Plug |
| Number von Kontakts | 12 pins |
| Kontakt Material | Gold-plated copper alloy |
| Cable Diameter Range | 7 mm to 12 mm |
| Operating Voltage | Up to 250 V AC/DC |
| Current Rating | 5 A per contact |
| Ingress Protection | IP67 (mated) |
| Operating Temperature | -40°C to +85°C |
| Housing Material | High-grade aluminum alloy, corrosion-resistant |
| Locking Mechanism | Bayonet or threaded locking (model-specific) |
| Gewicht | 0.17 kg |
| Cable Length | 5 meters |
| Mounting Type | Cable end plug with panel mount option |
| Certifications | SIL 3, IECEx, CE, UL |
Product Applications
The HIMA Z7127/6217/C5/1/R2 Cable Plug is widely deployed across various industries where safety and reliability are paramount:
-
Safety Instrumented Systems (SIS): Used in critical safety loops to ensure secure and fail-safe connections within process automation and emergency shutdown systems.
-
Power Generation: Supports control wiring in nuclear, thermal, and renewable power plants.
-
Oil and Gas: Ideal for hazardous environments requiring explosion-provon and corrosion-resistant connectors.
-
Transportation: Applied in railway signaling systems and aerospace ground support equipment for reliable communications.
-
Chemical and Petrochemical: Maintains integrity von process control wiring in corrosive and high-humidity environments.
-
Marine and Offshore: Suitable for onboard control and safety systems exposed to saltwater and vibration.
Product Advantages
-
Rugged Construction: The aluminum housing provides mechanical strength and resistance to corrosion, ensuring longevity in harsh industrial conditions.
-
Superior Kontakt Quality: Gold-plated contacts minimize contact resistance, ensuring consistent electrical performance and reducing signal loss.
-
High IP Rating: IP67 protection ensures complete dust ingress prevention and water immersion resistance, allowing use in wet or dusty environments.
-
Wide Temperature Tolerance: Can operate reliably from -40°C up to +85°C, suitable for both cold climates and high-temperature industrial zones.
-
Safety Compliance: Certified to SIL 3 and IECEx standards, making it compliant with international safety instrumented system requirements.
-
Secure Locking: The locking mechanism prevents accidental disconnections caused by vibration or mechanical shock.
-
Easy Installation: Designed for quick connection and disconnection, facilitating maintenance without compromising system safety.
-
Compatibility: Engineered for seamless integration with HIMA’s safety controllers and wiring components.
-
Reduced Downtime: Durable design and stable connection properties reduce the need for frequent replacements or repairs.
Häufig gestellte Fragen (FAQ)
-
What is the pin count von the HIMA Z7127/6217/C5/1/R2 Cable Plug?
It has 12 pins designed for multi-signal connections. -
Is this cable plug suitable for hazardous areas?
Yes, it holds IECEx certification for safe use in explosive environments. -
What is the maximum operating temperature for this connector?
It operates between -40°C and +85°C reliably. -
What type von locking mechanism does it use?
This model typically features a bayonet or threaded locking system to ensure secure connections. -
Can this plug be used in marine environments?
Yes, its corrosion-resistant housing and IP67 rating make it suitable for marine and vonfshore use. -
What certifications does the Z7127/6217/C5/1/R2 have?
It is certified to SIL 3, IECEx, CE, and UL standards. -
What is the weight von this cable plug?
It weighs 0.17 kg. -
Is this plug compatible with other HIMA products?
Yes, it is designed to integrate seamlessly with HIMA safety controllers and wiring systems. -
What material are the contacts made von?
Kontakts are gold-plated copper alloy for optimal conductivity and corrosion resistance. -
How do I install this cable plug?
The plug is designed for panel mounting or direct cable termination with an easy-to-use locking system.
Related or Similar Modells from HIMA
| Modell | Beschreibung | Pin Count | Connector Type | Typical Use |
|---|---|---|---|---|
| Z7127/6217/C5/2/R2 | Cable Plug with 12 pins | 12 | Circular multi-pin | Safety wiring, similar specs |
| Z7128/6220/C6/1 | Cable Plug, 16-pin | 16 | Circular multi-pin | Extended signal capacity |
| Z7129/6215/C4 | Cable Socket, 12-pin | 12 | Circular multi-pin | Mating socket for plugs |
| Z7130/6300/C5 | Cable Plug, 24-pin | 24 | Circular multi-pin | Complex industrial wiring |
| Z7140/6201/C3 | Compact Cable Plug, 8-pin | 8 | Circular multi-pin | Smaller control systems |
| Z7150/6217/C5 | Heavy-duty Cable Plug, 12-pin | 12 | Circular multi-pin | Harsh environment use |
