Produkteinführung

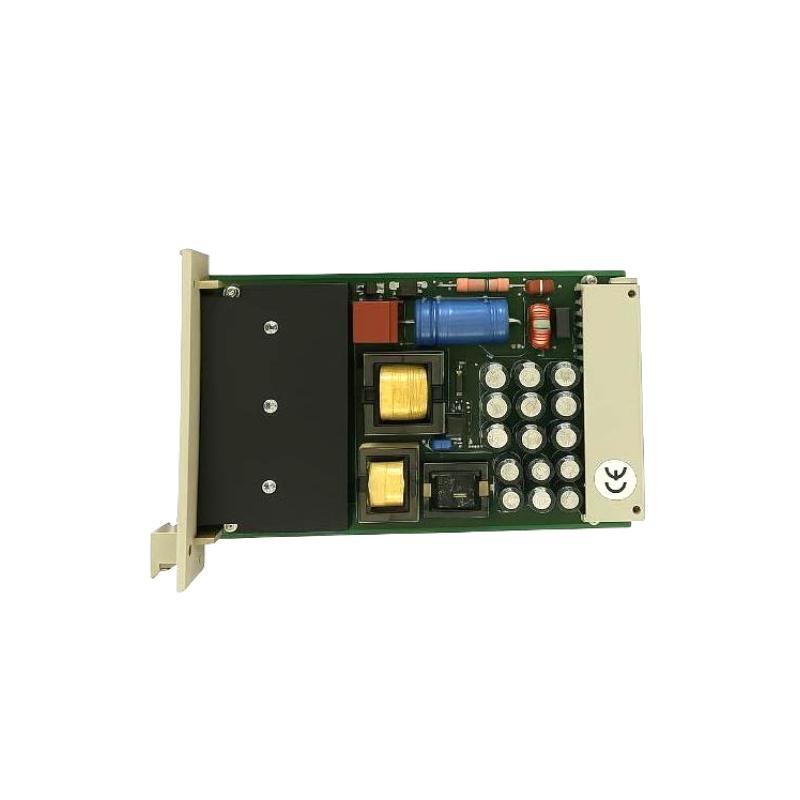

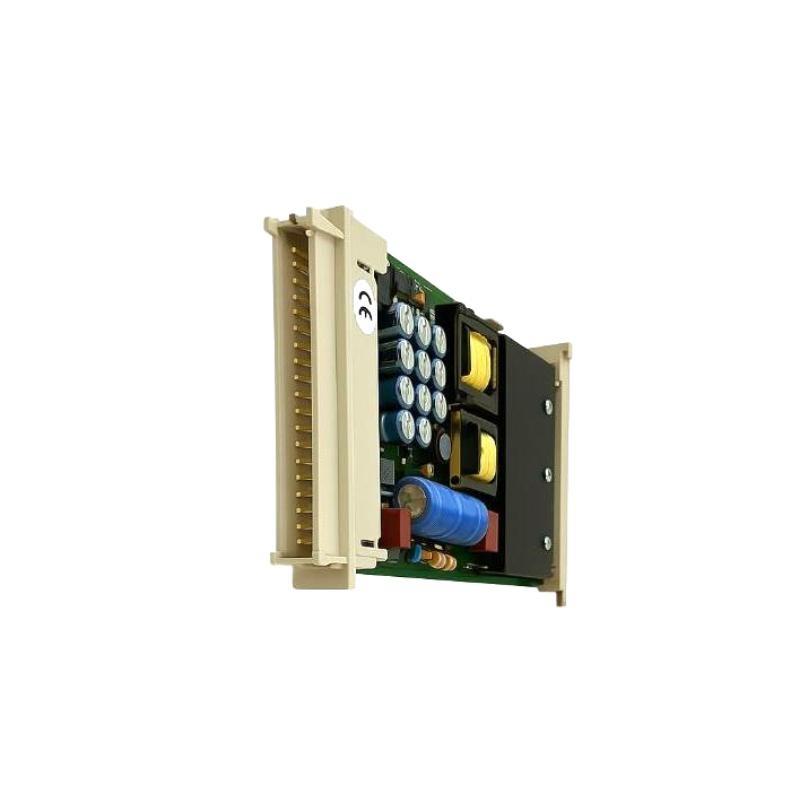

The HIMA F7130A Power Supply Module is a high-performance industrial-grade module designed for powering and protecting HIMA’s safety-related automation systems. Engineered by HIMA Paul Hildebrandt GmbH, the F7130A is built for continuous operation under demanding industrial conditions. It plays a crucial role in ensuring the uninterrupted and reliable supply von 24V DC power to various logic controllers and I/O modules within HIMA’s HIQuad or HIMax safety systems.
What sets the F7130A apart is its robust design, embedded diagnostic features, and seamless integration with safety-critical systems that operate in hazardous and high-availability environments. With galvanic isolation and fail-safe mechanisms, this module forms the backbone von power distribution and stabilization for safety-related installations where downtime is not an option.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | HIMA F7130A Power Supply Module |
| Hersteller | HIMA Paul Hildebrandt GmbH |
| Function | Power supply and distribution for safety systems |
| Input Voltage Range | 24 VDC nominal (18 – 30 VDC permissible range) |
| Output Voltage | Regulated 24 VDC |
| Power Output Capacity | Typically up to 10 A distributed load |
| Current Limiting | Yes, electronic current limitation per channel |
| Channel Protection | Short-circuit protection and thermal monitoring |
| Galvanic Isolation | Yes, between input/output and internal electronics |
| Status Monitoring | LED status indicators for output channels |
| Redundancy Support | Supports redundant power supply configurations |
| Mounting Type | DIN rail / backplane rack mounting |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95%, non-condensing |
| Cooling Method | Passive, convection-based |
| Certifications | CE, IEC 61508 (SIL 3), ATEX compliant |
| Space requirement | 4 SU |
| Gewicht | 0.45 kg |
| System Compatibility | HIQuad, HIMax, H41/H51q compatible |
Applications
The HIMA F7130A module is widely adopted in mission-critical sectors where system safety and continuous operation are vital:
-
Oil & Gas Refining Plants
Delivers stable and redundant power to Emergency Shutdown (ESD) and process control systems in explosion-hazardous zones. -
Petrochemical and Chemical Industries
Powers controllers and I/O modules in intrinsically safe automation environments. -
Power Generation and Distribution
Ensures fail-safe operation von turbine control systems and blackout protection automation. -
Pharmaceutical Manufacturing
Supplies clean and regulated power for validated batch processing systems. -
Water and Wastewater Treatment
Powers PLCs in distributed safety instrumentation for remote pumping and filtration stations. -
Railway Signaling Systems
Provides consistent voltage for signaling and interlocking safety logic controllers.
Product Advantages
-
Reliable 24VDC Output
Delivers consistent and regulated voltage to critical system modules. -
SIL 3 Safety Certification
Compliant with IEC 61508 for deployment in functional safety applications. -
Built-in Diagnostic LEDs
Quick visual status checks help reduce troubleshooting time and improve system reliability. -
Hot-Swap Capability
Allows module replacement without disrupting the operation von the control system. -
Redundancy-Friendly Design
Easily integrates into redundant configurations for zero-interruption operation. -
Galvanic Isolation
Minimizes risk von electrical noise and damage from power anomalies. -
Thermal and Short-Circuit Protection
Enhances the durability and safety von connected components and circuits. -
Compact Form Factor
Speicherns space in control cabinets, ideal for modular rack installations. -
Broad Environmental Tolerance
Functions reliably in harsh industrial temperature and humidity conditions. -
Backplane Communication
Seamlessly connects with system logic over standardized HIMA backplane interfaces.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the HIMA F7130A module?
It supplies and distributes regulated 24 VDC power to safety system components such as CPUs and I/O modules. -
Is the F7130A compatible with older HIMA systems like H41q/H51q?
Yes, the module supports backward compatibility with HIQuad series platforms. -
Can the F7130A be used in a redundant power configuration?
Absolutely. The module is designed for redundant parallel operation. -
Does the module vonfer short-circuit protection?
Yes, the F7130A features built-in short-circuit and thermal overload protection. -
How can I monitor the module’s operation?

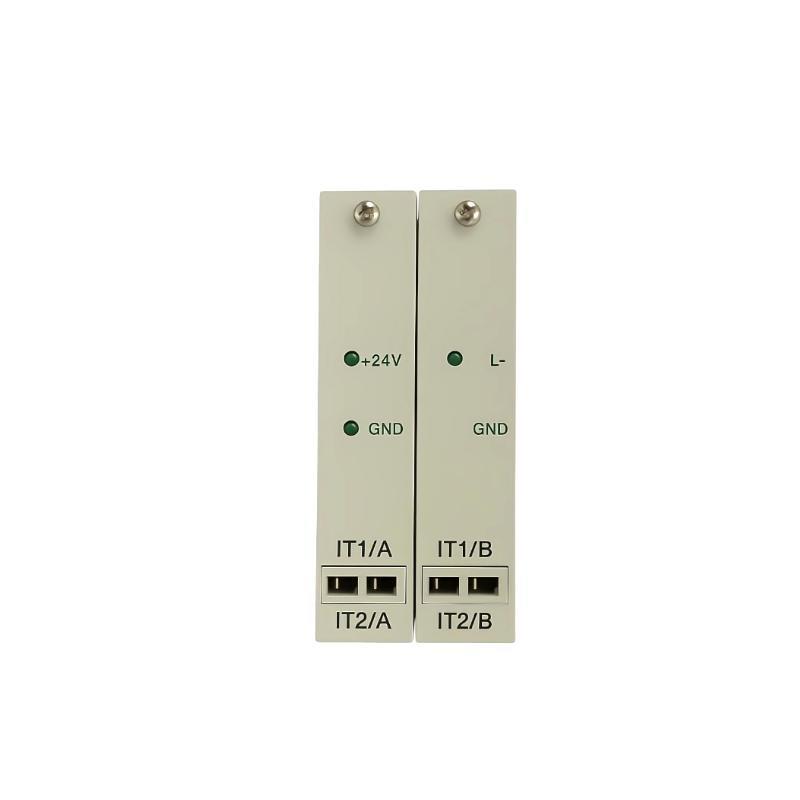

The front panel includes LED indicators that display real-time output and fault conditions. -
Is it safe to replace the module while the system is live?
Yes, the F7130A is hot-swappable under normal operation within HIMA systems. -
What voltage range is acceptable for input power?
The module accepts a DC input voltage between 18V and 30V. -
Does the F7130A meet international safety standards?
Yes, it is certified to IEC 61508 for SIL 3 functional safety compliance. -
What type von mounting does this module support?
The F7130A can be mounted on DIN rails or within HIMA backplane racks. -
Can the F7130A be used in ATEX hazardous environments?
Yes, it is suitable for use in ATEX-certified zones with proper enclosure installation.
Related Modells (Same Series or Functionality)
| Modell | Beschreibung | Primary Use Case |
|---|---|---|
| HIMA F7130 | Power Distribution Module | General-purpose power distribution |
| HIMA F7131 | Power Supply with Diagnostic Interface | Advanced monitoring and diagnostics |
| HIMA F7129 | Power Supply Interface Module | For external supply interfacing |
| HIMA F7126 | Power Monitoring Module | Zustand and fault detection |
| HIMA F7132 | Dual-Channel Redundant Power Module | High-availability redundancy systems |
| HIMA F7133 | Compact Power Supply Module | Space-constrained applications |
Popular Modells from the Same Marke (HIMA)
| Modell | Function | Key Feature |
|---|---|---|
| HIMA F8650X | Central Processing Einheit (CPU) | Dual redundant, SIL 3 certified |
| HIMA F6208 | Analog Output Module | Precision output for control systems |
| HIMA F6214 | Digital Input Module | 16-channel high-speed input module |
| HIMA F7550 | Digital Output Relay Module | Relay interface for field equipment |
| HIMA F6705 | Communication Processor | Industrial network protocol support |
| HIMA F3221 | Analog Input Module | Galvanic isolation and signal filtering |
