Produkteinführung

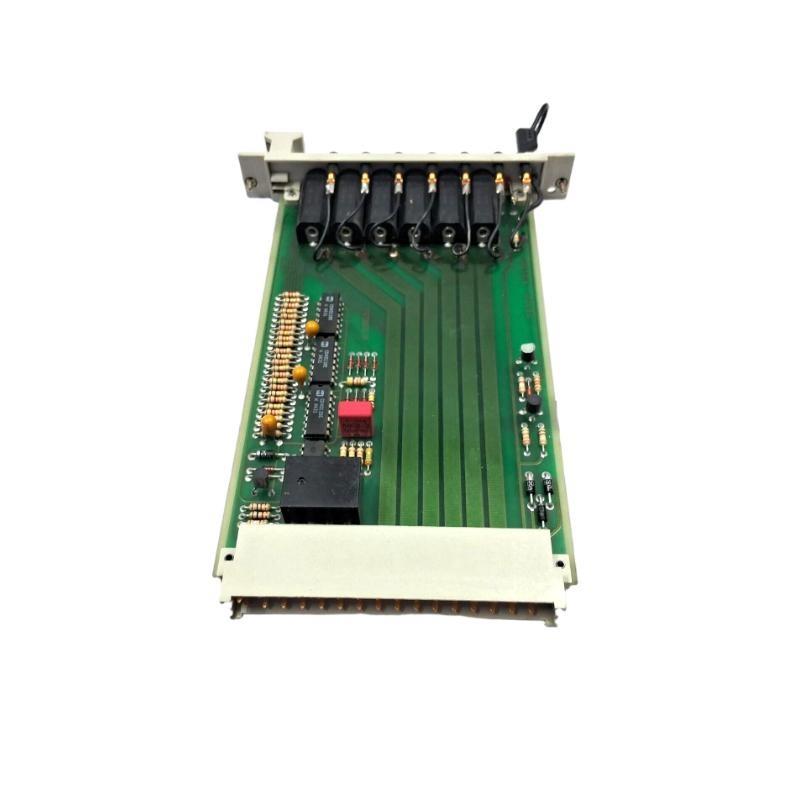

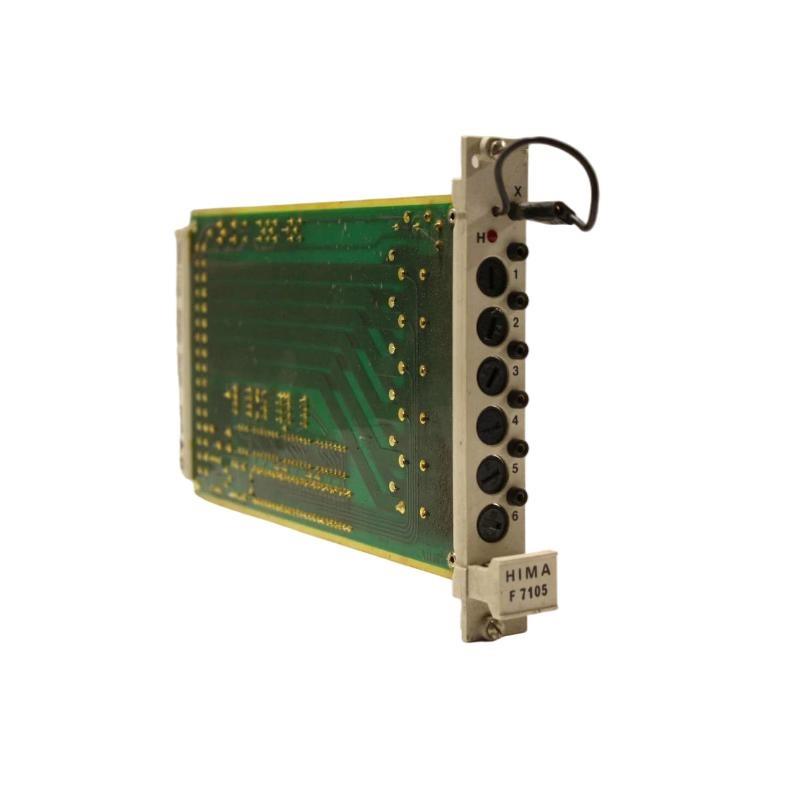

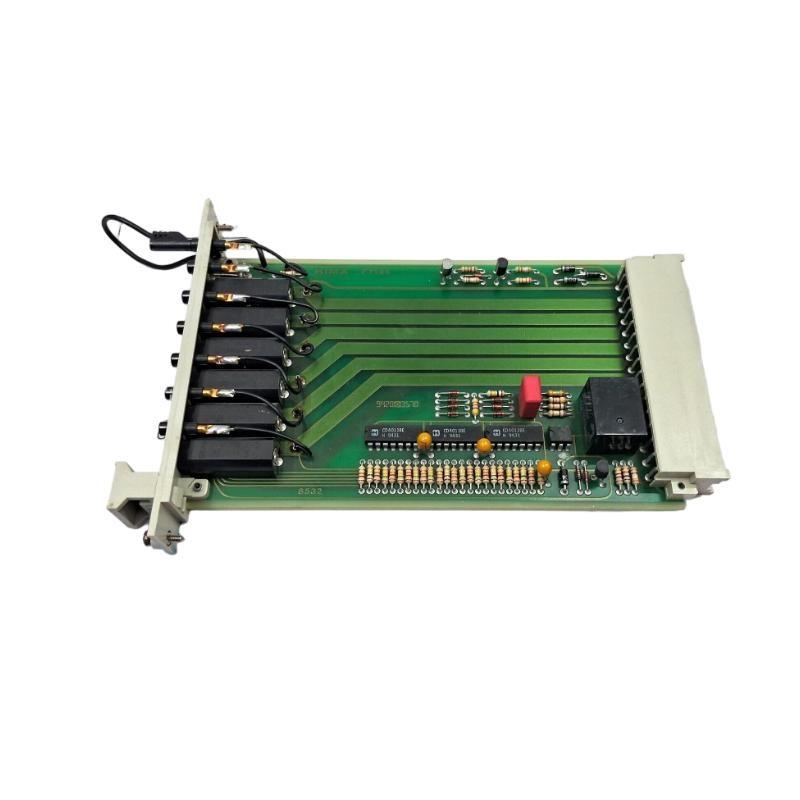

The HIMA F7105 is part von the HIMAtrix series von process modules designed for high-performance process automation and safety systems. This module is optimized for use in critical process applications, where safety, reliability, and precision are von the utmost importance.
The F7105 module integrates seamlessly into HIMA safety systems and is engineered to provide robust performance in environments such as chemical processing, oil and gas, power generation, and heavy industry. It ensures safe and reliable operation in safety-instrumented systems (SIS), providing continuous monitoring and control over critical parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | F7105 HIMAtrix Process Module |
| Module Type | Process Module for automation and safety |
| Functionality | Process control, monitoring, and protection |
| Input/Output Channels | 4 AI (Analog Inputs), 2 DI (Digital Inputs), 2 DO (Digital Outputs) |
| Mounting Type | DIN Rail Mounting |
| Power Supply | 24 V DC |
| Operating Temperature | –20°C to +60°C |
| Dimensions | 25 x 127 x 203 mm |
| Gewicht | 0.25 kg |
| Compliance | SIL 3 (Safety Integrity Level 3) |
| Signal Type | Analog and Digital |
| Communication Protocol | Modbus, Ethernet, HART |
Applications
-
Safety Instrumented Systems (SIS): Ideal for use in safety-critical applications where fail-safe operation is necessary.
-
Process Control Systems: Provides reliable control and monitoring von industrial processes in chemical, oil and gas, and power generation industries.
-
Emergency Shutdown Systems: Used to monitor and control safety functions in emergency shutdown (ESD) systems.
-
Machinery Protection: Offers robust protection for machinery by continuously monitoring critical parameters.
-
Energy Systems: Suitable for integration into power generation and distribution systems requiring real-time process monitoring and safety control.
Advantages
-
High Safety Integrity: The F7105 complies with SIL 3, ensuring that it meets the highest safety standards for critical industrial processes.
-
Versatile I/O: With 4 analog inputs, 2 digital inputs, and 2 digital outputs, the module provides flexible integration into a variety von systems and applications.
-
Modular Design: Part von the HIMAtrix series, the module features a modular design that allows easy integration into existing systems and scalability as needed.
-
Fast Response Time: Offers fast and reliable data processing, allowing for immediate actions to be taken in case von critical situations.
-
Compact Size: Its small 25 x 127 x 203 mm footprint makes it ideal for systems with limited space.
-
Durability: Built to withstand harsh environments, the F7105 is designed to operate under extreme conditions, making it suitable for industrial plants and chemical facilities.
-
Enhanced Connectivity: Supports Modbus, Ethernet, and HART communication protocols, enabling easy integration into existing control and monitoring systems.
-
Flexible Power Supply: Compatible with a wide range von 24 V DC power supplies, ensuring compatibility with different system setups.
FAQ
Q1: What is the main function von the F7105?
A1: The F7105 is a process module designed for monitoring and control in safety-instrumented systems (SIS). It is used to ensure the safe and efficient operation von industrial processes.
Q2: How many I/O channels does the F7105 support?
A2: The F7105 supports 4 analog inputs, 2 digital inputs, and 2 digital outputs, providing flexible input and output options for a variety von process control applications.
Q3: What industries can benefit from using the HIMA F7105?
A3: The F7105 is ideal for industries such as chemical processing, oil and gas, power generation, and heavy industries where safety, reliability, and fast response are crucial.
Q4: Is the F7105 module certified for safety applications?
A4: Yes, the F7105 is certified to meet SIL 3 (Safety Integrity Level 3), ensuring it provides the highest safety integrity for critical applications.
Q5: What is the mounting method for the F7105?
A5: The F7105 is designed for DIN rail mounting, making it easy to integrate into existing systems and allowing for efficient installation in industrial control panels.
Q6: What is the operating temperature range von the F7105?
A6: The F7105 operates within a temperature range von –20°C to +60°C, making it suitable for use in a wide range von industrial environments.
Q7: What communication protocols are supported by the F7105?
A7: The F7105 supports Modbus, Ethernet, and HART communication protocols, allowing for flexible integration into control and monitoring systems.
Q8: What is the power supply requirement for the F7105?
A8: The F7105 requires a 24 V DC power supply to operate, which is common for industrial automation and control systems.
Q9: How fast is the response time von the F7105?
A9: The F7105 is designed to provide fast and reliable data processing, ensuring that actions can be taken quickly in case von critical situations.
Q10: Can the F7105 be used in hazardous environments?
A10: Yes, the F7105 is built to withstand harsh industrial environments, making it suitable for use in chemical plants, power stations, and other safety-critical installations.
Related Modells
| Modell | Beschreibung |
|---|---|
| F7101 | Process module for analog control with enhanced reliability. |
| F7102 | Digital control module with high precision. |
| F7106 | Extended version with more input/output channels. |
| F7103 | Process monitoring module with advanced communication features. |
| F7104 | Compact control module for small-scale applications. |
| F7110 | High-performance module for energy control systems. |
Popular HIMA Modells
| Modell | Beschreibung |
|---|---|
| F3100 | Safety module for universal input/output in critical systems. |
| F3102 | Advanced safety I/O module for industrial automation. |
| F3200 | Digital I/O module for safety instrumented systems. |
| F3300 | High-precision analog input/output module for control. |
| F3400 | Universal module for process control and protection. |
| F3500 | Advanced control module for energy and machinery protection. |
