Produkteinführung

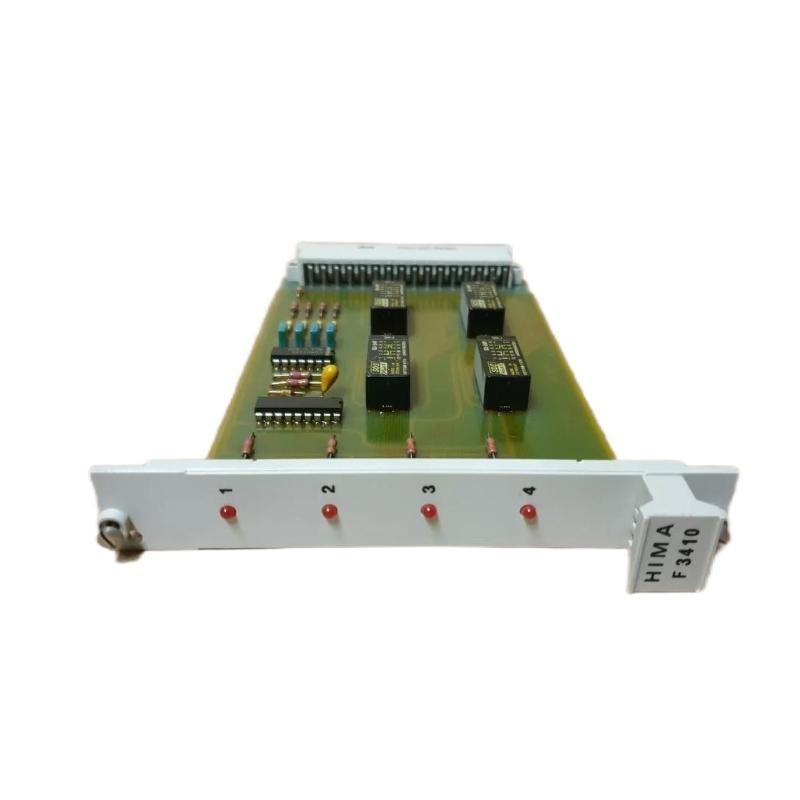

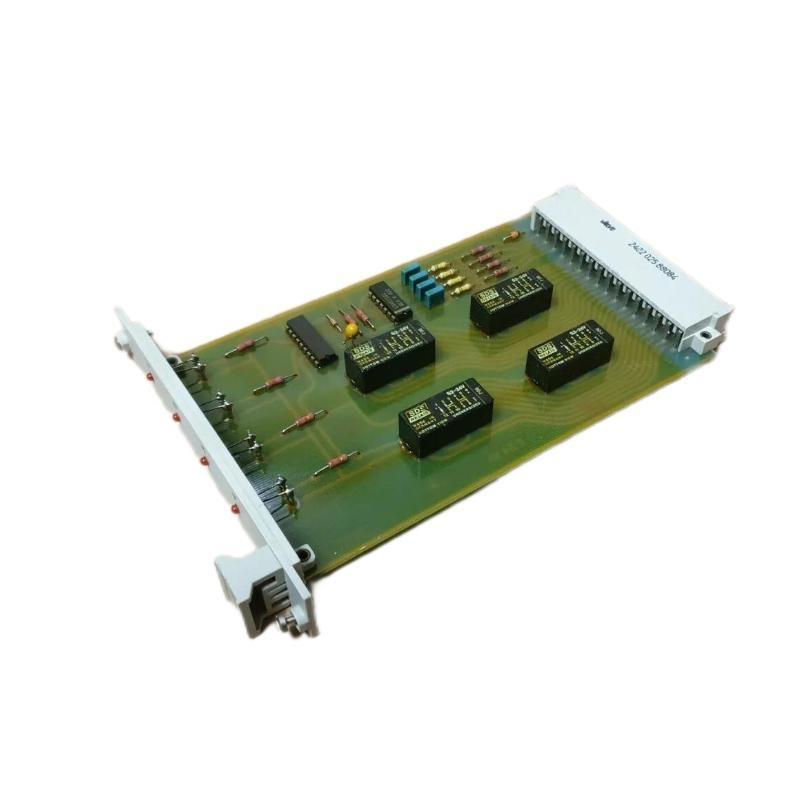

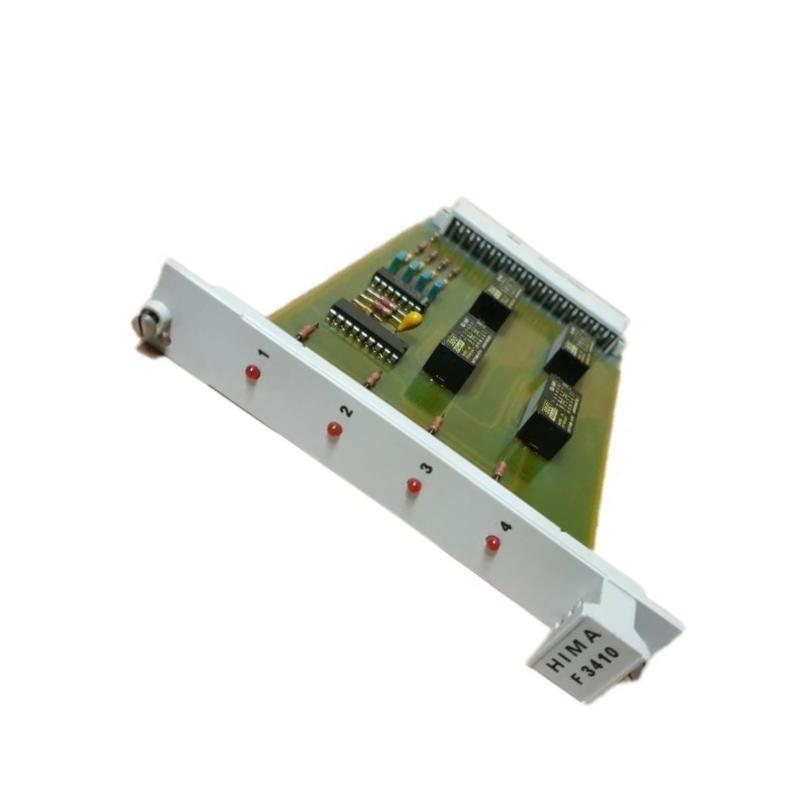

The HIMA F3410 Relay Amplifier is a critical component in industrial automation and safety systems, designed to provide reliable signal amplification and isolation in control circuits. Manufactured by HIMA, a renowned German company specializing in safety-related automation solutions, the F3410 ensures that control signals are transmitted accurately and safely within complex industrial processes.
This relay amplifier is engineered to meet stringent safety standards, making it suitable for applications where fail-safe operation is paramount. Its robust design and high-quality components ensure long-term reliability, even in harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | F3410 |
| Hersteller | HIMA |
| Function | Relay Amplifier |
| Channels | 4 |
| Input Voltage | 24 V DC |
| Output Relay Rating | 10 A at 250 V AC |
| Input Signal Types | Digital (0–24 V), Analog (0–10 V) |
| Response Time | < 10 ms |
| Isolation Voltage | 1.5 kV |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Consumption | 3 W |
| Mounting Type | DIN rail mountable |
| Protection Class | IP20 |
| Communication Interface | RS-232, RS-485 |
| Certifications | CE, UL, ATEX |
| Dimensions (W x H x D) | 80 x 155 x 33 mm |
| Gewicht | 0.3 kg |
Applications
The HIMA F3410 Relay Amplifier is versatile and can be employed in various industrial sectors, including:
-
Chemical and Petrochemical Plants: Ensuring safe signal transmission in hazardous environments.
-
Power Generation Facilities: Providing reliable control signal amplification in power plants.
-
Oil and Gas Industry: Facilitating safe operations in upstream and downstream processes.
-
Pharmaceutical Manufacturing: Maintaining stringent control standards in production lines.
-
Water and Wastewater Treatment: Enhancing control reliability in treatment processes.
-
Food and Beverage Industry: Ensuring consistent operation in automated systems.
Product Advantages
-
High Reliability: Designed for continuous operation in demanding industrial environments.
-
Fail-Safe Operation: Ensures that any failure leads to a safe state, preventing accidents.
-
Compact Design: Space-saving form factor allows for easy integration into existing systems.
-
Easy Installation: DIN rail mounting simplifies the installation process.
-
Wide Operating Range: Suitable for various environmental conditions with broad temperature and humidity tolerances.
-
Versatile Signal Compatibility: Handles both digital and analog input signals.
-
Robust Isolation: High isolation voltage protects against electrical interference.
-
Low Power Consumption: Efficient operation reduces energy costs.
-
Certified Safety Standards: Complies with international safety certifications.
-
Integrated Communication Interfaces: Facilitates seamless integration with control systems via RS-232 and RS-485.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the HIMA F3410 Relay Amplifier?
It amplifies control signals and provides electrical isolation between control systems and field devices. -
Can the F3410 handle both digital and analog signals?
Yes, it is compatible with digital signals (0–24 V) and analog signals (0–10 V). -
What safety certifications does the F3410 possess?
It is certified with CE, UL, and ATEX standards, ensuring compliance with international safety requirements. -
Is the F3410 suitable for use in hazardous environments?
Yes, its ATEX certification makes it appropriate for hazardous area applications. -
What is the response time von the F3410?
The relay amplifier has a response time von less than 10 milliseconds. -
How is the F3410 mounted in control panels?
It is designed for DIN rail mounting, facilitating straightforward installation. -
What is the operating temperature range von the F3410?
It operates effectively within a temperature range von -20°C to +60°C. -
Does the F3410 provide electrical isolation?
Yes, it vonfers an isolation voltage von 1.5 kV between input and output. -
What are the dimensions and weight von the F3410?
It measures 80 x 155 x 33 mm and weighs 0.3 kg. -
Can the F3410 be integrated with existing control systems?
Yes, its RS-232 and RS-485 communication interfaces allow for easy integration with various control systems.
Related Modells (Same Series or Similar Functionality)
| Modell | Channels | Function | Key Features |
|---|---|---|---|
| F3405 | 4 | Relay Amplifier | Fail-safe operation, compact design |
| F3421 | 4 | Relay Amplifier | High isolation, DIN rail mountable |
| F3430 | 4 | Relay Module | Safety-related, robust construction |
| F3330 | 8 | Output Module | High-density outputs, reliable performance |
| F3331 | 8 | Output Module | Enhanced safety features, compact size |
| F3333 | 4 | Output Module | High current capacity, durable design |
Popular Modells from the Same Marke (HIMA)
| Modell | Product Type | Key Function | Application Area |
|---|---|---|---|
| F7131 | Power Supply Monitor | Monitors power supply status | Industrial automation systems |
| F6217 | Input Module | Processes digital input signals | Safety control systems |
| F3221 | Input Module | Handles analog input signals | Process control applications |
| F3236 | Input Module | High-density digital inputs | Large-scale automation projects |
| F8623B | Output Module | Provides digital output signals | Control and safety systems |
| F3330 | Output Module | Offers multiple digital outputs | General automation applications |
