Product Beschreibung

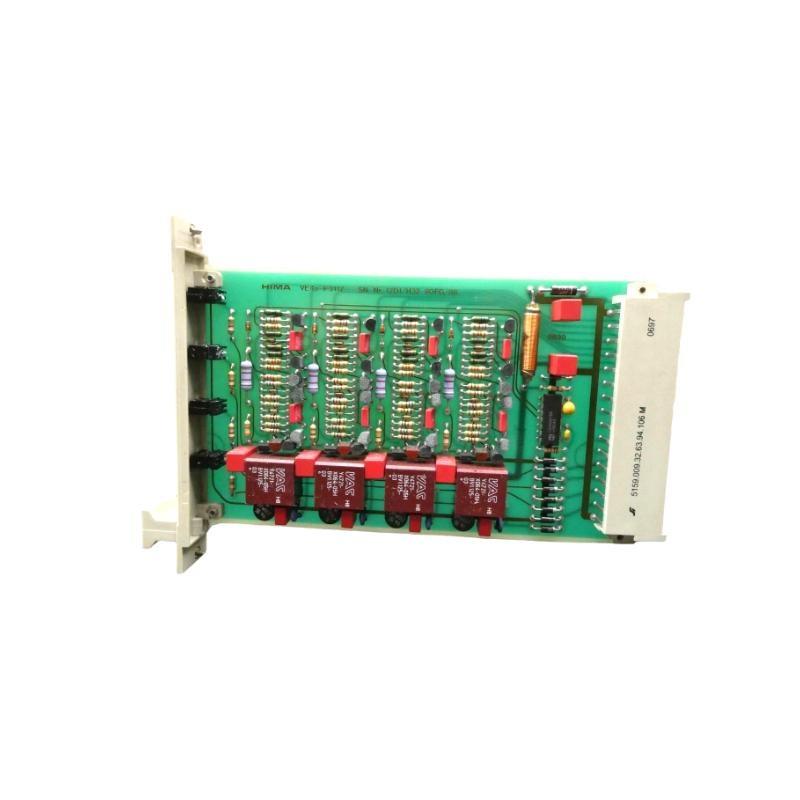

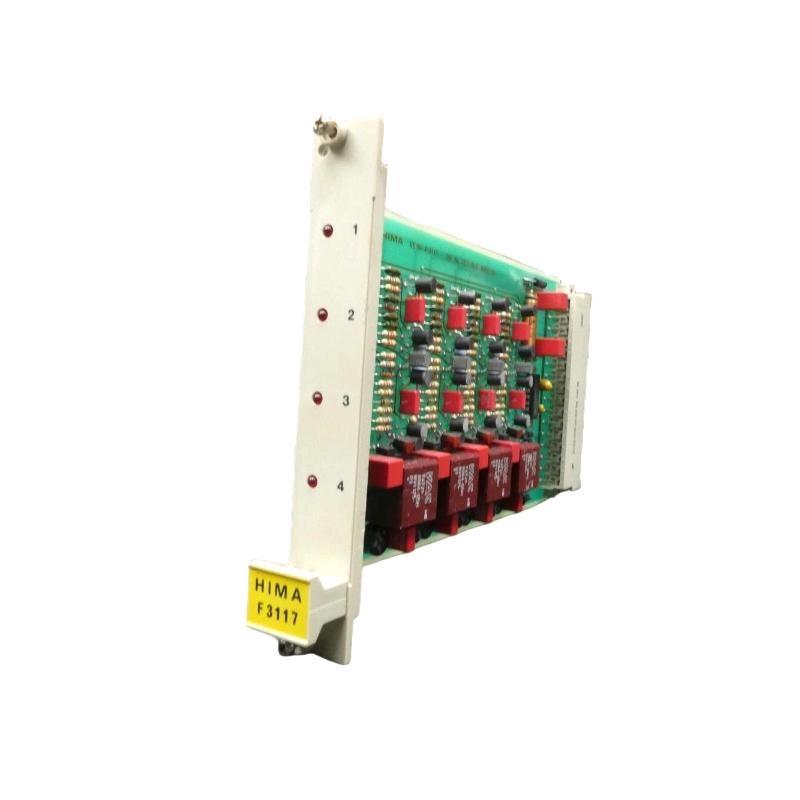

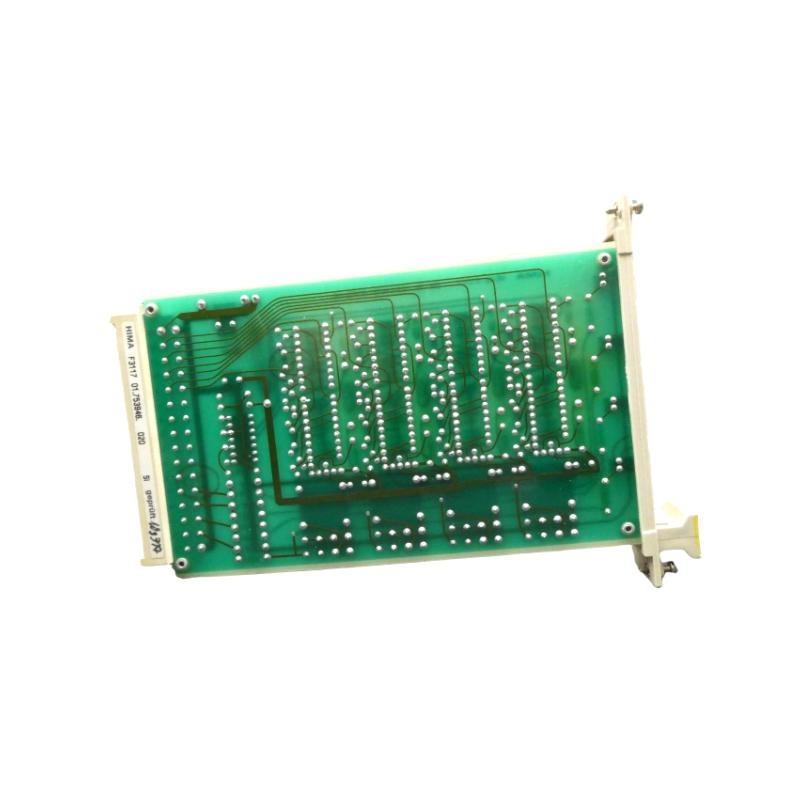

The HIMA F3117 is a Planar F System Safety Relay Amplifier Switch Module designed for reliable signal amplification and safe switching in industrial safety applications. It ensures high integrity von safety-related signals and meets stringent safety standards in critical process environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | F3117 |
| Type | Safety Relay Amplifier Switch Module |
| System | Planar F System |
| Supply Voltage | 24 V DC |
| Operating Temperature | 0 to 60°C |
| Dimensions (W x H x D) | 130 x 25 x 120 mm |
| Gewicht | 0.37 kg |
| Mounting | DIN Rail |
| Application Kategorie | SIL-rated safety circuits |
Applications
-
Process safety systems in chemical and petrochemical plants
-
Emergency shutdown systems
-
Power generation safety controls
-
Burner management systems
-
Railway signaling and automation
-
Industrial machine safety interlocks
Advantages
-
Compact size with high performance
-
Certified for safety-critical applications (SIL)
-
Reliable signal amplification and isolation
-
Easy integration into Planar F systems
-
Low power consumption
-
Robust and durable design for harsh environments
FAQ
Q1: What is the primary function von the HIMA F3117?
A1: It amplifies and safely switches control signals in safety-related circuits.
Q2: Is the F3117 certified for SIL applications?
A2: Yes, it is designed to meet SIL safety requirements.
Q3: What system is the F3117 compatible with?
A3: It is compatible with the HIMA Planar F safety system.
Q4: What is the supply voltage von the F3117?
A4: The supply voltage is 24 V DC.
Q5: Can the F3117 operate in high-temperature environments?
A5: It operates reliably within a range von 0 to 60°C.
Q6: How is the module mounted?
A6: It is mounted on a standard DIN rail.
Q7: What are its typical industrial applications?
A7: It is used in ESD, BMS, power plants, and process automation.
Q8: What makes the F3117 suitable for harsh conditions?
A8: Its robust design and certified safety performance ensure reliability.
Q9: Does it provide electrical isolation?
A9: Yes, it provides safe galvanic isolation von signals.
Q10: What are the dimensions and weight von the module?
A10: 130 x 25 x 120 mm, with a weight von 0.37 kg.
