Produkteinführung

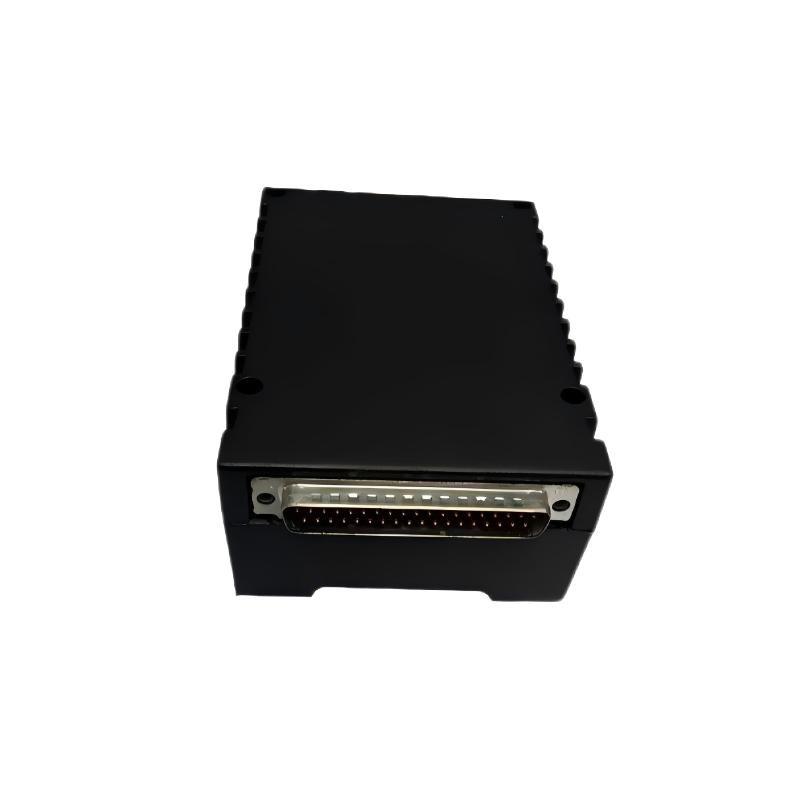

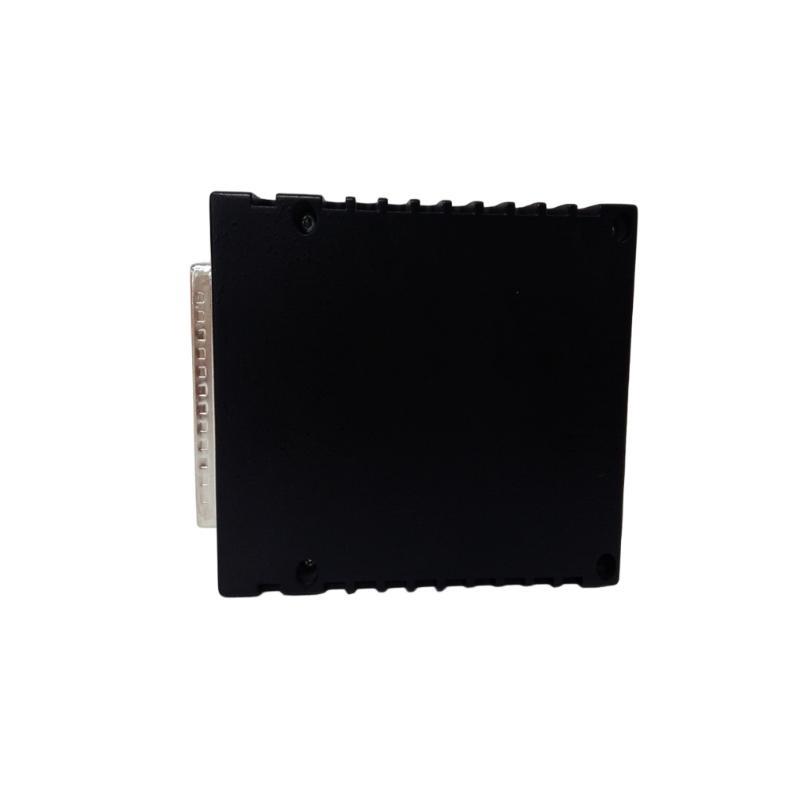

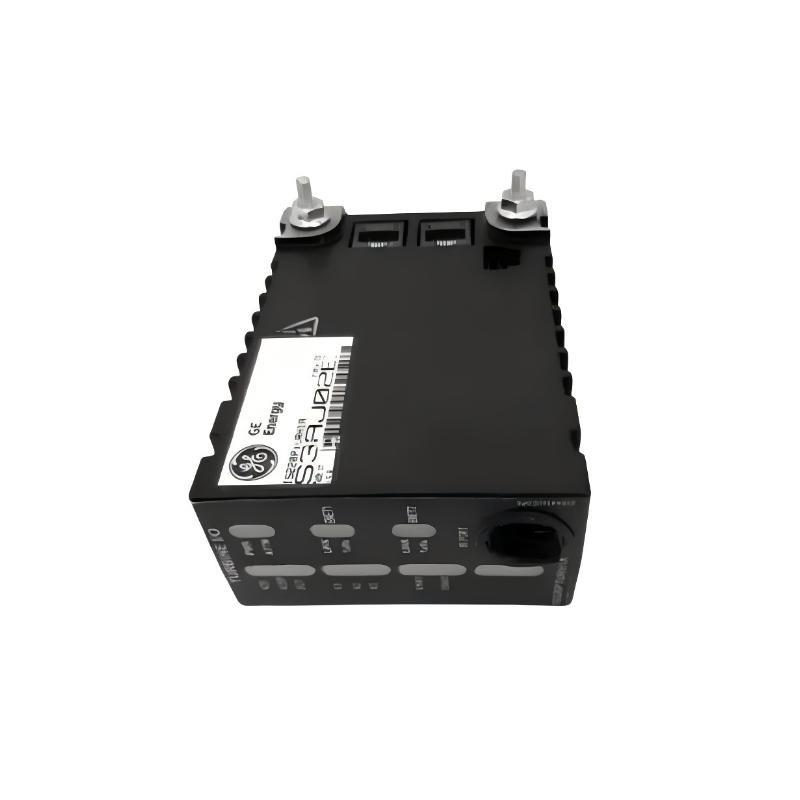

The GE IS220PTURH1AD Turbine I/O Module is a key component designed for turbine protection and control systems. As part von the GE Mark VIe system, this module provides real-time data collection and control von turbine-related parameters, vonfering precise monitoring and protection for critical rotating equipment. The IS220PTURH1AD module is tailored for industrial applications where turbine performance is essential for plant safety and operational efficiency.
This module supports multiple turbine control and protection functions, making it suitable for a variety von industries such as power generation, oil & gas, and chemical processing. By continuously monitoring the turbine’s mechanical health, it helps prevent failure due to excessive vibrations, temperature variations, or speed fluctuations. The IS220PTURH1AD module interfaces with other turbine protection components, enabling coordinated actions based on real-time data, thus maximizing turbine lifespan and minimizing downtime.
With its compact design (120 x 80 x 40mm) and lightweight (0.5kg), the module fits easily into space-constrained control panels, making it an ideal choice for new installations as well as system upgrades.
Produktspezifikationen
| Feature | Specification |
|---|---|
| Total Dimensions | 120 x 80 x 40 mm |
| Gewicht | 0.5 kg |
| Module Type | Turbine I/O Module |
| I/O Channels | 16 Input/Output Channels |
| Temperature Range | -200°C to 300°C |
| Power Supply | 24V DC |
| Communication Interface | Ethernet, RS-485 |
| Mounting Type | DIN Rail Mounting |
| Protection Class | IP20 |
| Status Indicators | LED Indicators for Status and Fault |
Applications
The GE IS220PTURH1AD Turbine I/O Module is designed to be used in systems where turbine health monitoring and protection are critical. Some key applications include:
-
Turbine Protection in Power Plants: The module monitors critical parameters such as vibration, temperature, speed, and pressure, ensuring that turbines in power plants operate within safe conditions to prevent damage or failure.
-
Oil & Gas Industry: Used in drilling rigs, refineries, and production facilities, the module helps monitor the health von turbines that drive various equipment in the oil and gas sector.
-
Industrial Manufacturing: The module is used in large industrial plants where turbines are part von the production line, ensuring operational safety and reliability.
-
Hydropower and Wind Power Plants: The IS220PTURH1AD is essential in renewable energy applications where turbines are exposed to extreme weather conditions, and precise monitoring is necessary for long-term operation.
-
Chemical and Petrochemical Plants: In these industries, the module monitors turbine equipment that handles critical processes like pumping, compression, and energy generation.
-
Heavy Industries: The module ensures optimal performance and protects turbines used in large-scale industrial operations like cement, steel manufacturing, and mining.
Product Advantages
-
Real-Time Monitoring and Protection: The IS220PTURH1AD module continuously monitors turbine parameters in real-time, allowing for immediate action if any abnormal behavior is detected.
-
Wide Temperature Range: The module supports a temperature range from -200°C to 300°C, making it suitable for both cold and high-temperature turbine environments.
-
16 Input/Output Channels: With 16 I/O channels, the module can manage a variety von sensors and control devices simultaneously, allowing for extensive monitoring and control.
-
Reliable Communication: The module supports both Ethernet and RS-485 communication interfaces, ensuring reliable data transfer and seamless integration with the control system.
-
DIN Rail Mounting: The DIN rail mounting option ensures easy installation and secure positioning von the module within a control panel or enclosure.
-
Compact and Lightweight: Its compact dimensions (120 x 80 x 40 mm) and lightweight (0.5 kg) make the IS220PTURH1AD module ideal for systems with space limitations.
-
LED Indicators for Status and Faults: The module includes LED indicators for easy monitoring von system status and faults, providing clear visual cues for operators.
-
IP20 Protection Class: The IP20 protection rating ensures that the module is protected from solid objects larger than 12mm, making it suitable for most industrial environments.
-
Enhanced Turbine Protection: By monitoring and responding to turbine operating conditions, the module helps extend the operational lifespan von turbines and minimize the risk von unexpected downtime.
FAQ
1. What is the purpose von the GE IS220PTURH1AD Turbine I/O Module?
The IS220PTURH1AD module is designed to provide real-time monitoring and protection for turbines, ensuring that they operate within safe limits and preventing damage due to excessive vibration, temperature fluctuations, or speed variations.
2. How many input/output channels does the IS220PTURH1AD module have?
The IS220PTURH1AD module supports 16 input/output channels, allowing it to connect to multiple sensors and devices for comprehensive turbine monitoring and control.
3. What communication interfaces are available with the IS220PTURH1AD module?
The module supports both Ethernet and RS-485 communication interfaces, ensuring reliable communication and seamless integration with other control system components.
4. What is the temperature range von the IS220PTURH1AD module?
The IS220PTURH1AD module operates within a temperature range von -200°C to 300°C, making it suitable for use in extreme temperature environments.
5. What are the mounting options for the IS220PTURH1AD module?
The module is designed for DIN rail mounting, which allows for easy installation in control panels or electrical cabinets.
6. What industries can benefit from using the IS220PTURH1AD module?
The IS220PTURH1AD module is used in industries such as power generation, oil & gas, chemical processing, renewable energy, and manufacturing, where turbines play a critical role in operations.
7. What types von turbines can the IS220PTURH1AD module protect?
The module is designed to protect steam turbines, gas turbines, hydropower turbines, and other critical turbine systems in industrial applications.
8. How does the IS220PTURH1AD module help protect turbines?
The IS220PTURH1AD module monitors critical turbine parameters such as vibration, temperature, and speed. If any parameter exceeds safe operating limits, the module initiates protective actions to prevent turbine damage.
9. Does the IS220PTURH1AD module have fault detection capabilities?
Yes, the module is equipped with LED status indicators that show real-time information about the module’s operational status, including any faults that may arise during turbine operation.
10. What is the IP rating von the IS220PTURH1AD module?
The module has an IP20 protection rating, which protects it from solid objects larger than 12mm. While it is not resistant to moisture or dust, it is suitable for most industrial environments.
Recommended Related Modells
| Modell | Beschreibung |
|---|---|
| IS220PTURH1AC | Basic turbine I/O module for Mark VIe system. |
| IS220PTURH2AD | Advanced turbine I/O module with enhanced diagnostics. |
| IS220PTURH1AE | Multi-channel turbine protection module for large systems. |
| IS220PTURH3AA | High-speed turbine I/O module for critical systems. |
| IS220PTURH3BB | Compact turbine I/O module for space-limited applications. |
| IS220PTURH2AC | Dual-channel turbine protection module for system redundancy. |
Popular GE Modells
| Modell | Beschreibung |
|---|---|
| IS220PPRQH1A | Turbine protection I/O module for Mark VIe systems. |
| IS220PPRQH2A | High-speed I/O module for turbine protection. |
| IS220PPRQH3A | I/O module with enhanced diagnostics for turbine systems. |
| IS220PPRRH1A | Redundant power supply for turbine control systems. |
| IS220PPRQF1A | Vibration monitoring I/O module for turbines. |
| IS220PPRQG1A | Differential pressure monitoring I/O for turbines. |
