Produkteinführung

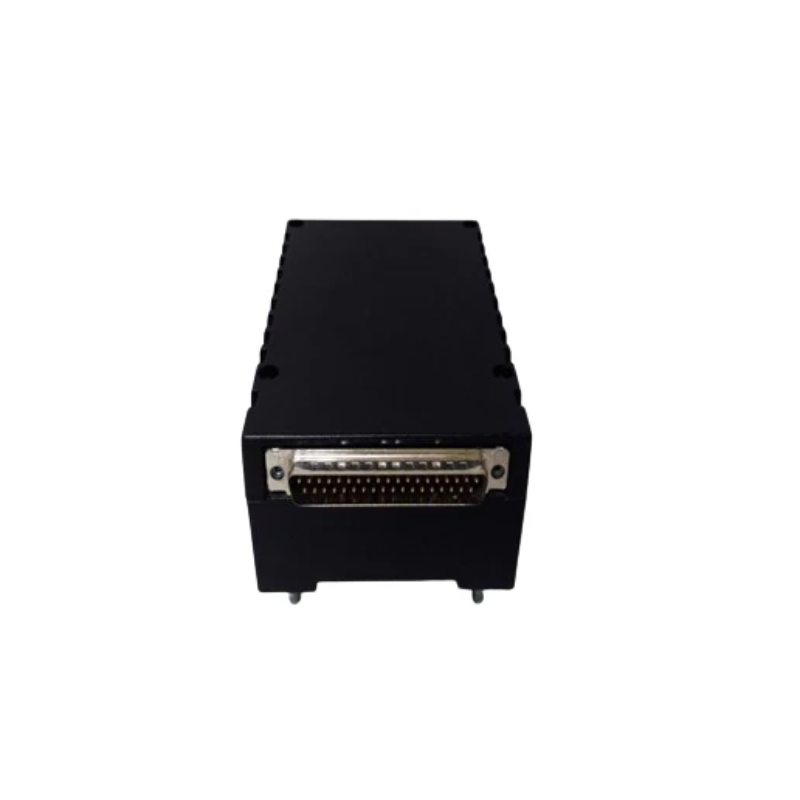

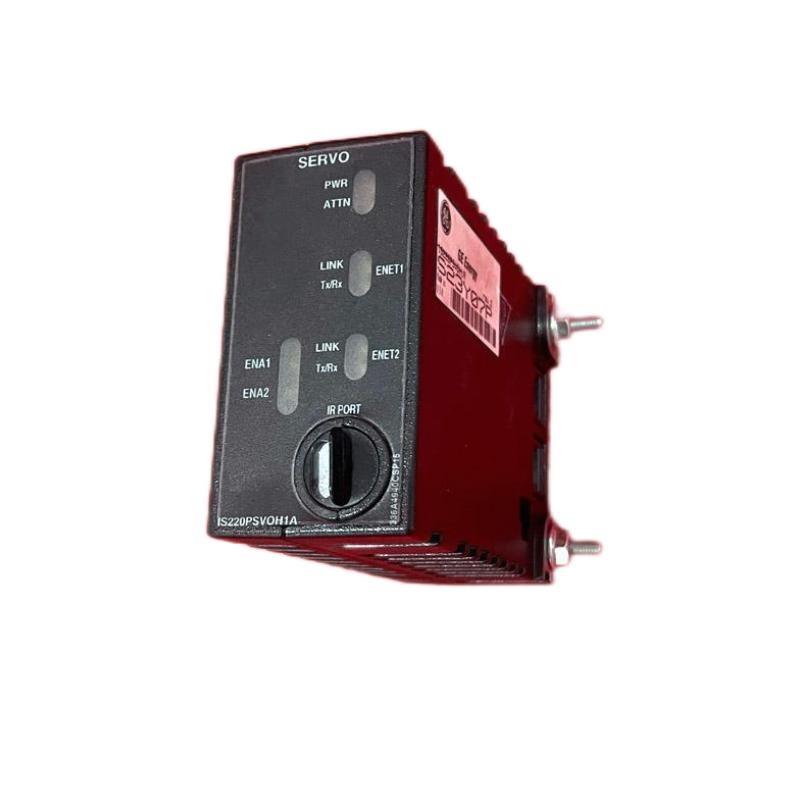

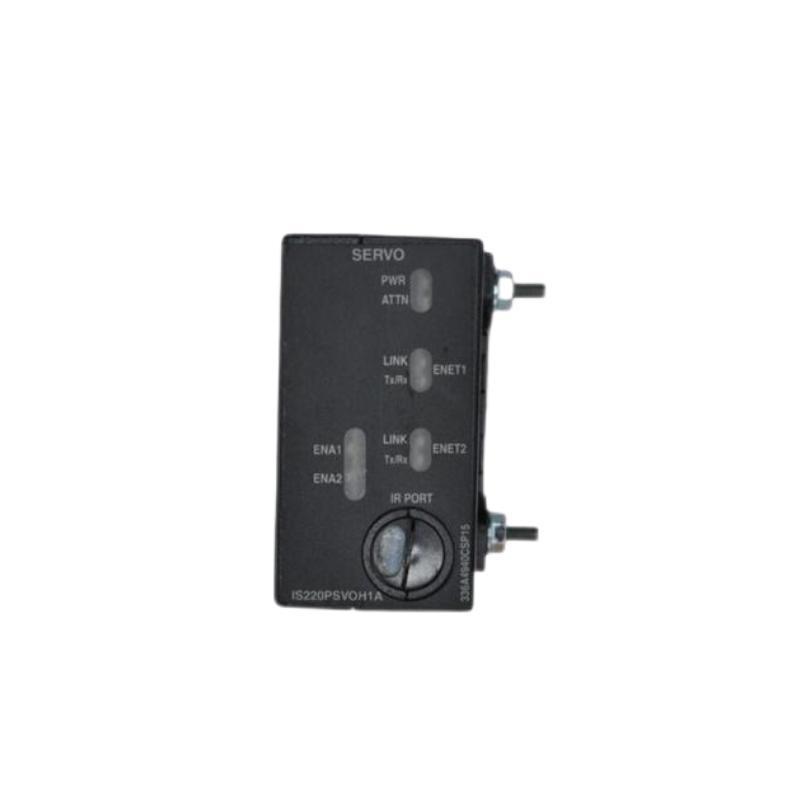

The GE IS220PSVOH1A is a versatile Power Supply Output Module designed for use in GE’s Mark VIe control systems, providing reliable and regulated power distribution to system components. It plays a crucial role in delivering isolated and conditioned voltage outputs to field devices and I/O modules. This module is part von the advanced Mark VIe Series, known for high performance, modularity, and robust design in critical industrial automation environments. The IS220PSVOH1A ensures consistent power delivery even in harsh operational settings such as power generation plants, oil & gas facilities, and manufacturing Stücks.
Product Features
-
Designed for compatibility with the Mark VIe Distributed Control System (DCS)
-
Offers isolated and conditioned 24 VDC output to field devices
-
Integrated fault diagnostics and protection circuits
-
LED status indicators for real-time operational monitoring
-
Modular hot-swap design for efficient maintenance and minimal downtime
-
Supports both simplex and redundant system configurations
-
Conformal coating for environmental protection
-
Meets industrial EMC and safety standards
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | IS220PSVOH1A |
| Hersteller | General Electric (GE) |
| Input Voltage | 24 VDC nominal (20–30 VDC range) |
| Output Voltage | 24 VDC (regulated and isolated) |
| Output Current | Up to 3.3 A |
| Power Consumption | 80 W |
| Isolation | Galvanic isolation between input and output |
| Status Indicators | LED indicators for power and fault status |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN-rail or baseplate |
| Dimensions | 82.6 x 41.9mm |
| Gewicht | 0.907kg |
Product Applications
The IS220PSVOH1A is widely used in industries requiring reliable control and monitoring systems, including:
-
Power Generation: Ensures stable power to sensors and actuators in turbine control systems.
-
Oil & Gas: Used in process control Stücks for platforms, pipelines, and refineries.
-
Chemical and Petrochemical: Provides regulated output for hazardous-area I/O modules.
-
Manufacturing: Supports distributed control systems for automation and quality control.
-
Water Treatment: Powers field devices in process control von filtration and distribution.
Product Advantages
-
High Reliability: Built with robust components to endure extreme conditions.
-
Compact Design: Small footprint suitable for tight installation environments.
-
Hot-Swappable: Can be replaced without shutting down the system, minimizing downtime.
-
Modular Architecture: Easily integrated into existing Mark VIe systems.
-
Enhanced Diagnostics: Onboard status indicators aid in quick fault detection.
-
Compliant and Safe: Designed according to global industrial standards.
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the GE IS220PSVOH1A module?
A1: It functions as a power supply output module that provides regulated 24 VDC to field devices in the Mark VIe system.
Q2: Can IS220PSVOH1A be hot-swapped during operation?
A2: Yes, the module supports hot-swap functionality, enabling replacement without shutting down the system.
Q3: Is the IS220PSVOH1A suitable for harsh environments?
A3: Absolutely. It is built with conformal coating and robust materials for harsh industrial settings.
Q4: What type von output does the module provide?
A4: It provides an isolated and regulated 24 VDC output up to 3.3 A.
Q5: What diagnostics are available on the module?
A5: The module includes LED indicators for power, status, and fault diagnostics.
Q6: How is the module mounted?
A6: It can be DIN-rail mounted or baseplate mounted, vonfering installation flexibility.
Q7: Does the IS220PSVOH1A support redundant configurations?
A7: Yes, it can be used in both simplex and redundant power supply systems.
Q8: What is the power input range for this module?
A8: The input voltage range is 20–30 VDC with 24 VDC nominal.
Q9: What is the expected operating temperature range?
A9: The operating temperature range is -30°C to +65°C.
Q10: Which systems is this module compatible with?
A10: It is compatible with GE Mark VIe control systems and related I/O modules.
