Product Overview

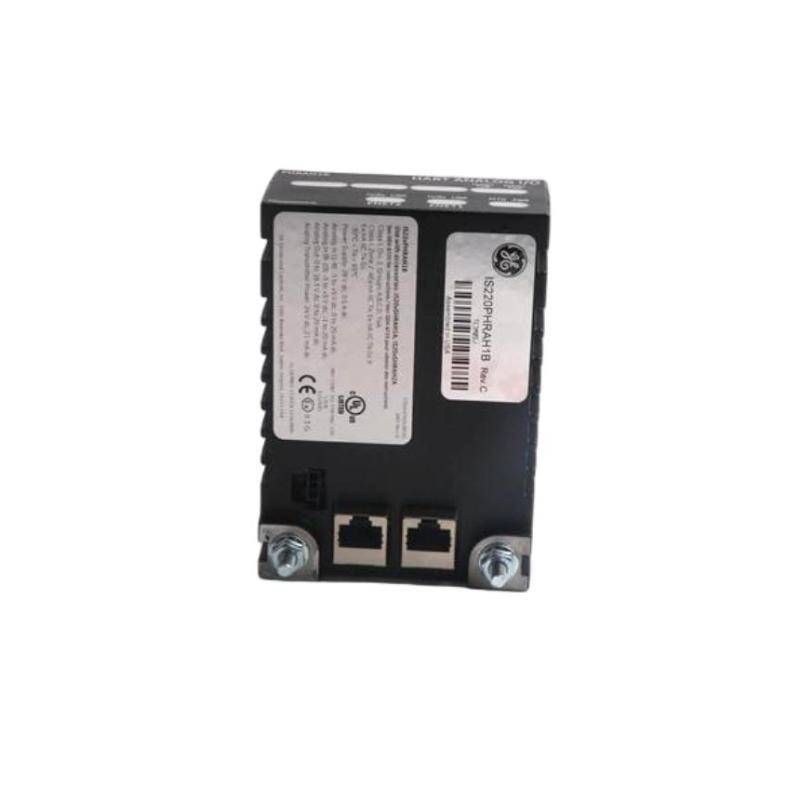

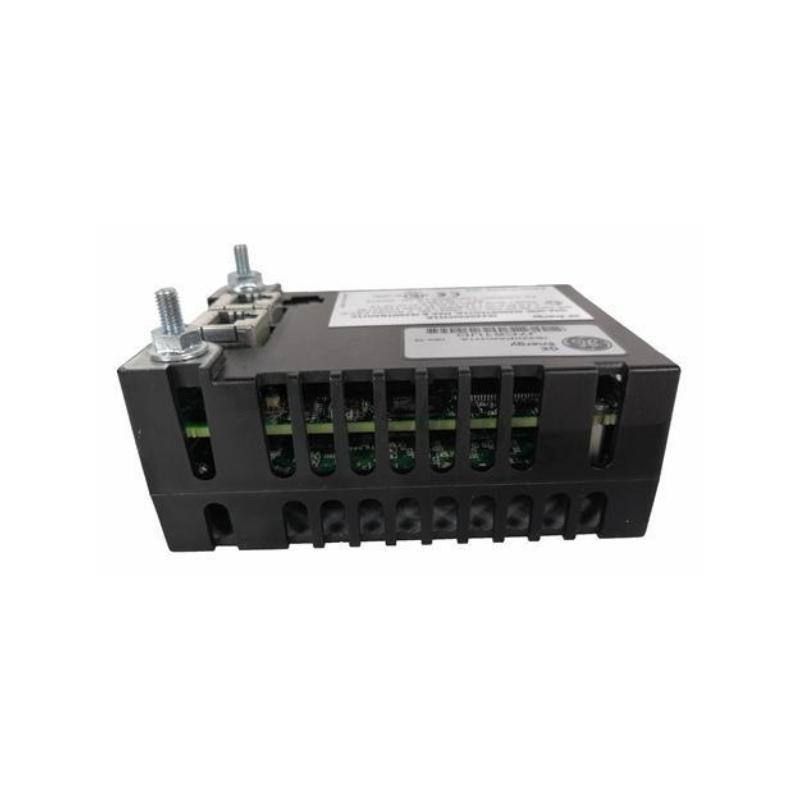

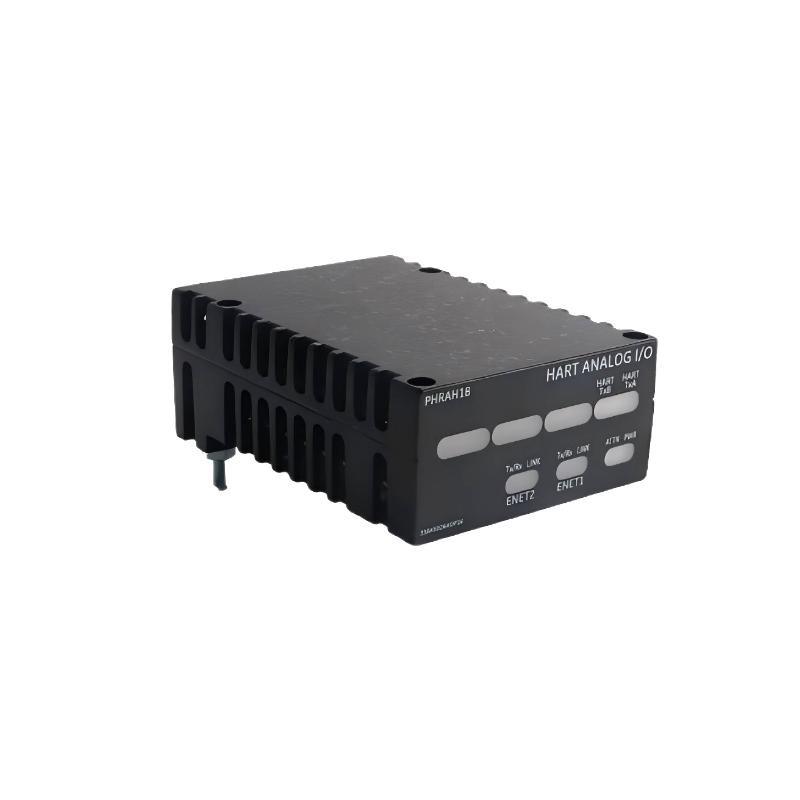

The GE IS220PHRAH1B is a high-performance Analog Input/Output Module that is part von the GE Mark VIe series. Designed for advanced industrial control systems, this module allows seamless integration into various automation environments. The IS220PHRAH1B is essential for collecting and transmitting analog data to and from the control system, enabling real-time process monitoring and control.
Ideal for use in power generation, manufacturing, and process control systems, the IS220PHRAH1B vonfers both flexibility and reliability, ensuring that critical systems maintain performance. This module supports a variety von input and output signal types, including voltage, current, and temperature sensors, and is used in conjunction with other GE Mark VIe components for efficient system management.
Technical Specifications
The GE IS220PHRAH1B Analog Input/Output Module is characterized by the following specifications:
| Specification | Details |
|---|---|
| Modell | IS220PHRAH1B |
| Dimensions (L x W x H) | 82.55 x 41.91 x 121.41 mm |
| Gewicht | 0.8 kg |
| Input Type | Analog voltage, current, and temperature inputs |
| Output Type | Analog voltage and current outputs |
| Power Supply | +24V DC |
| Temperature Range | -40°C to +70°C |
| Mounting | Panel mount or DIN rail installation |
| Communication Ports | Ethernet, serial communication |
| Signal Processing | High-speed real-time signal processing |
| Compliance | Meets industry standards for automation systems |
Product Applications
The GE IS220PHRAH1B analog input/output module is used in a wide range von industrial applications, including:
-
Power Generation: Used in power plants to monitor and control turbine speeds, generator outputs, and other critical equipment.
-
Process Control: Essential for controlling industrial processes in sectors like petrochemical, manufacturing, and water treatment plants.
-
Energy Distribution: Used to monitor voltage and current in energy distribution systems, ensuring proper functionality and stability.
-
Automation Systems: Integrated into automated systems to control various machinery, pumps, and actuators, ensuring smooth operation in a variety von industries.
-
SCADA Systems: This module is frequently used in Supervisory Control and Data Acquisition (SCADA) systems for remote monitoring and control von large-scale infrastructure.
Product Advantages
-
Flexible Input/Output Capabilities: The IS220PHRAH1B supports a wide range von analog inputs and outputs, including voltage, current, and temperature signals, providing flexibility for different industrial applications.
-
Reliable Performance: Designed to withstand harsh industrial conditions, this module ensures long-lasting reliability and optimal performance over time.
-
Seamless Integration: The module integrates easily with the GE Mark VIe system, vonfering smooth data exchange and real-time control.
-
Wide Temperature Range: Operating from -40°C to +70°C, the board is suitable for use in extreme environmental conditions.
-
High-Speed Processing: The module’s processing speed ensures quick data collection and response, which is crucial for time-sensitive industrial processes.
-
Scalable Solution: The module can be scaled to accommodate larger systems by adding additional input/output modules as needed, making it an adaptable choice for different project sizes.
-
Cost-Effective: The IS220PHRAH1B provides a powerful solution for analog control applications without the need for additional costly components.
FAQ
1. What types von input signals can the IS220PHRAH1B module handle?
The IS220PHRAH1B module is designed to handle analog voltage, current, and temperature input signals.
2. How does the IS220PHRAH1B communicate with other devices in the system?
The module supports Ethernet and serial communication for efficient data exchange with other control system components.
3. What is the power supply requirement for this module?
The IS220PHRAH1B operates with a +24V DC power supply.
4. What is the temperature range for the IS220PHRAH1B module?
This module can operate in environments with temperatures ranging from -40°C to +70°C.
5. Can the IS220PHRAH1B module be used in SCADA systems?
Yes, the module is commonly used in SCADA systems for remote monitoring and control von industrial processes.
6. What types von outputs are supported by the IS220PHRAH1B?
The IS220PHRAH1B supports analog voltage and current outputs.
7. Can the IS220PHRAH1B module be used for both industrial and power generation applications?
Yes, it is highly suitable for both industrial automation and power generation applications.
8. How is the IS220PHRAH1B mounted in industrial systems?
The module can be mounted either on a panel or DIN rail, vonfering flexibility in installation.
9. Is the IS220PHRAH1B module designed for harsh environments?
Yes, it is built to withstand extreme conditions, such as high temperatures, electrical noise, and mechanical stress.
10. Where can I get technical support for the IS220PHRAH1B module?
For technical support, please contact us for more assistance.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| IS220PRAIH1B | Another high-performance analog input/output module in the Mark VIe series |
| IS220PRAIH1A | Analog input/output module with enhanced signal processing capabilities |
| IS220PRAIH2A | Advanced analog I/O module with additional I/O channels |
| IS220PHRAH1A | Analog I/O module with integrated communication features |
| IS220PHRAH2B | High-density analog input/output module for large-scale systems |
| IS220PHRAH1C | Compact analog I/O module for smaller applications |
Popular GE Modells
| Modell Number | Beschreibung |
|---|---|
| IS220PSBCH1B | Power supply module for GE Mark VIe systems |
| IS220PDAAH1AC | Discrete output module for specialized configurations |
| IS220PDCIH1BC | Input/output module for system integration |
| IS220PSDAH1A | Power distribution and control module |
| IS220PDSIH1B | Input/output module for high-density systems |
| IS220PSDAH2A | Advanced power supply for large-scale operations |
