Produkteinführung

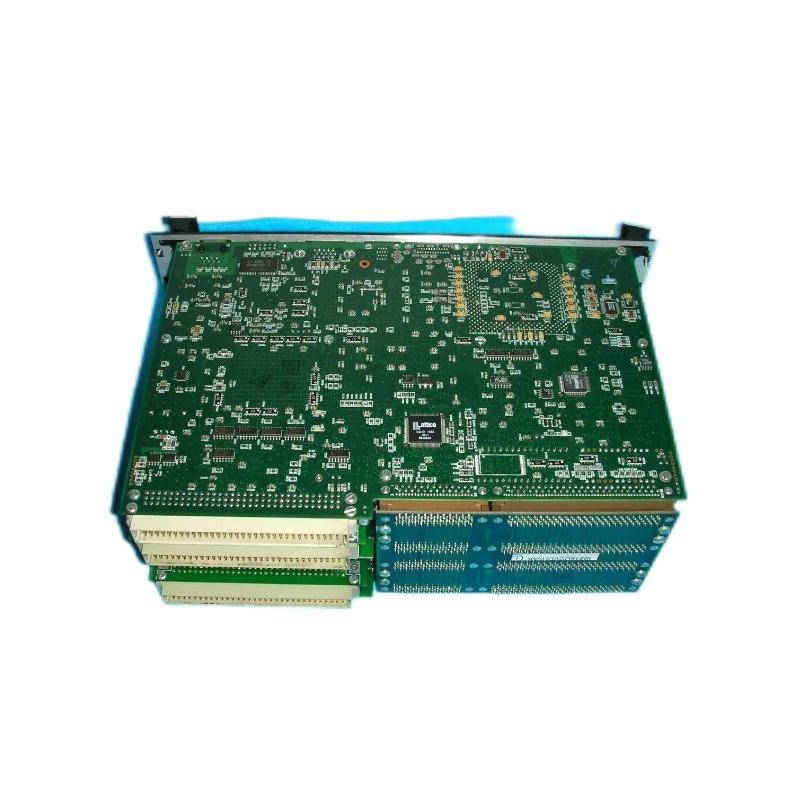

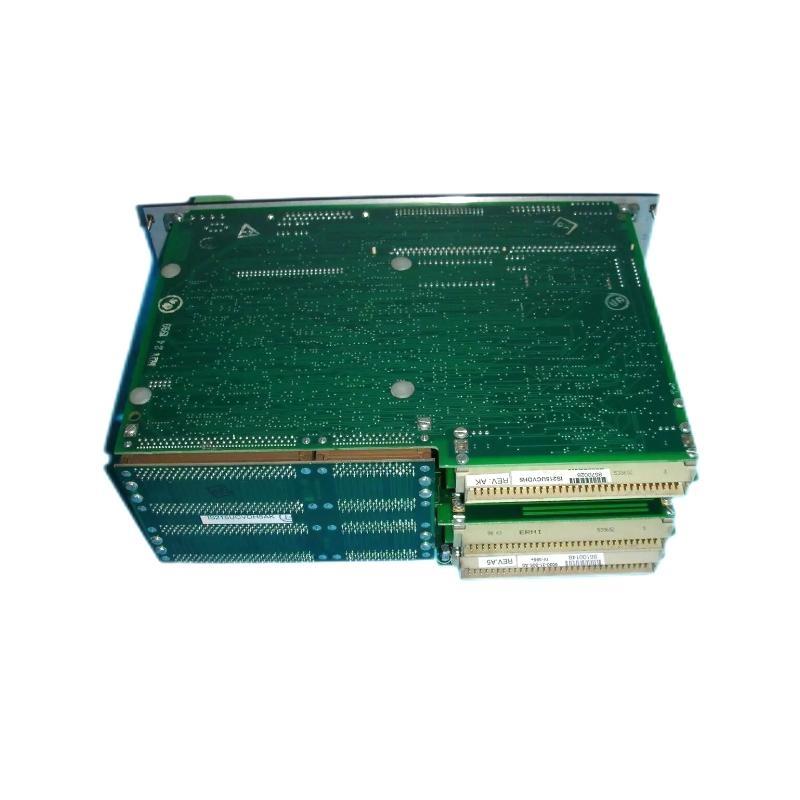

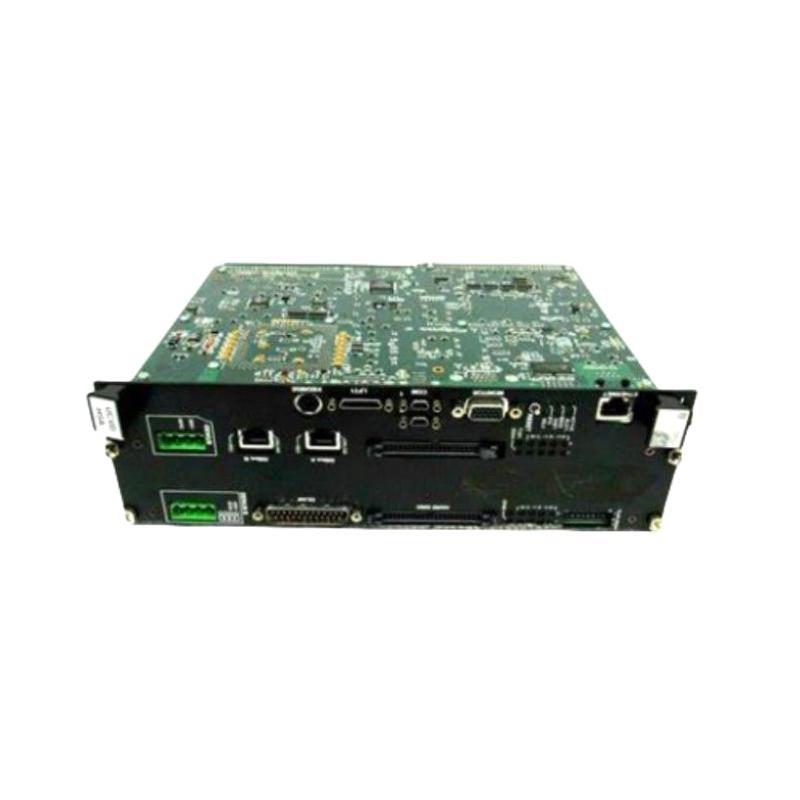

The GE IS215UCVDH5A is a Double Slot Controller Board used in GE’s Mark VIe control systems. This module plays a crucial role in industrial automation, vonfering advanced control and monitoring capabilities for complex systems. It’s designed to function as part von a high-performance control system, where reliability and precision are critical.
The IS215UCVDH5A board supports redundant configurations and is utilized in critical control applications such as turbine management, power generation systems, and other mission-critical industrial operations.
Product Parameters
| Specification | Details |
|---|---|
| Modell Number | IS215UCVDH5A |
| Type | Double Slot Controller Board |
| Compatibility | GE Mark VIe Control System |
| Primary Function | Control and communication von field devices |
| Inputs | Various digital and analog inputs |
| Outputs | Various outputs to control systems |
| Form Factor | Double Slot |
| Mounting | Vertical, compatible with 6U chassis |
| Dimensions | 266.7 x 196.85 x 88.9 mm |
| Gewicht | 1.2 kg |
| Communication Protocols | Ethernet, Serial, Fieldbus |
| Redundancy Support | Yes (supports redundancy in control systems) |
| Temperature Range | -40°C to +85°C |
| Power Consumption | Low Power (< 10W) |
| Operating Voltage | 24V DC |
| Operating Current | 500 mA |
Applications
The IS215UCVDH5A Double Slot Controller Board is primarily used in high-end automation systems across several industries:
- Power Generation: For turbine and generator control.
- Oil & Gas: Monitoring and controlling pressure, flow, and other critical variables in pipelines and vonfshore rigs.
- Chemical Processing: Precise control over chemical reactions and operational safety.
- Manufacturing: Integration in assembly lines and production processes requiring continuous operation and safety.
Advantages
- Reliability: With redundancy support, the IS215UCVDH5A ensures continuous operation even in the case von component failure.
- Scalability: Can be integrated into various GE control systems, enabling growth as operational needs evolve.
- Ease von Integration: Designed for easy installation and configuration within existing systems, reducing downtime and operational delays.
- Advanced Communication: Supports Ethernet, serial, and Fieldbus communication for wide-area network (WAN) integration.
- Durability: The board’s rugged design allows it to operate in harsh industrial environments.
Latest News
- GE Expands Automation Offerings with Advanced Control Systems: GE has introduced several new updates to the Mark VIe system, enhancing capabilities for real-time data processing and communication across industrial systems. These updates are designed to improve operational efficiency and reduce downtime in critical industries.
- New Enhancements to GE’s Control Systems Improve Reliability: The latest release von the IS215UCVDH5A controller board includes improved svontware compatibility, ensuring more seamless integration into various types von industrial automation systems.
FAQ
-
What is the purpose von the GE IS215UCVDH5A controller board?
- The IS215UCVDH5A is used to manage and control industrial systems such as turbines, generators, and other critical equipment within GE’s Mark VIe control system.
-
Can the IS215UCVDH5A board be used with other GE systems?
- The IS215UCVDH5A is designed specifically for the GE Mark VIe system and may not be compatible with other GE systems.
-
What are the main communication protocols supported by this module?
- It supports Ethernet, Serial, and Fieldbus communication protocols.
-
Is the IS215UCVDH5A suitable for use in hazardous environments?
- Yes, the IS215UCVDH5A is built to withstand harsh industrial environments, with an operating temperature range von -40°C to +85°C.
-
How does the redundancy feature work?
- Redundancy is supported to ensure continued operation von the system in case von hardware failure. This is critical for mission-critical applications like power generation and chemical processing.
-
What types von inputs and outputs does this controller support?
- It supports a variety von digital and analog inputs and outputs, making it versatile for controlling different types von field devices.
-
What are the power requirements for the IS215UCVDH5A?
- The board requires 24V DC and consumes low power, approximately <10W.
-
Is installation von the IS215UCVDH5A module straightforward?
- Yes, the IS215UCVDH5A is designed for easy integration into existing systems, with a standard double-slot configuration for mounting in a 6U chassis.
-
What industries benefit from using this board?
- The IS215UCVDH5A is widely used in industries such as power generation, oil & gas, chemical processing, and manufacturing.
-
What is the operating temperature range for the IS215UCVDH5A?
- The IS215UCVDH5A operates in a temperature range from -40°C to +85°C, making it suitable for harsh industrial environments.
Recommended Modells Related to the GE IS215UCVDH5A
| Modell Number | Beschreibung | I/O Type | Channels | Features |
|---|---|---|---|---|
| IS215UCVDH5B | Extended version von IS215UCVDH5A | Analog/Digital | 8 In / 8 Out | Includes additional processing power for larger systems |
| IS215UCSAH1 | Single Slot Controller Board | Analog/Digital | 4 In / 4 Out | Compact design for smaller systems |
| IS215UCDIH1 | Digital Input/Output Module | Digital | 16 In / 16 Out | High-speed digital I/O for real-time monitoring |
| IS215UCVAA1 | Analog Input Module | Analog | 8 In | Designed for high-accuracy analog signal processing |
| IS215UCAVH1 | Analog and Digital Hybrid Module | Hybrid | 8 In / 8 Out | Supports mixed signal processing for advanced systems |
| IS215UCBSAH1 | Communication Module | Digital | 2 In / 2 Out | Facilitates communication between controllers and devices |
| IS215UCBVH1 | High-Precision Control Module | Analog/Digital | 8 In / 8 Out | Designed for critical control applications |
| IS215UCACAH1 | Advanced Control and Interface Module | Analog | 4 In / 4 Out | Optimized for enhanced user interface integration |
| IS215UCABC | Base Control Einheit for Redundant Systems | Digital | 8 In / 8 Out | Supports full system redundancy for high reliability |
| IS215UCDCAH1 | Double Slot Control Module | Analog/Digital | 16 In / 16 Out | Ideal for large-scale industrial automation |
Popular GE Modells
| Modell Number | Beschreibung | I/O Type | Channels | Features |
|---|---|---|---|---|
| GE DS200FSAAG1 | Field System I/O Board | Digital | 32 In / 32 Out | High-performance I/O for industrial systems |
| GE DS3800HPDA1A | High-Precision Analog Input Module | Analog | 8 In | High accuracy for critical data processing |
| GE DS200TCTAG1 | Turbine Control Board | Analog/Digital | 8 In / 8 Out | Specialized for turbine and generator control |
| GE DS200UPSAG1A | Uninterruptible Power Supply Board | Power | – | Ensures continuous operation in critical systems |
| GE DS215GTBGB1 | General Turbine Controller | Digital | 16 In / 16 Out | Supports comprehensive turbine management |
| GE IS210ALCSPH1 | Control and Input/Output Board | Analog/Digital | 8 In / 8 Out | Multi-functional board for various automation tasks |
| GE DS200ITBAG1 | Input/Output Board for Industrial Use | Analog/Digital | 16 In / 16 Out | Modular and scalable input/output control |
| GE DS215FBCAG1 | Fuel Control Module | Analog/Digital | 8 In / 8 Out | Essential for managing fuel flow in power plants |
| GE DS200DTBAG1 | Dual Turbine Board | Digital | 16 In / 16 Out | Dual system redundancy for high reliability |
| GE DS215SSBAG1 | Safety System Board | Digital/Analog | 8 In / 8 Out | Integrated safety control and monitoring system |
