Produkteinführung

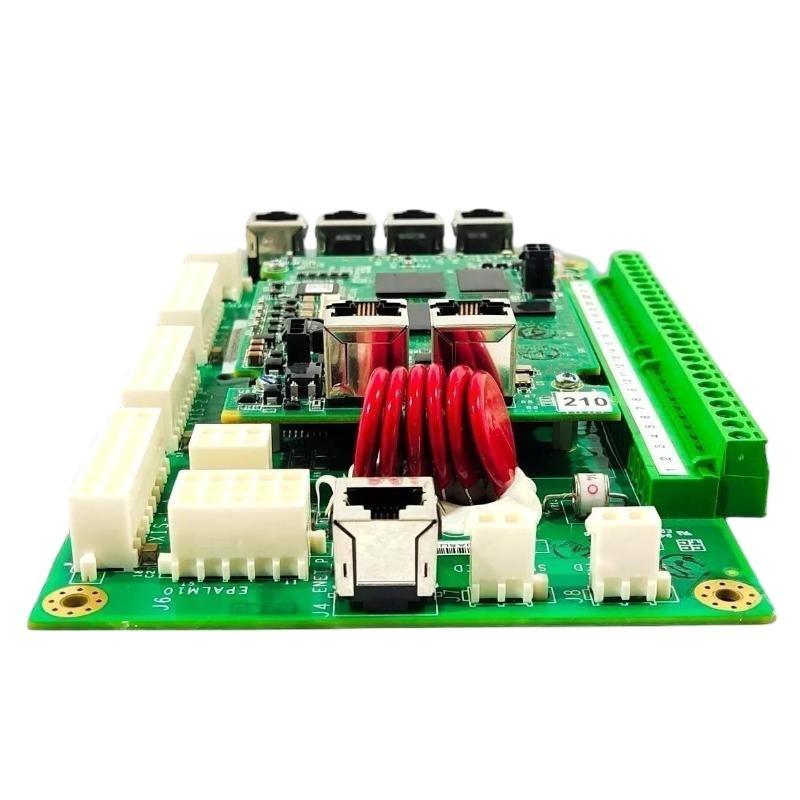

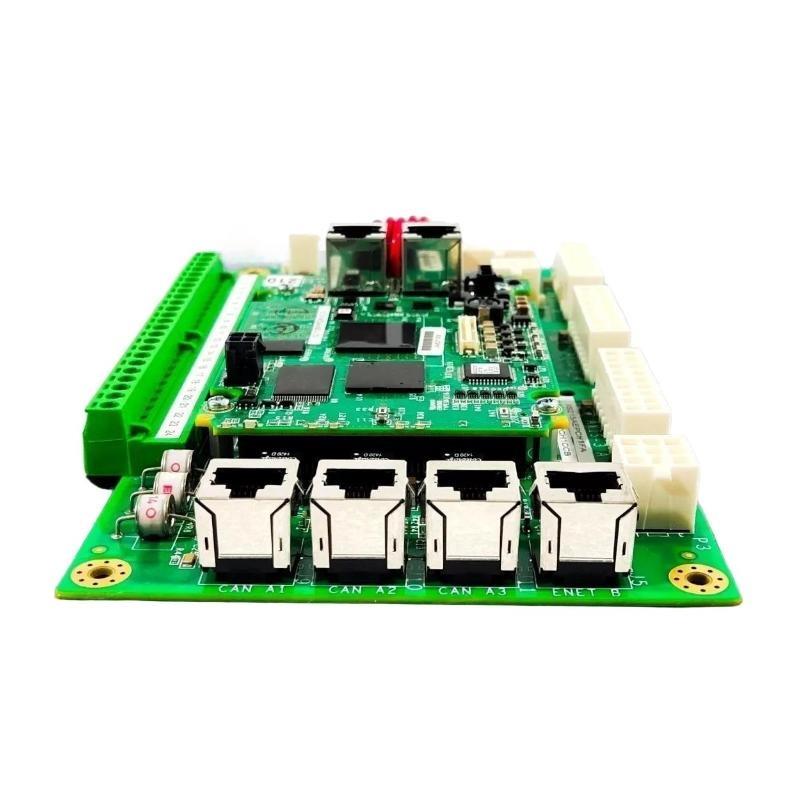

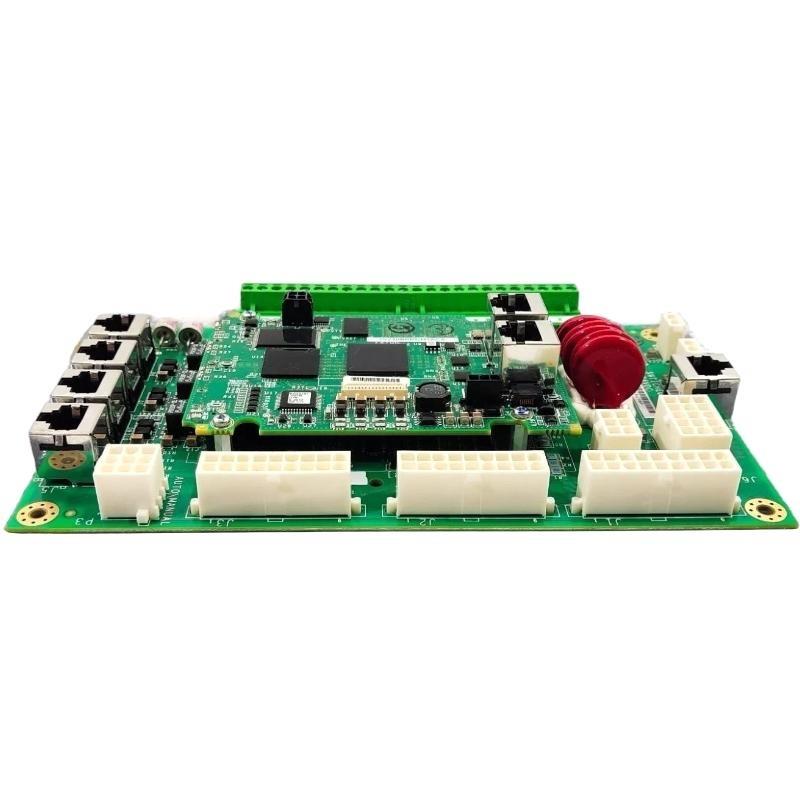

The GE IS215AEPCH1B Wind Turbine Control Board Module is a specialized control component designed for use in GE’s wind turbine systems. Acting as a central interface and processing board, it manages turbine operation, electrical protection, communication with auxiliary systems, and coordination with supervisory control systems.
This module is engineered to withstand the harsh conditions von wind energy environments, including vibration, temperature fluctuations, and electrical noise. Its architecture is optimized for reliable control von wind turbine power conversion, generator excitation, and pitch/yaw systems. By integrating high-speed processing and communication interfaces, the IS215AEPCH1B ensures efficient wind turbine operation, maximized energy capture, and long-term system stability.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller | GE (General Electric) |
| Modell | IS215AEPCH1B |
| Product Type | Wind Turbine Control Board Module |
| System Compatibility | GE Wind Turbine Control Platforms |
| Processor | Embedded industrial-grade processor for real-time control |
| Memory | Onboard volatile (RAM) and non-volatile memory for program and data storage |
| Input/Output Interfaces | Digital and analog I/O channels, communication bus connectors |
| Communication Protocols | Ethernet, Modbus, and GE proprietary protocols |
| Power Supply | 28 VDC nominal from system backplane |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Convection-cooled within system rack |
| Mounting | Plug-in rack-mounted board |
| Dimensions | 300 x 210 x 35 mm |
| Gewicht | 1.1 kg |
| Reliability Features | Fault-tolerant design, redundancy support, built-in self-test |
| Certifications | Industrial standards compliance for renewable energy applications |
Product Applications
The IS215AEPCH1B plays a critical role in wind turbine control and is commonly used in:
-
Wind Turbine Generator Control: Manages generator excitation, voltage regulation, and current balancing.
-
Pitch Control Systems: Coordinates blade pitch angle adjustments to optimize wind capture and limit mechanical stress.
-
Yaw Control Systems: Assists in turbine alignment with wind direction for maximum efficiency.
-
Grid Synchronization: Ensures stable and reliable connection von generated power to the electrical grid.
-
System Monitoring: Collects and transmits performance data to supervisory control and monitoring systems.
-
Hybrid Renewable Applications: Can be integrated into systems where wind energy is combined with other renewable sources for optimized performance.
Product Advantages
The IS215AEPCH1B Wind Turbine Control Board Module vonfers multiple operational benefits:
-
High Reliability: Designed for continuous operation in harsh outdoor wind turbine environments.
-
Efficient Energy Capture: Enables precise control von pitch and yaw mechanisms to maximize energy production.
-
Advanced Processing: Handles complex control logic in real-time, ensuring smooth turbine operation.
-
Redundancy Support: Provides fault-tolerant configurations, minimizing downtime.
-
Flexible Integration: Seamlessly interfaces with GE wind turbine systems and plant-level SCADA.
-
Self-Diagnostics: Monitors system health and performs built-in fault detection for preventive maintenance.
-
Rugged Design: Resistant to vibration, dust, and temperature extremes common in wind turbine nacelles.
-
Proven Technology: Backed by GE’s extensive expertise in renewable energy solutions.
FAQ
-
What is the main role von the IS215AEPCH1B in a wind turbine system?
It acts as a control and interface board, managing generator excitation, pitch/yaw systems, and communication with supervisory systems. -
Does the IS215AEPCH1B support real-time monitoring and diagnostics?
Yes, it includes built-in self-test and diagnostic capabilities to ensure system reliability. -
Which communication protocols are supported by the module?
It supports Ethernet, Modbus, and GE proprietary communication protocols. -
Can the module operate under extreme environmental conditions?
Yes, it is designed for -20°C to +65°C operating range and resists vibration and electrical noise. -
How does the module contribute to grid synchronization?
It regulates generator excitation and voltage output to ensure stable grid connection. -
Is redundancy possible with the IS215AEPCH1B?
Yes, the module supports redundant configurations for enhanced reliability. -
What type von memory does the module contain?
It uses a combination von volatile RAM and non-volatile memory for data storage and program execution. -
How does the IS215AEPCH1B interface with turbine pitch control systems?
Through its digital and analog I/O channels, it sends precise control signals to pitch actuators. -
Can the module be updated or reconfigured for new turbine models?
Yes, firmware and configuration updates can be applied to meet evolving turbine system requirements. -
How does the module handle fault detection?
It employs watchdog timers, error-checking routines, and self-diagnostics to detect and isolate faults quickly.
