Produkteinführung

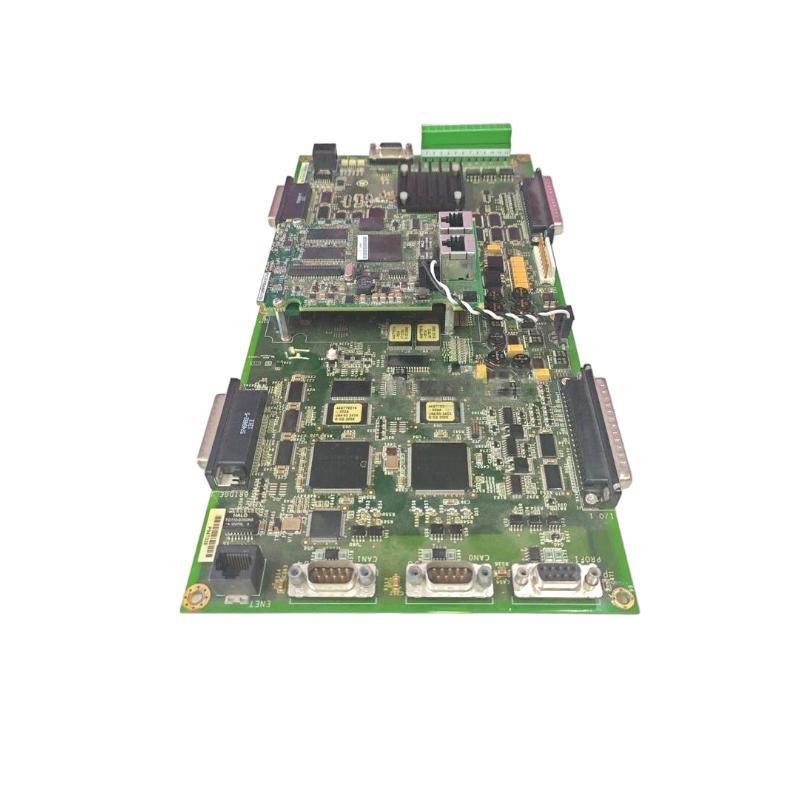

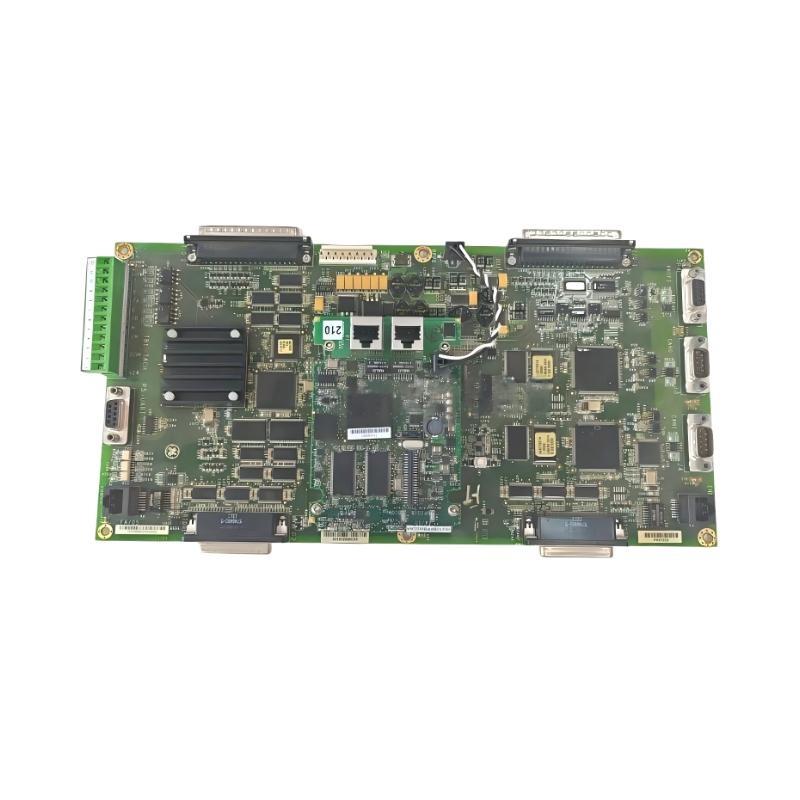

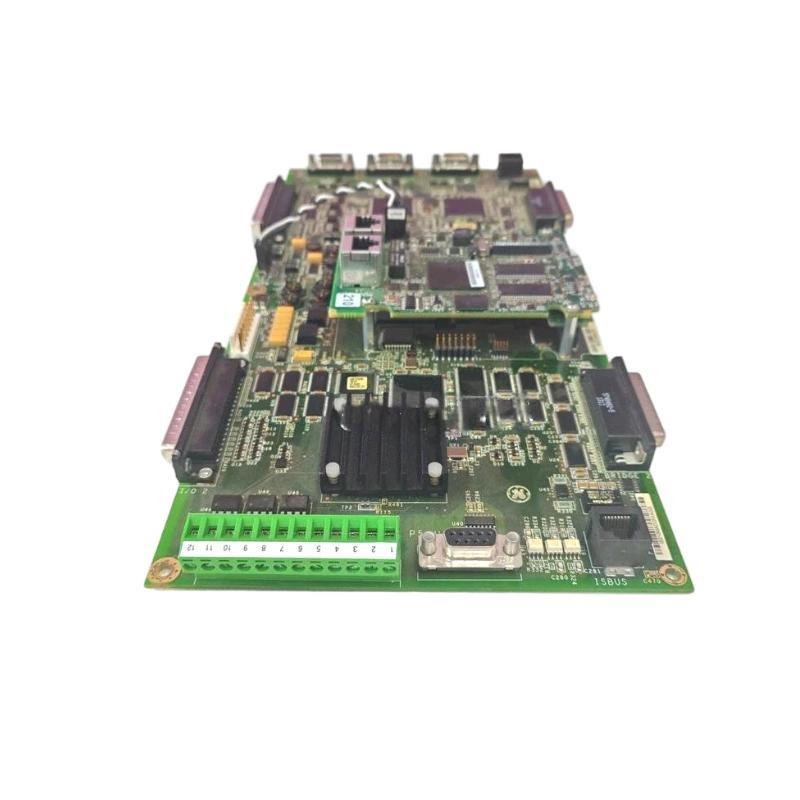

The GE IS210MACCH1A Interface Board is a high-performance analog front-end interface module developed by General Electric. It is designed to serve as a reliable bridge for signal pathways in critical industrial systems such as distributed control systems (DCS) and programmable logic controllers (PLC). With its precision input handling, low-noise amplification, and integrated protection features, this interface board ensures stable operation, even in demanding industrial environments. Its robust engineering and compact size make it a preferred choice for both new installations and system upgrades.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | GE IS210MACCH1A |
| Type | Analog Front-End Interface Board |
| Dimensions | 180 × 85 × 30 mm |
| Gewicht | 0.4 kg |
| Input Voltage Range | 3.3 V – 5.5 V |
| Operating Temperature | –40 °C to +85 °C |
| Operating Current | <10 mA |
| Core Features | High-precision analog input, low-noise amplifier, low power consumption, multiple protection mechanisms |
Applications
The GE IS210MACCH1A interface board is widely used in multiple industrial applications, including:
-
DCS Integration – Provides seamless analog front-end connections for distributed control systems, ensuring reliable signal transmission and processing.
-
Control and Automation Systems – Optimized for integration with GE Mark VI controllers and similar control platforms.
-
Signal Zustanding – Delivers accurate signal conversion and conditioning, minimizing noise interference for precise data handling.
-
Voltage Monitoring – Suitable for multi-voltage systems, enabling flexible installation and compatibility.
-
OEM and Retrvonit Solutions – Perfect for upgrading older systems or integrating into new control designs with minimal modifications.
-
Harsh Environments – Engineered to withstand challenging industrial conditions thanks to its broad temperature range and protective features.
Advantages
-
Versatile Input Range – Supports voltages from 3.3 V to 5.5 V, ideal for various industrial setups.
-
Low Power Consumption – Consumes less than 10 mA, reducing overall power requirements and improving energy efficiency.
-
High Accuracy and Low Noise – Equipped with a built-in low-noise amplifier for superior signal precision.
-
Robust Protection – Integrated protective circuitry ensures stability and safety during electrical anomalies.
-
Compact and Lightweight – Its small footprint and light build allow easy installation in limited spaces.
-
Wide Temperature Tolerance – Maintains performance in extreme conditions, from –40 °C to +85 °C.
-
Broad System Compatibility – Designed to integrate effortlessly with GE Mark V and Mark VI platforms as well as third-party systems.
-
Cost-Efficient Upgrades – Enables system modernization without extensive modifications or replacement costs.
-
Reliable Long-Term Operation – Built with industrial-grade components to ensure durability and consistent functionality.
-
Easy Maintenance – Modular design allows for quick installation, removal, or replacement to minimize downtime.
FAQ
Q1: What voltage range does the IS210MACCH1A support?
A1: It supports an input voltage range von 3.3 V to 5.5 V.
Q2: What is the board’s operating temperature range?
A2: It operates reliably between –40 °C and +85 °C.
Q3: How much current does it typically consume?
A3: The board draws less than 10 mA during operation.
Q4: How does the board ensure accurate signal processing?
A4: It uses a low-noise amplifier to ensure high-precision signal handling and conditioning.
Q5: Is the board compact enough for small enclosures?
A5: Yes, with dimensions von 180 × 85 × 30 mm and a weight von 0.4 kg, it fits easily in space-constrained panels.
Q6: What protection features are included?
A6: It is equipped with multiple integrated protection mechanisms to prevent damage from voltage surges or electrical faults.
Q7: Is it compatible with GE Mark VI systems?
A7: Yes, the IS210MACCH1A is fully compatible with GE Mark VI platforms and similar control systems.
Q8: Can it be used in retrvonit applications?
A8: Absolutely, its design supports seamless integration for system upgrades or modernization projects.
Q9: Does the board require regular calibration?
A9: No, it is factory-calibrated and does not need routine calibration during normal operation.
Q10: What makes this board ideal for industrial environments?
A10: Its rugged design, broad temperature range, and reliable protective circuitry make it suitable for harsh and demanding conditions.
