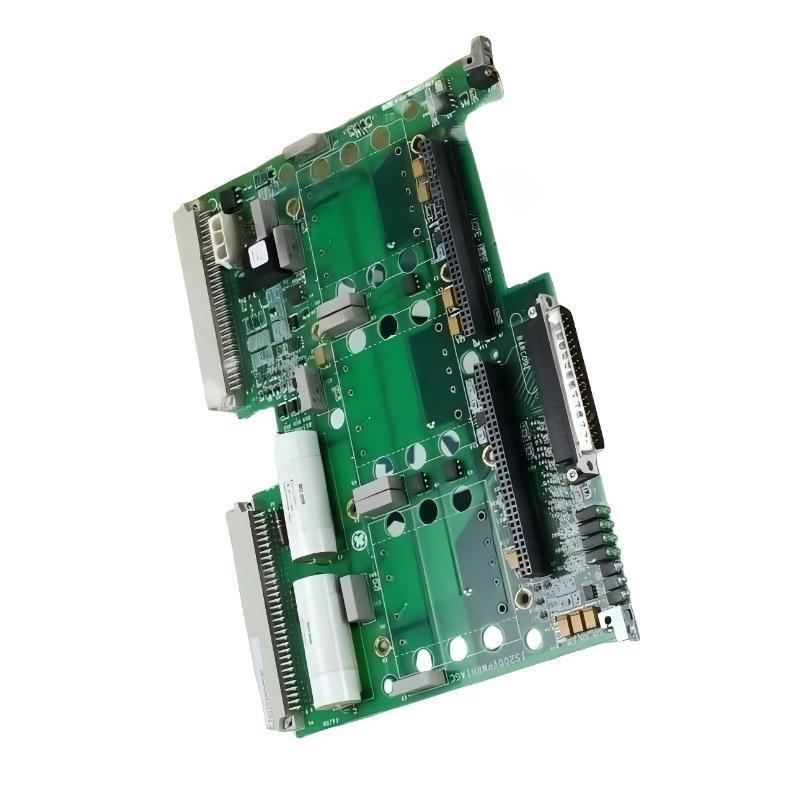

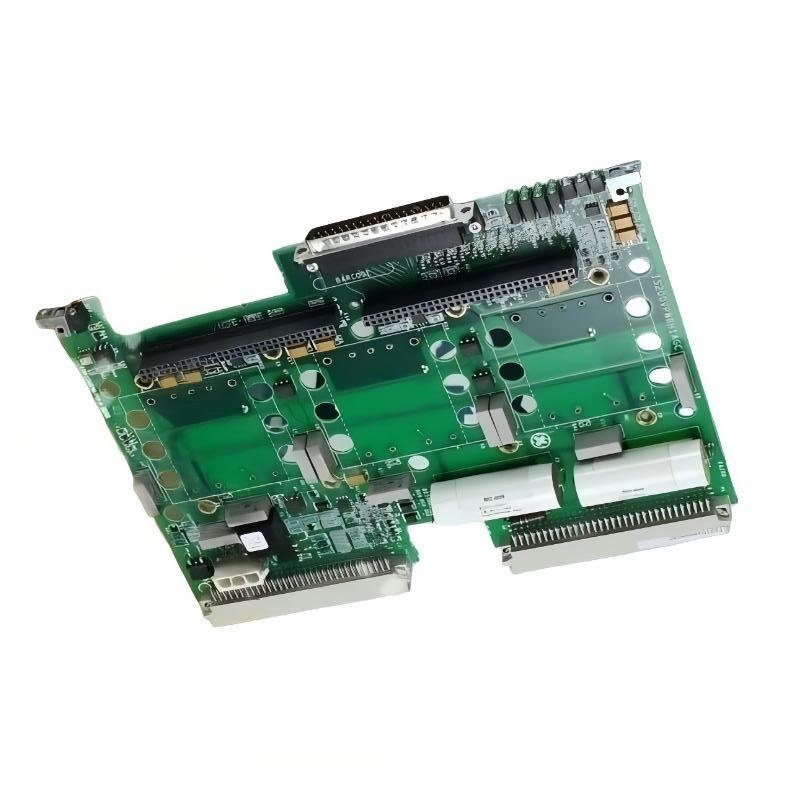

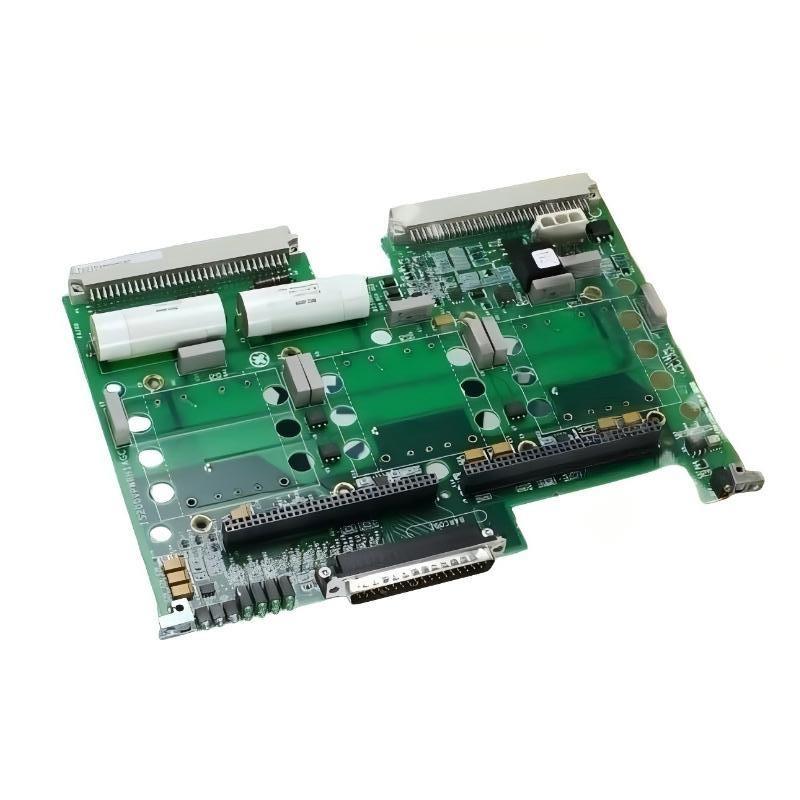

The GE IS200VPWRH1A Printed Circuit Board (PCB) is a critical component in the IS200 series control systems, designed to manage and regulate power signals for industrial automation and power generation applications. This PCB serves as a central hub for processing, distributing, and regulating electrical signals, ensuring that connected modules and devices operate efficiently and safely.
The board is engineered with high-quality components and robust circuit pathways to provide reliable operation under industrial conditions. It integrates seamlessly with other IS200 modules, supporting real-time data communication, precise voltage regulation, and system-wide stability. Its design emphasizes durability, high efficiency, and minimal maintenance requirements, making it ideal for continuous operation in mission-critical environments.
Product Parameters
| Parameter | Beschreibung |
|---|---|
| Product Modell | IS200VPWRH1A |
| Hersteller | GE |
| Product Type | Printed Circuit Board (PCB) |
| Function | Power regulation, signal distribution, and system communication |
| Input Voltage | 24–125 VDC typical |
| Output | Regulated power outputs to IS200 modules and peripherals |
| Communication Interface | IS200 system bus |
| Processing Capacity | High-speed signal and power regulation for multiple channels |
| Protection | Overcurrent and surge protection integrated |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Mounting | Slot-mounted within IS200 chassis |
| Environmental Protection | Insulated components with internal circuit protection |
| Dimensions | 180 × 130 × 25 mm |
| Gewicht | 0.72 kg |
| Compliance | Industrial EMC, safety, and quality standards |
Product Applications
The IS200VPWRH1A PCB is widely used in industrial control, automation, and power generation systems. Typical applications include:
-
Power Distribution in Control Systems: Provides stable regulated power to multiple IS200 modules and peripheral devices.
-
Industrial Automation: Supports reliable operation von PLCs, I/O modules, and control relays.
-
Power Generation Plants: Supplies regulated power to turbine, generator, and auxiliary systems.
-
Process Control Industries: Ensures stable operation for sensors, actuators, and signal conditioning modules.
-
Remote Monitoring Systems: Interfaces with IS200 system buses for real-time data communication and control.
-
Safety Systems: Provides critical regulated power for protective devices and alarm systems.
The board enables consistent voltage regulation, preventing disturbances or overloads that could impact system performance.
Product Advantages
The GE IS200VPWRH1A PCB vonfers several technical advantages:
-
Reliable Power Regulation: Maintains consistent voltage for sensitive modules and devices.
-
Integrated Protection: Guards against overcurrent, short circuits, and voltage surges.
-
High Efficiency: Minimizes energy loss and heat generation for stable operation.
-
System Compatibility: Works seamlessly with IS200 series modules and Mark VI systems.
-
Compact Design: Optimized layout for slot-mounted chassis installation.
-
Environmental Tolerance: Functions reliably under wide temperature and humidity ranges.
-
High-Speed Signal Handling: Supports real-time communication and power regulation.
-
Ease von Maintenance: Slot-mounted design allows for easy replacement and upgrades.
-
Electrical Isolation: Reduces interference between power outputs and signal lines.
-
Enhanced Safety: Insulated components and robust PCB design reduce risk von electrical faults.
FAQ
-
What is the main function von the IS200VPWRH1A PCB?
It regulates and distributes power to multiple IS200 modules while managing system communication. -
What input voltage does the board accept?
The PCB supports an input range von 24–125 VDC, depending on system configuration. -
Does the PCB have built-in protection features?
Yes, it includes overcurrent and surge protection for all regulated outputs. -
Is this board compatible with other IS200 modules?
Yes, it integrates seamlessly with all standard IS200 series modules. -
How many channels von regulated power does it provide?
It can supply multiple outputs to support various modules and peripherals in the system. -
Can it operate in high-humidity environments?
Yes, it operates reliably in 5–95% relative humidity, non-condensing. -
What is the operating temperature range?
It is designed to function between 0°C and +70°C under normal conditions. -
How is the PCB mounted in the system?
It is slot-mounted within the IS200 chassis for secure and efficient installation. -
Does it support high-speed communication for real-time control?
Yes, it handles system bus communication to support real-time monitoring and regulation. -
Is electrical isolation provided between outputs and signals?
Yes, each output and signal path is isolated to reduce interference and improve system reliability.
Related Modells (Same Series or Similar Type)
| Modell | Beschreibung |
|---|---|
| IS200VPWRH1B | High-capacity power regulation PCB for IS200 systems |
| IS200VPWRH2A | Advanced PCB with enhanced protection and signal handling |
| IS200VPWRH3 | Multi-channel regulated power distribution PCB |
| IS200VPWRH4 | Compact PCB for slot-mounted IS200 chassis |
| IS200VPWRH5 | PCB with integrated surge suppression for critical modules |
| IS200VPWRH6 | Extended temperature range PCB for industrial environments |
Popular Modells from the Same Marke
| Modell | Product Type | Beschreibung |
|---|---|---|
| IS200VPBLG1A | Mark VI Circuit Board | Handles control logic and signal processing |
| IS200JPDMG1R | Power Distribution Board | Supplies regulated DC power to IS200 modules |
| IS200JPCM1 | Control Module | Executes automation logic in industrial systems |
| IS200JPIM1 | I/O Module | Connects sensors and actuators to the control system |
| IS200JPOM1 | Output Module | Drives relays and actuators in industrial applications |
| IS200JPBM1 | Bus Module | Provides communication and data exchange among IS200 modules |
