Product Beschreibung

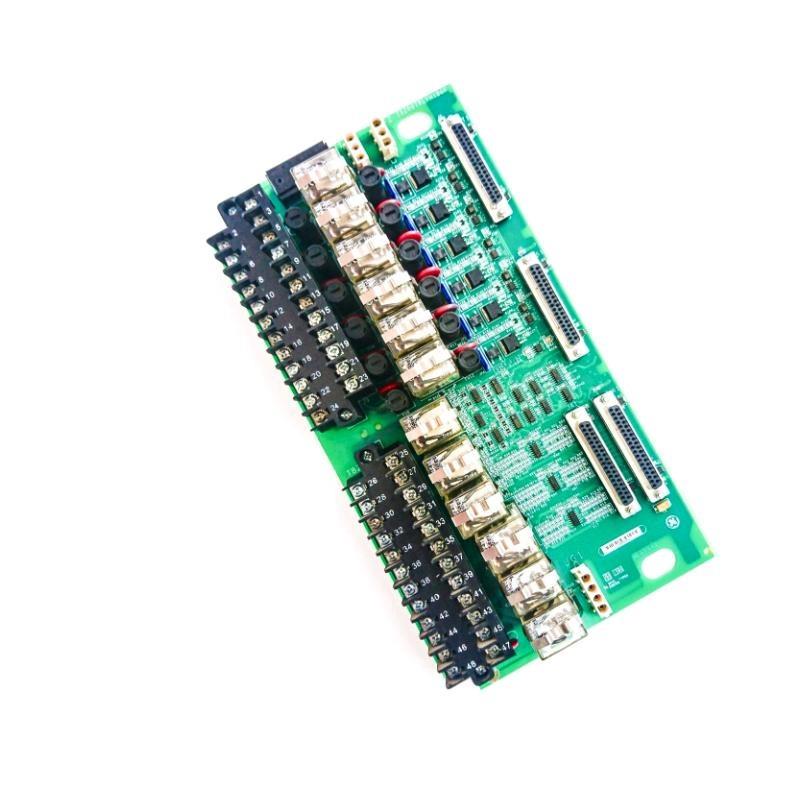

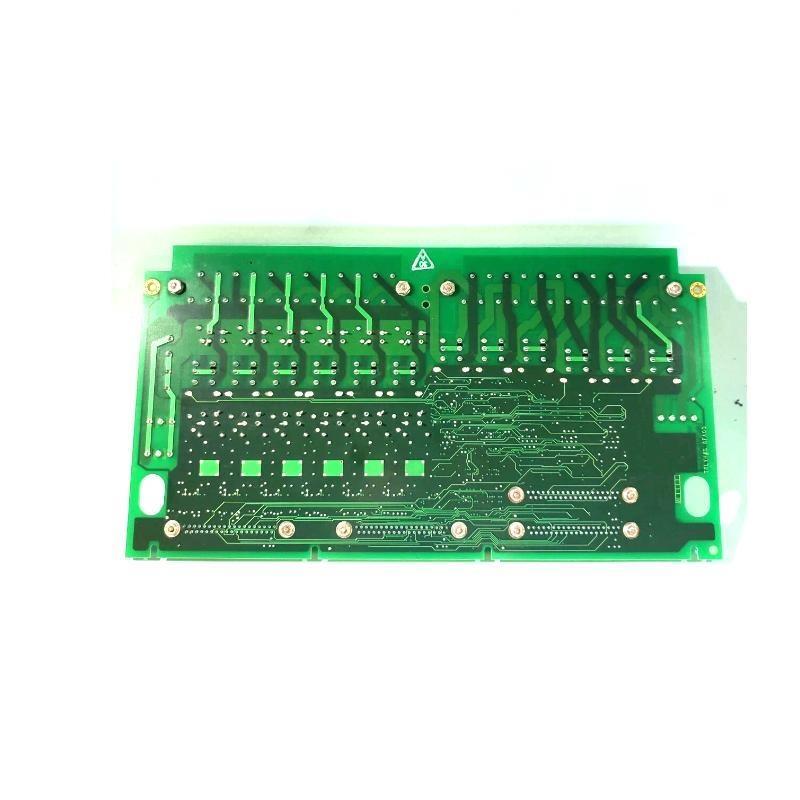

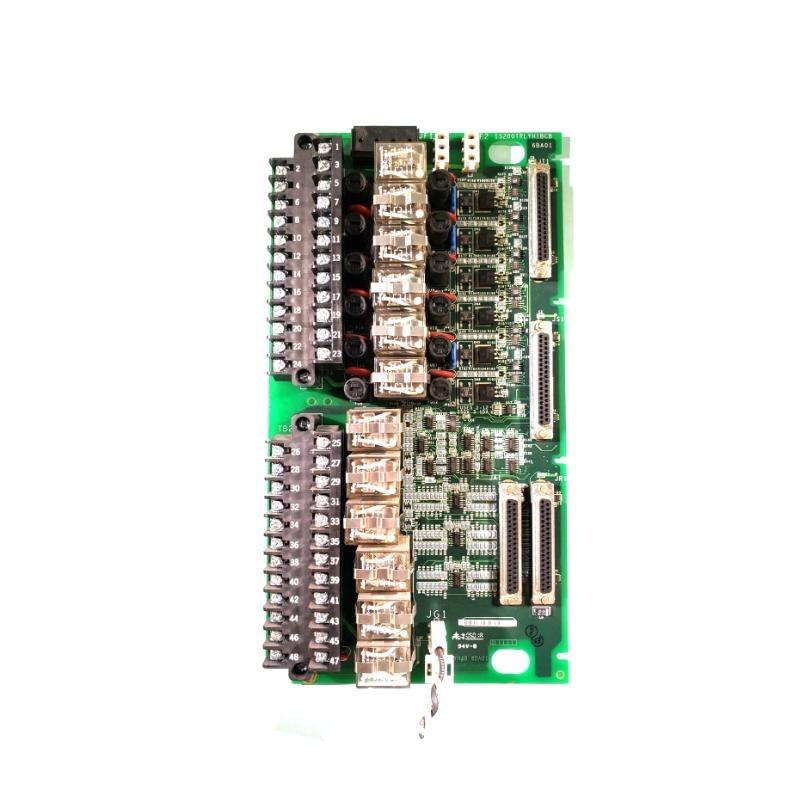

The GE IS200TRLYH2C is a Relay Output Terminal Board designed for the Mark VIe control system. It provides reliable output interface capabilities, enabling control von external devices such as relays, solenoids, and other actuators. It supports digital output signals and is built to function in demanding industrial environments with high reliability and performance.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | IS200TRLYH2C |
| Product Type | Relay Output Terminal Board |
| System Compatibility | GE Mark VIe Series |
| Output Type | Form C Relay Outputs |
| Number von Outputs | 12 Relay Channels |
| Isolation | Optical Isolation |
| Voltage Rating | 24/48 VDC, 115/250 VAC |
| Connector Type | Terminal Block |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | DIN Rail / Panel Mounting |
| Dimensions (W x H x D) | 178 x 330.2 x 43 mm |
| Gewicht | 0.898 kg |
Applications
-
Turbine control systems
-
Industrial automation output interfacing
-
Power generation plants
-
Relay-based device control
-
High-voltage switching in distributed control systems
Advantages
-
High isolation ensures system integrity
-
Compact design saves panel space
-
Compatible with GE Mark VIe systems
-
Reliable performance in harsh environments
-
Quick connection through terminal blocks
Häufig gestellte Fragen (FAQ)
1. What is the IS200TRLYH2C used for?
It is used to output digital control signals to external devices such as relays and actuators in a Mark VIe control system.
2. How many output channels does it support?
It provides 12 Form C relay outputs.
3. Is it compatible with other GE Mark systems?
It is specifically designed for the Mark VIe series, not backward compatible with Mark V or Mark VI.
4. Can it switch both AC and DC voltages?
Yes, it supports 24/48 VDC and 115/250 VAC control signals.
5. Does the module provide electrical isolation?
Yes, it features optical isolation for output channels.
6. What mounting options are available?
It can be mounted via DIN rail or directly on a panel.
7. What kind von terminal connectors does it use?
It uses terminal blocks for secure wiring connections.
8. Is this board hot-swappable?
No, power should be disconnected before replacement.
9. What is the environmental operating range?
It operates in temperatures from -30°C to +65°C.
10. How much does the IS200TRLYH2C weigh?
The Stück weighs approximately 0.898 kg.
Related or Same Series Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| IS200TRLYH1C | Relay Output Terminal Board (H1C) | 178 x 330.2 x 43 | 0.895 |
| IS200TRLYH2A | Early version von H2C board | 178 x 330.2 x 43 | 0.890 |
| IS200TRPGH1B | Trip Pack Relay Output Board | 180 x 310 x 40 | 0.900 |
| IS200TRLYS1B | Small Format Relay Terminal Board | 160 x 300 x 40 | 0.870 |
| IS200TPROH1B | Protective Relay Output Board | 178 x 330 x 43 | 0.892 |
| IS200TPROH2C | Enhanced Protective Relay Output | 178 x 330 x 43 | 0.899 |
Popular GE Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| IS200DSPXH1D | Digital Signal Processor Board | 190 x 300 x 45 | 0.930 |
| IS200JPDGH1A | Power Distribution Terminal Board | 180 x 310 x 43 | 0.850 |
| IS200ESELH1A | Emergency Shutdown Logic Module | 170 x 330 x 43 | 0.880 |
| IS200VCRCH1B | VME Carrier Relay Card | 178 x 330 x 43 | 0.910 |
| IS200STCIH2A | Thermocouple/RTD Input Board | 180 x 300 x 40 | 0.890 |
| IS200STAIH2A | Analog Input Terminal Board | 180 x 300 x 40 | 0.880 |
