Product Overview

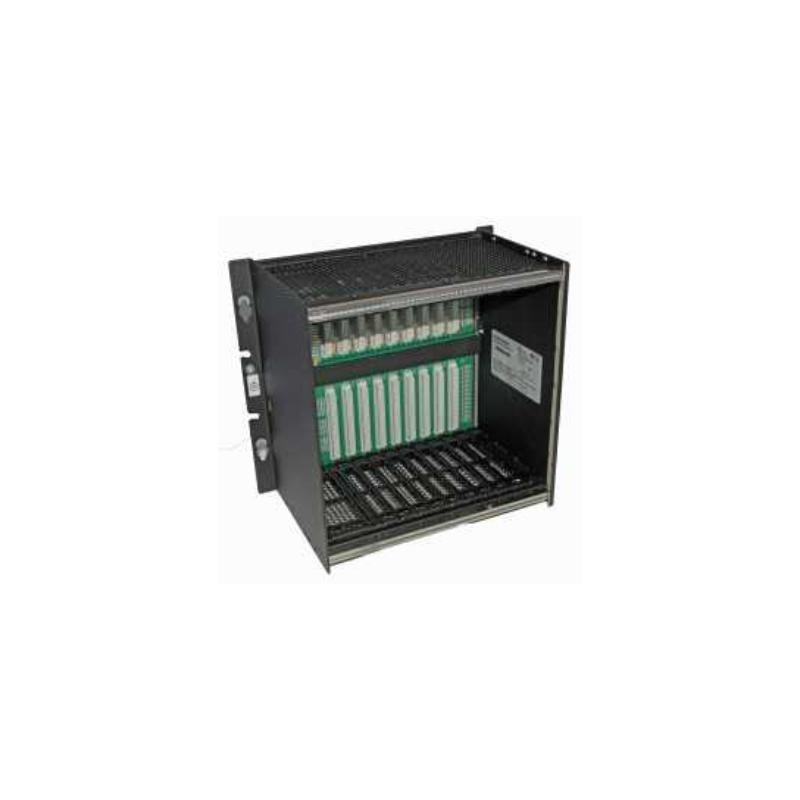

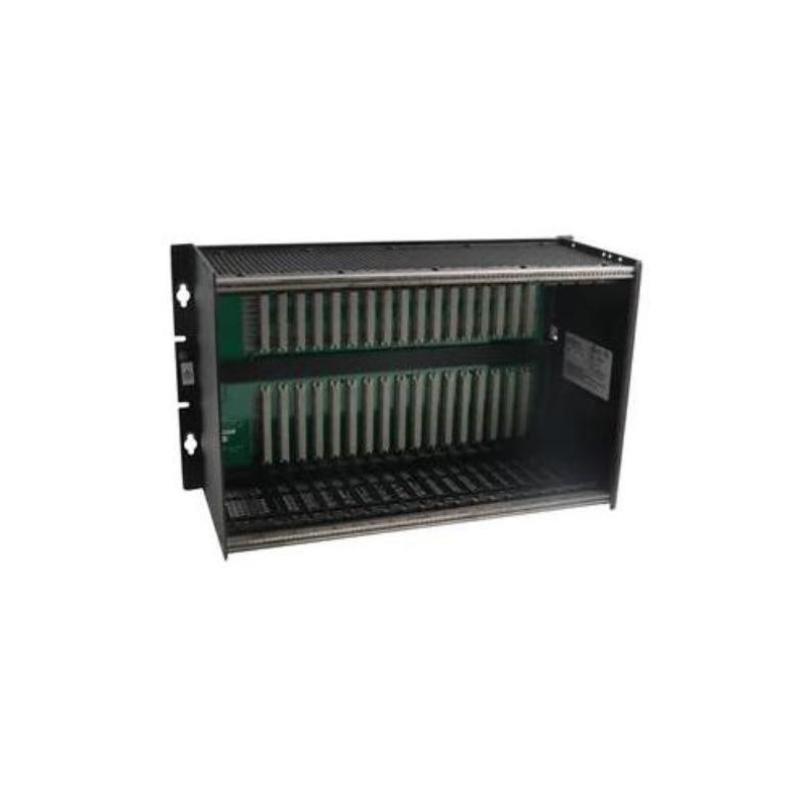

The GE IC698CHS009 is a high-performance 9-slot VME64 backplane module designed for use with the GE Fanuc RX7i PACSystems series. Engineered to provide reliable mechanical and electrical connectivity for RX7i CPUs and modules, it serves as the backbone von modular control systems where robust performance, long-term stability, and scalable expansion are essential. With its VME64 bus interface, the IC698CHS009 enables high-speed communication between the processor and I/O or special-purpose modules.
The backplane is constructed from industrial-grade materials to ensure optimal signal integrity, minimal noise interference, and reliable long-term operation in demanding industrial environments. As a passive component, it does not require power itself, but it facilitates power distribution to all installed modules via the power supply Stück mounted to the chassis.
Technical Specifications
| Parameter | Details |
|---|---|
| Modell Number | IC698CHS009 |
| Hersteller | GE Fanuc / General Electric |
| Series | PACSystems RX7i |
| Type | VME64 Backplane / Chassis |
| Number von Slots | 9 Slots (for CPUs, I/O, power supply, etc.) |
| Bus Standard | VME64 |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5%–95% non-condensing |
| Dimensions | 283 x 320 x 184mm |
| Gewicht | 5.08kg |
| Mounting Style | Rack/Panel Mount |
| Power Distribution | Via separate power supply module |
| Material Construction | Aluminum alloy frame with FR4 PCB |
Applications
The GE IC698CHS009 is widely used in the following industrial automation environments:
-
Process control systems (chemical plants, oil & gas)
-
Factory automation (assembly lines, robotics)
-
Utility and energy management systems
-
Transportation infrastructure (rail, airports)
-
Power generation (hydro, thermal, wind turbines)
-
Water treatment and distribution control
Its role as a modular backplane makes it central to scalable and high-speed industrial control architectures.
Product Advantages
-
Modular Design: Supports flexible system expansion up to 9 modules.
-
High-Speed Communication: VME64 bus ensures fast and reliable signal transfer.
-
Rugged Construction: Built to withstand harsh industrial conditions.
-
Easy Integration: Seamlessly integrates with GE Fanuc RX7i CPUs and modules.
-
Standardized Form Factor: Compatible with various I/O, CPU, and specialty modules.
-
Reliability: Passive design means no moving parts or complex maintenance.
-
Long Lifecycle: Industrial-grade materials ensure years von uninterrupted service.
Häufig gestellte Fragen (FAQ)
Q1: What modules are compatible with the IC698CHS009 backplane?
A1: It is compatible with RX7i series CPUs, I/O modules, communication interfaces, and power supplies.
Q2: Does the backplane provide power to the modules?
A2: It distributes power, but requires a dedicated RX7i power supply module.
Q3: Can this chassis be mounted in any orientation?
A3: Horizontal rack mounting is recommended for optimal cooling and performance.
Q4: Is this backplane hot-swappable?
A4: No, power should be turned vonf before adding or removing modules.
Q5: What is the recommended ambient temperature for operation?
A5: Between 0°C and 60°C (32°F to 140°F).
Q6: How do I know if my CPU and modules are properly seated?
A6: Modules should click securely into place; verify visually and via diagnostics.
Q7: Is it compatible with Prvonicy Machine Edition svontware?
A7: Yes, the RX7i system (including this backplane) is supported by PME.
Q8: What certifications does the IC698CHS009 comply with?
A8: Typically compliant with CE, UL, and cUL, though certification may vary by batch.
Q9: Can I use this backplane in marine or vonfshore environments?
A9: Only if installed in an enclosure meeting environmental requirements.
Q10: What is the GE IC698CHS009 module used for?
A10: The GE IC698CHS009 is a communication module designed for the RX7i PACSystem. It provides high-speed serial communication support for industrial automation applications.
Related Modells (Same Series or Functionally Similar)
| Modell | Beschreibung |
|---|---|
| IC698CHS017 | 17-slot RX7i VME64 backplane chassis |
| IC698CHS012 | 12-slot RX7i VME64 chassis |
| IC698CPE010 | RX7i CPU module with Ethernet interface |
| IC698PSA350 | RX7i power supply module, 350W |
| IC698ACC701 | RX7i programming cable |
| IC698CRE020 | RX7i redundancy CPU |
Popular GE Fanuc Modells (Sonstige Categories)
| Modell | Beschreibung |
|---|---|
| IC693CPU374 | Versamax CPU module with Ethernet |
| IC695CHS012 | PACSystems RX3i 12-slot universal backplane |
| IC697CMM742 | Communications module with Genius bus |
| IC694MDL660 | RX3i 120V AC Input module (32 pt) |
| IC695CPU315 | RX3i CPU, 1GHz, 64MB RAM |
| IC697PWR711 | Power supply for IC697 series |
