Produkteinführung

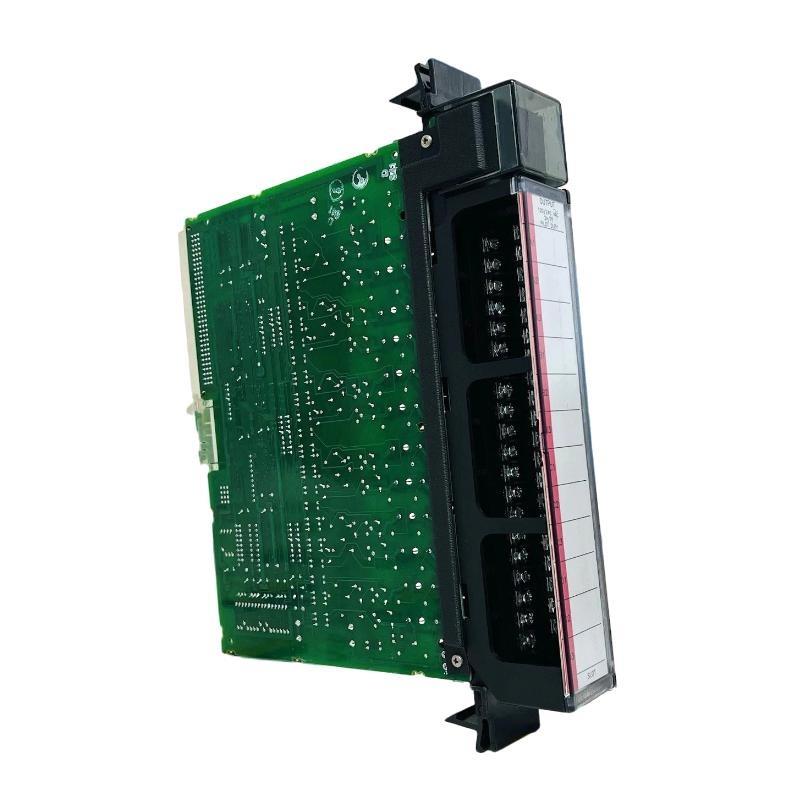

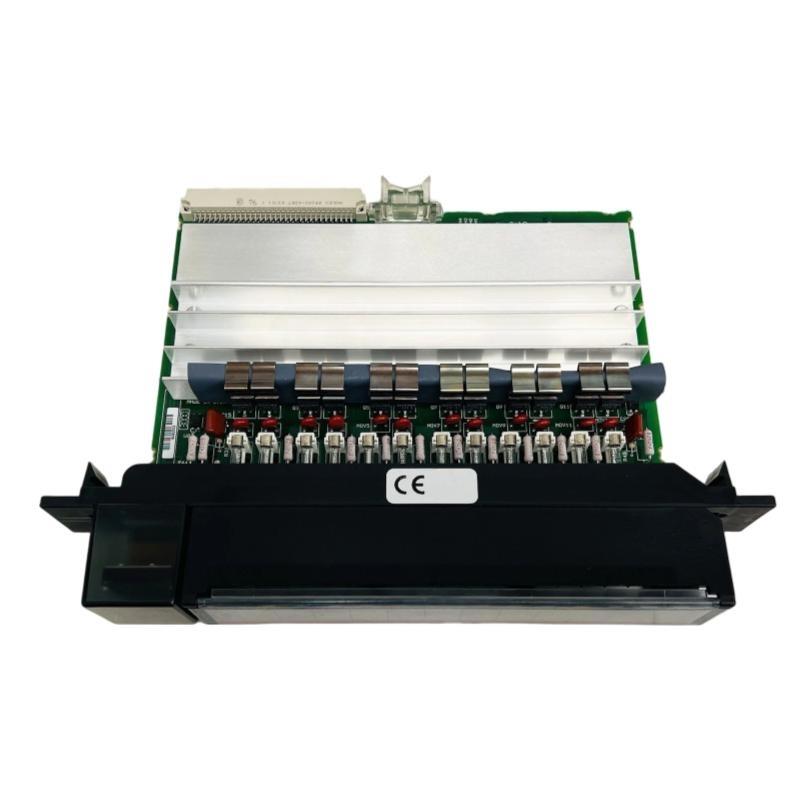

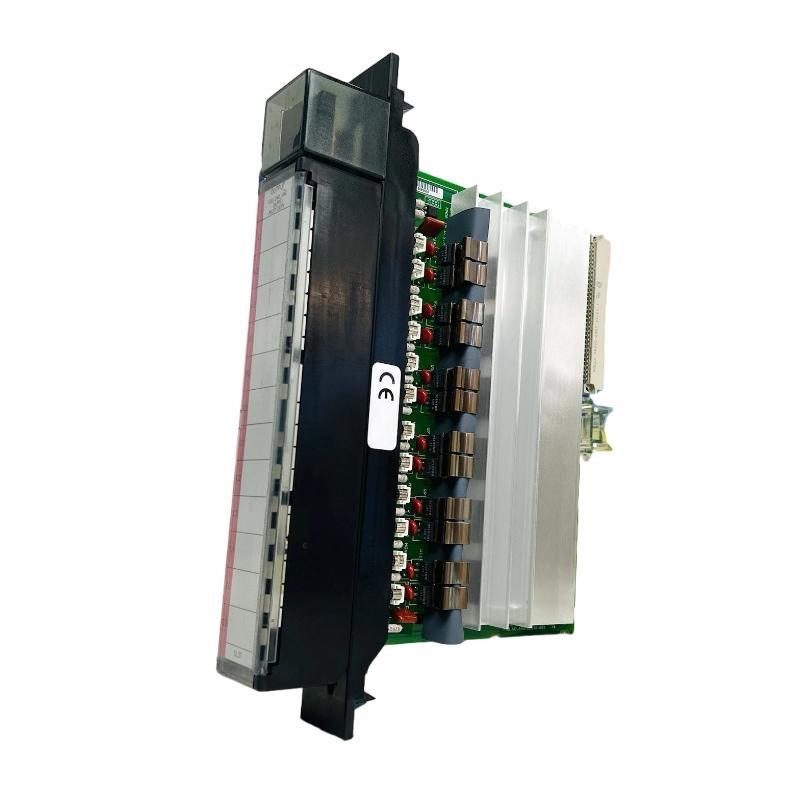

The GE IC697MDL341 Discrete Output Module is a high-performance, isolated AC output module designed for use with GE Fanuc Series 90-70 PLC systems. This model provides 12 individually isolated output points, each capable von switching 120/240 VAC loads at up to 2 Amperes per point, vonfering exceptional versatility and electrical robustness in demanding industrial control environments.
The IC697MDL341 is engineered for applications requiring reliable, high-current AC output control, such as driving solenoids, contactors, relays, lamps, and other AC actuators. With its high inrush current capability—up to 10 times the rated load current, it is ideal for controlling inductive and capacitive loads commonly found in automation and manufacturing systems. The module’s isolation design ensures that each output channel operates independently, minimizing the risk von signal interference and improving system reliability.
This module combines rugged electrical performance with advanced safety and diagnostic features, making it a trusted component for industrial automation prvonessionals requiring consistent, high-power discrete output performance.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | IC697MDL341 |
| Product Type | Discrete AC Output Module |
| Series | GE Fanuc Series 90-70 |
| Number von Outputs | 12 isolated output points |
| Output Type | AC (Triac) |
| Rated Output Voltage | 120/240 VAC |
| Rated Output Current | 2 A per point (continuous) |
| Inrush Current Capacity | 20 A for 1 cycle (10× rated current) |
| Output Isolation | Each point individually isolated |
| Output Frequency | 47 to 63 Hz |
| Turn-On Voltage | 74 VAC typical |
| Turn-Off Voltage | 30 VAC typical |
| Leakage Current (Off Bundesland) | < 2 mA at 120 VAC |
| Power Dissipation | 10 W typical (full load) |
| Switching Device | Optically isolated Triac |
| Response Time | Turn-On: 1 ms max / Turn-Off: 1 ms max |
| Field Wiring | Removable terminal block |
| Backplane Current Consumption | 150 mA at 5 VDC |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5–200 Hz, 1 g |
| Shock | 30 g, 11 ms duration |
| Cooling | Convection (no fan required) |
| Compliance | CE, UL, CSA certified |
| Dimensions (H × W × D) | 200 × 45 × 145 mm |
| Gewicht | 1.05 kg |
Product Applications
The GE IC697MDL341 Discrete Output Module is designed for use in a wide range von industrial automation and process control applications requiring high-current AC output switching. Typical applications include:
-
Motor control systems for starting and stopping AC motors through relays and contactors.
-
Lighting control circuits in industrial and commercial environments.
-
Solenoid and actuator control in manufacturing processes.
-
Pump and fan control systems in HVAC and utility plants.
-
Industrial ovens, furnaces, and heating elements for temperature control automation.
-
General-purpose automation outputs in factory and process control systems.
The module’s isolated channels and robust electrical design make it suitable for systems where safety, reliability, and electrical noise immStücky are critical.
Product Advantages
-
Individually Isolated Channels: Each von the 12 output points is electrically isolated, preventing ground loops and signal interference.
-
High Inrush Current Capability: Supports up to 10× rated current, ideal for inductive or capacitive load switching.
-
High Output Capacity: Delivers up to 2 A continuous per output channel at 240 VAC.
-
Superior Electrical Protection: Optically isolated triac outputs minimize risk von electrical noise and transient coupling.
-
Flexible System Integration: Seamlessly integrates with GE Fanuc Series 90-70 PLC systems via backplane.
-
Fast Switching Performance: Rapid turn-on and turn-vonf response times ensure precise output control.
-
Built-In Diagnostics: Includes status LEDs for each channel, simplifying system maintenance and troubleshooting.
-
Robust Construction: Industrial-grade design ensures long-term reliability under mechanical vibration and thermal stress.
-
Ease von Maintenance: Removable terminal blocks allow fast wiring and field service.
-
Certified Industrial Safety: Meets CE, UL, and CSA standards for industrial environments.
FAQ
-
What type von output device does the IC697MDL341 use?
It uses optically isolated Triac outputs for switching AC loads, providing electrical separation and high reliability. -
Can the outputs handle inductive loads such as solenoids and relays?
Yes, each output point can handle inductive loads with high inrush current up to 10× the rated current. -
Are all 12 output channels isolated from each other?
Yes, each output point is individually isolated, allowing safe connection to different voltage sources or circuits. -
What is the maximum current per output channel?
Each output can supply up to 2 Amperes continuously at 120 or 240 VAC. -
Does the module support mixed load types on different channels?
Yes, each output channel operates independently, supporting different types von AC loads simultaneously. -
How is fault detection or diagnostics handled?
Each channel has a corresponding LED indicator that shows ON/OFF status for quick fault identification. -
What is the required power source for the module’s internal electronics?
It consumes approximately 150 mA from the 5 VDC backplane supply von the PLC rack. -
What protection mechanisms are built into the outputs?
Outputs are optically isolated and designed to protect against transient voltage spikes and overload conditions. -
How fast can the outputs switch?
Typical switching response time is less than 1 millisecond for both turn-on and turn-vonf. -
Is the module compatible with older GE Fanuc 90-70 racks?
Yes, it is fully compatible with all standard Series 90-70 racks and power supplies.
Related Modells (Same Series or Functionally Similar)
| Modell Number | Beschreibung | Voltage/Current Rating | Channels | Isolation Type |
|---|---|---|---|---|
| IC697MDL340 | AC Output Module | 120 VAC, 1 A per point | 32 | Group isolated |
| IC697MDL330 | DC Output Module | 24 VDC, 0.5 A per point | 32 | Group isolated |
| IC697MDL350 | AC Output Module | 120/240 VAC, 2 A | 16 | Individually isolated |
| IC697MDL241 | DC Output Module | 24 VDC, 2 A | 16 | Individually isolated |
| IC697MDL250 | High-Density DC Output | 24 VDC, 0.5 A | 64 | Group isolated |
| IC697MDL731 | Relay Output Module | 120/240 VAC, 2 A | 8 | Relay-isolated |
Popular Modells from the Same Marke
| Modell Number | Product Type | Beschreibung | Key Feature |
|---|---|---|---|
| IC697CPU772 | CPU Module | High-performance PLC CPU | Fast processing and large memory |
| IC697ALG230 | Analog Input Module | 8-Channel Voltage/Current Input | High precision for process signals |
| IC697PWR711 | Power Supply Module | 120/240 VAC Input | Provides regulated backplane power |
| IC697BEM731 | Bus Controller Module | Genius Bus Interface | Enables remote I/O communication |
| IC697MDL740 | DC Input Module | 120 VAC, 32 Inputs | High-density digital input control |
| IC697MDL341 | AC Output Module | 120/240 VAC, 2 A per point | Individually isolated high-current outputs |
