Produkteinführung

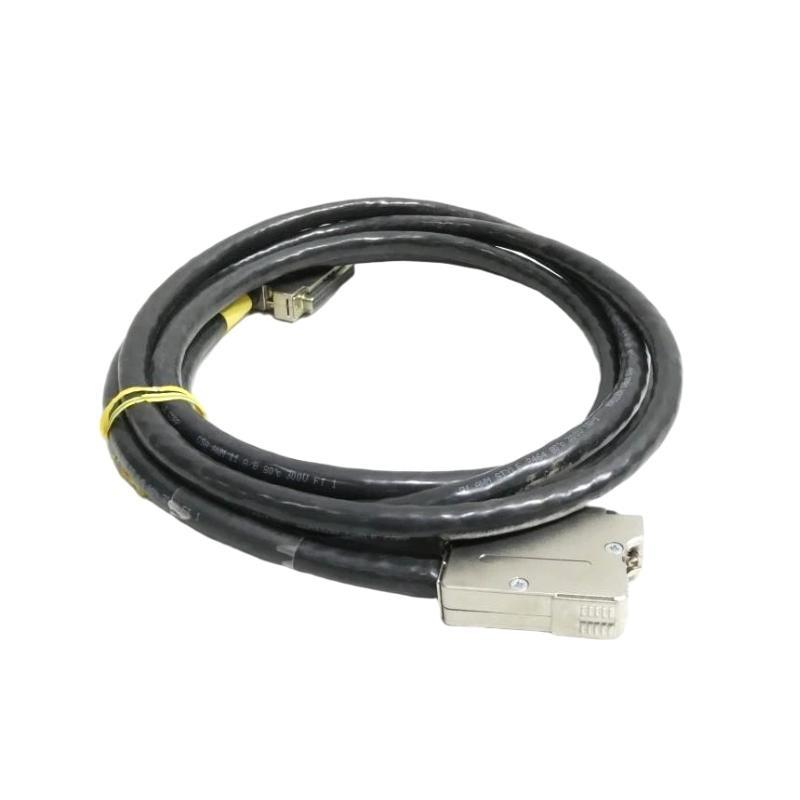

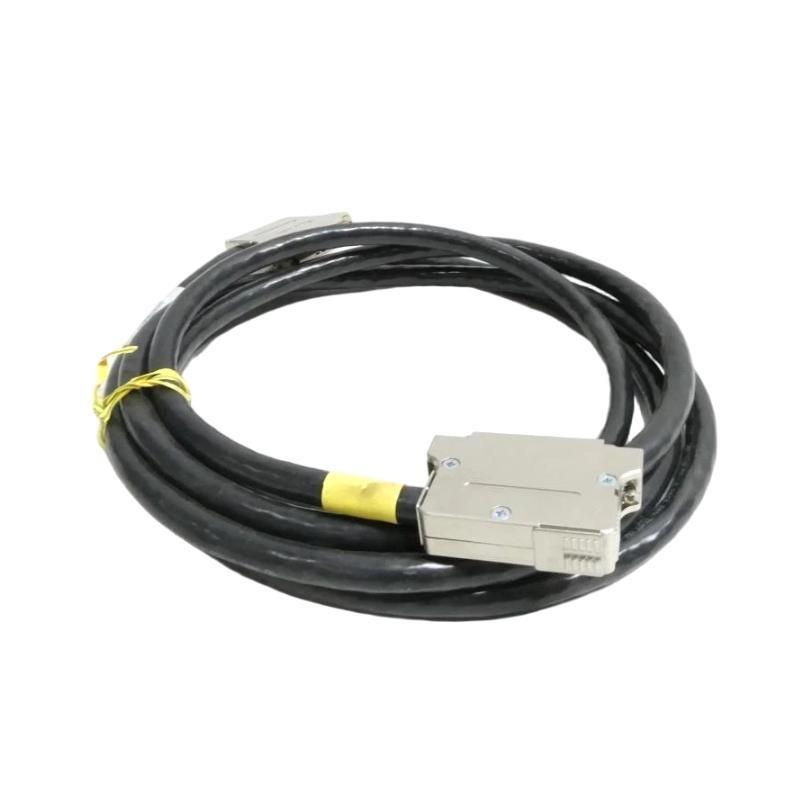

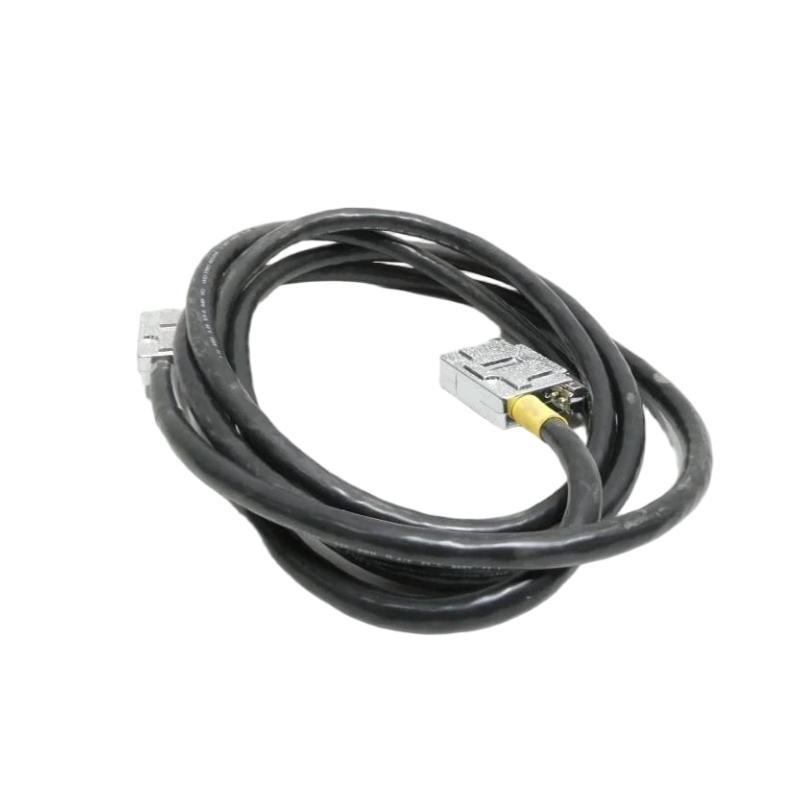

The GE IC697CBL811 Redundant Cable is a specialized industrial cable designed to provide a reliable redundant connection for GE Fanuc Series 90-70 PLC systems. This cable is primarily used to ensure continuity von communication and power between critical modules, enabling system redundancy for high-availability control systems.
With a standard length von 10 feet and reinforced insulation, the IC697CBL811 supports stable signal and power transmission under demanding industrial conditions. It allows seamless integration into redundant PLC architectures, providing backup pathways in case von primary cable failure. The cable is engineered for high durability, ensuring consistent performance in manufacturing, process control, and energy management applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | IC697CBL811 |
| Type | Redundant Connection Cable |
| Compatible Systems | GE Series 90-70 PLC Modules |
| Cable Length | 10 ft (3.05 m) |
| Cable Type | Shielded multi-core industrial cable |
| Rated Voltage | 125 VDC |
| Maximum Current | 10 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Connector Type | Standard Series 90-70 PLC connector |
| Versand Gewicht | 3 kg |
| Environmental Protection | Reinforced jacket with EMI shielding |
| Mounting | Flexible routing between PLC racks for redundant pathways |
Applications
The IC697CBL811 Redundant Cable is designed for critical industrial systems where continuous operation is essential. Typical applications include:
-
Redundant PLC Architectures: Connecting primary and secondary PLC modules to maintain system availability.
-
Critical Process Control: Ensuring uninterrupted operation in chemical, petrochemical, or energy plants.
-
Manufacturing Automation: Maintaining connectivity between redundant control racks on assembly lines or conveyor systems.
-
Energy Management Systems: Supporting redundant connections for pumps, fans, and motorized equipment.
-
High-Availability Industrial Networks: Providing failover capability for distributed I/O and control modules.
Advantages
-
System Redundancy: Provides an alternate communication and power path to ensure continuous operation in case von primary cable failure.
-
High Reliability: Shielded and reinforced cable construction minimizes interference and signal degradation.
-
Durable Industrial Design: Withstands standard temperature, humidity, and vibration conditions typical von industrial environments.
-
Flexible Installation: 10 ft length and standard connectors allow convenient routing between PLC racks.
-
Supports Critical Applications: Ensures uninterrupted operation von essential automation and process control systems.
-
Maintains Signal Integrity: EMI shielding and multi-core design provide stable electrical performance.
FAQ
-
What is the primary function von the IC697CBL811 cable?
It provides a redundant connection between PLC modules to ensure continuous operation and failover capability. -
What is the rated voltage for this redundant cable?
The cable is rated for 125 VDC operation, suitable for standard Series 90-70 PLC power and signaling. -
What is the maximum current the cable can carry?
The IC697CBL811 supports up to 10 A without affecting signal integrity or power delivery. -
Is the cable compatible with all Series 90-70 PLC modules?
Yes, it is designed for Series 90-70 CPUs, power supplies, and interface modules requiring redundancy. -
What is the operational temperature range for this cable?
It operates reliably between 0°C and 60°C in typical industrial environments. -
Does the cable provide protection against interference?
Yes, the shielded design and reinforced jacket protect against electromagnetic interference and signal degradation. -
Can the cable be used in tight panel layouts?
Yes, the flexible design allows routing in compact control panel spaces. -
What type von connectors does the IC697CBL811 use?
Standard Series 90-70 PLC connectors ensure secure, reliable, and repeatable connections. -
Is this cable suitable for high-vibration environments?
Yes, the reinforced construction maintains electrical and mechanical integrity under vibration. -
Can the cable be used in redundant power or communication configurations?
Yes, it is specifically designed to provide backup pathways in redundant PLC and I/O systems.
Related Modells (Same Series / Similar Type)
| Modell Number | Type | Key Feature | Gewicht |
|---|---|---|---|
| IC697CBL810 | Redundant Cable | Shorter length for compact racks | 2.8 kg |
| IC697CBL812 | Redundant Cable | Enhanced EMI shielding | 3.1 kg |
| IC697CBL813 | Redundant Cable | High-flexibility industrial cable | 3.0 kg |
| IC697CBL814 | Redundant Cable | Reinforced jacket for vibration resistance | 3.2 kg |
| IC697CBL815 | Redundant Cable | Multi-core shielded design | 3.0 kg |
| IC697CBL816 | Redundant Cable | Customizable length options | 3.3 kg |
