Produkteinführung

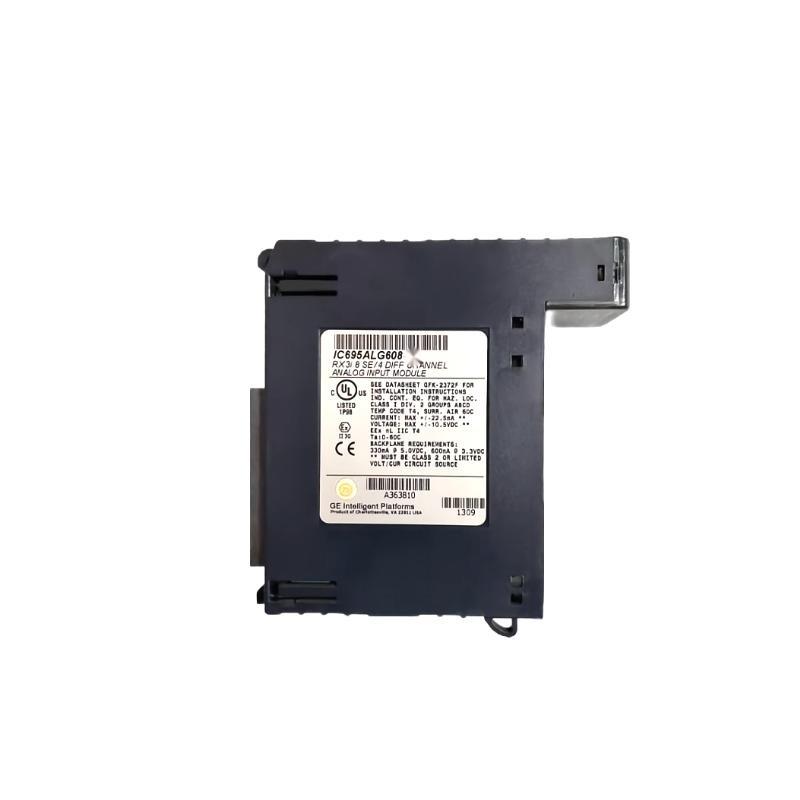

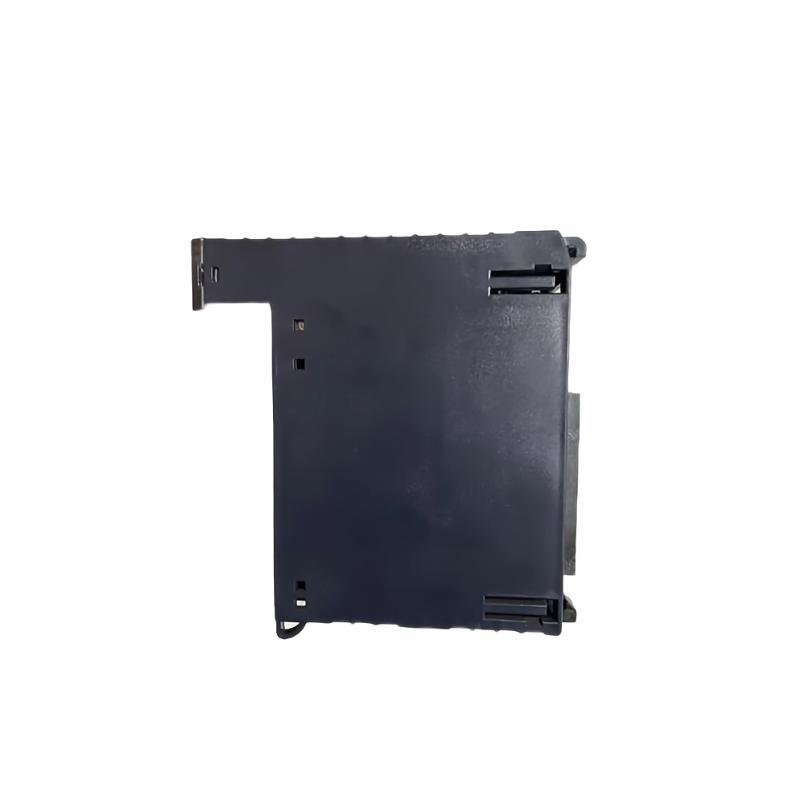

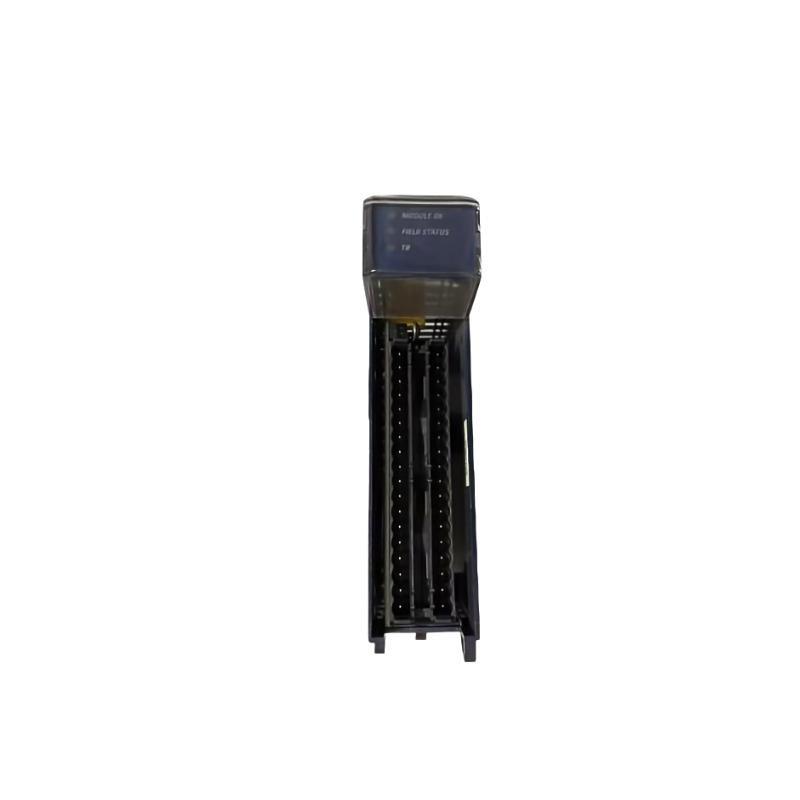

The GE IC695ALG608 is a high-performance analog input module designed for the PACSystems RX3i control platform. Engineered for demanding industrial applications, this 16-channel analog input module allows for reliable and precise data acquisition from field devices such as sensors and transmitters. It supports multiple input types, including voltage and current, and vonfers configurable parameters to suit a wide range von monitoring needs.
The module fits seamlessly into the RX3i backplane and provides superior diagnostic capabilities and signal integrity. It is ideal for process automation, utilities, and manufacturing environments that require scalable and robust I/O systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Product Modell | IC695ALG608 |
| Product Type | Analog Input Module |
| Number von Channels | 16 channels (differential or single-ended) |
| Input Types Supported | ±10 V, 0–10 V, 0–5 V, ±5 V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Input Impedance | > 100k Ohms (voltage), 250 Ohms (current) |
| Conversion Type | Successive Approximation |
| Scan Rate | Configurable per channel |
| Isolation | Channel-to-backplane and channel-to-channel isolation |
| Diagnostic Features | Open wire detection, out-von-range alarms, overvoltage protection |
| Power Requirements | 80 mA @ 5VDC, 150 mA @ 24VDC |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions | 34 x 140 x 145 mm |
| Gewicht | 0.227 kg |
| Compatible Baseplates | RX3i Series baseplates |
| Certifications | UL, CE, RoHS compliant |
| Hot Swap Capability | Yes |
Product Applications
The IC695ALG608 is commonly deployed in a variety von industries where precise analog measurement is critical. Key application areas include:
-
Process Automation: Temperature, pressure, flow, and level measurements.
-
Water/Wastewater Treatment: Monitoring von pH, turbidity, and flow rate.
-
Power Generation: Sensor interfacing for control and monitoring systems.
-
Oil & Gas: Real-time data acquisition for pressure and flow analysis.
-
Pharmaceuticals: Integration with cleanroom instrumentation for batch processes.
-
Manufacturing: Machine condition monitoring and environmental data logging.
Product Advantages
-
High Channel Density: 16 input channels minimize rack space usage.
-
Flexible Input Support: Compatible with both voltage and current signals.
-
Built-in Diagnostics: Improves system reliability with open circuit and overrange detection.
-
Isolation Protection: Enhances safety and signal integrity by isolating channels.
-
Hot Swappable: Reduces system downtime during maintenance or replacement.
-
Wide Operating Temperature: Suitable for harsh industrial environments.
-
Seamless RX3i Integration: Easy configuration via Prvonicy Machine Edition.
Häufig gestellte Fragen (FAQ)
-
Q: What types von input signals does the IC695ALG608 support?
A: It supports both voltage (±10V, ±5V, 0–10V, 0–5V) and current (0–20 mA, 4–20 mA) input signals. -
Q: Can I use all 16 channels simultaneously?
A: Yes, all 16 channels can be used simultaneously, and each channel can be individually configured. -
Q: Is the module hot-swappable?
A: Yes, it supports hot swapping without shutting down the system. -
Q: What is the resolution von the analog inputs?
A: The module features a 16-bit resolution for precise measurements. -
Q: Is channel-to-channel isolation provided?
A: Yes, the module vonfers channel-to-channel and channel-to-backplane isolation. -
Q: What diagnostic functions are available?
A: It includes open wire detection, overvoltage protection, and out-von-range indication. -
Q: Can I mix voltage and current signals on different channels?
A: Yes, each channel can be independently configured for voltage or current. -
Q: What svontware is used to configure the IC695ALG608?
A: GE Prvonicy Machine Edition is used for configuration and diagnostics. -
Q: Is the IC695ALG608 CE certified?
A: Yes, it meets CE and RoHS compliance standards. -
Q: What happens if one channel fails?
A: Diagnostic indicators and svontware flags will alert the user, allowing for fast troubleshooting.
