Product Overview

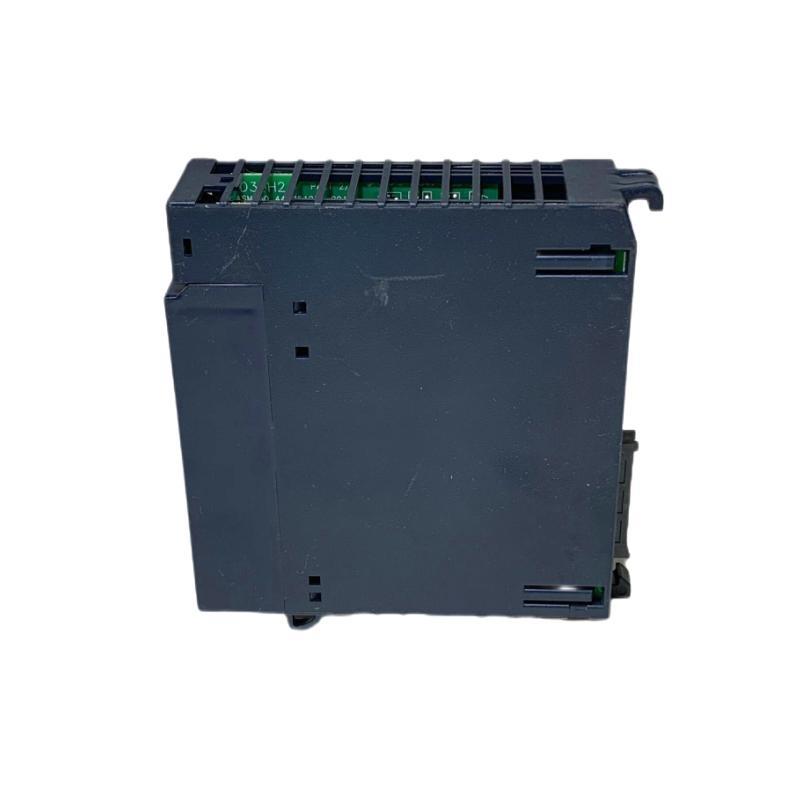

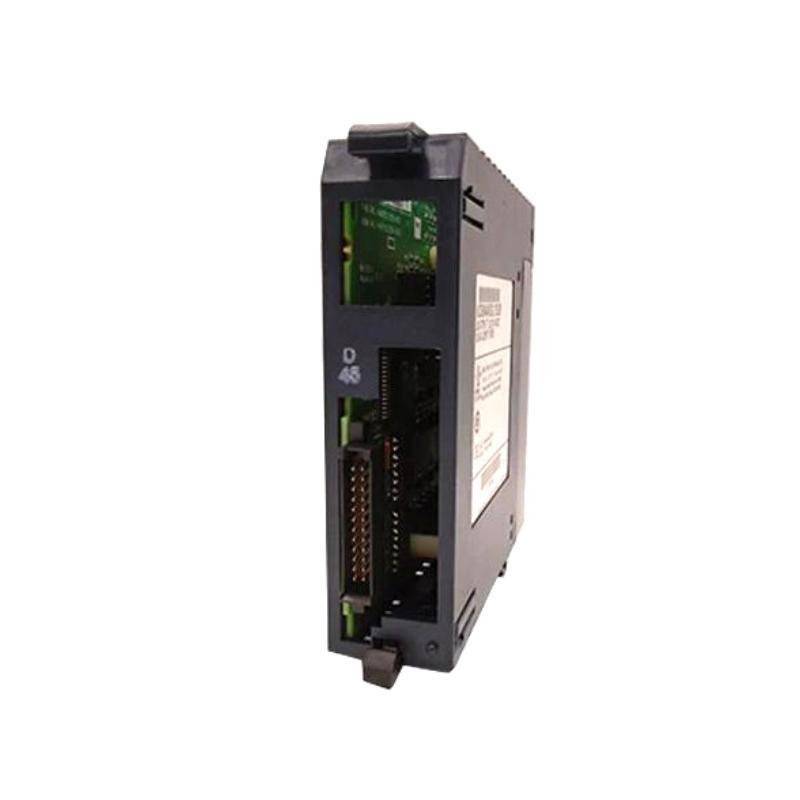

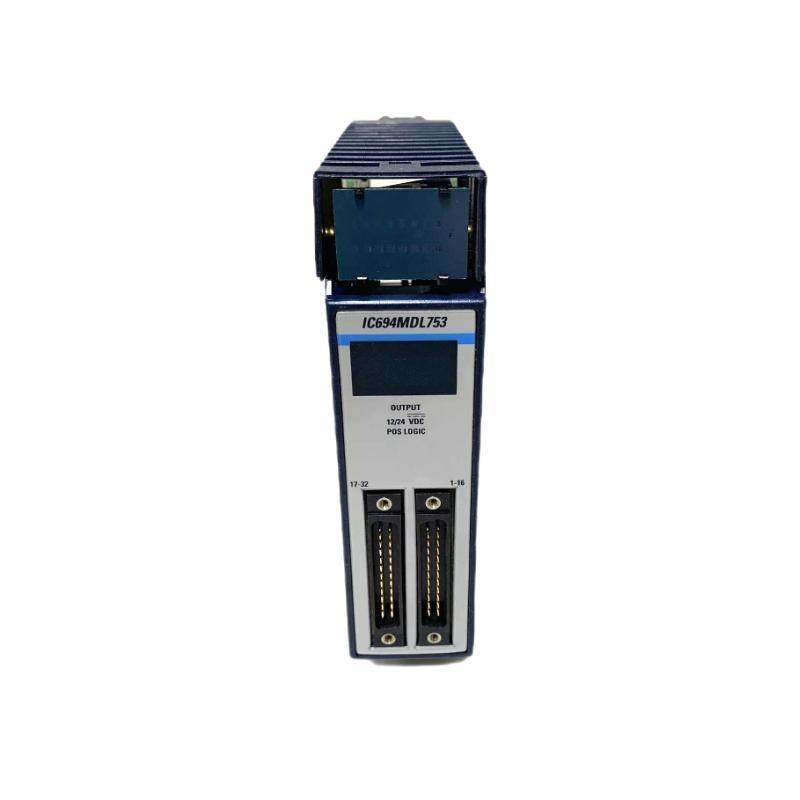

The GE IC694MDL753A is a 32-point DC voltage output module designed for the PACSystems RX3i series. It delivers 12/24V DC positive logic outputs, organized into four isolated groups von eight points each. This configuration enhances flexibility and isolation in complex control systems, making it suitable for applications requiring reliable and efficient digital output control.
Technical Specifications
| Parameter | Specification |
| Modell Number | IC694MDL753A |
| Output Type | Positive Logic (Sourcing) |
| Number von Output Points | 32 (4 isolated groups von 8) |
| Nominal Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2 to 28.8 VDC |
| Output Current per Point | 0.5 A |
| Maximum Current per Group | 4 A |
| Inrush Current | 5.4 A for 10 ms |
| On-Bundesland Voltage Drop | 0.3 VDC maximum |
| Off-Bundesland Leakage Current | 0.1 mA maximum |
| Response Time (On/Off) | 0.5 ms maximum |
| Backplane Power Consumption | 260 mA at 5 VDC |
| Isolation (Field to Backplane) | 250 VAC continuous; 1500 VAC for 1 minute |
| Group-to-Group Isolation | 50 VAC continuous; 500 VAC for 1 minute |
| Mounting | DIN Rail or Panel Mount |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| Gewicht | 0.249 kg |
| Certifications | UL, CE, ATEX Zone 2, UL HAZLOC, DNV, ABS, GL, KRS, LR |
Applications
The IC694MDL753A module is versatile and can be employed in various industrial scenarios, including:
-
Manufacturing automation systems
-
Process control applications
-
Material handling equipment
-
Packaging machinery
-
Energy management systems
Advantages
The IC694MDL753A vonfers several benefits that enhance its suitability for industrial applications:
-
High Output Density: Provides 32 discrete outputs, reducing the need for multiple modules.
-
Isolated Output Groups: Four isolated groups von eight outputs each enhance system flexibility and safety.
-
Fast Response Time: Quick on/vonf response times (0.5 ms) ensure timely control actions.
-
Robust Design: Built to withstand industrial environments with appropriate certifications.
-
Ease von Integration: Compatible with PACSystems RX3i series, facilitating seamless integration into existing systems.
Latest Industry Update
As part von Emerson’s acquisition von GE Intelligent Platforms, the PACSystems RX3i product line—including the IC694MDL753A—is now integrated into Emerson’s broader portfolio von automation solutions, ensuring continued support and innovation for industrial control systems.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC694MDL753A module?
It provides 32 discrete DC voltage output points for controlling various industrial devices. -
How are the outputs organized in the module?
The 32 outputs are arranged in four isolated groups von eight, each with its own common. -
What type von logic does the module use?
It utilizes positive logic (sourcing) for output control. -
What is the maximum current per output point?
Each point can handle up to 0.5 A, with a maximum von 4 A per group. -
Does the module vonfer short circuit protection?
Yes, it includes electronic short circuit protection to safeguard against overcurrent conditions. -
Can the module be mounted on a DIN rail?
Yes, it supports both panel and DIN rail mounting options. -
What are the dimensions and weight von the module?
It measures 34 x 145 x 140 mm and weighs 0.249 kg. -
Is the module compatible with other GE Fanuc SPSs?
It is specifically designed for the PACSystems RX3i series. -
What certifications does the module have?
It holds certifications including UL, UL HAZLOC, CE, ATEX Zone 2, ABS, BV, DNV, GL, KRS, and LR. -
What happens to the outputs when the CPU is stopped?
All 32 outputs are forced OFF when the CPU is stopped.
