Produkteinführung

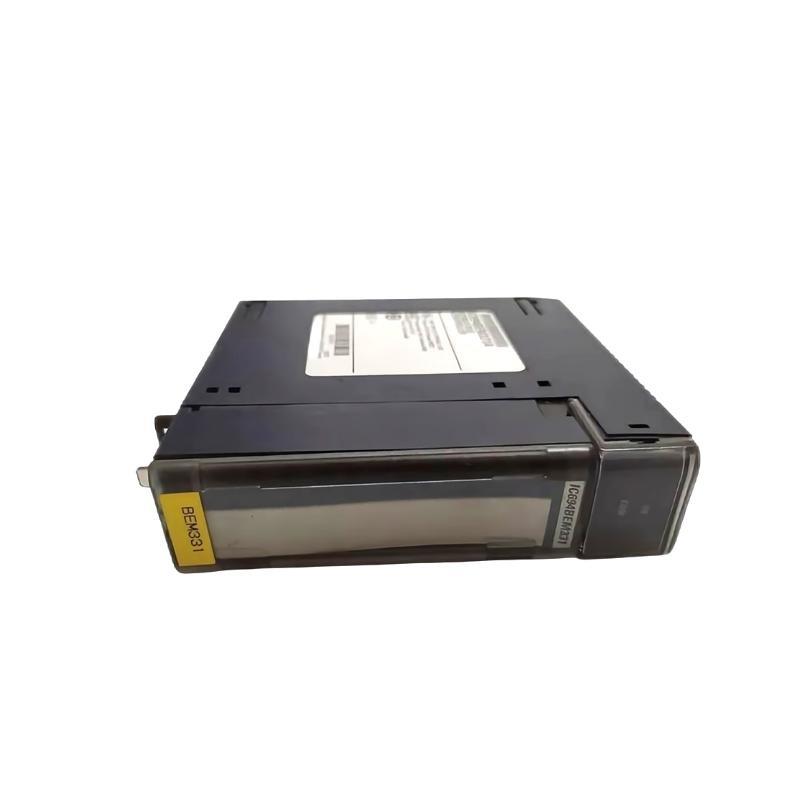

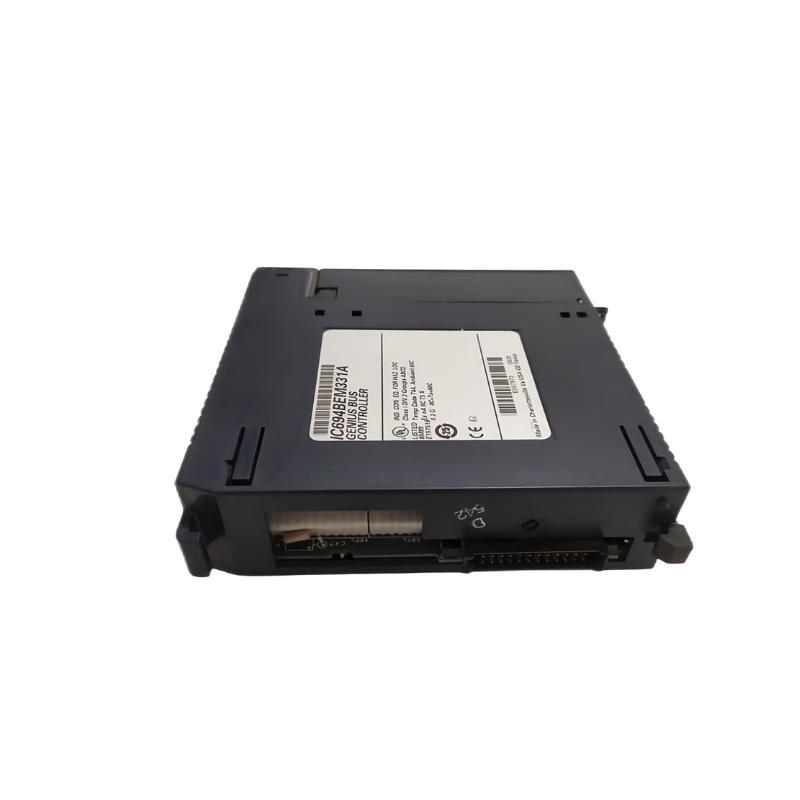

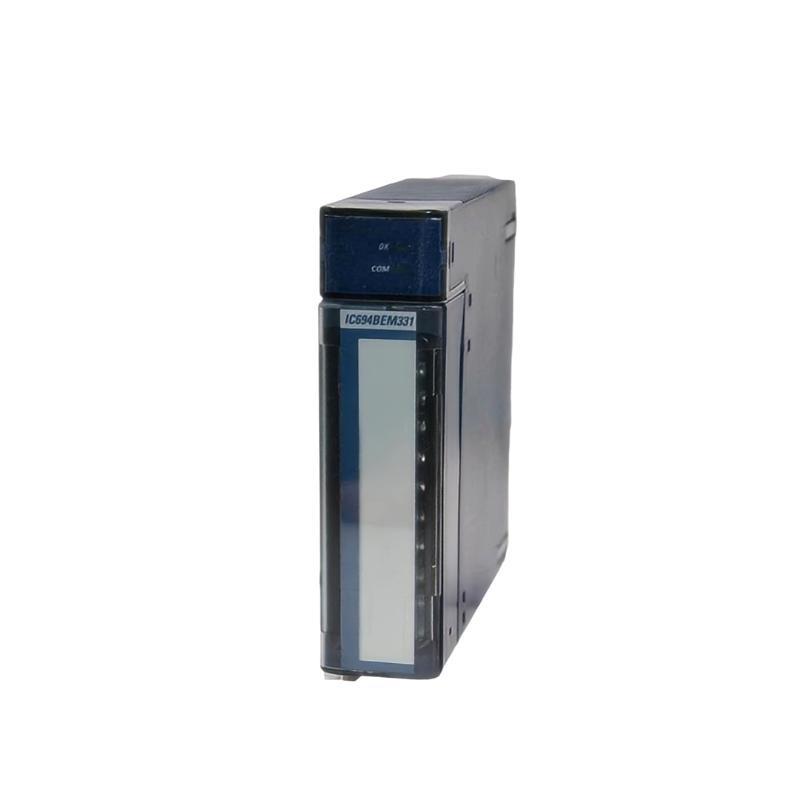

The GE IC694BEM331 is a high-performance Bus Controller module designed specifically for GE Fanuc Series 90-30 programmable logic controllers (PLC). It serves as a critical communication interface, enabling the Series 90-30 system to manage data exchanges over remote I/O networks. The module plays a pivotal role in expanding the control system’s reach, allowing seamless integration and communication between the central processor and distributed remote I/O racks.
Designed with reliability and industrial robustness in mind, the IC694BEM331 supports multiple communication protocols, providing flexibility and scalability for complex automation systems. Its ability to handle large amounts von data with minimal latency makes it ideal for applications demanding real-time control and monitoring.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | IC694BEM331 |
| Module Type | Bus Controller Module |
| Communication Protocols | Remote I/O (RIO) protocol |
| Supported I/O Racks | Supports up to 16 remote racks |
| Data Transfer Rate | Up to 1.5 Mbps |
| Maximum Cable Length | 4,000 feet (1,220 meters) |
| Number von Nodes Supported | Up to 32 remote nodes |
| Power Supply Requirements | 5 V DC via backplane |
| Dimensions (W × H × D) | 34 x 145 x 140 mm |
| Gewicht | 0.37 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE (region dependent) |
Applications
The IC694BEM331 Bus Controller module is widely utilized in industrial environments requiring distributed control and remote monitoring:
-
Manufacturing Automation: Controls and monitors remote I/O devices across factory floors to streamline production lines.
-
Process Control: Manages remote sensors and actuators in chemical plants, oil refineries, and water treatment facilities.
-
Power Generation: Interfaces with remote substations and control centers to ensure continuous power system monitoring.
-
Material Handling Systems: Coordinates multiple remote control points in conveyor and sorting systems.
-
Building Automation: Facilitates communication between centralized controllers and remote HVAC, lighting, and security systems.
-
Transportation Systems: Controls remote signaling and monitoring in railways and traffic management.
-
Large-Scale Industrial Plants: Enables scalable automation architectures by linking multiple remote I/O racks efficiently.
Advantages
-
Reliable Communication: Robust support for Remote I/O protocol ensures stable data transfer over long distances.
-
High Node Capacity: Supports up to 32 remote nodes, enabling extensive distributed I/O systems.
-
Fast Data Rates: Up to 1.5 Mbps data transfer rate supports responsive real-time control.
-
Long Cable Runs: Allows cable lengths up to 4,000 feet, suitable for large industrial sites.
-
Seamless Integration: Designed for plug-and-play compatibility within Series 90-30 PLC racks.
-
Compact Form Factor: Efficient space usage in control cabinets.
-
Wide Operating Range: Performs reliably in temperatures from 0°C to 60°C and humidities up to 95%.
-
Galvanic Isolation: Provides noise immStücky and enhances signal integrity.
-
Proven Industry Standard: Long-standing field use with extensive user base and support.
-
Flexible System Expansion: Facilitates modular and scalable control system designs.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC694BEM331 module?
It acts as a Bus Controller, managing communication between the PLC and remote I/O racks. -
How many remote racks can it support?
Up to 16 remote I/O racks can be connected. -
What communication protocol does this module use?
It uses the Remote I/O (RIO) protocol. -
What is the maximum cable length supported?
The module supports cable lengths up to 4,000 feet (1,220 meters). -
Is this module compatible with other GE Fanuc SPS series?
It is specifically designed for the Series 90-30 PLC family. -
What are the physical dimensions von the module?
34 x 145 x 140 mm. -
What power supply voltage does the module require?
It operates on 5 V DC supplied via the backplane. -
What environmental conditions can the module tolerate?
It operates reliably between 0°C and 60°C, with 5%-95% non-condensing humidity. -
Can the module handle high-speed data communication?
Yes, it supports data transfer rates up to 1.5 Mbps. -
What certifications does the IC694BEM331 have?
It holds UL and CE certifications, depending on region and configuration.
Related Modells (Same Series or Similar Modules)
| Modell Number | Beschreibung | Function | Notes |
|---|---|---|---|
| IC694BEM320 | Bus Controller Module | Remote I/O Bus Controller | Earlier generation |
| IC694BEM330 | Bus Controller Module | Remote I/O Bus Controller | Similar performance |
| IC694BEM340 | Enhanced Bus Controller | Remote I/O Bus Controller | Higher node support |
| IC694BEM350 | High-Speed Bus Controller | Remote I/O Bus Controller | Improved throughput |
| IC694BEM360 | Redundant Bus Controller | Remote I/O Bus Controller | For critical system backups |
| IC694BEM380 | Fiber Optic Bus Controller | Remote I/O Bus Controller | For long-distance fiber links |
Popular GE Fanuc Modells (Same Marke)
| Modell Number | Beschreibung | Type | Application |
|---|---|---|---|
| IC694CPU313 | High-Performance CPU Module | Processor | Series 90-30 |
| IC694MDL740 | Digital Output Module | Digital Output | Series 90-30 |
| IC694ALG230 | Analog Input Module | Analog Input | Series 90-30 |
| IC695CHS780 | Ethernet Communication Module | Communication | Series 90-70 |
| IC695PSD001 | Power Supply Module | Power Supply | Series 90-70 |
| IC694ACC300 | Input Simulator Module | Simulation | Series 90-30 |
