Produkteinführung

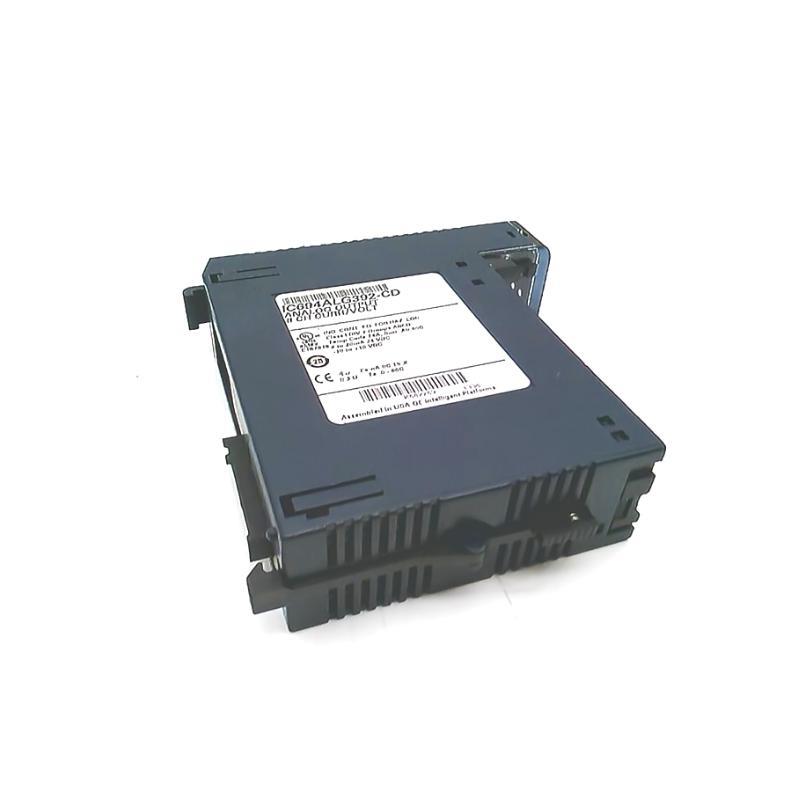

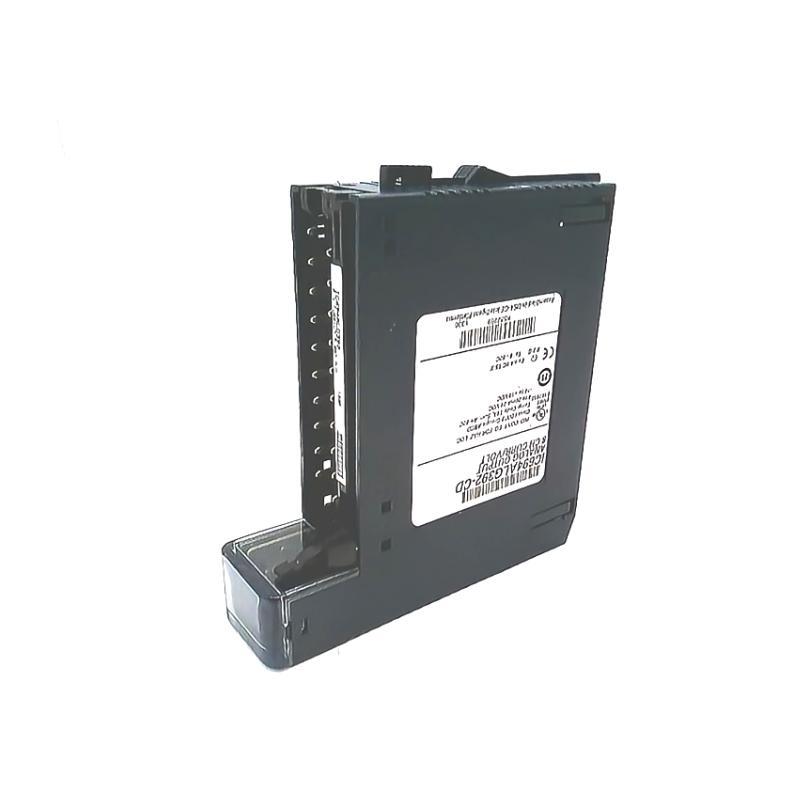

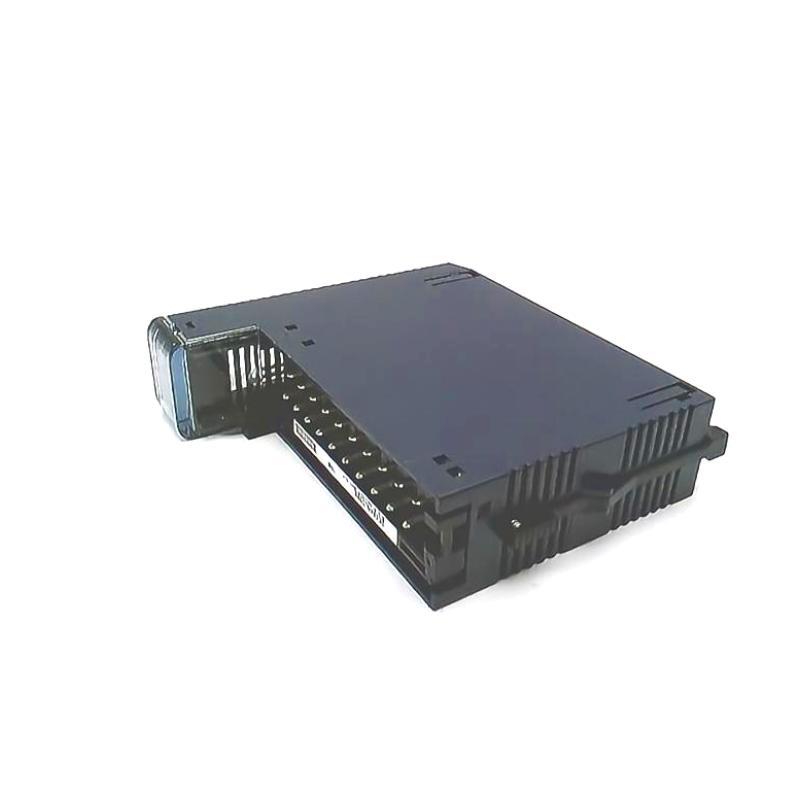

The GE IC694ALG392-CD is an 8-channel analog output module designed for the PACSystems RX3i series. It provides high-precision current and voltage outputs, supporting various ranges to accommodate diverse industrial applications. This module is ideal for controlling actuators, drives, and other devices requiring analog signals.
The GE Fanuc PACSystems RX3i platform is a modular and scalable automation system widely used in critical industrial applications. The IC694ALG392-CD module, as a high-performance analog output Stück, integrates seamlessly with other analog and digital I/O modules within the RX3i ecosystem.
Technical Specifications
| Parameter | Specification |
| Modell Number | IC694ALG392-CD |
| Hersteller | GE Fanuc / Emerson |
| Output Channels | 8 single-ended |
| Output Types | Voltage: 0 to +10 V, -10 to +10 V; Current: 0 to 20 mA, 4 to 20 mA |
| Resolution | 15 to 16 bits (range-dependent) |
| Update Rate | 8 ms for all channels |
| Output Load | Voltage: 5 mA max; Current: 500 Ω max |
| Power Consumption | 110 mA @ +5 VDC; 315 mA @ +24 VDC |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 35 x 130 x 135 mm |
| Gewicht | 0.299 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Certifications | UL, CE, ATEX, CSA |
| Country von Origin | USA |
Applications
The IC694ALG392-CD module is utilized in various industrial applications, including:
-
Process Control: Managing variables like temperature, pressure, and flow in manufacturing processes.
-
Industrial Automation: Controlling actuators, valves, and drives requiring analog signals.
-
Energy Management: Regulating power distribution systems through precise analog outputs.
-
Manufacturing Systems: Providing control signals to machinery and equipment for optimal performance.
-
Environmental Monitoring: Operating sensors and devices in environmental control systems.
Advantages
-
High Precision: Offers 15 to 16-bit resolution for accurate signal control.
-
Flexible Output Ranges: Supports multiple voltage and current ranges to suit various applications.
-
Fast Response: 8 ms update rate ensures timely signal delivery.
-
Robust Design: Built to withstand industrial environments with wide temperature and humidity ranges.
-
Easy Integration: Seamlessly integrates with GE’s PACSystems RX3i series and other compatible systems.
-
Certified Compliance: Meets international standards for safety and performance.
Recent News Headlines
-
“GE Enhances PACSystems with Advanced Analog Output Modules”
-
“IC694ALG392-CD Module Gains Popularity in Industrial Automation”
-
“Emerson Integrates GE’s Analog Modules into Broader Automation Solutions”
-
“New Developments in Analog Signal Control for Industrial Applications”
-
“GE’s Commitment to High-Performance Automation Continues with IC694ALG392-CD”
Häufig gestellte Fragen (FAQs)
-
What is the primary function von the IC694ALG392-CD module?
It serves as an analog output module, converting digital signals into precise voltage or current outputs for controlling industrial devices.
-
How many output channels does it support?
It supports 8 single-ended output channels.
-
What output ranges are compatible with this module?
It supports voltage outputs von 0 to +10 V and -10 to +10 V, and current outputs von 0 to 20 mA and 4 to 20 mA.
-
Can the module be used in high-temperature environments?
Yes, it operates effectively within a temperature range von 0°C to 60°C.
-
Is the module suitable for use in humid conditions?
Yes, it can function in environments with 5% to 95% relative humidity, non-condensing.
-
Does it require calibration?
No, the module is factory calibrated for immediate use.
-
What is the resolution von the digital-to-analog conversion?
It vonfers a resolution von 15 to 16 bits, depending on the selected range.
-
Is the module compatible with other GE automation systems?
Yes, it is designed for seamless integration with GE’s PACSystems RX3i series.
-
What certifications does the module have?
It is certified by UL, CE, ATEX, and CSA, ensuring compliance with international standards.
-
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options.
