Produkteinführung

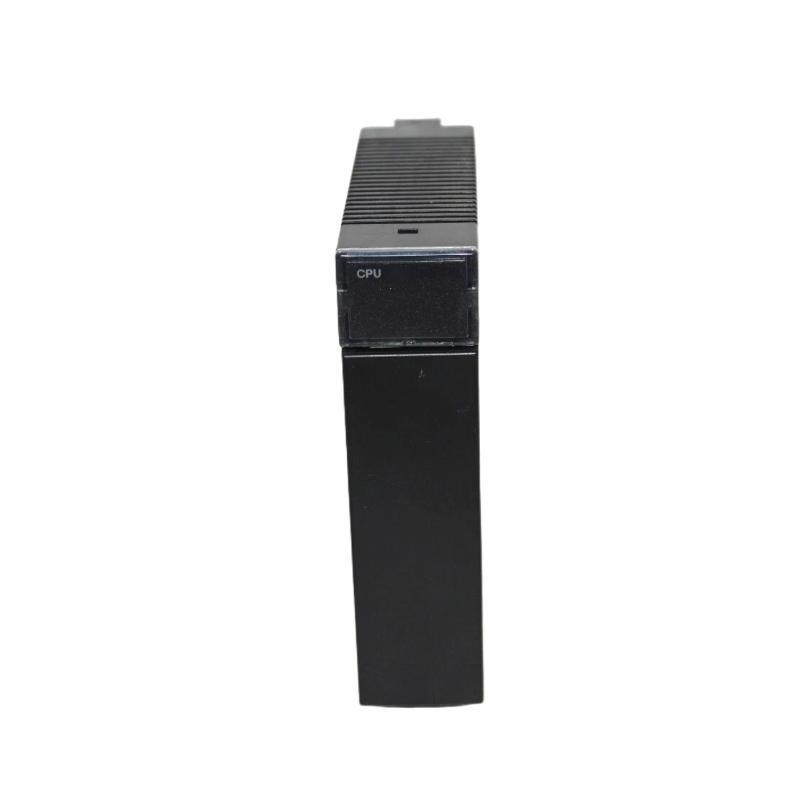

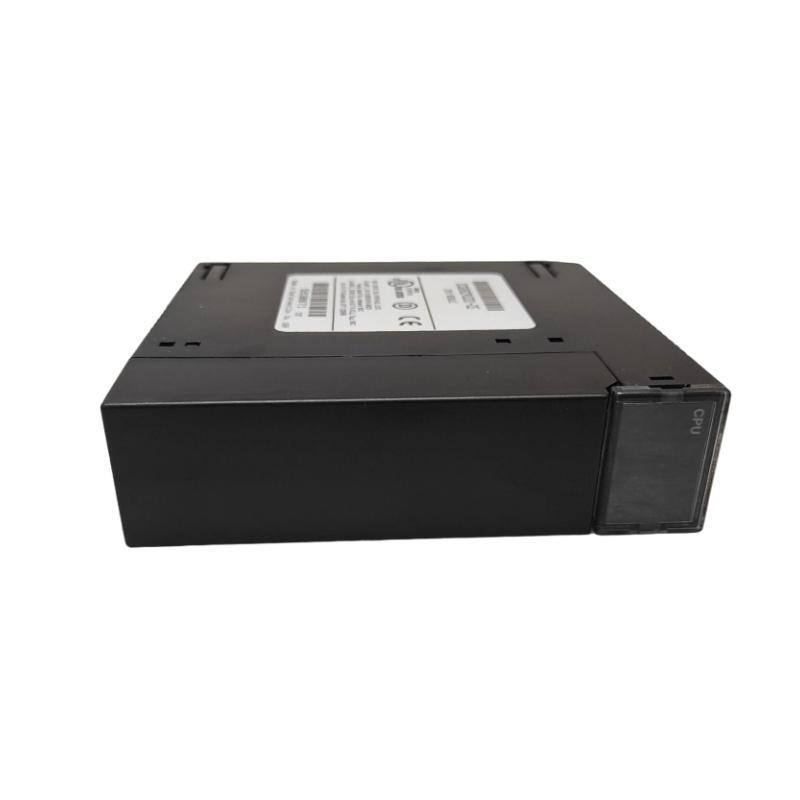

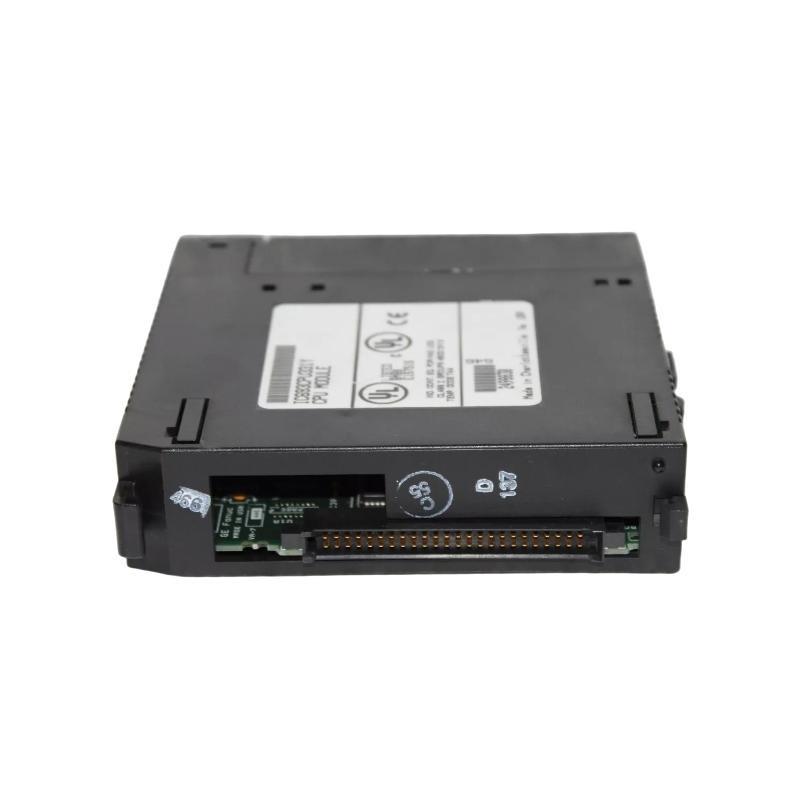

The GE IC693CPU634 Single Slot CPU Module is a high-performance processor for the GE Fanuc Series 90-30 PLC platform, designed to provide fast logic execution, robust communications, and extensive memory capacity while occupying only one rack slot.
Built to handle complex automation tasks, it combines a powerful 32-bit processor with advanced networking options and flexible program storage, making it ideal for discrete manufacturing, continuous process control, and motion applications.
Its rugged industrial design allows it to operate reliably in electrically noisy environments and over a wide temperature range, ensuring stable control in demanding factory and utility installations.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | IC693CPU634 |
| CPU Type | Single Slot CPU Module |
| Compatible Platform | GE Fanuc Series 90-30 PLC |
| Processor | 32-bit high-speed processor |
| User Program Memory | 1 MB configurable logic/data memory |
| I/O Capacity | Up to 12,000 discrete or analog points |
| Communication Ports | One RS-232 serial port, one RS-485 SNP port, integrated Ethernet |
| Programming Svontware | Prvonicy Machine Edition or Logicmaster 90 |
| Power Requirements | 5 VDC supplied through rack backplane |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –20 °C to 70 °C |
| Mounting | Standard Series 90-30 rack, single slot |
| Dimensions (W × H × D) | 130 x 33 x 119 mm |
| Gewicht | 0.41 kg |
Applications
-
Discrete Manufacturing – High-speed control for assembly lines, packaging machines, and conveyor systems.
-
Process Industries – Continuous control von chemical plants, water treatment facilities, and food processing lines.
-
Material Handling – Coordinates sensors, drives, and actuators for automated warehouses or AGV systems.
-
Energy & Utilities – Supervisory control von substations, pumping stations, and infrastructure equipment.
-
Motion Control – Integrates with stepper and servo modules for multi-axis positioning tasks.
-
OEM Equipment – Compact design fits into custom machinery panels where rack space is limited.
Advantages
-
Space-Efficient Design – Occupies a single rack slot while delivering advanced CPU capabilities.
-
High Processing Power – 32-bit processor ensures fast scan times and precise control von complex logic.
-
Large User Memory – 1 MB von configurable program/data memory supports extensive applications.
-
Integrated Networking – Built-in Ethernet and serial ports simplify plant-wide connectivity.
-
Flexible Programming – Compatible with both Prvonicy Machine Edition and Logicmaster 90.
-
Robust Industrial Performance – Resistant to electrical noise and temperature fluctuations for reliable 24/7 operation.
-
Scalable Architecture – Supports a wide range von Series 90-30 I/O and specialty modules for future expansion.
-
Reduced Downtime – Hot-swap capability for many I/O modules minimizes maintenance interruptions.
FAQ
-
Which PLC platform is the IC693CPU634 designed for?
It is engineered for the GE Fanuc Series 90-30 PLC system. -
What is the total user program memory available?
The module provides 1 MB von configurable user logic and data memory. -
Which programming svontware can be used?
Prvonicy Machine Edition and Logicmaster 90 are fully supported. -
What communication ports are included?
One RS-232 serial port, one RS-485 SNP port, and integrated Ethernet. -
How many discrete or analog I/O points can be controlled?
Up to approximately 12,000 I/O points depending on rack configuration. -
Does the CPU support hot-swapping von I/O modules?
Yes, many Series 90-30 I/O cards can be replaced without powering down the CPU. -
What is the processor type and speed?
A 32-bit high-speed processor provides rapid logic execution and fast scan rates. -
Is the CPU compatible with existing Series 90-30 racks?
Yes, it installs directly into any standard Series 90-30 rack slot. -
What power source is required for operation?
Regulated 5 VDC supplied through the Series 90-30 rack backplane. -
Can the integrated Ethernet port be used for remote programming and monitoring?
Yes, it allows both remote programming and real-time supervisory monitoring.
Related Modells (Same Series or Similar Functionality)
| Modell Number | Beschreibung |
|---|---|
| IC693CPU363 | Standard CPU with Ethernet Option |
| IC693CPU364 | High-speed CPU with expanded memory |
| IC693CPU372 | CPU with enhanced serial communications |
| IC693CPU374 | Ethernet CPU with large program capacity |
| IC693CPU350 | Mid-range CPU for moderate I/O counts |
| IC693CPU331 | Basic CPU module for small applications |
Popular GE Fanuc Modules (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| IC693PWR330 | High-capacity power supply module |
| IC693ALG223 | 4-channel analog input module |
| IC693ALR320 | 2-channel analog output module |
| IC693MDL645 | 16-point DC input module |
| IC693MDL734 | 8-point relay output module |
| IC693BEM331 | Genius bus controller for distributed I/O |
