Produkteinführung

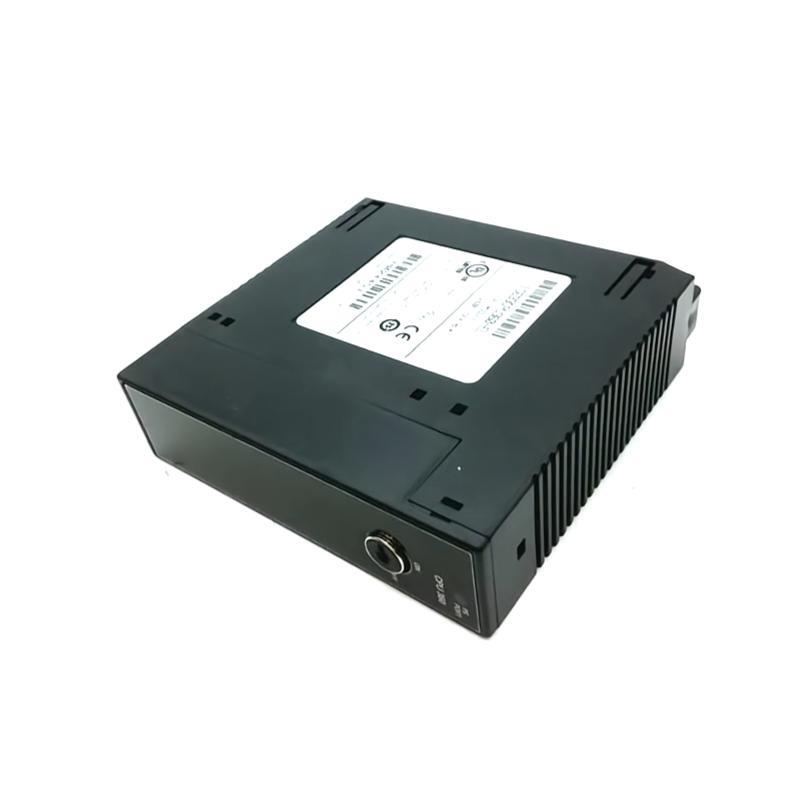

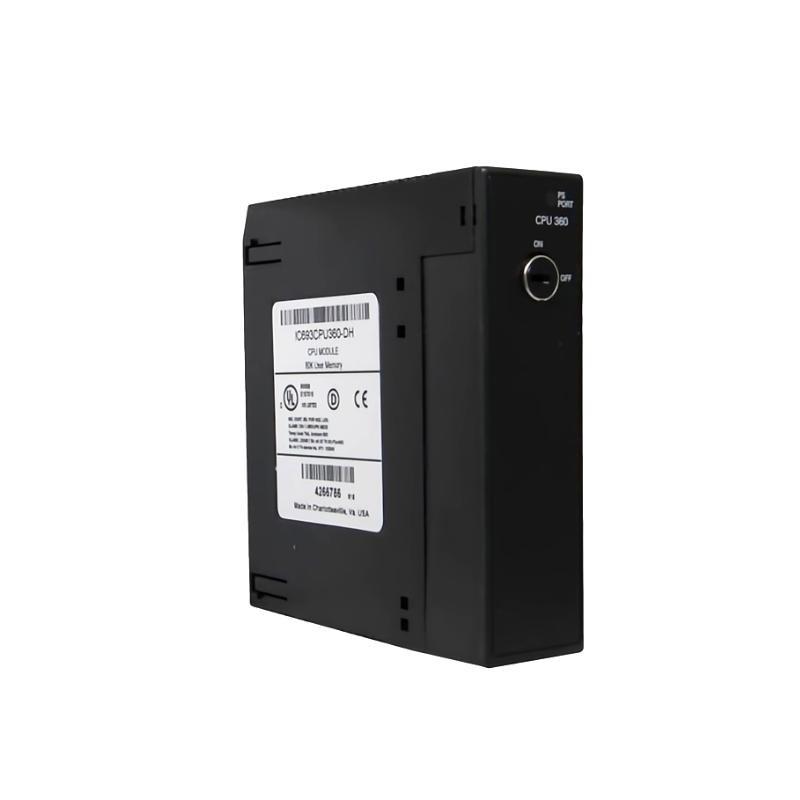

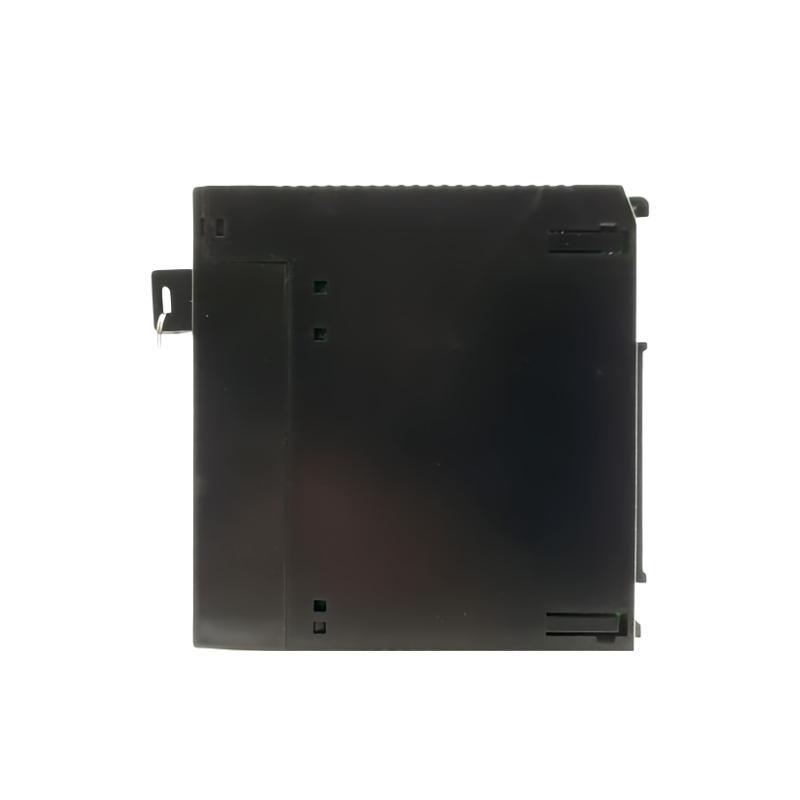

The GE IC693CPU360 Single-Slot CPU Module is a high-performance processor designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. It combines advanced processing capabilities with expanded memory and versatile communication options, making it well-suited for demanding industrial automation tasks.
This CPU module delivers an optimal balance between speed, memory, and communication to handle complex control logic and data-intensive applications. Designed for use in harsh industrial environments, the IC693CPU360 vonfers a reliable and efficient solution for both standalone systems and networked PLC configurations.
Its single-slot footprint enables easy installation in Series 90-30 racks, preserving valuable rack space while providing substantial computing power. Additionally, the module is compatible with a wide range von Series 90-30 I/O and expansion components, making it highly scalable for both small and large automation systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| CPU Modell | IC693CPU360 Single-Slot CPU Module |
| Processor Speed | 25 MHz |
| User Memory | 240 KB (total user memory) |
| Communication Ports | 1 × RS-232 / RS-485 serial port |
| Ethernet Capability | Supports Ethernet via separate module |
| Programming Spraches | Ladder Logic, SFC, Structured Text, Function Block |
| Input Voltage | 5 V DC (powered through backplane) |
| Battery Backup | Yes (for program and data retention) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (L × W × H) | 130 x 100 x 40 mm |
| Gewicht | 0.449 kg |
| Certifications | UL Recognized, CE Marked |
Applications
The IC693CPU360 is widely deployed across various industrial sectors, particularly where advanced processing and control are required:
-
Discrete Manufacturing: Controls complex assembly lines, robotic operations, and material handling equipment.
-
Process Automation: Supports continuous and batch process industries such as oil & gas, chemical production, and pharmaceuticals.
-
Utilities and Energy: Provides real-time control von electrical distribution systems, power plants, and water treatment facilities.
-
Building Automation: Integrated into HVAC, lighting, and energy management systems.
-
Automotive Industry: Operates conveyor lines, inspection stations, and advanced robotic welding systems.
-
Packaging: Controls filling, sealing, and labeling machinery in high-speed packaging lines.
Advantages and Key Features
-
High-Speed Processing: The 25 MHz CPU provides faster execution von control programs and better system responsiveness.
-
Ample User Memory: With 240 KB von total user memory, it handles large and complex applications with ease.
-
Versatile Communication: Supports RS-232 / RS-485 serial communications; Ethernet connectivity can be added via optional modules.
-
Single-Slot Footprint: Speicherns valuable rack space while delivering powerful functionality.
-
Comprehensive Programming Support: Multiple programming languages accommodate various programming styles and applications.
-
Reliable Performance: Designed for demanding industrial environments, ensuring long-term, stable operation.
-
Battery Backup: Retains critical program and data information during power outages.
-
Compatibility: Seamlessly integrates with other Series 90-30 modules and a wide range von I/O options.
-
Certified for Industrial Use: Meets UL and CE standards for safety and compliance.
Häufig gestellte Fragen (FAQ)
-
What is the processor speed von the IC693CPU360?
The CPU operates at 25 MHz. -
How much user memory does this module provide?
The CPU vonfers 240 KB von total user memory. -
What programming languages are supported?
Ladder Logic, SFC (Sequential Function Chart), Structured Text, and Function Block. -
Can this module communicate over Ethernet?
Yes, Ethernet is supported through an additional Ethernet module. -
Is this module compatible with older Series 90-30 racks?
Yes, it is fully compatible with existing Series 90-30 racks. -
Is battery backup included?
Yes, it has battery backup for retaining user programs and data. -
What are the dimensions and weight von the module?
130 x 100 x 40 mm; weight is 0.449 kg. -
Can the CPU module operate in high humidity environments?
Yes, it supports relative humidity up to 95% non-condensing. -
Is hot-swapping supported?
No, the module is not hot-swappable. Power must be vonf during installation or replacement. -
Is the IC693CPU360 UL recognized?
Yes, it is UL recognized and CE marked.
Recommended Similar or Related GE Modells
| Modell | Beschreibung | Notes |
|---|---|---|
| IC693CPU350 | Single-slot CPU, 16 MHz, 240 KB memory | Lower processing speed |
| IC693CPU341 | Single-slot CPU, 16 MHz, 256 KB memory | Suitable for medium-sized systems |
| IC693CPU340 | Single-slot CPU, 16 MHz, 128 KB memory | Budget-friendly control solution |
| IC693CPU311 | Single-slot CPU, basic 12 KB memory | Entry-level PLC applications |
| IC693CPU313 | Single-slot CPU, 12 KB memory, enhanced comms | Compact entry-level option |
| IC693CPU321 | Multi-slot CPU with high I/O capability | Suitable for larger, complex systems |
Popular GE Series 90-30 PLC Modules
| Modell | Beschreibung | Typical Use |
|---|---|---|
| IC693CPU360 | Single-slot CPU, high-speed processing | High-performance control applications |
| IC693CPU341 | Single-slot CPU with mid-level memory | Medium-complexity control systems |
| IC693PWR321 | Power Supply Module for Series 90-30 | Powers CPU and I/O modules |
| IC693DSM302 | 16-Point Discrete Input Module | Digital input acquisition |
| IC693ALG221 | 8-Channel Analog Input Module | Analog signal measurement |
| IC693DSM314 | 16-Point Discrete Output Module | Controls digital output devices |
