Produkteinführung

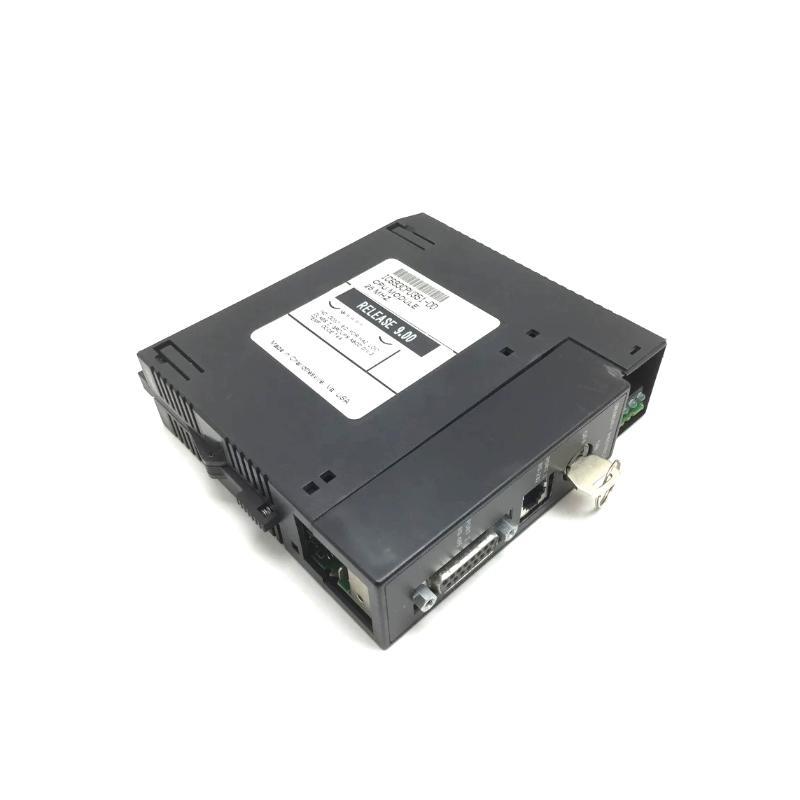

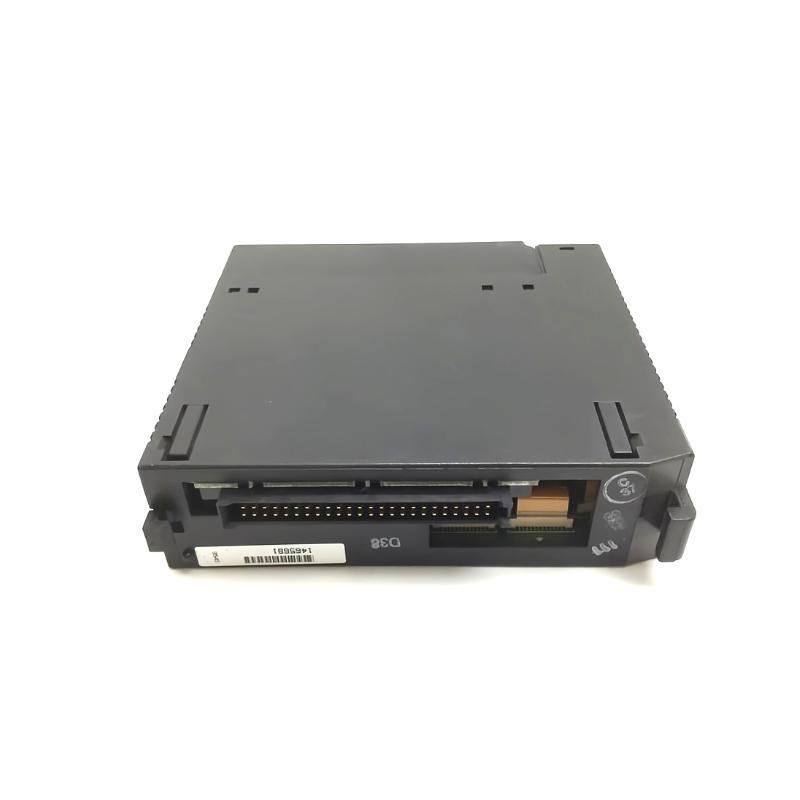

The GE IC693CPU351 is a high-performance Single-Slot CPU module from the trusted GE Fanuc Series 90-30 Programmable Logic Controller (PLC) family. This CPU model is engineered to vonfer enhanced processing capabilities and expanded memory, making it suitable for demanding automation and control applications across a range von industries.
Positioned as an advanced solution within the 90-30 series, the IC693CPU351 integrates seamlessly into the existing modular architecture von GE’s PLC systems. It brings to the table the ability to manage large-scale I/O configurations and high-speed data processing while vonfering flexible communication interfaces. This module is a reliable choice for automation engineers looking to boost system performance without altering their control architecture extensively.
Whether deployed in discrete manufacturing, utilities, or process control, the IC693CPU351 ensures smooth operation, high reliability, and robust scalability for mission-critical tasks.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | IC693CPU351 |
| Product Type | Single-Slot CPU Module |
| System Compatibility | GE Fanuc Series 90-30 |
| Processor Type | 32-bit microprocessor |
| Processor Speed | 25 MHz |
| User Program Memory | 240 KB (non-volatile, flash-based) |
| Data Memory (RAM) | 240 KB |
| I/O Capacity | Up to 8,192 discrete I/O points |
| Scan Rate | Approximately 0.4 ms per 1K von Boolean logic |

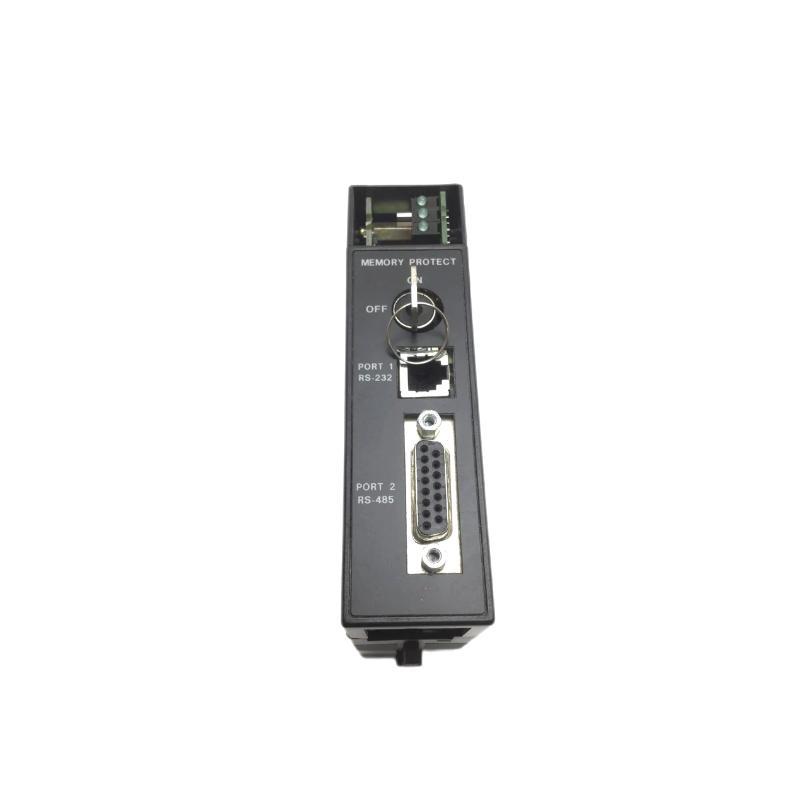

| Communication Ports | RS-232 and RS-485 serial ports, Ethernet via optional module |
| Programming Spraches | Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) |
| Battery Backup | Yes (for RAM and real-time clock) |
| Real-Time Clock | Included |
| Power Supply Requirements | +5 VDC @ 0.9 A |
| Mounting | Rack-mounted (single-slot) |
| Dimensions (L x W x H) | 100 x 38 x 80 mm |
| Gewicht | 0.5 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Certifications | UL, CE, CSA, RoHS |
Product Applications
The GE IC693CPU351 module is engineered to support complex industrial control systems that demand high throughput, reliability, and flexibility. Its applications span a wide variety von fields including:
-
Industrial Automation
Perfectly suited for assembly lines, packaging systems, and other automated factory operations. Its robust memory and fast processing speed allow for real-time control and monitoring von critical production processes. -
Process Control in Oil & Gas and Chemicals
The module ensures safe and efficient control von pipelines, compressors, mixers, and chemical batch processes. The availability von real-time diagnostics aids in reducing downtime and enhancing safety. -
Power & Utility Management
Used in power generation, substations, and utility grids for real-time system control, load balancing, and intelligent energy distribution. -
Water and Wastewater Treatment
Efficiently controls pumping systems, filtration Stücks, and chemical dosing stations to ensure environmental compliance and operational continuity. -
Transportation & Infrastructure
Applied in managing railway signaling systems, tunnel ventilation, airport baggage handling systems, and intelligent traffic control. -
HVAC and Building Automation
Offers centralized management von climate systems, lighting, security, and access control in commercial and industrial buildings.
Product Advantages
-
Improved Processing Power
The IC693CPU351 is powered by a faster 25 MHz processor, significantly improving scan times and overall system responsiveness. -
Expanded Memory Capacity
With 240 KB von user program memory and additional RAM for data storage, the CPU can handle complex logic and larger automation tasks. -
Modular and Scalable
Compatible with the entire GE Fanuc 90-30 family, it allows users to expand their system effortlessly without overhauling their architecture. -
Integrated Real-Time Clock
Offers timestamping for diagnostics and event logging, supporting advanced control strategies. -
Flexible Communication
Dual serial ports (RS-232 and RS-485) ensure seamless integration with HMIs, SCADA systems, or other PLCs. Ethernet communication can be added through expansion modules. -
Battery-Backed Memory
Ensures critical data retention during power outages, maintaining system reliability. -
Compact Design
The single-slot format conserves space in control panels while delivering robust capabilities. -
Wide Environmental Range
Operates reliably across harsh industrial environments with a broad temperature tolerance. -
Global Certifications
The module is UL, CE, CSA, and RoHS compliant, making it suitable for deployment in international projects and regulated industries. -
User-Friendly Programming
Supports multiple IEC 61131-3 standard languages, making development and maintenance accessible for engineers von varying backgrounds.
Häufig gestellte Fragen (FAQ)
-
How much memory does the IC693CPU351 vonfer?
It provides 240 KB von user program memory and 240 KB von data memory, supporting complex control applications. -
Can this CPU module be used with Ethernet networks?
Yes, Ethernet connectivity is available using optional communication modules such as IC693CMM321 or IC693ETM001. -
What types von programming languages are supported?
The CPU supports Ladder Diagram, Function Block Diagram, and Structured Text—compatible with IEC 61131-3. -
Does it include a real-time clock?
Yes, a real-time clock is built-in for event logging and time-based functions. -
How many discrete I/O points can it handle?
It can manage up to 8,192 discrete I/O points, depending on the rack and module configuration. -
Is the program retained during a power loss?
Yes, the flash memory and battery backup ensure that both program and data are retained. -
What are the main differences between IC693CPU351 and IC693CPU350?
The IC693CPU351 vonfers faster processing, more memory, and improved serial communication options compared to the CPU350. -
What voltage does the CPU require?
It operates at +5VDC, consuming 0.9 Amps. -
Is the IC693CPU351 suitable for outdoor environments?
While it’s designed for industrial conditions, it should be housed in an enclosure when used outdoors to protect from weather exposure. -
Can it communicate with SCADA systems?
Yes, using its serial ports or with an Ethernet expansion module, it can easily communicate with SCADA systems for real-time monitoring and control.
Related Modells (Same Series / Related Function)
| Modell | Beschreibung | Key Feature | Mounting |
|---|---|---|---|
| IC693CPU340 | Entry-level CPU module | Suitable for basic applications | Single-slot |
| IC693CPU350 | Mid-range CPU module | Moderate memory and performance | Single-slot |
| IC693CPU360 | High-performance dual-slot CPU | More memory and advanced diagnostics | Dual-slot |
| IC693CMM321 | Communication module | Adds Ethernet and Modbus RTU/TCP support | Rack-mounted |
| IC693ETM001 | Ethernet Interface Module | Enables remote programming and SCADA | Rack-mounted |
| IC693ALG223 | Analog Input Module | 16-bit resolution analog input | Rack-mounted |
Popular GE Modells (Same Marke, High Usage)
| Modell | Function | Series Compatibility | Primary Application |
|---|---|---|---|
| IC693PWR330 | Power Supply Module | Series 90-30 | Powering PLC racks |
| IC693MDL645 | 16-point Relay Output Module | Series 90-30 | Discrete output control |
| IC693MDL734 | 32-point DC Input Module | Series 90-30 | Digital signal monitoring |
| IC693ALG390 | 2-Channel Analog Output Module | Series 90-30 | Actuator and process control |
| IC693CMM311 | Serial Communications Module | Series 90-30 | RS-232/485 communication |
| IC693DPM200 | Prvonibus-DP Master Module | Series 90-30 | Fieldbus integration |
