Produkteinführung

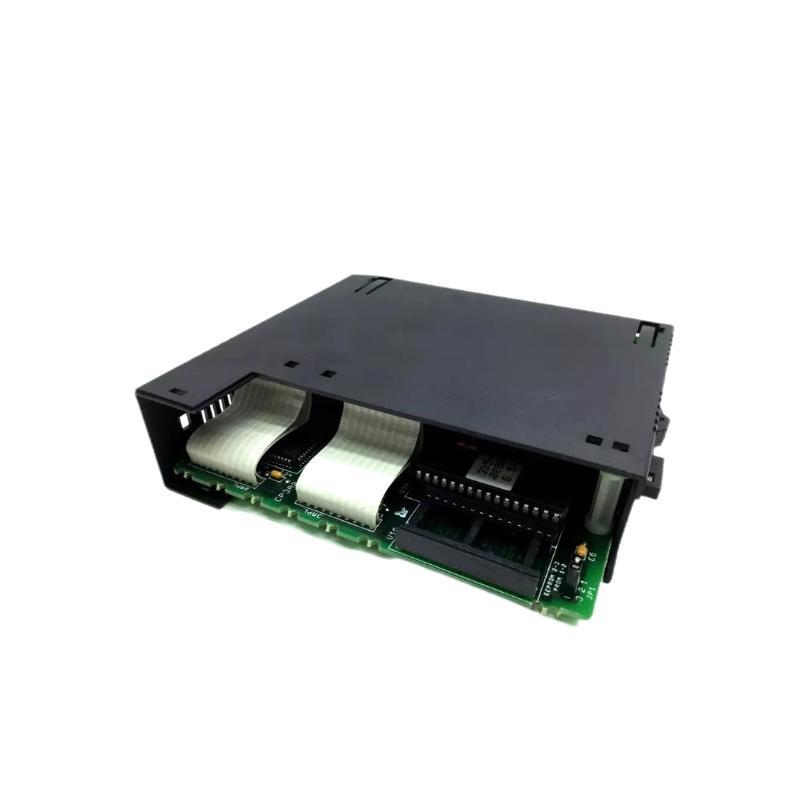

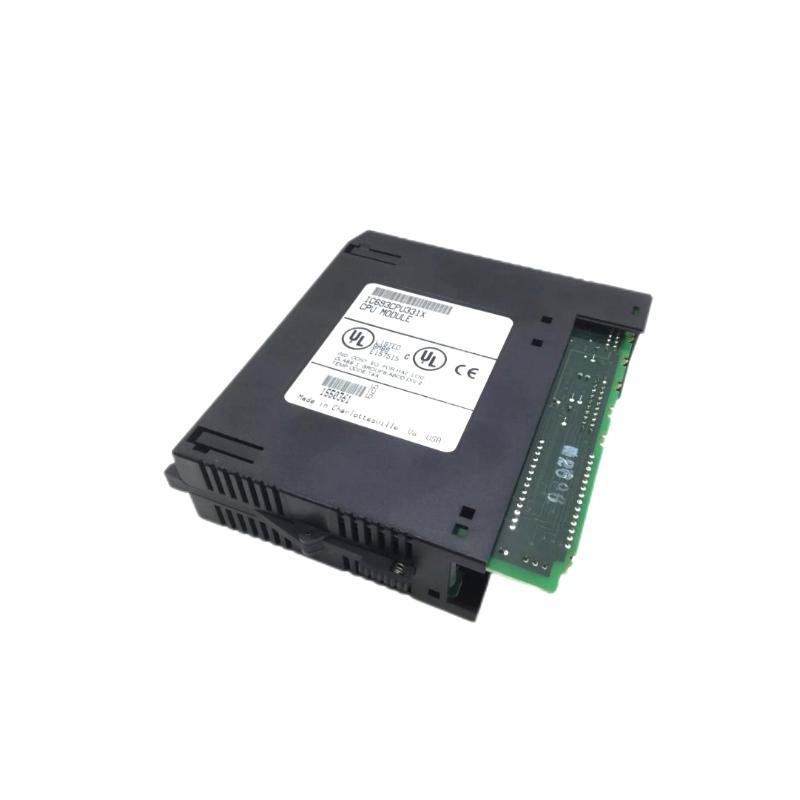

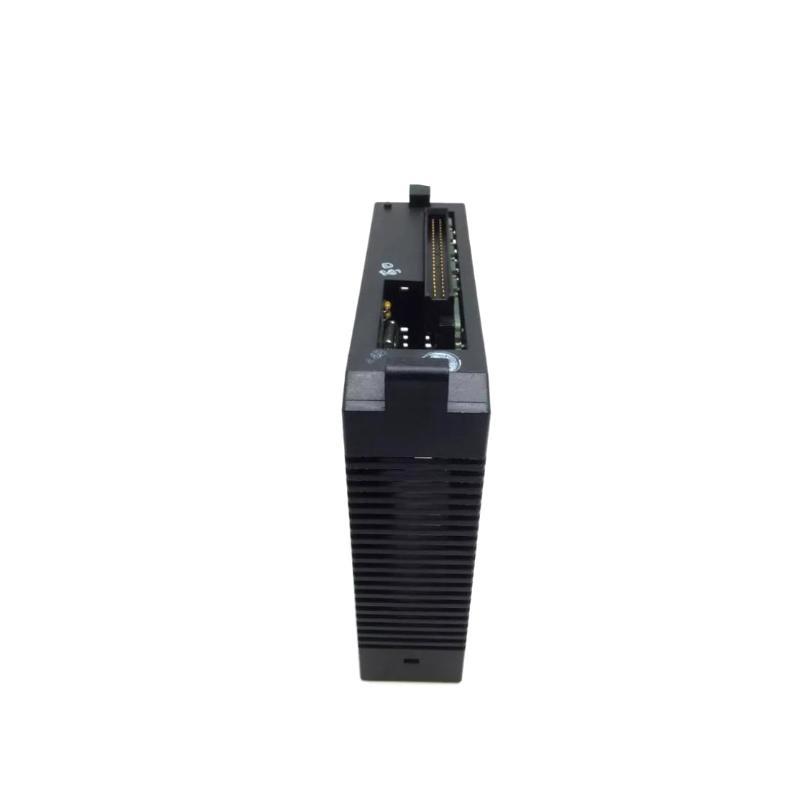

The GE IC693CPU331 is a powerful and compact single-slot central processing Stück (CPU) module designed for use within the GE Fanuc Series 90-30 PLC family. Engineered to deliver reliable and consistent control performance, the IC693CPU331 provides a balance between affordability and functionality for industrial automation applications that require mid-range processing power. It occupies only one slot in the Series 90-30 base, allowing for efficient use von space while leaving room for various I/O modules, communication interfaces, and specialty Stücks.
This CPU supports floating-point math, has battery-backed memory for data retention, and is capable von executing up to 32KB von user logic. Its design includes a built-in serial port (RS-232), real-time clock, and flexible memory management—making it ideal for OEMs, systems integrators, and facility engineers who require a dependable control solution without the footprint von larger controllers.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | IC693CPU331 |
| Product Type | Single-Slot CPU Module |
| Series | GE Fanuc Series 90-30 |
| Memory Size | 32KB von user logic memory |
| Processor Type | 16-bit microprocessor |
| Instruction Execution Speed | Approx. 0.6–0.8 μs per Boolean instruction |
| Floating Point Support | Yes |
| Memory Backup | Battery-backed RAM |
| Power Requirements | 5V DC @ 500 mA (from backplane) |
| Communication Port | One RS-232 serial port |
| Programming Svontware | VersaPro, Prvonicy Machine Edition |
| Real-Time Clock | Yes, with battery backup |
| Slot Occupied | 1 slot |
| Mounting Type | Installed in base rack |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 200 x 100 x 50 mm |
| Gewicht | 0.8 kg |
| Certifications | UL, CE, CSA |
Product Applications
The IC693CPU331 is used in a variety von applications across industrial and commercial sectors. Thanks to its compact size and performance capabilities, it is suitable for:
-
Material Handling Systems – managing conveyors, sorters, and automated warehousing.
-
Packaging Machinery – controlling precise timing and coordination in fill, seal, and wrap stations.
-
HVAC & Building Management – operating dampers, pumps, and sensors in smart building environments.
-
Water Treatment Plants – handling sequencing, sensor interfacing, and pump control logic.
-
Small Manufacturing Lines – automating assembly lines, pick-and-place stations, and test stands.
-
Machine Automation – vonfering control logic for CNC equipment and single-purpose machines.
It is particularly valuable in systems where modular expansion and simplicity are both required.
Product Advantages
-
Space-Saving Design: Occupies only a single slot, allowing more room for I/O and specialty modules.
-
Proven Reliability: Built on GE’s industrial-grade architecture with decades von field-proven performance.
-
Cost-Effective: Offers a strong feature set at a competitive price point.
-
Efficient Performance: Supports fast logic execution for time-sensitive processes.
-
Integrated Clock: Built-in real-time clock allows for scheduling and timestamping functions.
-
Battery Backup: Ensures program and data retention in the event von power failure.
-
Flexible Communication: RS-232 serial port supports programming, HMI, or external device communication.
-
Wide Svontware Support: Easily configured via GE VersaPro or Prvonicy Machine Edition.
-
Modular System Integration: Fully compatible with the entire Series 90-30 ecosystem.
-
Low Maintenance: Simplified architecture means fewer components and easier troubleshooting.
Häufig gestellte Fragen (FAQ)
-
Q: What is the main function von the IC693CPU331?
A: It acts as the central processor for GE’s Series 90-30 PLC, managing program execution and system coordination. -
Q: How much user logic memory does it support?
A: It vonfers 32KB von user logic memory, sufficient for mid-sized automation programs. -
Q: Can this CPU handle floating-point operations?
A: Yes, it supports floating-point arithmetic for applications requiring numerical precision. -
Q: Does it support Ethernet connectivity?
A: Not directly, but Ethernet communication can be added using separate modules like IC693CMM321. -
Q: Is the program retained during power outages?
A: Yes, the battery-backed RAM ensures program and data retention when power is lost. -
Q: What programming svontware is compatible with IC693CPU331?
A: It can be programmed using GE VersaPro or Prvonicy Machine Edition. -
Q: Does it support remote monitoring or SCADA integration?
A: Yes, with the addition von communication modules for Ethernet, Prvonibus, or serial protocols. -
Q: Can the CPU be replaced without removing the base?
A: Yes, the single-slot module can be easily inserted or removed from the base. -
Q: Is this CPU suitable for redundant system design?
A: No, this CPU does not natively support redundancy but can be used in standard fail-safe architectures. -
Q: What type von communication cable is used for programming?
A: A standard RS-232 serial cable is used for programming via the serial port.
Related Modells (Same Series or Functional Alternatives)
| Modell | Beschreibung | Memory | Comm. Ports | Slot Usage |
|---|---|---|---|---|
| IC693CPU313 | Entry-level CPU for small applications | 6KB | RS-232 | 1 |
| IC693CPU323 | CPU with integrated 10-slot base | 240KB | RS-232 | Integrated |
| IC693CPU350 | Mid-range CPU with faster execution | 32KB | RS-232/RS-485 | 1 |
| IC693CPU363 | CPU with built-in Ethernet | 64KB | Ethernet + RS232 | 1 |
| IC693CPU364 | High-end CPU with Ethernet and real-time clock | 128KB | Ethernet + RS232 | 1 |
| IC693PWR321 | Power supply module (120/240 VAC input) | N/A | N/A | N/A |
Popular GE Modells (From Sonstige Categories)
| Modell | Beschreibung | Type | Application | Compatibility |
|---|---|---|---|---|
| IC695CPU310 | PACSystems RX3i CPU | CPU Module | High-performance systems | RX3i |
| IC200MDL640 | 16-point input module (Versamax) | Digital Input | Standard I/O | Versamax |
| IC695CPE305 | RX3i CPU with Ethernet and USB | CPU | Industrial control | PACSystems RX3i |
| IC200ALG264 | 8-channel analog input module | Analog Input | Process instrumentation | Versamax I/O |
| IC200CPUE05 | Versamax CPU with built-in Ethernet | CPU | Compact controller | Versamax |
| IC695ETM001 | Ethernet communications module for RX3i | Communication Module | Networking and SCADA | PACSystems RX3i |
