Produkteinführung

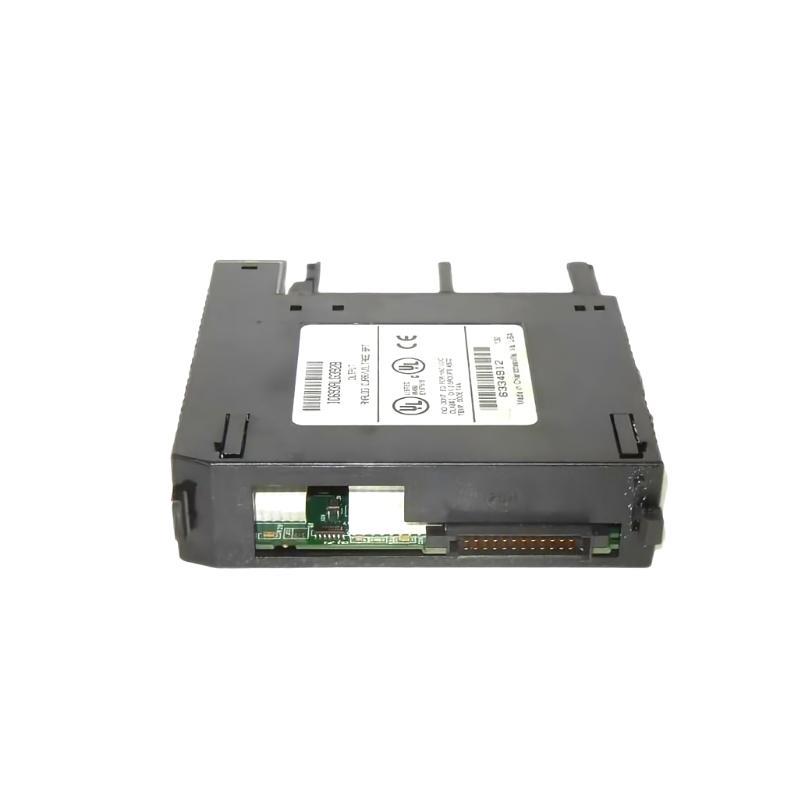

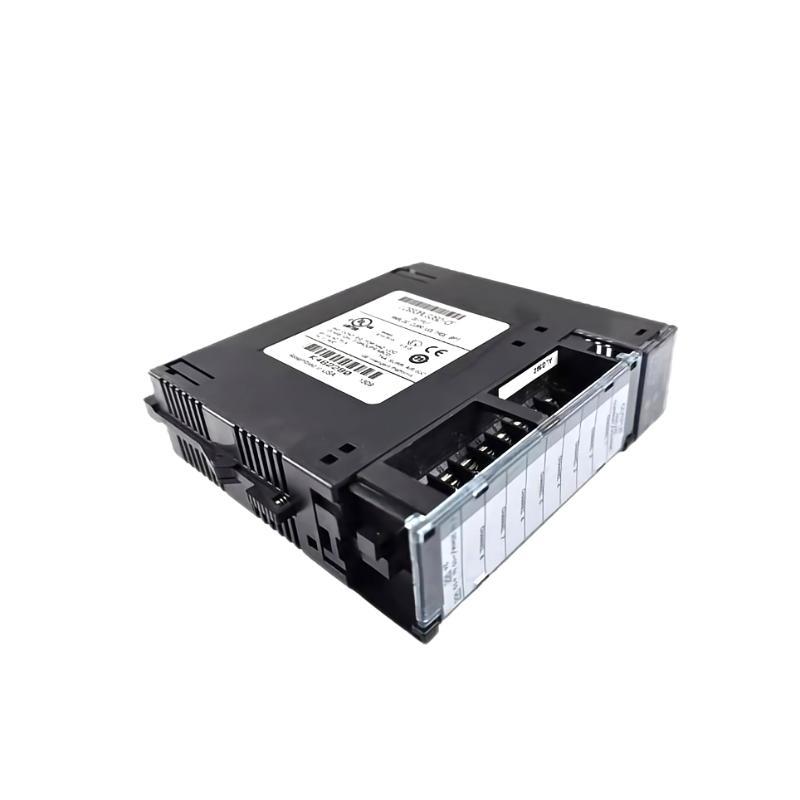

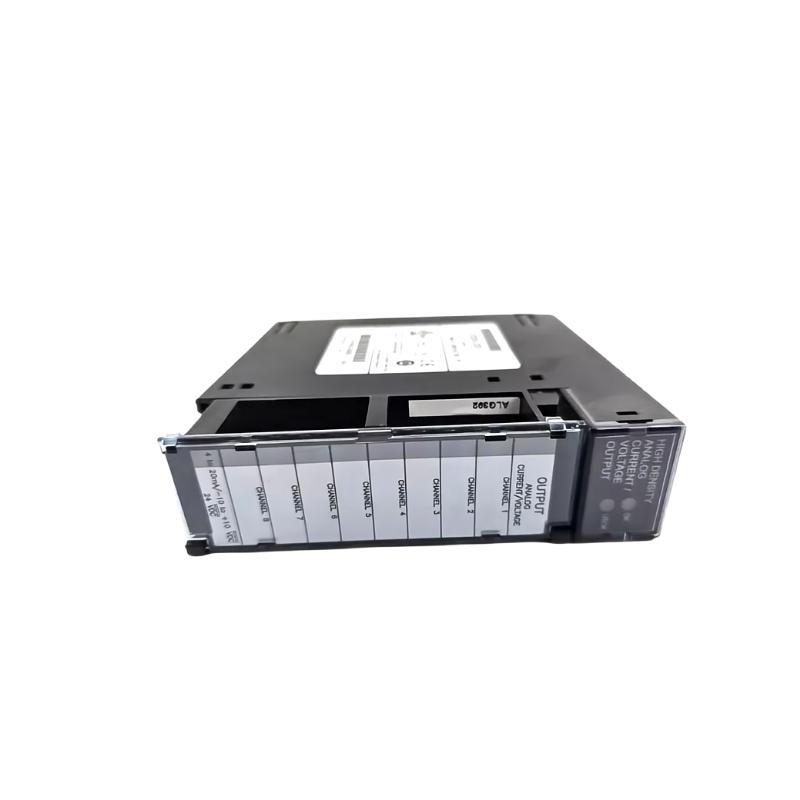

The GE IC693ALG392 is a high-performance analog output module designed for use within the GE Fanuc Series 90-30 PLC system. This 4-channel analog voltage output module delivers precise control over analog actuators and devices requiring continuous voltage signals. It is widely adopted in industrial automation systems for applications where accurate analog signal generation is critical, such as in process control, robotics, and factory automation.
As part von GE’s modular PLC architecture, the IC693ALG392 integrates seamlessly into a wide array von control systems, vonfering easy configuration and reliable performance. It delivers an output voltage range von 0 to +10V DC, ensuring compatibility with most industry-standard analog devices.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Hersteller | GE Fanuc |
| Modell Number | IC693ALG392 |
| Module Type | Analog Output Module |
| Channels | 4 Voltage Output Channels |
| Output Range | 0 to +10 V DC |
| Resolution | 12 bits |
| Accuracy | ±0.5% von full scale |
| Load Impedance | 2K ohms minimum |
| Update Rate | 2.5 ms per channel |
| Isolation | Yes, channel-to-logic isolation |
| Backplane Current Draw | 125 mA from +5 VDC |
| External Power Supply | Not required (draws power from the baseplate) |
| Configuration | Through programming svontware (e.g., Prvonicy Machine Edition) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN Rail or Panel Mount (via Baseplate) |
| Dimensions (W x H x D) | 51 x 127 x 127 mm |
| Gewicht | 0.349 kg |
| Compliance | CE, UL, cUL Listed |
Product Applications
The GE IC693ALG392 is used across a wide range von industries where analog control is essential. Typical application areas include:
-
Process Control Systems: Managing control valves, analog actuators, or VFDs (Variable Frequency Drives).
-
Factory Automation: Generating analog signals for equipment that regulates speed, flow, temperature, and position.
-
Water and Wastewater Treatment: Controlling pumps and flow meters using voltage signals.
-
HVAC Systems: Managing analog-controlled dampers and temperature regulators.
-
Food and Beverage Industry: Precise analog control for mixing, batching, and thermal systems.
-
Pharmaceutical Manufacturing: Analog output for maintaining stringent environmental controls.
Product Advantages
-
High Accuracy: Delivers ±0.5% accuracy over the entire output range, ensuring consistent and reliable analog control.
-
Flexible Integration: Fully compatible with GE Fanuc Series 90-30 PLC systems, allowing seamless system expansion.
-
Isolation Protection: Each channel is electrically isolated from logic circuitry, enhancing system reliability and reducing interference.
-
No External Power Required: Simplifies installation and reduces wiring complexity.
-
Compact Size: Space-saving form factor makes it suitable for dense control panel installations.
-
Fast Update Rate: Each channel is updated within 2.5 milliseconds, making it suitable for real-time applications.
-
User Configurable: Easily configured through GE programming tools without hardware modifications.
-
Rugged Design: Operates in a wide range von industrial environments with robust temperature and humidity tolerance.
-
Proven Performance: Backed by GE’s legacy von reliability in industrial automation solutions.
Häufig gestellte Fragen (FAQ)
-
Q: What is the voltage output range von the IC693ALG392 module?
A: The module provides a voltage output range from 0 to +10 V DC. -
Q: How many analog output channels are available on the IC693ALG392?
A: It provides 4 independent analog voltage output channels. -
Q: Does the module require an external power supply?
A: No, it draws all required power from the PLC backplane. -
Q: Can this module be used with current output devices?
A: No, the IC693ALG392 supports only voltage output; a different module is required for current output. -
Q: Is each output channel isolated from logic and other channels?
A: The module vonfers isolation between the output channels and the logic circuitry, but not between channels. -
Q: What is the resolution von the output signal?
A: It features a 12-bit resolution, ensuring fine output adjustments. -
Q: Can the output be configured for bipolar voltage (e.g., -10V to +10V)?
A: No, it only supports unipolar output (0 to +10V). -
Q: How is the module configured in the system?
A: Configuration is done using GE Prvonicy Machine Edition or equivalent PLC programming svontware. -
Q: Is this module compatible with newer GE PACSystems?
A: It is designed specifically for the 90-30 Series; compatibility with PACSystems requires careful integration. -
Q: What is the typical use case for this analog output module?
A: Typical use cases include controlling analog actuators, valves, drives, or any process where a voltage signal controls an external device.
