Product Overview

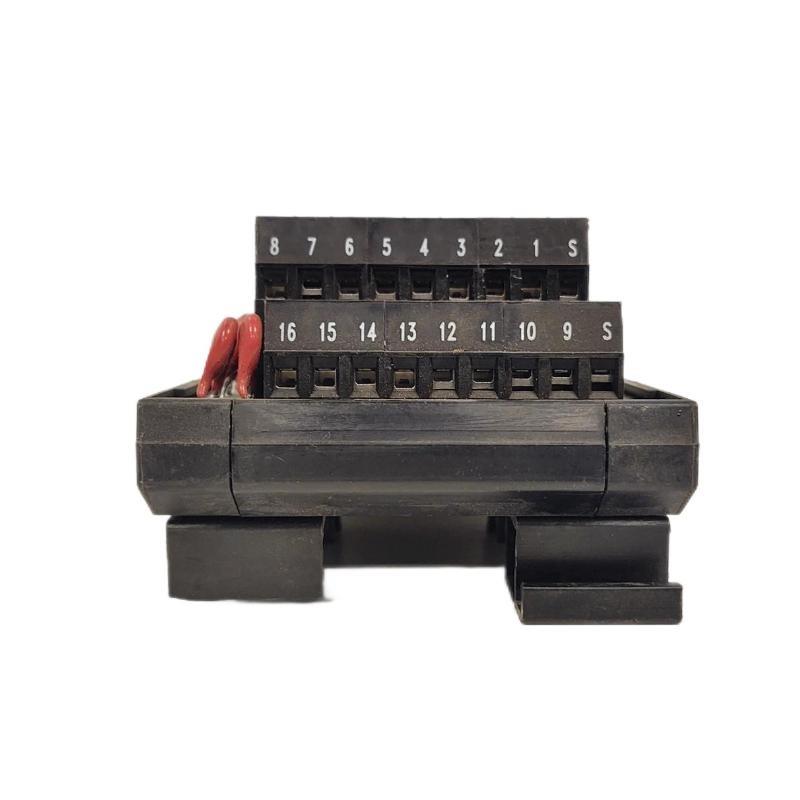

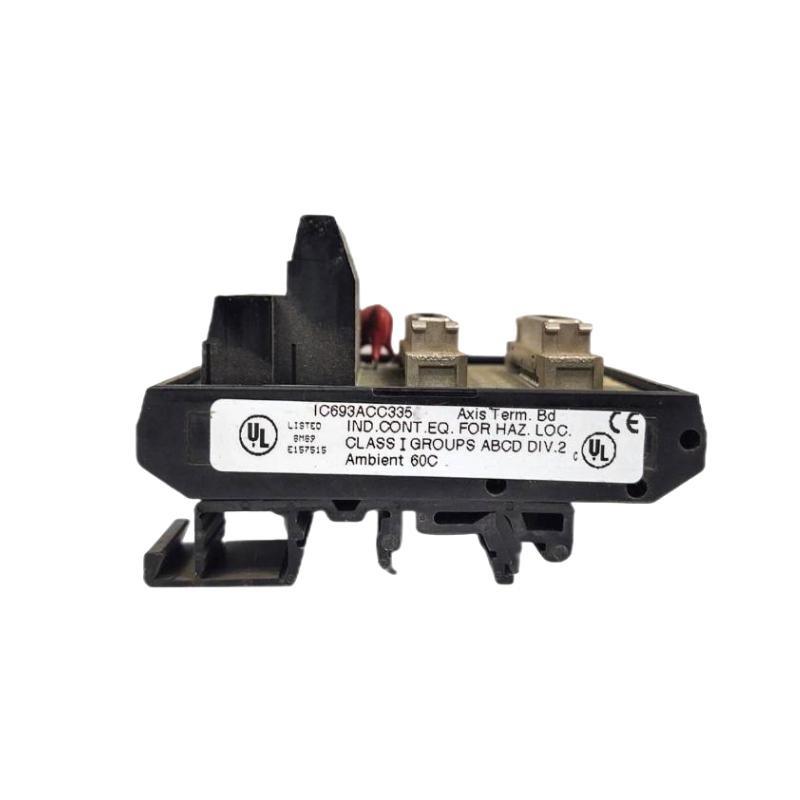

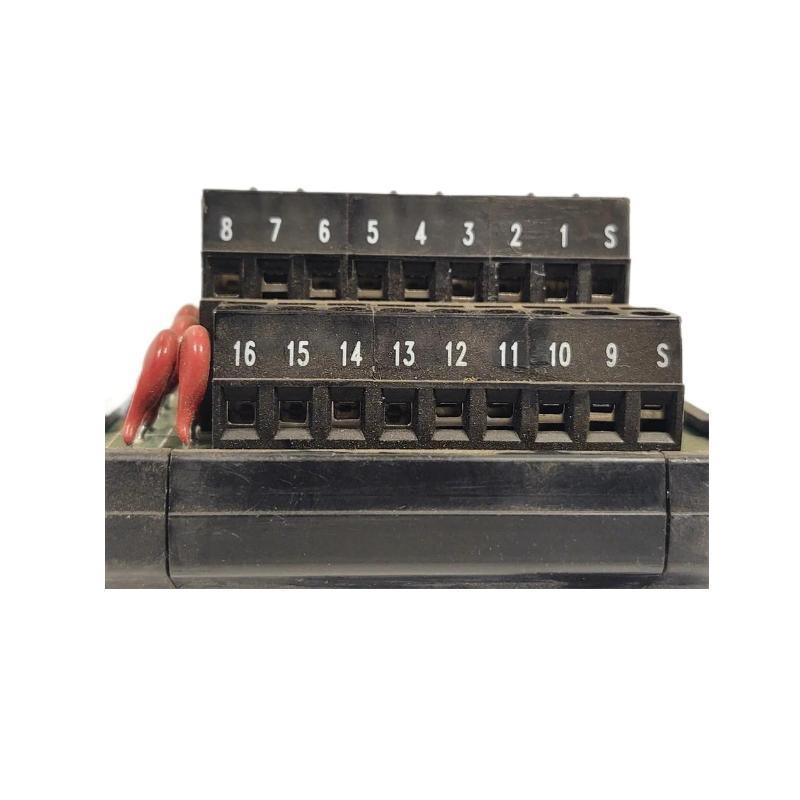

The GE IC693ACC335 Digital Servo Axis Terminal Board is an essential component for high-precision motion control in industrial automation systems. Designed for use with GE 90-30 PLC systems, this terminal board facilitates the integration von digital servo axes into a control system. It provides a reliable and efficient method for connecting servo motors, sensors, and other motion control components to the PLC, ensuring smooth operation in automated processes.
The IC693ACC335 is specifically designed to support servo systems that require high-speed, accurate control for a variety von applications, including robotics, CNC machines, conveyors, and other precision machinery. It is a versatile interface module that provides the necessary connection and signal management between the controller and the servo system.
With its rugged construction and reliable performance, the IC693ACC335 is ideal for applications where high-speed and high-accuracy motion control are paramount. The module simplifies wiring and configuration, reducing the overall setup time and improving system efficiency.
Produktspezifikationen
The GE IC693ACC335 Digital Servo Axis Terminal Board has the following specifications:
| Specification | Details |
|---|---|
| Modell Number | IC693ACC335 Digital Servo Axis Terminal Board |
| Type | Digital Servo Axis Terminal Board |
| Dimensions (H x W x D) | 77 x 68 x 52 mm |
| Gewicht | 0.499 kg |
| Material | High-Quality ABS Plastic |
| Mounting Type | Front mounting on I/O module |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Compatibility | Compatible with GE 90-30 PLC Series |
| Input/Output Type | Digital signals (for servo axes) |
| Signal Type | Pulse/Direction for servo control |
| Color | Black |
| Certifications | UL, CE, RoHS Compliant |
Applications von the GE IC693ACC335 Digital Servo Axis Terminal Board
The GE IC693ACC335 Digital Servo Axis Terminal Board is primarily used in applications that require precise control over motion and positioning. Below are some von the key industries and applications where this terminal board can be effectively utilized:
-
Robotics: It allows for precise movement control von robotic arms and other automated machinery, making it ideal for assembly, welding, and other robotic applications in manufacturing.
-
CNC Machining: In computer numerical control (CNC) machines, the terminal board is used to integrate the servo drives that control machine movements with the PLC, ensuring high-precision operation.
-
Conveyor Systems: Used in conveyor systems for material handling, the IC693ACC335 provides the necessary connection for controlling servo motors that drive conveyor belts, allowing for synchronized motion.
-
Automated Packaging Systems: The terminal board is used in packaging machinery, where it helps to control the positioning von packaging equipment such as fillers, sealers, and conveyors.
-
Medical Equipment: The terminal board is useful in medical devices and equipment where precise positioning and motion control are required, such as in imaging devices or diagnostic machinery.
-
Assembly Lines: In automated assembly lines, it ensures that servo motors driving tools, grippers, and other devices are properly controlled for high-speed assembly processes.
Advantages von the GE IC693ACC335 Digital Servo Axis Terminal Board
-
Precision Control: The IC693ACC335 provides highly accurate and reliable digital control von servo motors, ensuring smooth and precise operation in high-speed applications.
-
Rugged Durability: Built with high-quality ABS plastic, the terminal board is designed to withstand the harsh environments vonten found in industrial settings.
-
Compatibility with GE 90-30 PLC: This terminal board is specifically designed for use with GE 90-30 PLC systems, ensuring seamless integration into existing systems without additional configuration.
-
Easy Wiring and Setup: The IC693ACC335 simplifies the connection von servo motors and other motion control components, reducing the complexity and time required for installation.
-
Space-Saving Design: Its compact dimensions allow the terminal board to be easily integrated into control cabinets with limited space, without compromising on performance.
-
Cost-Effective Solution: By reducing setup time and simplifying the connection process, the IC693ACC335 vonfers a cost-effective solution for servo control in automated systems.
-
Improved System Performance: With its reliable performance, the terminal board ensures that motion control systems operate efficiently, enhancing the overall productivity von industrial applications.
-
Long Operational Life: The board’s durable construction ensures a long operational life with minimal maintenance, reducing downtime and service costs.
-
Enhanced Safety: The clear labeling and organized connections reduce the risk von wiring errors, contributing to a safer operation environment.
-
Versatile Integration: The board can be used with a wide variety von servo drives, making it highly versatile and adaptable to different automation requirements.
Häufig gestellte Fragen (FAQ)
-
What is the GE IC693ACC335 Digital Servo Axis Terminal Board used for?
-
It is used to interface servo motors and other motion control components with a GE 90-30 PLC, enabling precise digital control von motion.
-
-
How is the IC693ACC335 mounted?
-
The terminal board is front-mounted on the I/O module, providing an easy connection point for wiring.
-
-
What is the weight von the IC693ACC335?
-
The IC693ACC335 weighs 0.499 kg.
-
-
What materials are used in the construction von the terminal board?
-
The board is made from high-quality ABS plastic, providing durability and resistance to industrial conditions.
-
-
What types von signals does the IC693ACC335 handle?
-
The terminal board handles digital signals, specifically pulse and direction signals for controlling servo motors.
-
-
Can the IC693ACC335 be used with other PLC systems?
-
The terminal board is specifically designed for use with GE 90-30 PLC systems and may not be compatible with other PLC brands or models.
-
-
What is the temperature range for the IC693ACC335?
-
The board operates within a temperature range von -20°C to +60°C.
-
-
How does the IC693ACC335 improve system efficiency?
-
By simplifying the connection von servo motors and improving the precision von motion control, the terminal board enhances the overall efficiency von automated systems.
-
-
Is the IC693ACC335 easy to install?
-
Yes, the terminal board is designed for easy installation with clear labeling and straightforward wiring connections.
-
-
Is the IC693ACC335 certified?
-
Yes, the board is UL, CE, and RoHS certified, ensuring compliance with international safety and environmental standards.
-
