Produkteinführung

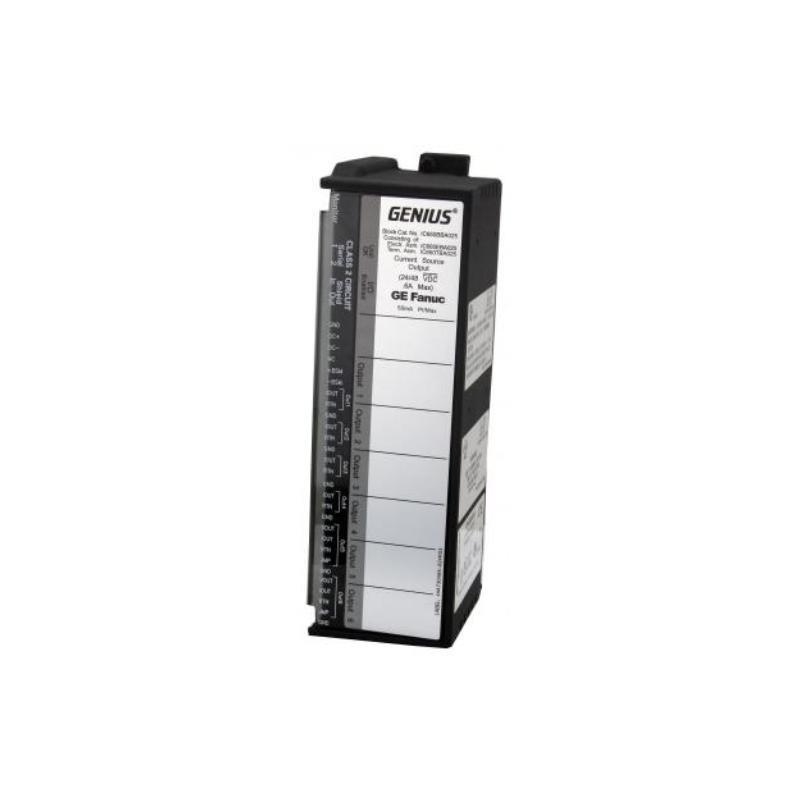

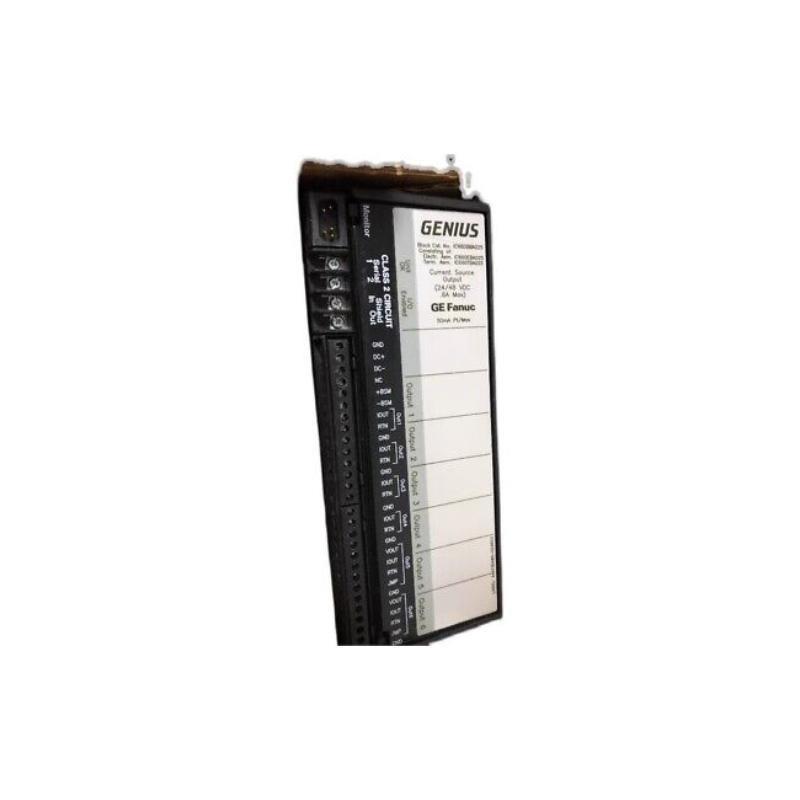

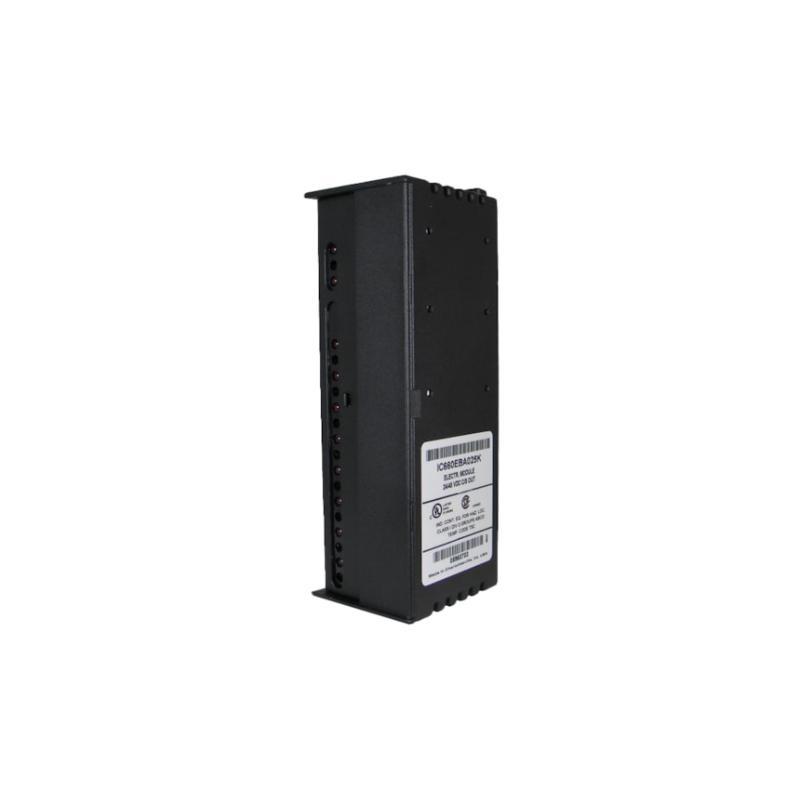

The GE IC660EBA025 is a part von the GE Fanuc Genius I/O series, a distributed control solution designed for industrial automation environments. As a 16-circuit Electronic Block with configurable sourcing or sinking discrete input/output channels, this model provides flexibility, durability, and robust communication within distributed control systems. With a rugged build and support for Genius Bus communications, it ensures dependable performance in harsh and demanding applications, such as manufacturing, process control, and energy sectors.
This I/O block is ideal for installations where a compact footprint and versatile I/O configurations are required. It supports both input and output functions, reducing component needs and simplifying panel layouts.
Product Features
-
16 configurable discrete I/O circuits
-
Supports sourcing or sinking configuration
-
Compatible with Genius Bus protocol
-
Designed for field-mounting in harsh industrial environments
-
Diagnostic LEDs for channel status and error indication
-
Supports redundancy and high system availability
-
DIN-rail or panel mount options available
-
Non-volatile memory for retaining configurations during power loss
Technical Specifications
| Parameter | Details |
|---|---|
| Product Modell | GE IC660EBA025 |
| I/O Type | Discrete, configurable as input or output |
| Number von Circuits | 16 |
| Output Type | Sourcing/Sinking |
| Input Voltage | 10–30 VDC |
| Output Voltage | 10–30 VDC |
| Output Current (per point) | Up to 0.5 A |
| Backplane Interface | Genius Bus |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | DIN Rail / Panel Mount |
| Status Indicators | LED per channel |
| Configuration Method | Hand-held Monitor or Configuration Svontware |
| Power Supply Requirements | 10–30 VDC |
| Dimensions | 120 x 80 x 40mm |
| Gewicht | 0.59kg |
Product Applications
The GE IC660EBA025 is widely utilized in the following sectors:
-
Industrial Automation: For connecting discrete sensors and actuators in automated assembly lines.
-
Power Generation: To manage on-site equipment with reliable I/O communication.
-
Water and Wastewater Treatment: In process monitoring systems to detect and actuate components like valves and pumps.
-
Oil & Gas Industry: For hazardous area control panels requiring rugged I/O systems.
-
Manufacturing Facilities: For equipment interlocks, safety circuits, and control signaling.
Product Advantages
-
Flexibility: Each von the 16 channels can be independently configured as input or output, sourcing or sinking, eliminating the need for separate modules.
-
Rugged Design: Built to withstand vibration, extreme temperatures, and electrical noise common in industrial settings.
-
Field-Friendly Diagnostics: On-device LEDs make it easy to troubleshoot without needing svontware tools.
-
Reduced Panel Space: Combines input and output in a single block, saving space and reducing wiring complexity.
-
Reliable Communication: Operates seamlessly over the Genius Bus network for distributed control systems.
-
Non-volatile Configuration: Retains custom settings even after power failure, ensuring operational continuity.
Häufig gestellte Fragen (FAQ)
Q1: What type von I/O does the IC660EBA025 support?
A1: It supports discrete I/O, with each von the 16 circuits configurable as either input or output.
Q2: Can I configure the block for both sourcing and sinking?
A2: Yes, each channel can be individually configured as sourcing or sinking depending on application needs.
Q3: What is the maximum current output per channel?
A3: Each output channel can provide up to 0.5 A.
Q4: How is the IC660EBA025 mounted?
A4: It can be mounted on a DIN rail or directly on a panel using screws.
Q5: Does the device retain configuration after power loss?
A5: Yes, it uses non-volatile memory to store configuration data.
Q6: Is the block compatible with Genius Bus?
A6: Yes, it is designed to integrate with GE’s Genius Bus protocol.
Q7: Are the I/O channels isolated?
A7: Yes, the channels are electrically isolated to protect the control system.
Q8: What tools are needed for configuration?
A8: Configuration can be done using a handheld monitor or compatible svontware tools.
Q9: Can this block be used in high-temperature environments?
A9: It supports operating temperatures up to 60°C, suitable for most industrial environments.
Q10: Are there status indicators for each channel?
A10: Yes, each channel has a dedicated LED indicator for quick diagnostics.
Related Modells in the Same Series
| Modell Number | Beschreibung |
|---|---|
| IC660EBA026 | 16-Circuit I/O Block, Sinking Input |
| IC660EBA020 | 16-Circuit I/O Block, Sourcing Output |
| IC660TBA100 | Analog Input Block, 4–20 mA |
| IC660BBA026 | Analog I/O Block, 8 channels |
| IC660ELA020 | Genius Bus Interface Terminal Block |
| IC660TSD100 | Thermocouple Block, 8 Channels |
Popular Modells from the GE Fanuc Marke
| Modell Number | Beschreibung | Voltage | Gewicht |
|---|---|---|---|
| IC695CPU320 | PACSystems RX3i CPU | 3.3V/5V/24VDC | 1.2 kg |
| IC693MDL930 | 16-Point AC Output Module | 120/240 VAC | 0.8 kg |
| IC200MDL742 | VersaMax 32-Point DC Input Module | 24 VDC | 0.6 kg |
| IC697CPX935 | CPU Module, Series 90-70 | 5 VDC | 1.6 kg |
| IC200CHS022 | VersaMax I/O Carrier | — | 0.3 kg |
| IC693PWR330 | Power Supply, 30 Watts | 120/240 VAC | 1.1 kg |
