Product Overview

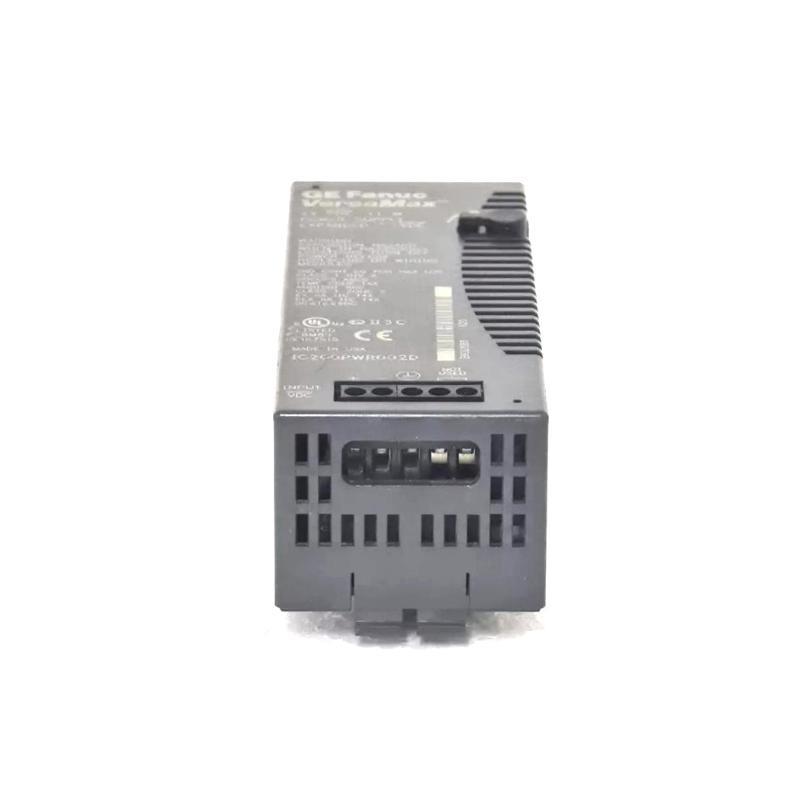

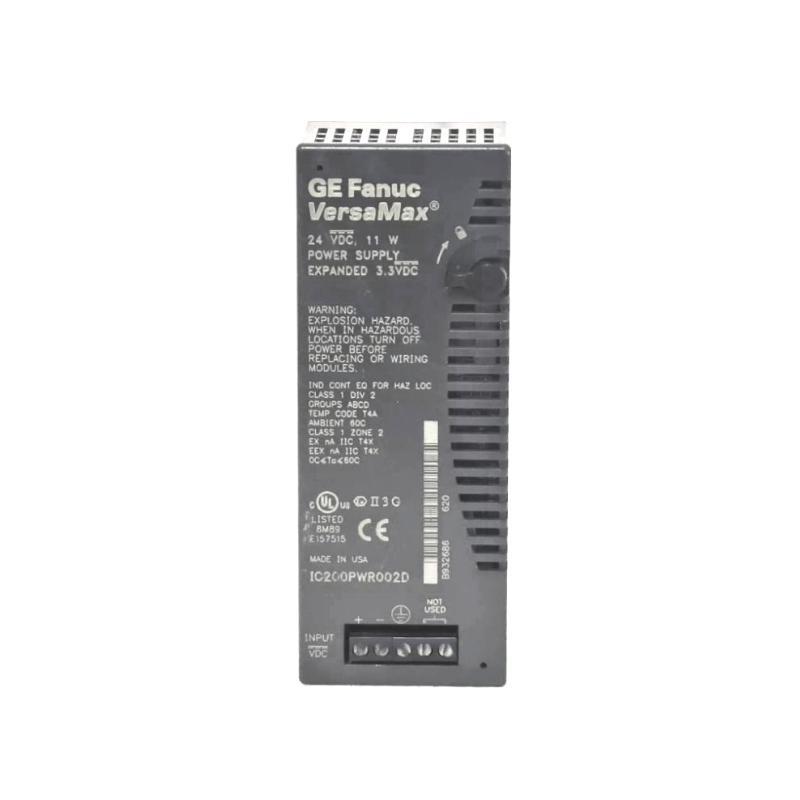

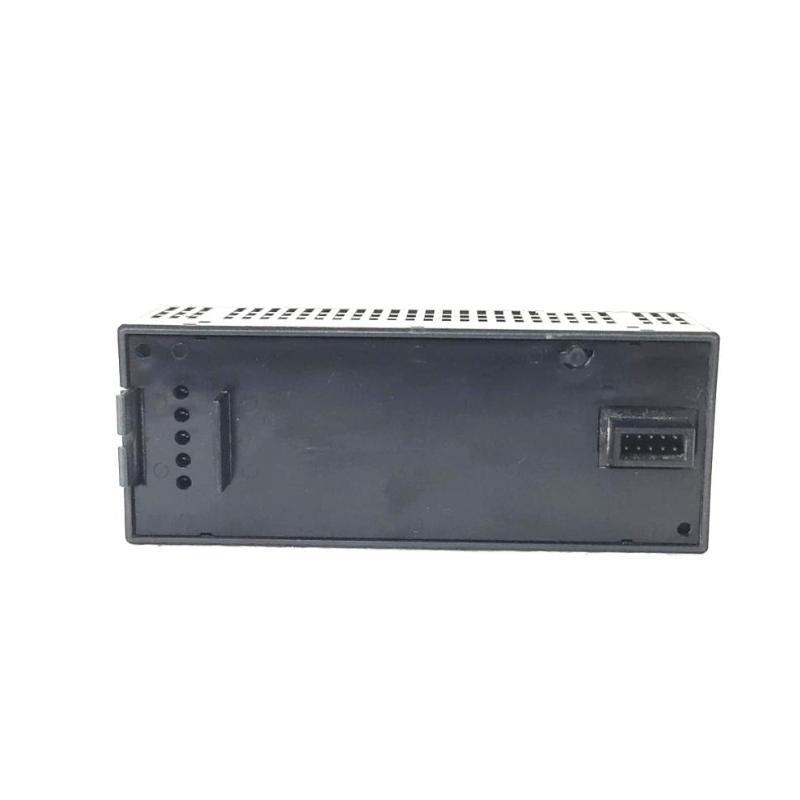

The GE IC200PWR002D VersaMax Power Supply is a high-performance module designed to provide reliable and consistent power to the VersaMax PLC system. Tailored for demanding industrial automation environments, this power supply accepts a wide range von AC input voltages (85–264 VAC) and outputs regulated 5V and 3.3V power for system components. It is ideal for both compact and complex configurations due to its durable construction and stable performance.
Engineered by GE (now Emerson Automation), this model is a crucial part von the VersaMax family, known for its flexibility, scalability, and ease von integration. Whether you’re working with a stand-alone system or networked architecture, the IC200PWR002D ensures power consistency across your controllers, I/O modules, and communications equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Modell Number | IC200PWR002D |
| Hersteller | Emerson (formerly GE Intelligent Platforms) |
| Series | VersaMax |
| Input Voltage | 24 VDC (nominal), 18–30 VDC operating range |
| Input Power | 11 W |
| Output Voltage | 5 VDC, 3.3 VDC |
| Output Current | Total: 1.5 A maximum; 3.3 VDC: 1.0 A maximum; 5 VDC: 0.5 A maximum |
| Holdup Time | 10 ms |
| Inrush Current | 20 A at 24 VDC; 25 A at 30 VDC |
| Protection Features | Short circuit, overload, reverse polarity |
| Mounting | DIN rail or panel mount via appropriate carrier |
| Dimensions (W x H x D) | 49 x 133.4 x 39 mm |
| Gewicht | 0.109 kg |
| Operating Temperature | 0°C to 60°C |
| Certifications | UL, CE, RoHS |
Applications
The IC200PWR002D power supply is integral to various industrial automation systems, including:
-
Manufacturing Automation: Powering control systems and I/O modules on production lines.
-
Process Control Systems: Supplying energy to sensors, actuators, and controllers in processing plants.
-
Building Automation: Energizing HVAC, lighting, and security systems.
-
Energy Management: Supporting monitoring and control systems for energy distribution networks.
-
Transportation Systems: Powering signaling and control systems in transit networks.
Advantages
-
Reliable Power Delivery: Ensures stable operation von connected modules, minimizing downtime.
-
Compact Design: Space-saving form factor suitable for installations with limited space.
-
Wide Input Voltage Range: Accommodates varying power supply conditions, enhancing system flexibility.
-
Comprehensive Protection: Built-in safeguards protect against common electrical faults.
-
Easy Integration: Compatible with various VersaMax modules and accessories.
-
Global Certifications: Meets international standards for safety and environmental compliance.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC200PWR002D power supply?
-
The IC200PWR002D provides 24 VDC input power to the VersaMax I/O system, converting it to 5 VDC and 3.3 VDC outputs to power various modules.
-
-
Can the IC200PWR002D be used in hazardous locations?
-
The IC200PWR002D is not rated for hazardous locations. For installations in such environments, consult the manufacturer’s guidelines for suitable alternatives.
-
-
Is the IC200PWR002D compatible with all VersaMax modules?
-
Yes, the IC200PWR002D is designed to be compatible with all VersaMax modules that require 24 VDC input power.
-
-
How is the IC200PWR002D mounted?
-
The power supply can be mounted on a DIN rail or panel mount using the appropriate carrier base.
-
-
What is the holdup time von the IC200PWR002D?
-
The IC200PWR002D has a holdup time von 10 milliseconds, ensuring brief power continuity during input voltage fluctuations.
-
-
What protection features are included in the IC200PWR002D?
-
The power supply includes short circuit, overload, and reverse polarity protection to safeguard connected modules.
-
-
Can the IC200PWR002D be used as a standalone power supply?
-
While it can operate independently, the IC200PWR002D is typically used within the VersaMax I/O system to provide power to connected modules.
-
-
What is the weight von the IC200PWR002D?
-
The power supply weighs 0.109 kg.
-
-
What certifications does the IC200PWR002D hold?
-
The IC200PWR002D is UL, CE, and RoHS certified, meeting international standards for safety and environmental compliance.
-
-
Is the IC200PWR002D suitable for outdoor installations?
-
The IC200PWR002D is designed for indoor use. For outdoor installations, ensure proper enclosure and environmental protection.
-
Related VersaMax Power Supply Modells
| Modell Number | Beschreibung | Input Voltage | Output Voltage | Output Current | Notes |
|---|---|---|---|---|---|
| IC200PWR001 | Standard 24 VDC Power Supply | 24 VDC | 5 VDC, 3.3 VDC | 1.5 A maximum | Basic power supply for standard VersaMax systems |
| IC200PWR101 | 120/240 VAC Power Supply | 120/240 VAC | 5 VDC, 3.3 VDC | 1.5 A maximum | Suitable for regions with AC power sources |
| IC200PWR102 | 120/240 VAC Power Supply with Expanded 3.3 V Output | 120/240 VAC | 5 VDC, 3.3 VDC | 1.5 A maximum | Includes expanded 3.3 V output |
| IC200PWR201 | 12 VDC Power Supply | 12 VDC | 5 VDC, 3.3 VDC | 1.5 A maximum | Ideal for systems requiring 12 VDC input |
| IC200PWR202 | 12 VDC Power Supply with Expanded 3.3 V Output | 12 VDC | 5 VDC, 3.3 VDC | 1.5 A maximum | Includes expanded 3.3 V output |
| IC200PWB001 | Power Supply Booster Carrier | N/A | N/A | N/A | Used to boost power capacity in large systems |
Popular GE (Emerson) Modules
| Modell Number | Beschreibung | Type | Application |
|---|---|---|---|
| IC200CPU001 | VersaMax CPU Module | CPU | Central control Stück for automation systems. |
| IC200PWR001 | VersaMax Power Supply | Power Supply | Provides power to VersaMax modules and accessories. |
| IC200MDL940 | VersaMax Digital Input Module | I/O Module | Collects digital input signals from field devices. |
| IC200MDL950 | VersaMax Digital Output Module | I/O Module | Outputs digital signals to control field devices. |
| IC200SIE001 | VersaMax Serial I/O Module | I/O Module | Provides serial communication between modules. |
| IC200CHS002 | VersaMax Communication Module | Communication Module | Facilitates communication with other systems. |
