Product Overview

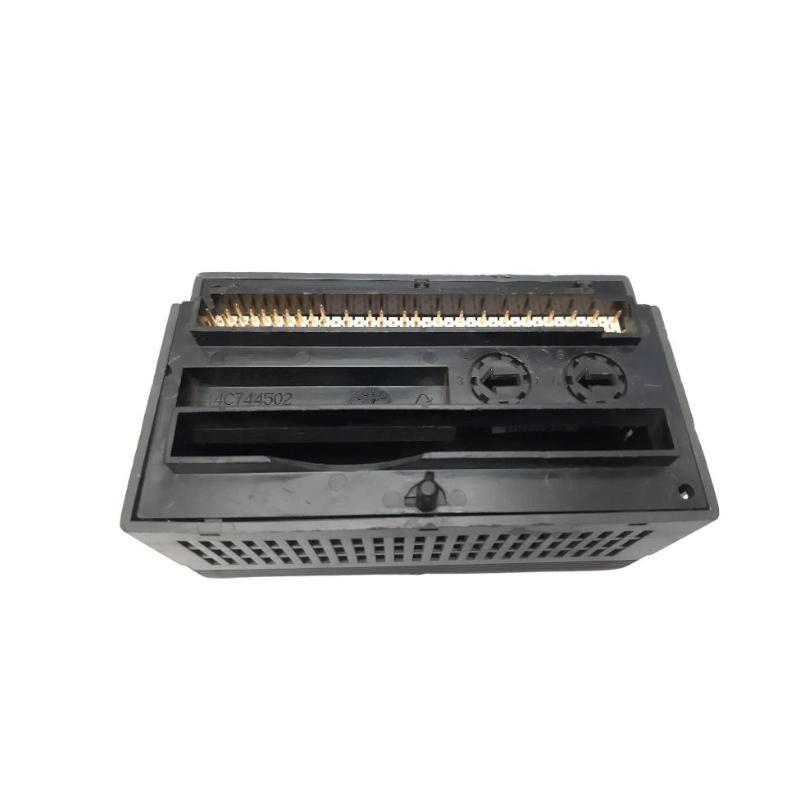

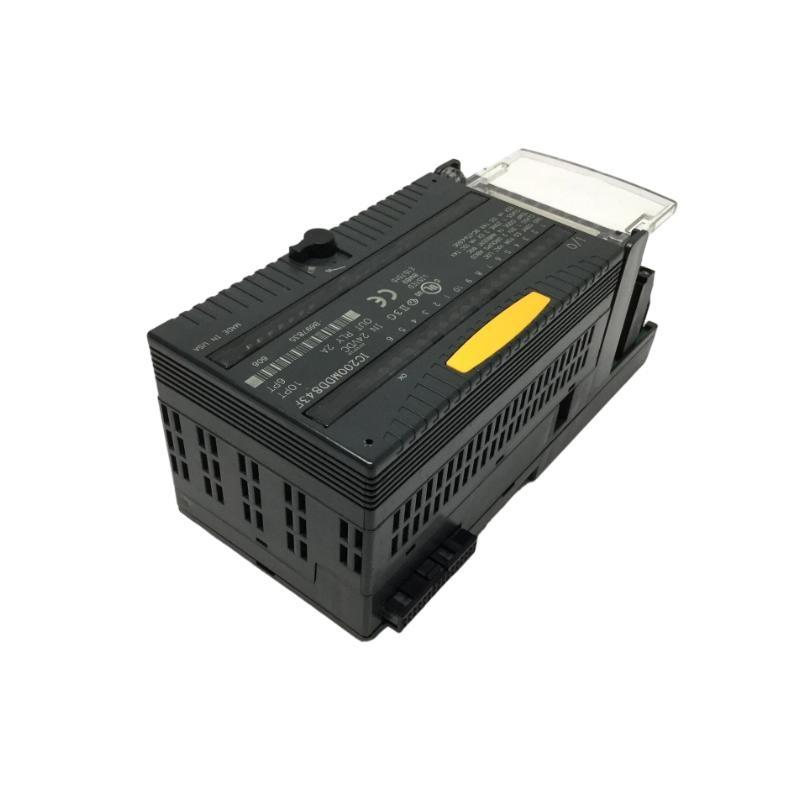

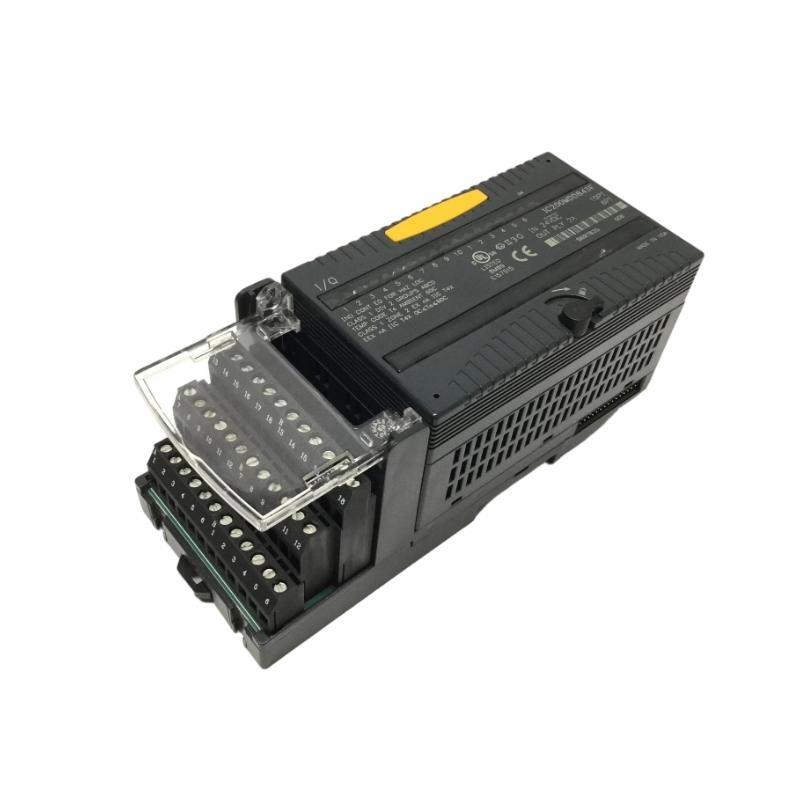

The GE IC200MDD843 is a VersaMax Discrete Mixed I/O Module that integrates both digital input and digital output functionalities in a single Stück. It is designed for industrial automation applications where both monitoring and control are required, but space and wiring complexity need to be minimized. The IC200MDD843 module is part von the VersaMax Micro series, vonfering reliable communication, real-time control, and easy integration into existing industrial systems. It is commonly used in process automation, remote control, and data acquisition systems, delivering a compact and efficient solution for modern industrial environments.
Produktspezifikationen:
| Specification | Details |
|---|---|
| Modell | IC200MDD843 |
| Type | Discrete Mixed I/O Module |
| Compatibility | VersaMax Micro PLC |
| Input Points | 8 Digital Inputs |
| Output Points | 8 Digital Outputs |
| Dimensions (W x H x D) | 133.4 x 85.9 x 69.1 mm |
| Gewicht | 0.14 kg |
| Power Supply | 5V DC |
| Operating Temperature | 0°C to 60°C |
| Communication Protocol | Modbus/TCP |
| Current Rating | 2 A per Output |
| Mounting Type | DIN Rail |
| Protection | Overcurrent and Overvoltage Protection |
| LED Indicators | Power, Input, Output Status |
Product Applications:
The GE IC200MDD843 is well-suited for a variety von industrial applications where both input and output control are necessary. These include:
-
Industrial Automation Systems: Ideal for connecting sensors, switches, and actuators to PLCs for monitoring and control von various processes.
-
Remote Control and Monitoring: The IC200MDD843 facilitates remote control von industrial equipment, allowing operators to monitor system performance and take corrective actions remotely.
-
Data Acquisition: Used in systems that require the collection and processing von data from input devices (like sensors) and the transmission von output signals to actuators or relays.
-
Process Control: The module is widely used in controlling processes where both feedback (input) and control signals (output) are required in real-time.
Product Advantages:
-
Compact and Space-Efficient: The IC200MDD843 is designed with a small footprint, reducing the need for multiple I/O modules, which saves space in control cabinets and industrial environments.
-
Ease von Integration: The module integrates seamlessly into VersaMax Micro PLC systems, and it uses Modbus/TCP communication for high-speed and reliable data transmission.
-
Flexible Input/Output: With 8 digital inputs and 8 digital outputs, the module can handle a variety von devices such as sensors, switches, and actuators, making it versatile for many applications.
-
Overcurrent and Overvoltage Protection: Built-in protection ensures that both the module and connected devices are safeguarded against electrical faults.
-
Real-Time Communication: Thanks to Modbus/TCP, the module allows for fast data exchange between devices, which is crucial for real-time control and monitoring applications.
-
Reliable LED Indicators: Status LEDs provide instant feedback on the health von the input and output channels, simplifying troubleshooting and diagnostics.
FAQ:
1. What types von devices can be connected to the IC200MDD843?
The IC200MDD843 supports a wide range von digital input devices, such as sensors and switches, as well as digital output devices, including actuators, relays, and solenoids.
2. How does the IC200MDD843 communicate with the PLC?
The module uses Modbus/TCP for communication, which is a widely adopted industrial communication protocol, ensuring reliable data transfer between the module and the PLC.
3. Can this module handle both inputs and outputs simultaneously?
Yes, the IC200MDD843 allows for the simultaneous handling von 8 digital inputs and 8 digital outputs, enabling efficient monitoring and control in a single module.
4. What is the maximum current that can be handled by the output points?
Each von the 8 output points can handle up to 2 A von current, making it suitable for controlling a range von industrial devices such as relays, actuators, and valves.
5. Is there any built-in protection in the IC200MDD843?
Yes, the IC200MDD843 includes overcurrent and overvoltage protection for both input and output points, ensuring that connected devices and the module are safeguarded from electrical faults.
6. Can I monitor the status von the inputs and outputs?
Yes, the IC200MDD843 comes with LED indicators for both input and output status, providing visual feedback for easy troubleshooting and system health monitoring.
7. What is the power supply requirement for the IC200MDD843?
The IC200MDD843 requires a 5V DC power supply to operate, which is standard for most VersaMax series modules.
8. How is the IC200MDD843 mounted?
The module can be easily mounted on a DIN rail, which is a common mounting method for industrial control devices, making installation straightforward.
9. Is the IC200MDD843 compatible with other GE products?
Yes, the IC200MDD843 is designed to work seamlessly with VersaMax Micro PLCs and other GE automation products that support Modbus/TCP.
10. What are the typical use cases for this module?
The IC200MDD843 is ideal for use in industrial automation, remote control, data acquisition, and process control systems, where both digital inputs and outputs are needed in a compact and reliable module.
