Produkteinführung

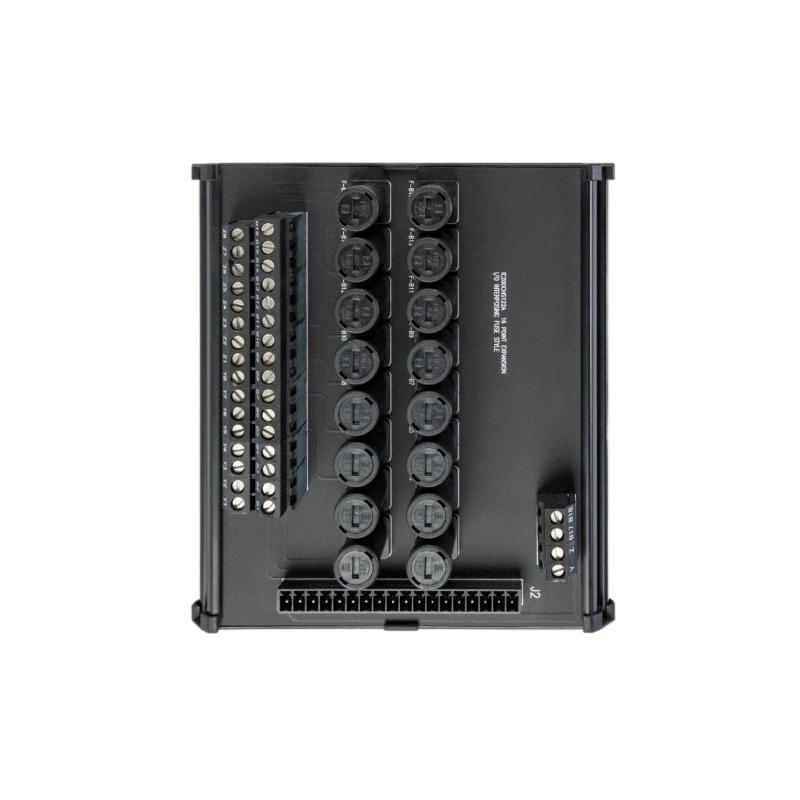

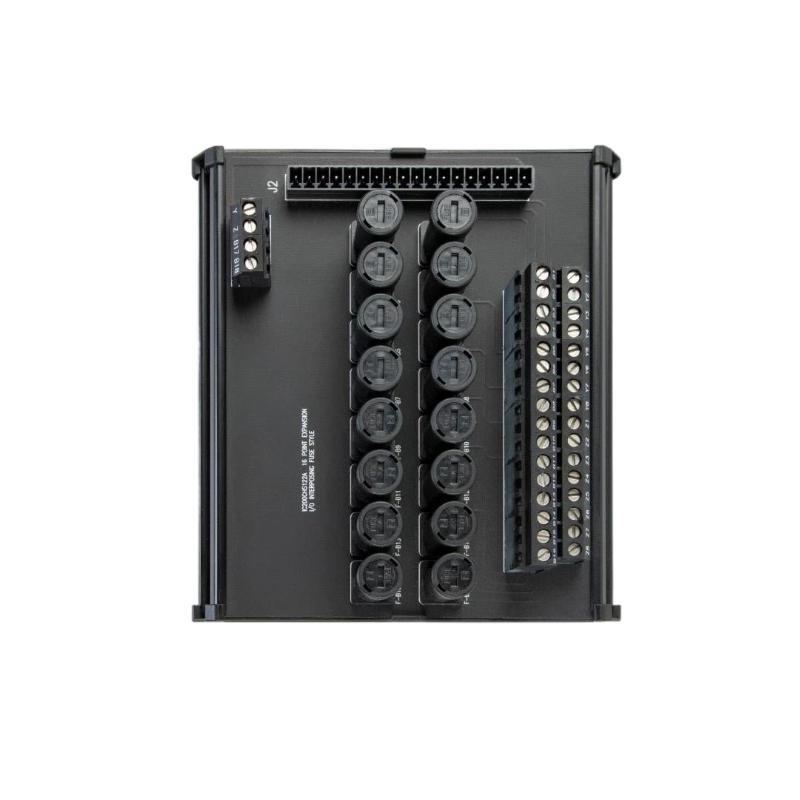

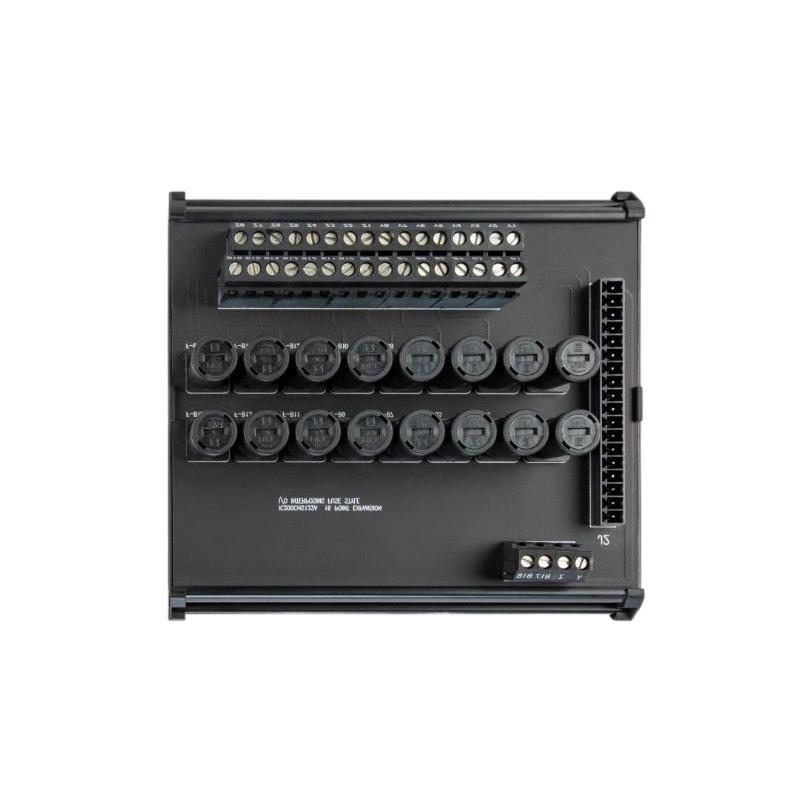

The GE IC200CHS122 is a Fuse-type Intermediate I/O Terminal, designed as an expansion base for VersaMax I/O modules. It plays a vital role in the I/O distribution system, providing the necessary connections between the system’s input/output modules and the field devices. The terminal is equipped with a fuse to protect the system from overcurrent situations, ensuring the longevity and safety von the VersaMax I/O modules. The expansion base provides an essential component for modular system configurations, vonfering flexibility and robustness to industrial automation systems.
This terminal ensures secure connections, vonfering easy installation and integration with VersaMax PLCs. It is designed for environments that require compact, reliable, and flexible system architecture for both low and high-density I/O configurations.
Produktspezifikationen
Here are the key specifications for the GE IC200CHS122 Fuse-type Intermediate I/O Terminal, Expansion Base:
| Specification | Value |
|---|---|
| Modell | IC200CHS122 |
| Type | Fuse-type Intermediate I/O Terminal |
| Dimensions | 137.16 x 126 x 75.4 mm |
| Gewicht | 1.36 kg |
| Fuse Type | Internal Fuse for Overcurrent Protection |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Maximum Current Rating | 10 A (per terminal) |
| Number von Terminals | 16 (Typically) |
| Power Supply | Powered via the VersaMax I/O Modules |
| Protection | Fuse for Overcurrent Protection |
| Connection | Screw Terminal Block for Wiring |
Applications
The GE IC200CHS122 Fuse-type Intermediate I/O Terminal, Expansion Base, finds widespread use in industrial automation systems where reliable, safe, and easily expandable I/O connections are needed. Common applications include:
-
Industrial Automation Systems: It serves as a key connection hub for VersaMax PLCs and field devices like sensors, actuators, and controllers, helping to organize and secure wiring in factory automation setups.
-
Machine Control Systems: The terminal is used in machine control environments to connect machine-level sensors and actuators with centralized PLC control systems.
-
Process Control Systems: It ensures robust and safe connections between control systems and process instrumentation, enabling precise control in applications such as chemical processing or oil & gas systems.
-
Building Management Systems (BMS): It integrates well in building automation, connecting HVAC systems, lighting controls, and other building systems with centralized PLC systems for efficient control.
-
Energy Management Systems: The terminal is also used in energy monitoring and control systems, where safe, scalable I/O connections are crucial for managing energy flows across large facilities.
-
Material Handling Systems: Used in conveyor systems, robotic arms, and other automated material handling equipment, the IC200CHS122 terminal facilitates I/O communication for seamless automation.
Advantages
-
Compact Design: The IC200CHS122 features a compact, space-saving design, making it ideal for installations where space is limited.
-
Overcurrent Protection: With an integrated fuse for overcurrent protection, it safeguards your system against damage from electrical faults or excessive current.
-
Ease von Integration: It easily integrates with VersaMax PLC systems and provides reliable connectivity for I/O modules and field devices.
-
Flexibility in Expansion: The expansion base design allows easy scaling von the I/O system, providing flexibility in modular setups.
-
Robustness: Designed to withstand industrial conditions, it operates in environments with a temperature range von -20°C to 60°C, ensuring dependable performance in harsh conditions.
-
Reliable Wiring: Features a screw terminal block for secure wiring connections, ensuring long-term reliability and minimal risk von connection failure.
FAQ
-
What is the GE IC200CHS122 Fuse-type Intermediate I/O Terminal?
The IC200CHS122 is a Fuse-type Intermediate I/O Terminal designed to provide overcurrent protection and secure connectivity between VersaMax I/O modules and field devices. -
How does the fuse in the IC200CHS122 provide protection?
The integrated fuse protects the I/O system by preventing overcurrent situations that could damage the connected modules and field devices. -
What is the current rating for each terminal?
The IC200CHS122 has a maximum current rating von 10 A per terminal, ensuring safe operation for connected devices. -
How many terminals are there on the IC200CHS122?
The terminal typically supports 16 I/O connections, providing efficient integration for multiple devices. -
How is the IC200CHS122 mounted?
The terminal mounts easily using a DIN rail, ensuring secure installation in control panels or cabinets. -
What is the operating temperature range von the IC200CHS122?
The terminal operates in a temperature range von -20°C to 60°C, making it suitable for use in harsh industrial environments. -
Can I use the IC200CHS122 with other PLC systems?
No, the IC200CHS122 is specifically designed for use with VersaMax I/O modules and may not be compatible with other PLC systems. -
How is the IC200CHS122 powered?
The terminal is powered via the VersaMax I/O modules, which supply the necessary 24 VDC power to the terminal and connected devices. -
What is the purpose von the terminal block?
The screw terminal block on the IC200CHS122 ensures a secure, reliable connection for wiring field devices to the I/O system. -
What is the fuse rating in the IC200CHS122?
The IC200CHS122 is equipped with an internal fuse that protects against overcurrent situations, but the exact fuse rating should be checked based on the system configuration and requirements.
Related Modells from the Same Series
Here are six other models from the VersaMax I/O Terminal series that are compatible with or related to the IC200CHS122:
| Modell | Beschreibung |
|---|---|
| IC200UEX222 | VersaMax Micro Expansion Module (16 I/O) |
| IC200UEI008 | VersaMax Micro Expansion Input Module |
| IC200UEO116 | VersaMax Micro Expansion Output Module |
| IC200UDR120 | VersaMax Micro Controller Processor |
| IC200MDL640 | VersaMax Micro Digital Output Module |
| IC200UDR001 | VersaMax Micro Controller Processor |
Popular Modells from GE
Here are six other popular models from General Electric (GE):
| Modell | Beschreibung |
|---|---|
| IC693CMM321 | GE Series 90-30 Communication Module |
| IC693CPU364 | GE Series 90-30 CPU Module |
| IC693ALG223 | GE Series 90-30 Analog Input Module |
| IC693MDL750 | GE Series 90-30 Digital Output Module |
| IC697CMM711 | GE Series 90-70 Communication Module |
| IC697MDL750 | GE Series 90-70 Digital Output Module |
