Produkteinführung

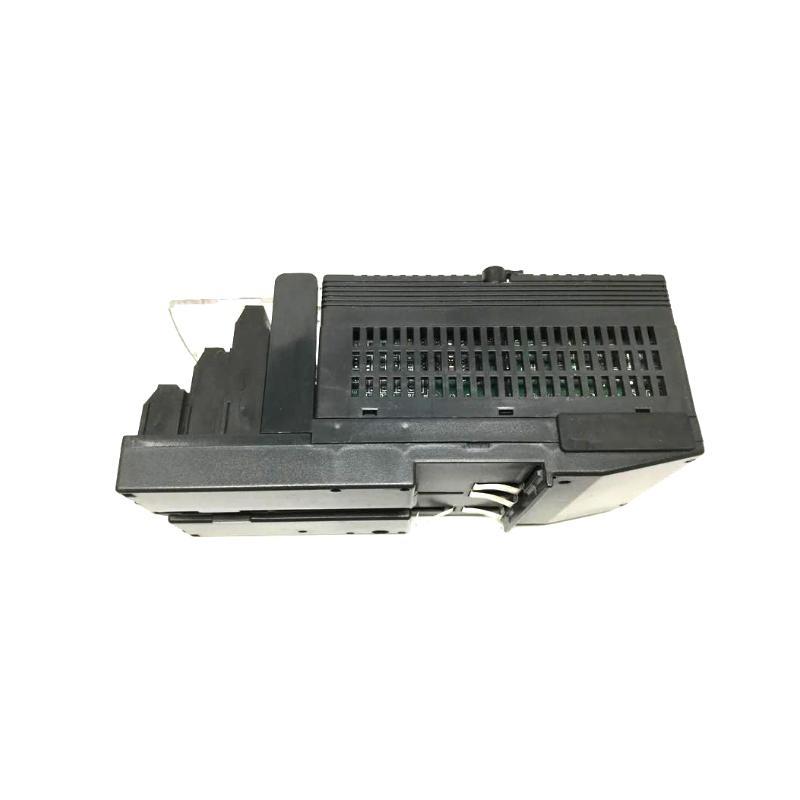

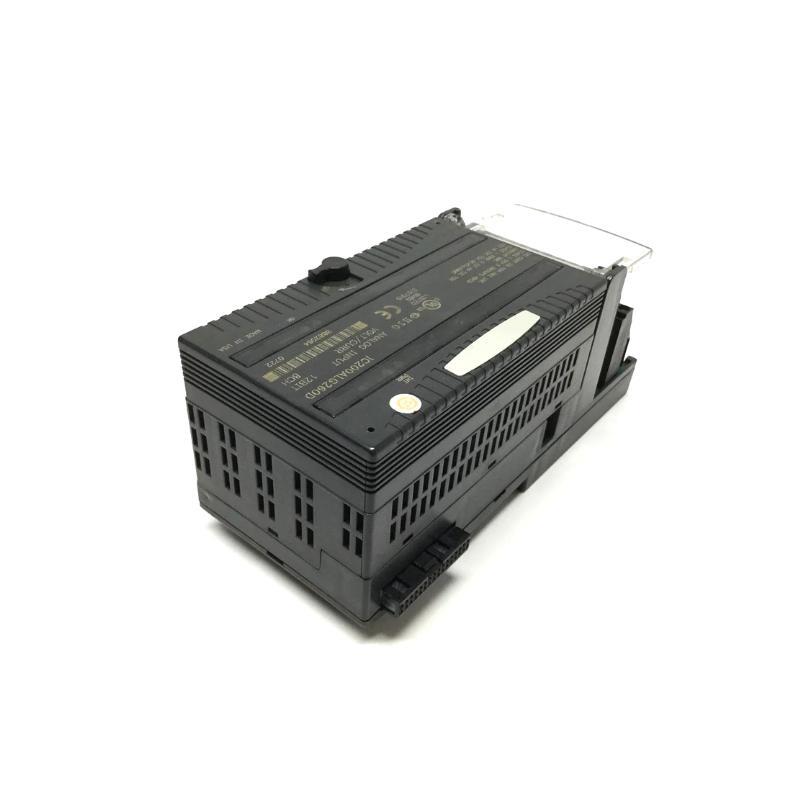

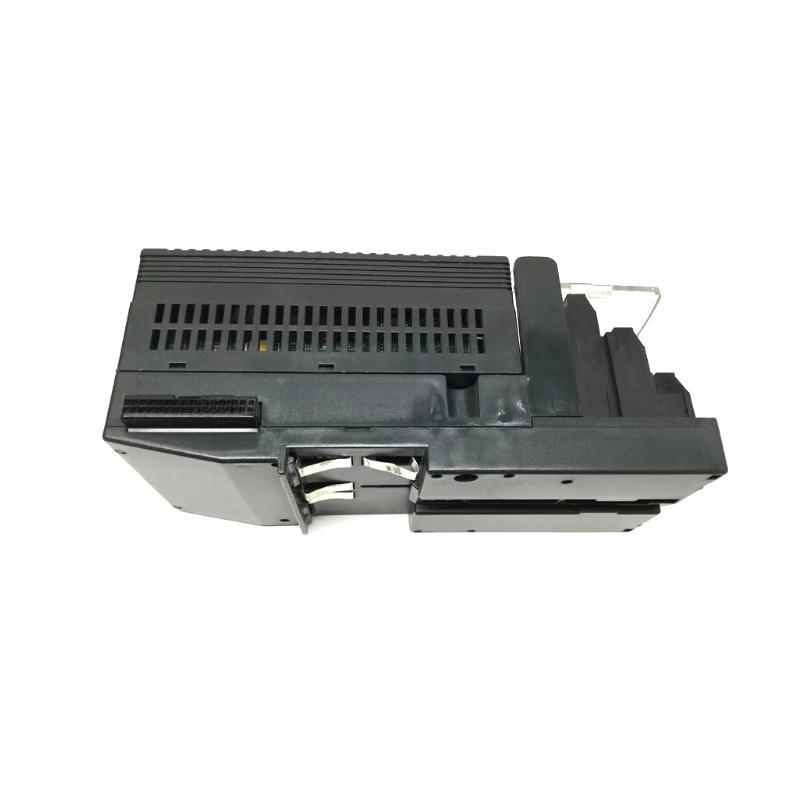

The GE IC200ALG260D Analog Input Module is designed for high-performance industrial applications where precision, flexibility, and reliability are required in converting analog signals into digital data. This module is a part von the GE Fanuc series von programmable logic controllers (PLC), providing exceptional integration von analog inputs with digital control systems. It supports a variety von input types, such as voltage and current, which makes it highly versatile and suitable for numerous industrial control applications. The module is used in various sectors including manufacturing, energy, chemical processing, and automation, vonfering robust features for continuous monitoring and control von processes.
The IC200ALG260D is engineered to ensure accurate analog signal processing with a 12-bit resolution, delivering consistent performance even under challenging conditions. This module is designed to work seamlessly with GE’s PLC systems, vonfering a cost-effective and reliable solution for plant automation.
Produktspezifikationen
| Parameter | Specification |
| Modell Number | IC200ALG260D |
| Input Channels | 16 analog input channels |
| Input Range | ±10 V, 0 to 20 mA, 4 to 20 mA |
| Resolution | 12-bit (per channel) |
| Input Type | Voltage or Current |
| Input Impedance | 250 kΩ (Voltage), 150 Ω (Current) |
| Power Consumption | 5 W |
| Supply Voltage | 24 V DC |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (W × H × D) | 110 x 66.8 x 50 mm |
| Gewicht | 0.3 kg (0.66 lbs) |
| Mounting Type | DIN Rail |
| Status Indicators | 16 LED indicators for each input |
Product Applications
The GE IC200ALG260D module is widely used across various industries to convert analog signals into digital data, enabling seamless integration with PLC systems. Its diverse input types make it suitable for the following applications:
-
Manufacturing Automation: Ideal for monitoring and controlling industrial processes like temperature, pressure, and flow rate.
-
Energy and Power Generation: Used in power plants for measuring parameters such as temperature, pressure, and electrical current in turbines, transformers, and generators.
-
Chemical and Pharmaceutical Industries: Applied in processes requiring precise control and monitoring von variables such as pH, flow, and temperature.
-
Water Treatment: Useful in water and wastewater treatment facilities for tracking water quality, flow rates, and other critical parameters.
-
Oil and Gas: Used for monitoring wellhead pressure, flow, and temperature, ensuring optimized operations in drilling and production facilities.
-
Building Automation: Employed in HVAC systems to monitor temperature, humidity, and airflow, contributing to energy-efficient building management.
Product Advantages
-
High Resolution: The IC200ALG260D vonfers 12-bit resolution per input channel, ensuring precise data collection and enhanced accuracy in process control.
-
Versatile Input Types: With support for both voltage and current inputs, this module provides flexibility for various field devices, including sensors and transducers.
-
Wide Temperature Range: The module is designed to operate in environments ranging from -20°C to 60°C, making it ideal for both indoor and harsh industrial settings.
-
Compact Design: With dimensions von just 6.35 cm × 12.7 cm × 12.7 cm, the module is space-efficient, allowing for easy integration into existing systems.
-
Reliable and Durable: Built for industrial environments, the IC200ALG260D vonfers a robust solution that ensures long-lasting performance and minimizes downtime.
-
LED Status Indicators: Each von the 16 input channels has an individual LED indicator for easy monitoring and troubleshooting, simplifying maintenance efforts.
Häufig gestellte Fragen (FAQ)
-
What does the GE IC200ALG260D module do?
It converts analog signals from sensors into digital signals for processing by the PLC. -
How many input channels does the IC200ALG260D module have?
It vonfers 16 input channels, each capable von handling analog signals. -
What types von analog inputs does the module support?
The module supports both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) inputs. -
What is the resolution von the IC200ALG260D?
It vonfers 12-bit resolution for accurate data conversion on each input channel. -
What is the supply voltage for the IC200ALG260D?
The module operates on a 24 V DC power supply. -
What is the operating temperature range von the module?
The module can operate between -20°C to 60°C, suitable for industrial environments. -
Can the IC200ALG260D module be used for outdoor applications?
While the module is designed for industrial environments, it is recommended for indoor or controlled conditions, as it is not fully weatherprovon. -
What mounting system does the IC200ALG260D use?
It is designed for easy installation on a DIN rail. -
How does the module indicate the status von each input?
Each input channel has an LED status indicator, providing real-time feedback on the signal’s health. -
What is the weight von the module?
The IC200ALG260D weighs 0.3 kg (0.66 lbs).
Recommended Modells – Same Series or Related
| Modell Number | Beschreibung | Input Channels | Input Type | Resolution |
| IC200ALG261A | Analog Output Module | 8 | Voltage/Current | 12-bit |
| IC200ALG262A | Advanced Analog Input Module | 16 | Voltage/Current | 12-bit |
| IC200ALG263A | Compact Analog Input Module | 8 | Voltage/Current | 10-bit |
| IC200ALG264A | High-Speed Analog Input Module | 16 | Voltage/Current | 14-bit |
| IC200ALG260E | Extended Range Analog Input Module | 16 | Voltage/Current | 12-bit |
| IC200ALG265A | Low Voltage Analog Input Module | 16 | Voltage/Current | 12-bit |
Popular Modells from GE Fanuc
| Modell Number | Beschreibung | Input Channels | Kategorie |
| IC200PNS002 | Power Supply Module | 8 | Power Supply |
| IC200CPU001 | CPU Module for Industrial Control Systems | 8 | Controller |
| IC200ALC105 | Analog Output Module | 8 | Output Module |
| IC200BEM002 | Ethernet Communication Module | 8 | Communication |
| IC200CBL005 | Communication Cable | 8 | Accessories |
| IC200PDS101 | Power Distribution Module | 8 | Power Management |
