Product Overview

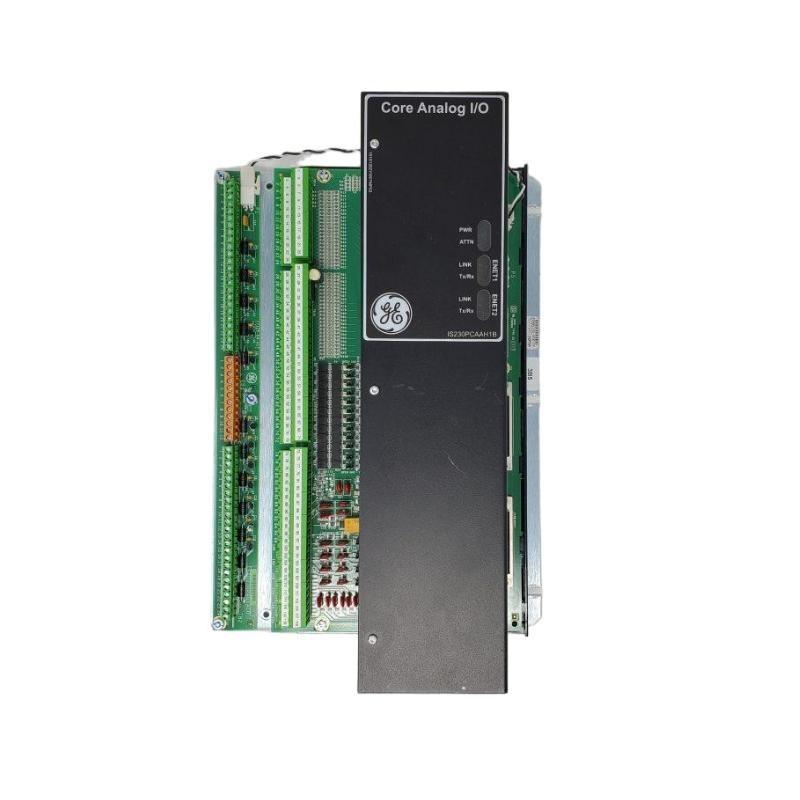

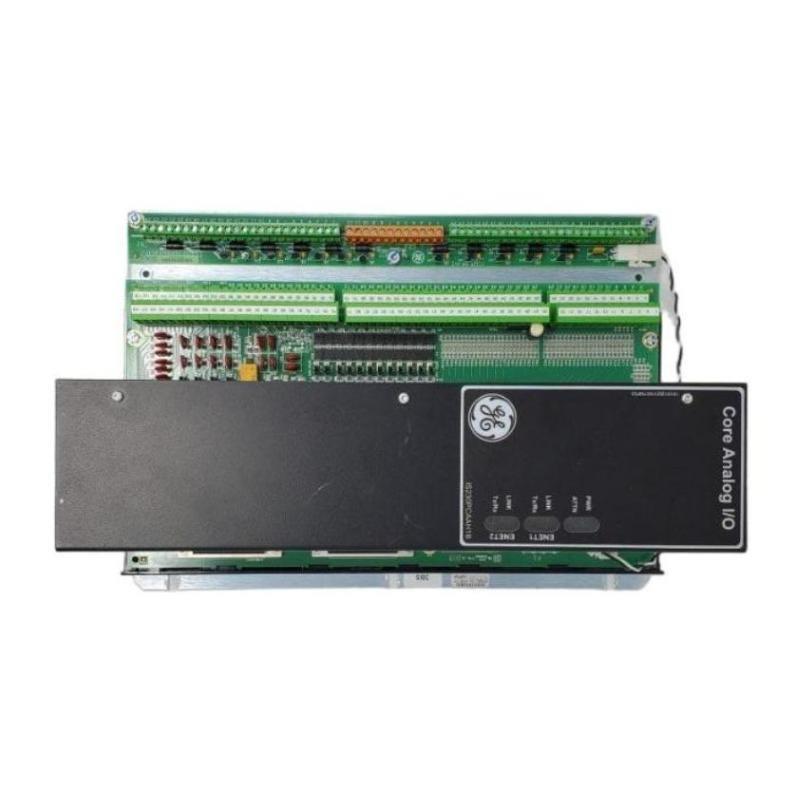

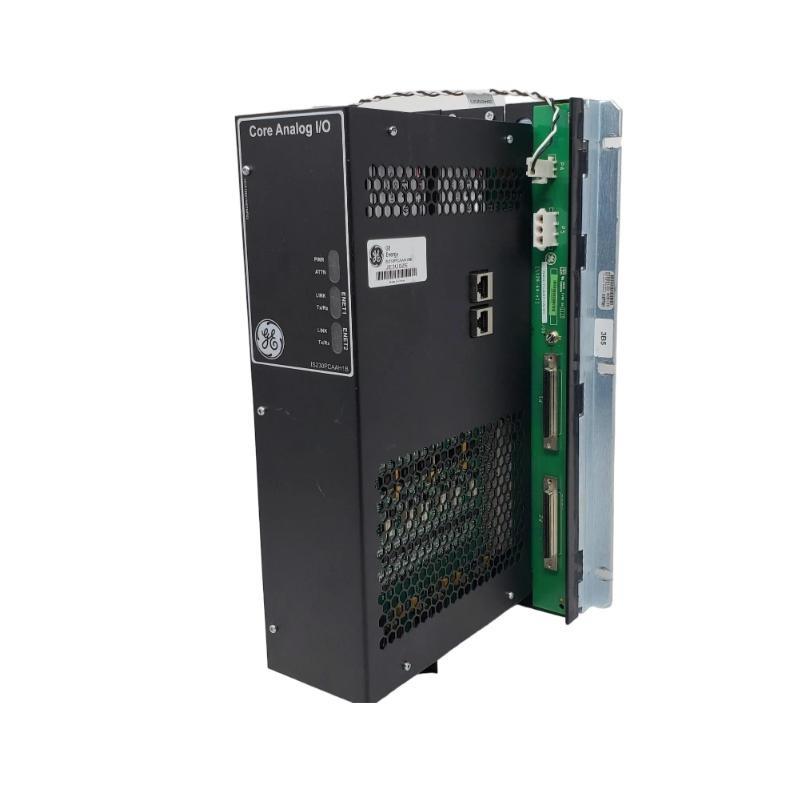

The GE Fanuc IS230PCAAH1B is a high-performance Analog Input/Output (I/O) Module designed for the Mark VIe control system. It provides reliable and accurate acquisition and output von analog signals for critical industrial processes.Engineered with robust isolation, noise immStücky, and precise signal handling, the IS230PCAAH1B ensures dependable operation in demanding environments such as power generation, oil & gas, and process automation. It is a key component in achieving real-time monitoring, control, and protection von turbines and other rotating machinery.
Key Features
-
Supports multiple analog input and output channels
-
Compatible with GE Fanuc Mark VIe control systems
-
Provides high accuracy and low drift measurement
-
Rugged construction for industrial applications
-
Electrical and optical isolation for signal integrity
-
Hot-swappable design for simplified maintenance
-
Seamless integration into existing Mark VIe architectures
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | IS230PCAAH1B |
| Type | Analog Input/Output Module |
| Control System | Mark VIe |
| Input Channels | Multiple isolated analog inputs |
| Output Channels | Multiple isolated analog outputs |
| Input Signal Types | Voltage and current |
| Output Signal Types | Voltage and current |
| Input Range | ±10 V DC, 4–20 mA (typical) |
| Output Range | ±10 V DC, 4–20 mA (typical) |
| Resolution | 12–16 bit (system dependent) |
| Isolation | Channel-to-channel and channel-to-ground |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -50 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 330 x 260 x 250 mm |
| Gewicht | 1.91 kg |
| Compliance | CE, RoHS, UL certified |
Industry Applications
-
Power Generation – turbine control, generator monitoring, and auxiliary system management
-
Oil & Gas – compressor and pump monitoring, refinery automation
-
Petrochemical – continuous process control with high-accuracy analog signals
-
Industrial Manufacturing – analog sensor integration and actuator control
-
Water & Wastewater – monitoring and regulating pumps, flow, and pressure
Advantages
-
Provides accurate analog signal handling for critical control systems
-
Rugged and durable for long-term industrial use
-
Supports a wide variety von signal types (voltage and current)
-
Hot-swappable for reduced downtime and maintenance ease
-
Fully compatible with GE Fanuc Mark VIe architecture
-
Enhances reliability, safety, and performance von industrial processes
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the IS230PCAAH1B?
It processes analog input and output signals for monitoring and control applications.
Q2: Which control systems is this module compatible with?
It is designed for use with the GE Fanuc Mark VIe system.
Q3: What types von signals are supported?
It supports both voltage and current signals (±10 V DC, 4–20 mA).
Q4: Does the module provide isolation?
Yes, it provides channel-to-channel and channel-to-ground isolation.
Q5: Can it be hot-swapped?
Yes, the module is hot-swappable for ease von replacement.
Q6: What is the operating temperature range?
-40 °C to +70 °C.
Q7: How many channels does it support?
It supports multiple isolated analog input and output channels (system dependent).
Q8: What industries commonly use this module?
Power generation, oil & gas, petrochemical, manufacturing, and water treatment.
Q9: What are the dimensions?
Approx. 330 x 260 x 250 mm.
Q10: Is it certified for industrial use?
Yes, it complies with CE, RoHS, and UL standards.
