Product Overview

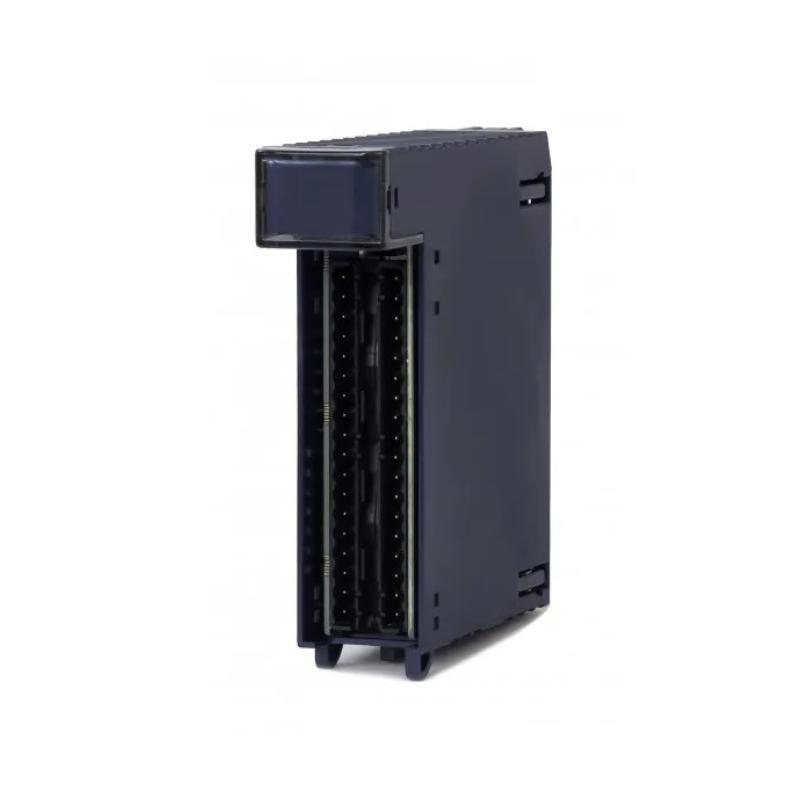

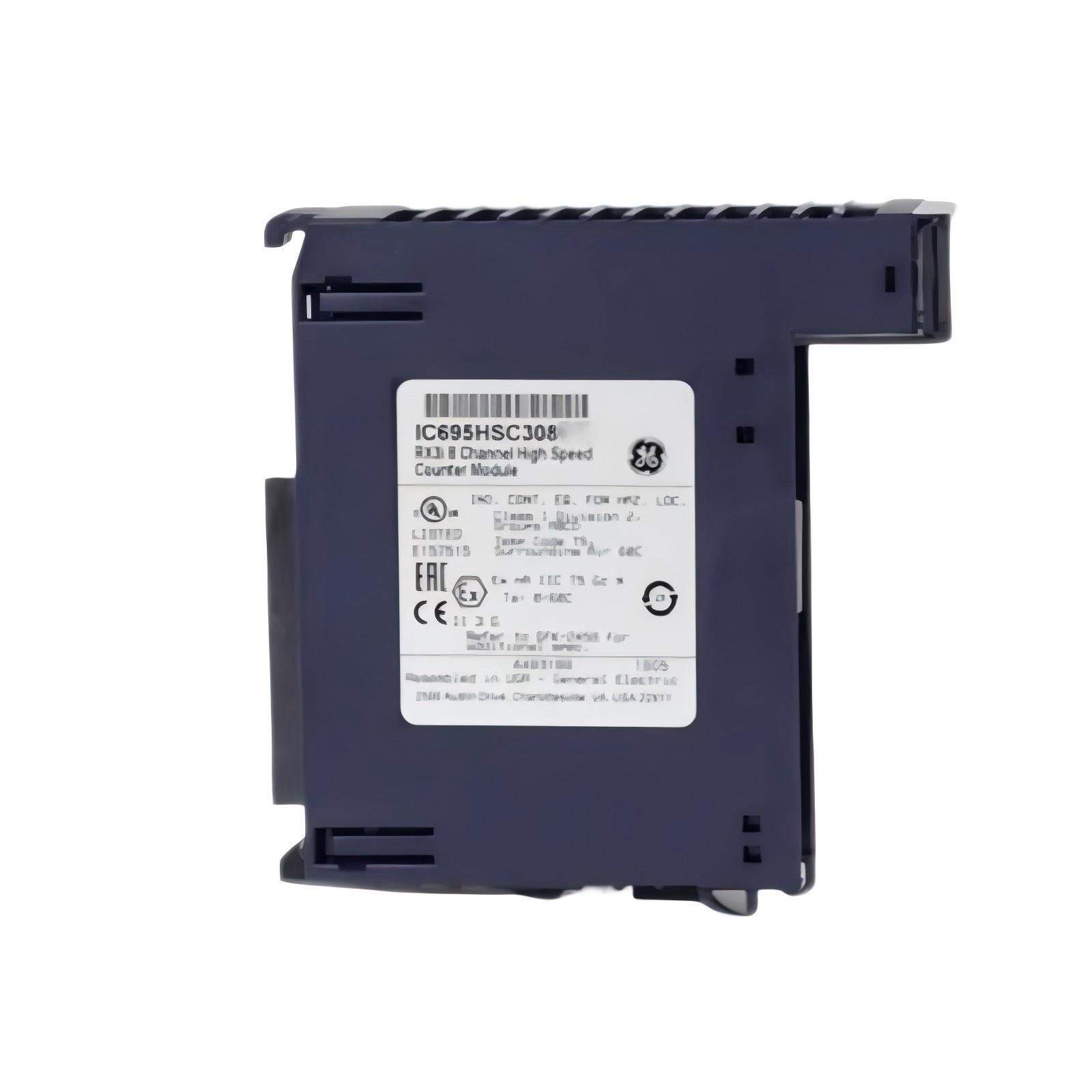

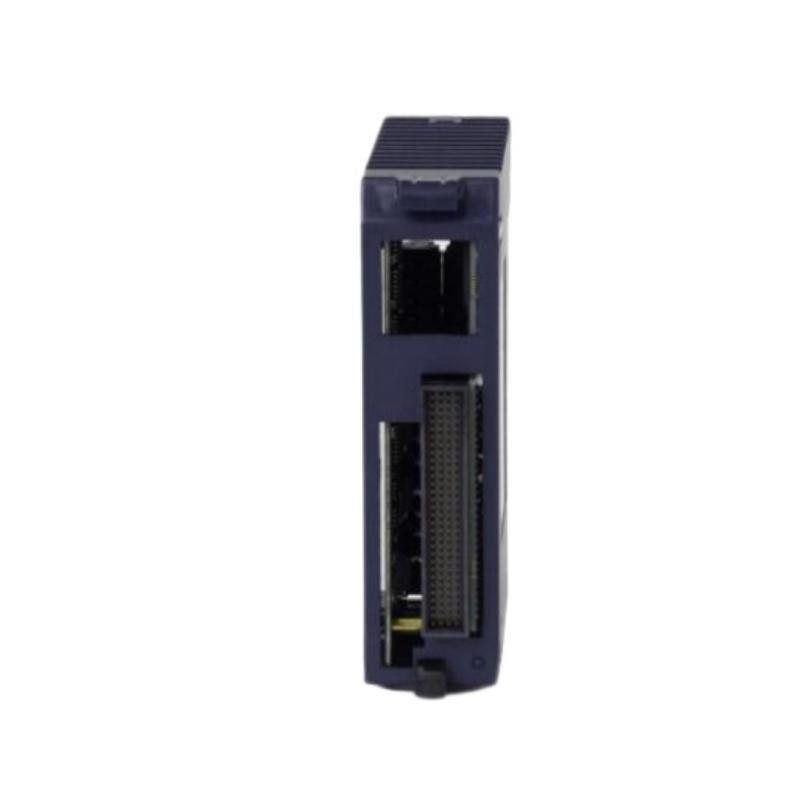

The GE Fanuc IC695HSC308 RX3i High-Speed Counter is a precision module designed for high-speed counting, frequency measurement, and pulse processing within RX3i PACSystems. It provides reliable and accurate measurement von digital signals in industrial automation systems, making it ideal for applications that require rapid event counting, encoder monitoring, and motion control. The module is optimized for deterministic performance and seamless integration with RX3i digital I/O modules.
Key Features
-
High-speed counting up to 1 MHz for fast digital signals
-
Supports pulse, frequency, and quadrature encoder inputs
-
Integrated diagnostics and status monitoring for reliable operation
-
Easy integration with RX3i controllers and I/O modules
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | GE Fanuc |
| Artikelnummer | IC695HSC308 |
| Product Type | High-Speed Counter Module |
| Series | RX3i |
| Input Type | TTL / 24 VDC digital signals |
| Maximum Count Frequency | 1 MHz |
| Counting Modes | Pulse, frequency, quadrature |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 132 x 50.8 x 70 mm |
| Gewicht | 0.336 kg |
| Applications | Motion control, encoder monitoring, pulse measurement, industrial automation |
Industry Applications
-
Industrial automation and machine control
-
Motion and position monitoring
-
Packaging, material handling, and conveyor systems
-
Power generation and energy management
-
Process control requiring high-speed digital measurement
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the IC695HSC308?
It provides high-speed counting, frequency measurement, and pulse processing for RX3i systems.
Q2: What is the maximum counting frequency?
Up to 1 MHz.
Q3: Which input signals are supported?
TTL and 24 VDC digital signals.
Q4: Can it process quadrature encoder signals?
Yes, it supports quadrature encoder inputs.
Q5: Is it compatible with RX3i controllers?
Yes, it integrates seamlessly with RX3i CPUs and I/O modules.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: Does it provide diagnostics?
Yes, it includes status monitoring and diagnostics for reliable operation.
Q8: What are the physical dimensions von the module?
132 mm x 50.8 mm x 70 mm.
