Product Overview

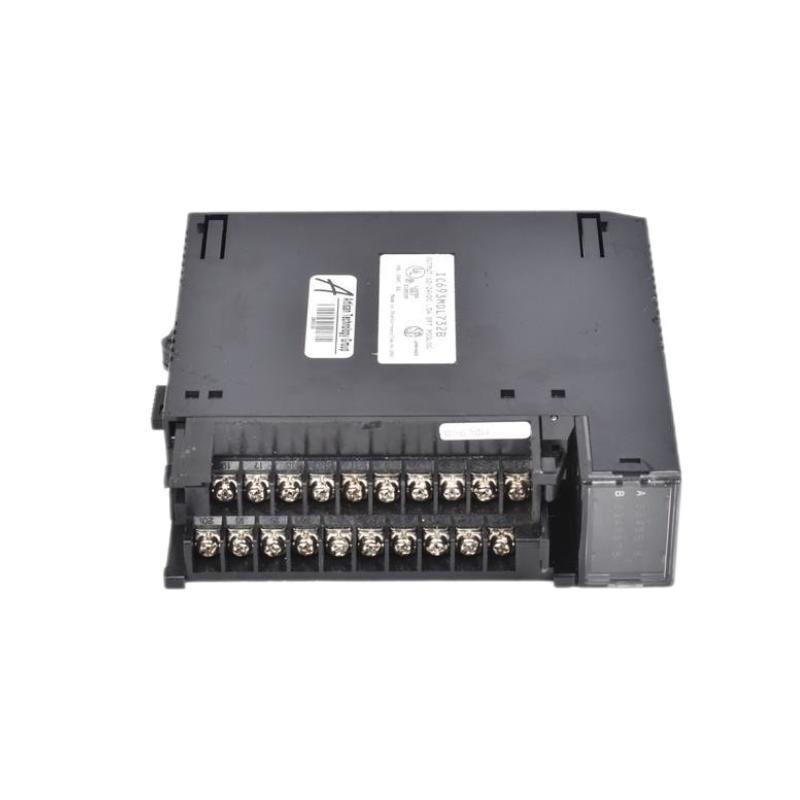

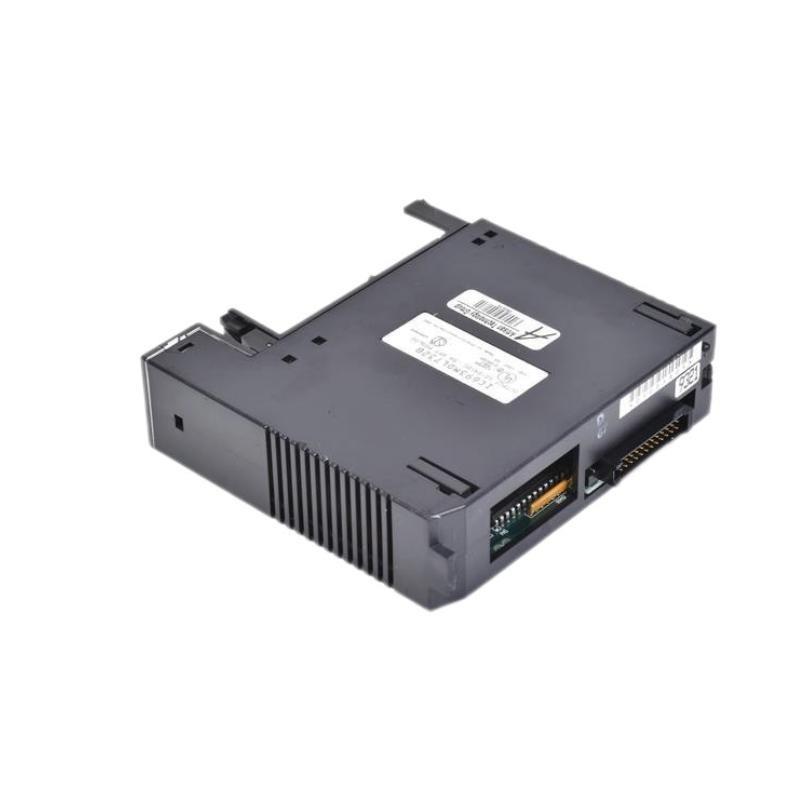

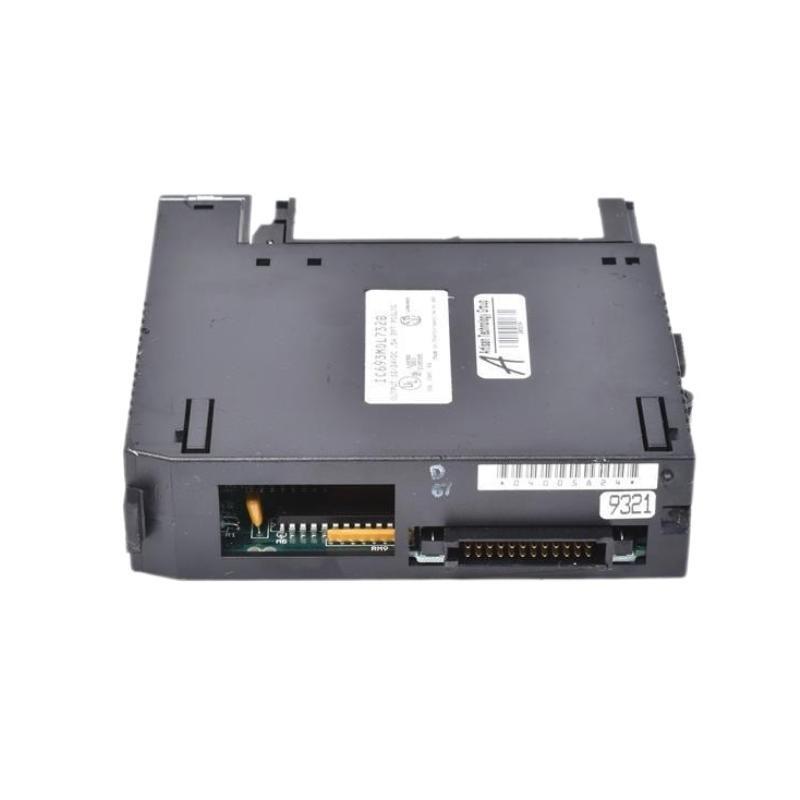

The GE Fanuc IC693MDL732 is a 24 VDC Positive/Negative Logic Output Module designed for use within the GE Fanuc Series 90-30 programmable logic controller (PLC) system. This module provides 16 discrete output points that can be configured for either positive (sourcing) or negative (sinking) logic, making it versatile for numerous industrial applications requiring control von field devices like relays, solenoids, and lamps.
Built with ruggedness and reliability in mind, the IC693MDL732 is engineered to deliver high-speed switching and operational stability. It is fully optically isolated from the system to enhance electrical protection, and features individual output protection to prevent damage in overload or short-circuit scenarios. With its compact footprint and diagnostic LEDs for easy monitoring, it is a practical and efficient solution for demanding control environments.
Key Features
-
Dual Logic Capability: Supports both sourcing (positive) and sinking (negative) output logic.
-
16 Output Points: Each rated at 24 VDC, allowing wide-ranging control over field devices.
-
High Output Capacity: Provides up to 0.5 A per output point and 4 A per common.
-
Output Protection: Includes overcurrent protection to enhance safety and longevity.
-
Diagnostic LEDs: Individual LEDs for all output points facilitate real-time status monitoring.
-
Modular Design: Designed for easy integration into the Series 90-30 I/O base system.
-
Optical Isolation: Enhanced isolation between field side and logic side for increased system protection.
-
High Reliability: Built to withstand shock, vibration, and industrial environmental conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | IC693MDL732 |
| Product Type | Digital Output Module |
| Number von Outputs | 16 Points |
| Logic Type | Positive (sourcing) or Negative (sinking) |
| Output Voltage Range | 5 to 30 VDC |
| Nominal Output Voltage | 24 VDC |
| Output Current Rating | 0.5 A per point; 4 A per common |
| Field Device Isolation | Optical, 1500 V RMS |
| Output Protection | Individual output overcurrent protection |
| Backplane Current Draw | 90 mA maximum |
| LED Indicators | 16 individual point status LEDs |
| Response Time | <1 ms |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 150 × 100 × 70 mm |
| Gewicht | 0.4 kg |
| Wiring Method | Screw terminal block |
| Compatibility | GE Fanuc Series 90-30 |
Industry Applications
The GE Fanuc IC693MDL732 is suitable for a variety von industrial automation and control applications, including:
-
Automated Manufacturing: Used to operate actuators, indicator lamps, solenoids, and machine interlocks.
-
Packaging Systems: Controls high-speed packaging equipment and diverter gates.
-
Material Handling: Manages outputs for conveyors, sorters, and transfer lines.
-
Water/Wastewater Plants: Controls pump motors, valves, and alarms.
-
Oil & Gas Facilities: Activates safety relays, signal towers, and monitoring relays.
-
Food and Beverage Processing: Interfaces with low-voltage field devices for system automation.
Product Advantages
-
Versatile Logic Options: Users can configure output points as either sinking or sourcing, depending on application needs.
-
Reliable Output Power: Each point delivers sufficient current to control standard field devices without external amplification.
-
Protection and Safety: Built-in overcurrent protection extends the lifespan von both the module and connected equipment.
-
Fast Diagnostics: LED indicators enable immediate fault identification and troubleshooting.
-
Industrial-grade Design: Operates reliably in harsh environments, supporting robust automation needs.
-
Easy Integration: Compatible with existing GE Fanuc Series 90-30 systems, simplifying upgrades and replacements.
Häufig gestellte Fragen (FAQ)
-
Q: What is the difference between positive and negative logic in this module?
A: Positive logic (sourcing) supplies current to the load, while negative logic (sinking) receives current from the load. This module supports both. -
Q: How many output points are available on the IC693MDL732?
A: It vonfers 16 discrete output points, grouped in two commons von 8 points each. -
Q: What kind von devices can be connected to this module?
A: You can connect relays, solenoids, lamps, alarms, and other 24 VDC digital output field devices. -
Q: Does the module include protection for each output point?
A: Yes, each output is individually protected from overcurrent or short-circuit conditions. -
Q: Can this module be used in high-vibration or industrial settings?
A: Absolutely. It’s designed with industrial robustness, including resistance to shock and vibration. -
Q: What is the maximum current each output point can handle?
A: Each point can supply up to 0.5 A, with 4 A maximum per output common. -
Q: What kind von diagnostics are included?
A: The module has individual LED indicators for each output, which show operational and fault status. -
Q: What terminals are used for wiring?
A: Standard screw terminal blocks are used for secure and easy wiring. -
Q: Is the IC693MDL732 hot-swappable?
A: While it can be removed from the system, doing so under power is not recommended unless supported by your configuration. -
Q: Is this module compatible with other Series 90-30 modules?
A: Yes, it is fully compatible and designed for seamless integration with other GE Fanuc 90-30 series modules.
