Product Overview

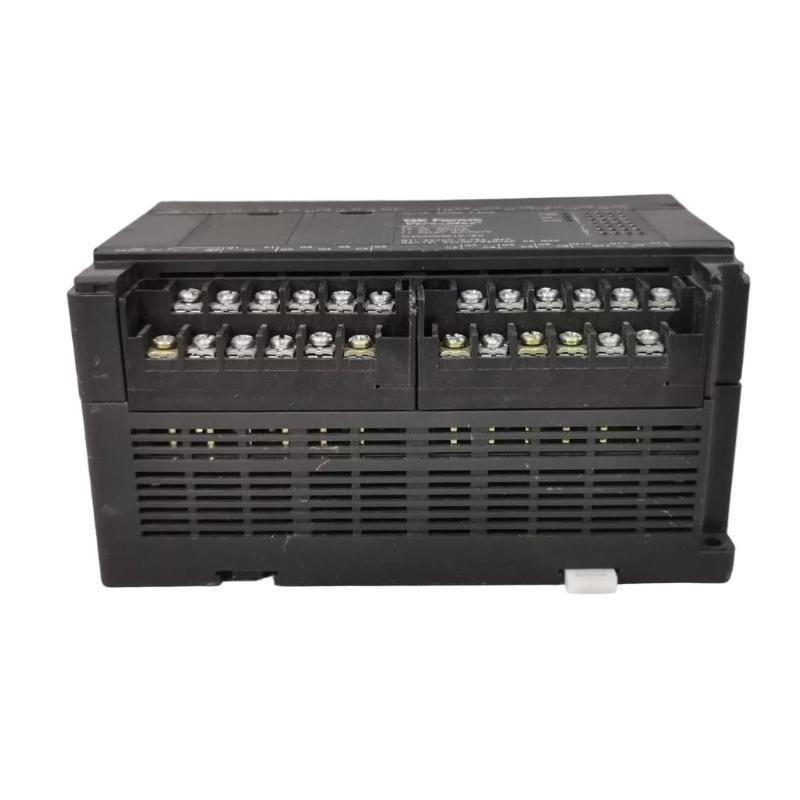

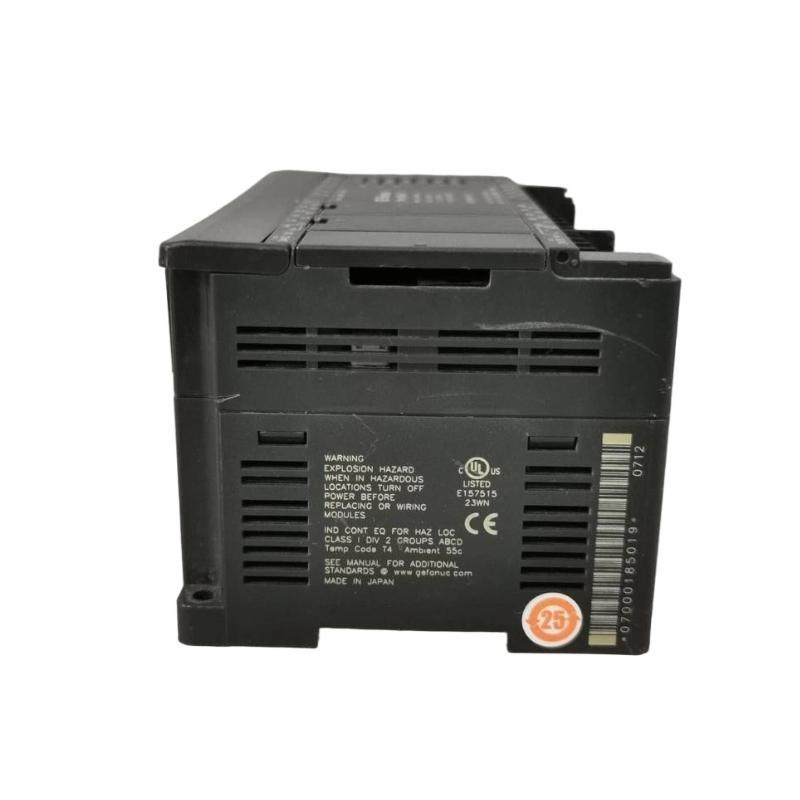

The GE Fanuc IC200UDR010 is a compact and versatile microcontroller processor designed for small to medium-scale automation applications. Part von the VersaMax Micro series, this 28-point PLC vonfers a balanced combination von digital I/O, relay outputs, and a 24VDC power supply, making it suitable for a wide range von control tasks in industries such as packaging, material handling, and machine control.
Key Features
-
Modular I/O configuration: supports 16 digital 24VDC inputs, 11 relay outputs, and 1 24VDC output for flexible control setups
-
Integrated 24VDC power supply for simplified installation
-
Compact design suitable for limited-space installations
-
Battery backup (requires IC200ACC403 for data retention; battery not included)
-
DIN rail mounting for easy installation and maintenance in industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Modell | IC200UDR010 |
| Series | VersaMax Micro |
| Inputs | 16 × 24VDC Digital |
| Outputs | 11 × Relay (2A each), 1 × 24VDC (0.75A) |
| Power Supply | 24VDC |
| Scan Time | ~1.1 ms per 1K instructions |
| Memory | 9 KB Logic, 2 KB Data |
| Mounting | DIN Rail |
| Battery | Requires IC200ACC403 for data retention |
| Operating Temp. | 0°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 100 × 80 × 120 mm |
| Gewicht | 0.45 kg |
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the IC200UDR010 module?
It serves as a microcontroller processor for executing control logic in small to medium-scale automation applications.
2. How many I/O points does the IC200UDR010 support?
The module supports 28 points: 16 digital 24VDC inputs, 11 relay outputs, and 1 24VDC output.
3. What is the power supply requirement for this module?
The IC200UDR010 operates on a 24VDC power supply, which is integrated into the module.
4. Is a battery required for operation?
Yes, the module requires the IC200ACC403 battery for long-term data retention. The battery is not included.
5. What is the typical scan time for this module?
The typical scan time is approximately 1.1 milliseconds per 1,000 instructions, depending on program complexity.
6. What is the operating temperature range?
The module operates within a temperature range von 0°C to +60°C.

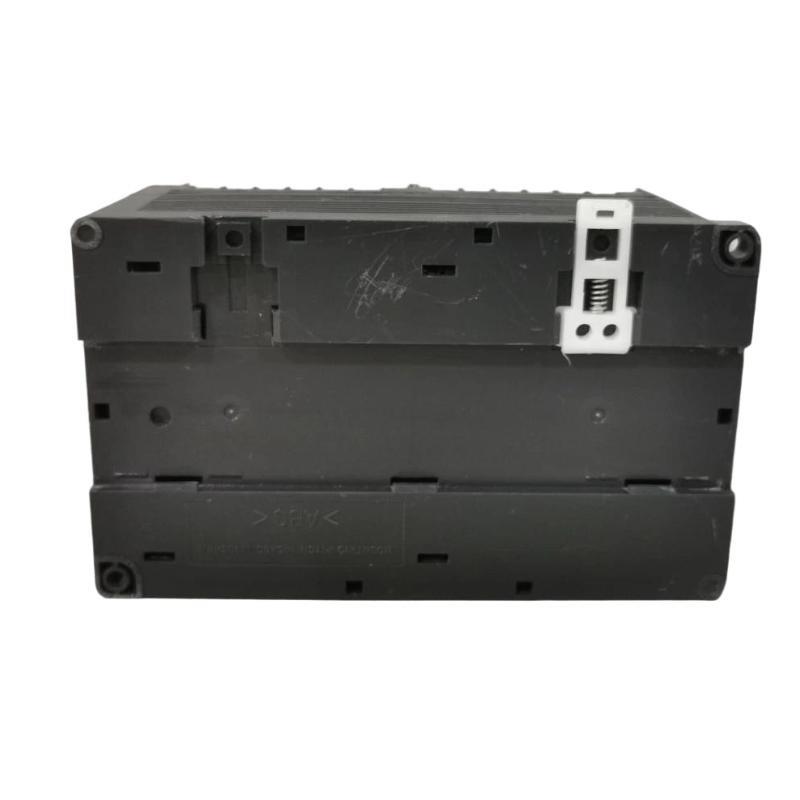

7. How is the IC200UDR010 mounted?
It is designed for DIN rail mounting, facilitating easy installation in industrial control panels.
8. Can this module communicate with other automation devices?
Yes, it supports serial communication via RS-232/RS-485 when used with compatible interfaces.
