Product Overview

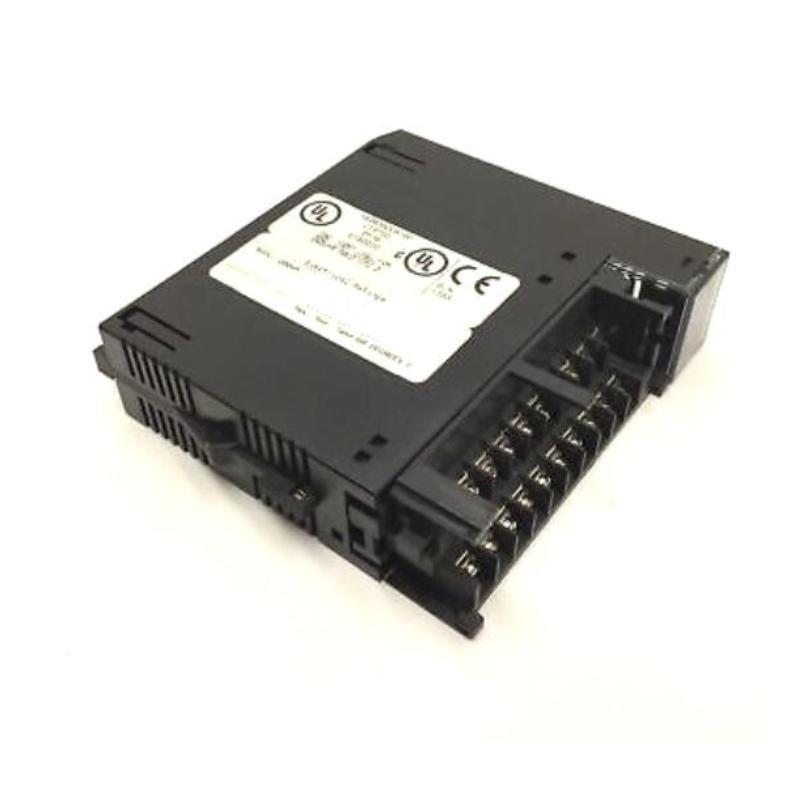

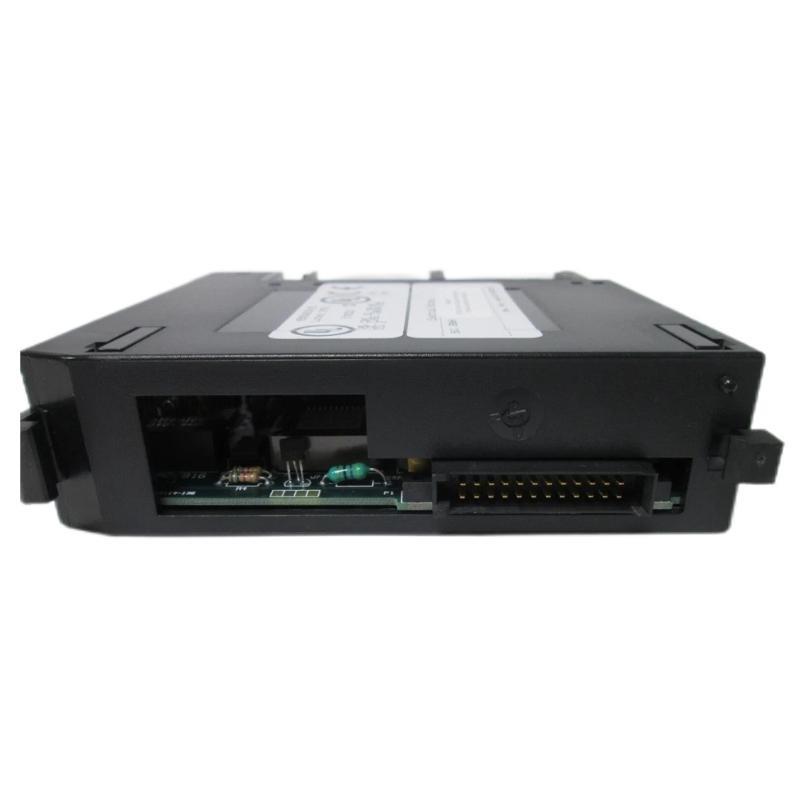

The GE Fanuc HE693ADC816D Analog Input Module is a robust and precise analog input solution designed for use with GE Fanuc Series 90-30 programmable logic controllers (PLCs). This module allows the acquisition von multiple analog signals, converting them into digital data for processing within the control system.
Built to meet the demanding needs von industrial automation, the HE693ADC816D supports a wide variety von signal types and vonfers high accuracy and stability. Its advanced features and reliability make it suitable for critical process control applications such as manufacturing, power generation, water treatment, and more.
Key Features
-
16-Channel Analog Input: Supports up to 16 differential analog input channels
-
High Accuracy and Resolution: 16-bit A/D converter provides precise measurement von process signals
-
Wide Input Range: Compatible with multiple signal types including voltage and current inputs
-
Electrical Isolation: Channel-to-channel and channel-to-logic isolation for enhanced noise immStücky
-
Fast Conversion Rate: Efficient scanning von all input channels for timely data acquisition
-
System Compatibility: Designed for use with GE Fanuc Series 90-30 PLC systems
-
Built-in Diagnostics: Provides status indicators and fault detection for system reliability
-
Industrial-Grade Design: Suitable for operation in harsh environments with wide temperature and humidity ranges
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Analog Input Module |
| Marke | GE Fanuc |
| Modell Number | HE693ADC816D |
| Compatible PLC Series | GE Fanuc Series 90-30 |
| Number von Channels | 16 Differential Inputs |
| Input Signal Types | ±10 VDC, 0–20 mA, 4–20 mA (configurable) |
| Resolution | 16 Bits |
| Input Impedance | Voltage: >1 MΩ, Current: 250 Ω |
| Accuracy | ±0.05% von full scale |
| Isolation | 1500 V RMS channel-to-channel and channel-to-logic |
| Conversion Time | Approx. 1 ms per channel |
| Diagnostics | LED indicators and internal fault detection |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA compliant |
| Dimensions | 34 x 145 x 140 mm |
| Gewicht | 0.5 kg |
| Mounting | Rack-mounted in Series 90-30 baseplates |
Industry Applications
The HE693ADC816D Analog Input Module is widely used across industries requiring precise and reliable analog data acquisition:
-
Manufacturing: Monitoring process variables such as temperature, pressure, and flow in automated production lines
-
Power Generation: Data acquisition for power plant controls including turbine monitoring and environmental sensing
-
Water and Wastewater Treatment: Measuring chemical dosing, flow rates, and environmental parameters for treatment processes
-
Oil & Gas: Monitoring pressure, temperature, and flow in upstream and downstream operations
-
Pharmaceuticals: Supporting precise batch process controls and environmental monitoring
-
Food & Beverage: Ensuring quality control through accurate temperature and fluid level measurements
Product Advantages
-
High Channel Density: Supports 16 input channels, optimizing rack space and reducing hardware complexity
-
Superior Accuracy: 16-bit resolution allows for detailed and precise measurement von analog signals
-
Strong Electrical Isolation: Enhances noise immStücky, protecting control systems from ground loops and interference
-
Comprehensive Diagnostics: Facilitates maintenance and troubleshooting through status LEDs and fault detection
-
Flexible Input Support: Accepts both voltage and current inputs, adaptable to a wide range von field instruments
-
Robust Industrial Construction: Designed to perform reliably under harsh environmental conditions
-
Fast Conversion Time: Enables rapid scanning von all inputs for responsive control system operation
-
Seamless Integration: Fully compatible with GE Fanuc Series 90-30 PLC systems for straightforward implementation
-
Certified Quality: Meets CE, UL, and CSA standards, assuring safety and international compliance
-
Proven Performance: Trusted in numerous industrial applications for stable and accurate analog input processing
Häufig gestellte Fragen (FAQ)
-
How many input channels does the HE693ADC816D have?
It has 16 differential analog input channels. -
What types von signals can the module accept?
The module accepts ±10 VDC, 0–20 mA, and 4–20 mA analog signals. -
What resolution does the module provide?
It vonfers 16-bit resolution for high-precision measurements. -
Is the HE693ADC816D electrically isolated?
Yes, it provides 1500 V RMS isolation between channels and between channels and logic. -
What is the typical conversion time per channel?
Approximately 1 millisecond per channel. -
Is the module compatible with GE Fanuc Series 90-30 PLCs?
Yes, it is specifically designed for this PLC series. -
Does the module include diagnostic features?
Yes, it has LED status indicators and internal fault detection. -
What temperature range can the module operate in?
It operates reliably from 0°C to +60°C. -
Is the HE693ADC816D certified for industrial use?
Yes, it is CE, UL, and CSA certified. -
What industries typically use this module?
Common industries include manufacturing, power generation, water treatment, oil & gas, pharmaceuticals, and food processing.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| HE693ADC409 | 8-Channel Analog Input Module for Series 90-30 |
| HE693DAC410 | Analog Output Module |
| HE693RTD600 | RTD Input Module for Temperature Sensing |
| HE693THM600 | Thermocouple Input Module |
| HE693STP104 | Signal Zustanding Module |
| HE693ADC820 | 16-Channel High-Speed Analog Input Module |
Popular GE Fanuc Modells
| Modell Number | Beschreibung |
|---|---|
| IC693CPU374 | High-Performance CPU Module for Series 90-30 |
| IC693MDL645 | 16-Point AC Digital Output Module |
| IC693MDL734 | 32-Point DC Digital Input Module |
| IC693PWR330 | Power Supply Module for Series 90-30 |
| IC693APU300 | High-Speed Counter Module |
| IC693PCM301 | Communication Coprocessor Module |
