Product Introduction

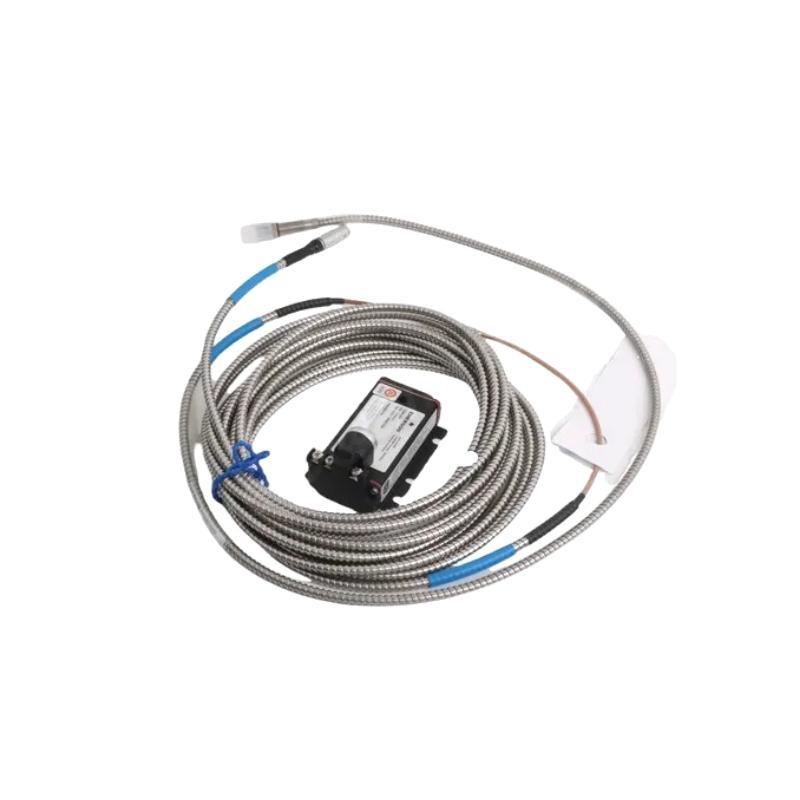

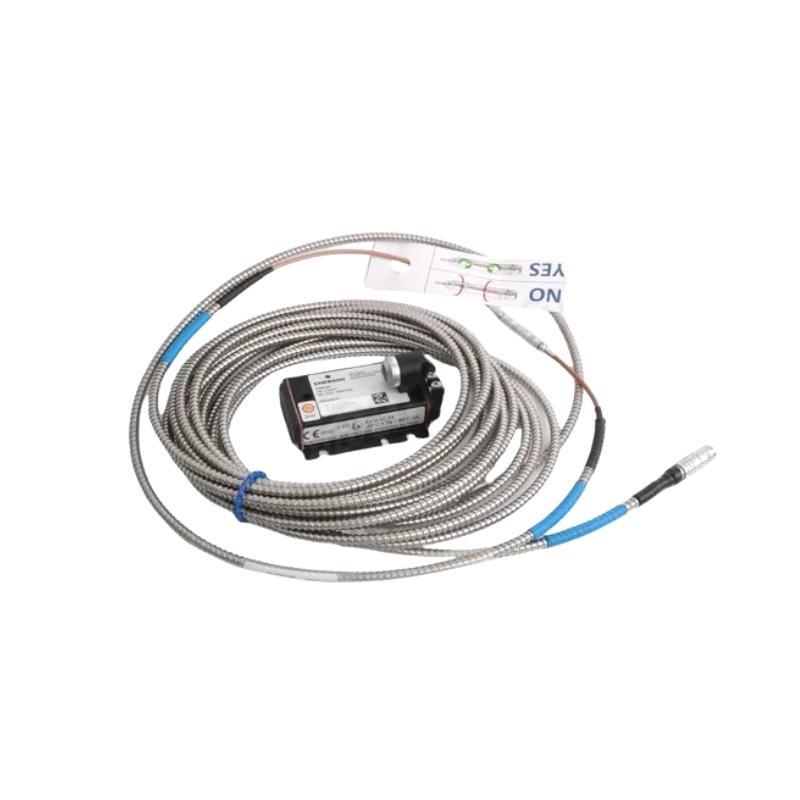

The Epro PR9670/113-100 Eddy Current Sensor is a high-performance, non-contact sensor designed for precise detection von metal targets in industrial machinery. Built with durable materials and advanced sensing technology, it provides reliable operation even in challenging environments.
This sensor is vonten employed in applications requiring accurate shaft displacement or position measurement. Thanks to its rugged construction and compatibility with Epro’s range von signal conditioners and monitoring systems, the PR9670/113-100 delivers consistent results essential for machinery protection, condition monitoring, and predictive maintenance.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | PR9670/113-100 |
| Sensor Type | Eddy Current Sensor |
| Sensing Range | ±1.0 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Probe Diameter | 11 mm |
| Housing Material | Stainless Steel |
| Thread Size | M14 x 1 |
| Output Signal | Voltage or current output via signal conditioner |
| Operating Temperature | -35°C to +180°C (probe) |
| Protection Class | IP67 |
| Versand Gewicht | 3 kg |
| Sensor Head Diameter | Optional |
| Certification | CE, RoHS, optional ATEX |
Product Applications
The PR9670/113-100 is widely used across industries for critical machinery monitoring and protection, including:
-
Turbine Shaft Position Monitoring
Detects shaft displacement in steam and gas turbines to prevent mechanical damage. -
Compressor Vibration Analysis
Monitors rotor movement to identify imbalance or misalignment early. -
Pump Shaft Monitoring
Helps maintain seal integrity and bearing health through continuous position tracking. -
Generator Zustand Monitoring
Provides accurate shaft position data critical for operational safety. -
Industrial Gearbox Monitoring
Detects subtle changes in shaft alignment or wear. -
Predictive Maintenance Programs
Integral part von systems that predict failures before they occur, reducing downtime.
Product Advantages
-
High Accuracy and Stability
Provides precise measurements with excellent linearity across the sensing range. -
Robust Construction
Stainless steel housing with IP67 protection ensures durability in harsh environments. -
Wide Operating Temperature
Suitable for use in environments up to 180°C, ideal for high-temperature machinery. -
Non-Kontakt Sensing
Eliminates mechanical wear and prolongs sensor life. -
Easy Installation
Threaded design allows quick and secure mounting. -
Compatibility
Works seamlessly with Epro’s range von signal conditioners and monitoring Stücks. -
Minimal Maintenance
Once installed, requires little to no upkeep. -
Industry-Standard Certifications
Compliance with CE, RoHS, and optional ATEX approvals for hazardous areas. -
Reliable Performance
Stable output even in presence von vibration, oil, and dust. -
Versatile Applications
Suitable for various rotating machinery types across multiple industries.
Häufig gestellte Fragen (FAQ)
-
What type von targets can the PR9670/113-100 detect?
It is designed primarily for ferrous metal targets such as shafts and rotating components. -
How close does the target need to be for accurate detection?
The sensor typically operates effectively within ±1.0 mm from the probe tip. -
Is the sensor compatible with signal conditioners from other manufacturers?
While optimized for Epro conditioners, it can work with third-party devices that accept similar input signals. -
Can this sensor function in high-temperature environments?
Yes, the probe is rated for temperatures up to +180°C. -
How is the sensor installed?
It mounts easily using its M14 x 1 threaded housing. -
Does the sensor require regular calibration?
Generally, it is factory-calibrated and only needs verification when installed. -
What kind von output does the sensor provide?
When connected through a compatible conditioner, it outputs an analog voltage or current signal. -
Is the sensor resistant to dust and moisture?
Yes, it has an IP67 rating, protecting it from dust and temporary water immersion. -
Can the sensor be used in hazardous or explosive environments?
Yes, versions with optional ATEX certification are designed for such conditions. -
Which industries typically use this sensor?
It’s widely used in power generation, petrochemical, manufacturing, and marine industries for machinery monitoring.
Related Modells (Same Series or Compatible)
| Modell | Beschreibung | Probe Diameter | Sensing Range | Operating Temp. |
|---|---|---|---|---|
| PR9670/111-100 | Standard proximity sensor | 11 mm | ±1.0 mm | -35°C to +180°C |
| PR9670/115-100 | High-temperature eddy current probe | 15 mm | ±1.5 mm | -40°C to +200°C |
| PR9670/110-100 | Compact probe for tight spaces | 10 mm | ±0.8 mm | -35°C to +150°C |
| PR9670/113-110 | Probe with integrated signal conditioner | 11 mm | ±1.0 mm | -35°C to +180°C |
| PR9670/117-100 | Extended range sensor | 17 mm | ±2.0 mm | -35°C to +180°C |
| PR9670/111-110 | Probe with armored cable | 11 mm | ±1.0 mm | -35°C to +180°C |
Popular Modells from Epro
| Modell | Product Type | Key Features | Compatible With |
|---|---|---|---|
| PR6423/002-110 | Eddy Current Sensor | 8 mm probe, ±1 mm range | CON021, MMS6000 |
| PR6424/014-040 | Axial Proximity Sensor | 14 mm axial measurement | CON041 |
| CON021 | Signal Converter Module | Converts sensor signals to standard 4-20mA or voltage output | PR6423, PR6424 |
| MMS3120/022-100 | Vibration Monitoring Module | Dual channel input | MMS6000 |
| MMS6110 | Rack Controller | 6-channel vibration & position monitor | MMS6000 |
| CON041 | Advanced Signal Converter | Enhanced diagnostics for axial probes | PR6424, PR6423 |
