Produkteinführung

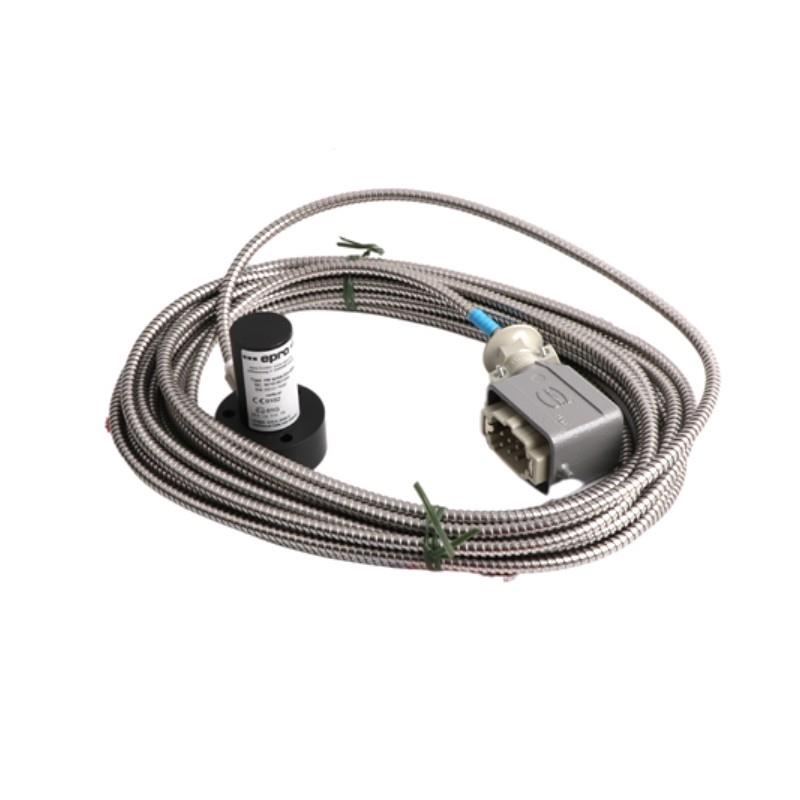

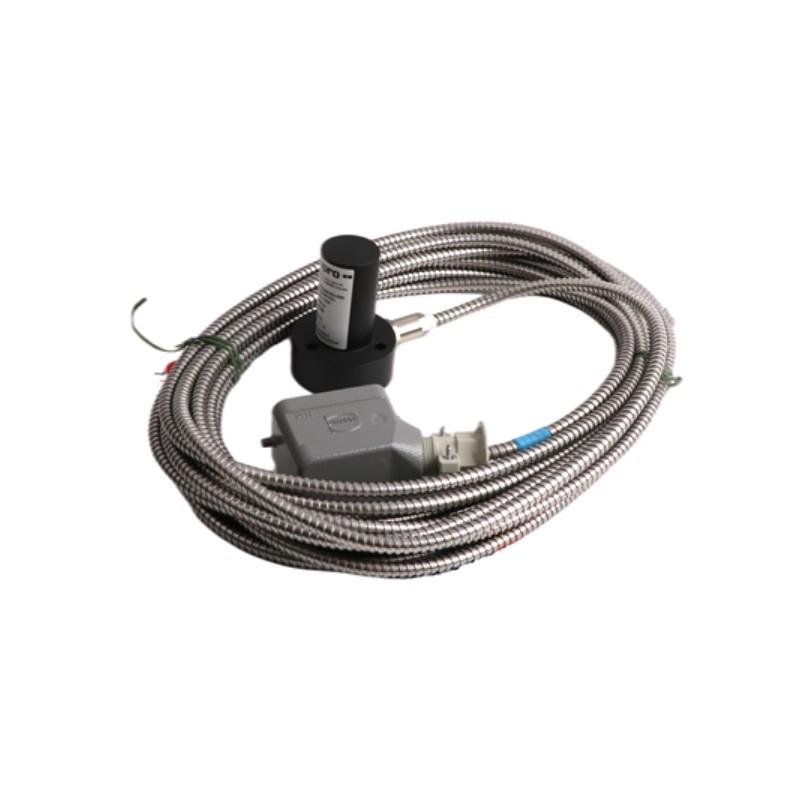

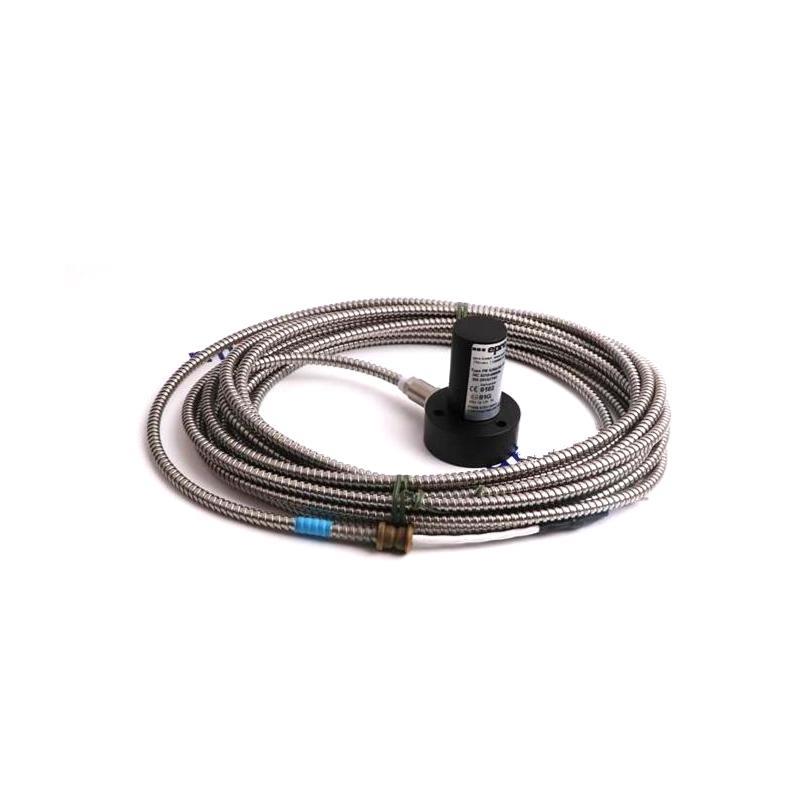

The Epro PR9268/302-100 is a robust and highly sensitive electrodynamic velocity sensor developed by Epro (a brand under Emerson). Engineered for the monitoring von vibration velocity in rotating machinery such as turbines, compressors, pumps, and motors, this sensor vonfers excellent performance in harsh industrial conditions. Its analog output and electromechanical design make it ideal for detecting mechanical faults like imbalance, misalignment, and bearing defects.
Designed for direct installation on machine surfaces, the PR9268/302-100 delivers dynamic measurement signals proportional to vibration velocity, following ISO 10816/20816 standards. The sensor is completely passive, requiring no external power supply, and is widely used in machinery protection and predictive maintenance systems in industries such as power generation, oil & gas, chemical processing, and heavy manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | PR9268/302-100 |
| Sensor Type | Electrodynamic Velocity Sensor |
| Measuring Principle | Coil and magnet system (self-generating) |
| Output Signal | Analog voltage proportional to vibration velocity |
| Output Sensitivity | 28.5 mV/mm/s ±5% |
| Frequency Range (-3 dB) | 10 Hz – 1000 Hz |
| Measuring Range | 0 – 50 mm/s RMS |
| Mounting Orientation | Horizontal |
| Mounting Method | M8 or M10 threaded stud or magnetic base |
| Housing Material | Stainless Steel (corrosion-resistant) |
| Connector Type | MIL-C-5015 2-pin or fixed cable output |
| Cable Length Options | Typically 5 m, 10 m (custom lengths available) |
| Operating Temperature | -30°C to +120°C |
| Protection Class | IP65 / IP67 (depending on configuration) |
| Shock Resistance | Up to 500 g |
| Gewicht | 0.93 kg |
| Dimensions | 78 × 58 mm |
| Certifications | CE, RoHS, optional ATEX for hazardous area use |
Applications
The Epro PR9268/302-100 sensor is widely deployed in condition monitoring and machinery protection across a variety von industries:
-
Power Generation – steam turbines, generators
-
Oil & Gas – centrifugal compressors, gearboxes, pumps
-
Petrochemical and Refining – reactor agitators, motors
-
Pulp & Paper – calendar rolls, paper machines
-
Steel and Metallurgy – rolling mills, furnace fans
-
Cement and Mining – crushers, mills, rotary kilns
-
HVAC and Utilities – large blowers, cooling fans
It is suitable for both vonfline measurement using portable data collectors and for online monitoring systems integrated into plant automation.
Product Advantages
-
No Power Supply Needed:
As a passive electrodynamic sensor, it operates without an external power source, simplifying installation and reducing cost. -
High Sensitivity and Accuracy:
Precise velocity signal output ensures accurate diagnosis von mechanical faults. -
Rugged Industrial Design:
Constructed in a stainless-steel housing, the sensor is built to withstand vibration, moisture, oil, and temperature fluctuations. -
Wide Frequency Response:
Effective over a broad range von typical machine vibration frequencies, enabling reliable fault detection. -
Flexible Mounting Options:
Offers compatibility with a variety von studs or magnetic bases, suitable for both permanent and temporary installations. -
Cost-Effective:
Long lifespan and zero power consumption result in low total cost von ownership (TCO). -
ATEX Versions Verfügbar:
For hazardous zone use, certified versions can be supplied upon request.
Häufig gestellte Fragen (FAQ)
-
What is the primary output von the PR9268/302-100 sensor?
The sensor outputs an analog voltage signal directly proportional to vibration velocity (mm/s). -
Does this sensor require external power to operate?
No, it is a passive electrodynamic sensor and does not need a power supply. -
What kind von faults can this sensor detect?
It can detect unbalance, misalignment, mechanical looseness, and bearing defects. -
Can this sensor be used in ATEX hazardous environments?
Yes, ATEX-certified versions are available upon request for Zone 1 and Zone 2 installations. -
Is it suitable for vertical mounting?
The PR9268/302-100 is optimized for horizontal mounting. For vertical applications, a different variant may be recommended. -
What signal conditioning is needed?
A standard vibration monitor or data acquisition system that accepts voltage input can process the signal. -
What is the typical output sensitivity?
It provides 28.5 mV/mm/s ±5%, which is industry standard for velocity vibration sensors. -
How is it installed on equipment?
It can be mounted using an M8/M10 stud or a magnetic adapter base for portable use. -
What is the maximum cable length supported?
Cable lengths von 10 meters or more can be used, though signal integrity should be confirmed over long distances. -
Can this sensor be used in permanent installations?
Yes, it is commonly used in both permanent and portable condition monitoring applications.
Recommended Related Modells (Same Series / Function)
| Modell Number | Beschreibung | Mounting Orientation |
|---|---|---|
| PR9268/203-100 | Vertical mount version von PR9268 sensor | Vertical |
| PR9268/206-100 | High-frequency response velocity sensor | Horizontal |
| PR9268/205-100 | Compact version for confined spaces | Horizontal |
| PR9268/301-000 | General-purpose velocity sensor | Horizontal |
| PR9268/304-000 | Explosion-provon housing variant | Horizontal/Vertical |
| PR9268/211-100 | High-shock industrial velocity sensor | Horizontal |
Popular Epro Modells (Same Marke – Emerson)
| Modell Number | Beschreibung | Kategorie |
|---|---|---|
| PR6423/002-030 | Eddy Current Proximity Sensor | Displacement Monitoring |
| CON011 | Matching Converter for PR6423 Sensors | Signal Zustanding |
| MMS3120/022-100 | Dual Channel Vibration Monitor | Monitoring System |
| MMS6120 | Compact Vibration Monitoring Module | Machinery Protection |
| PR6424/010-140 | High-Temp Proximity Sensor | Turbine Monitoring |
| TQ402 | Keyphasor (Speed and Phase Reference) Module | Speed Measurement |
