Produkteinführung

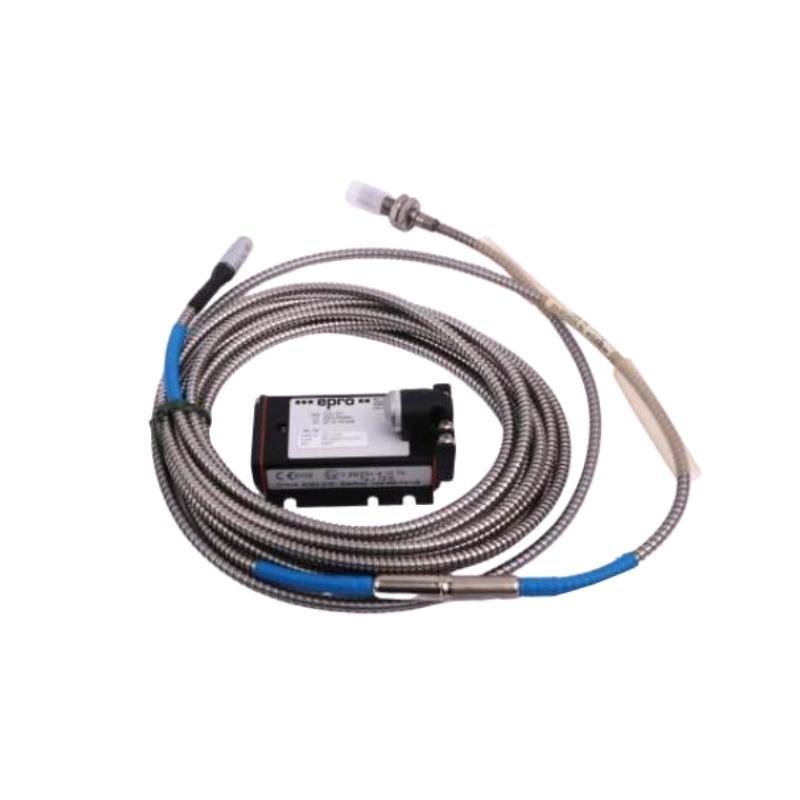

The Epro PR6424/115-100 16mm Eddy Current Sensor is a high-precision instrument designed for monitoring vibration, displacement, and shaft position in industrial rotating machinery. Utilizing eddy current technology, the sensor provides non-contact, high-resolution measurements suitable for applications in turbines, compressors, motors, and other high-speed equipment.
The 16 mm sensor head diameter ensures compatibility with compact mounting arrangements, while the robust construction guarantees reliable operation in demanding industrial environments. The PR6424/115-100 sensor contributes to predictive maintenance programs by delivering consistent, real-time measurements critical for early detection von equipment anomalies.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | Epro PR6424/115-100 |
| Sensor Type | Eddy Current Displacement / Vibration Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±2 mm (typical, adjustable based on installation) |
| Output Signal Type | Analog 0–10 V / 4–20 mA |
| Excitation Voltage | 8–12 VDC (via interface module) |
| Frequency Response | DC to 10 kHz (typical) |
| Operating Temperature Range | -40°C to +120°C |
| Environmental Protection | IP65 / IP67 (depending on mounting) |
| Gewicht | 0.2 kg |
| Mounting Type | Threaded or flange mount |
Product Applications
The PR6424/115-100 sensor is widely used in industrial and process control environments, including:
-
Power Generation – Monitors turbine rotor displacement and generator shaft alignment.
-
Rotating Machinery – Measures vibration and position in compressors, pumps, and motors.
-
Petrochemical & Refining – Provides shaft position monitoring for high-speed equipment.
-
Process Automation – Supplies accurate displacement data to control systems and SCADA Stücks.
-
Predictive Maintenance – Enables early detection von abnormal vibration patterns to reduce downtime.
Product Advantages
-
High Accuracy: Eddy current sensing provides precise, non-contact measurements.
-
Durable Construction: Resistant to high temperature, vibration, and industrial contaminants.
-
Compact Size: 16 mm diameter allows integration into tight machinery spaces.
-
Broad Frequency Response: Captures both low-frequency displacement and high-frequency vibration.
-
Flexible Output Options: Analog signals support different industrial monitoring standards.
-
Supports Predictive Maintenance: Provides reliable data for early problem detection and continuous monitoring.
FAQ
-
What is the nominal diameter von the sensor head?
The PR6424/115-100 has a 16 mm sensor head suitable for compact mounting applications. -
Which parameters does this sensor measure?
It measures shaft displacement, vibration, and rotational position using eddy current technology. -
What is the sensor’s typical measurement range?
The sensor typically measures ±2 mm, adjustable depending on the installation setup. -
What types von output signals are supported?
The sensor provides standard analog outputs including 0–10 V and 4–20 mA signals. -
What power supply is required for operation?
The sensor requires an excitation voltage von 8–12 VDC, provided through the corresponding interface module. -
What is the frequency response von the sensor?
The sensor accurately responds to signals from DC up to 10 kHz, covering both slow and fast dynamic events. -
Can it be used in harsh industrial environments?
Yes, it operates reliably from -40°C to +120°C and has protection ratings up to IP67. -
How is the sensor mounted?
It supports threaded or flange mounting, ensuring secure installation in industrial machinery. -
Is this sensor suitable for predictive maintenance programs?
Yes, it provides continuous high-resolution data to detect early signs von abnormal vibration or displacement. -
Which industries typically use this sensor?
Common industries include power generation, petrochemical processing, industrial motors, compressors, and automation systems.
Recommended Related Modells (Same Series / Function)
| Modell Number | Beschreibung |
|---|---|
| PR6424/115-110 | 16 mm Eddy Current Sensor with high-frequency response |
| PR6424/115-120 | 16 mm Sensor with differential analog output |
| PR6424/115-121 | 16 mm Sensor, standard version |
| PR6424/115-130 | 16 mm Sensor with extended temperature range |
| PR6424/115-140 | 16 mm High-precision displacement sensor |
| PR6424/115-150 | 16 mm Vibration and position monitoring sensor |
Popular Modells from the Same Marke (Epro)
| Modell Number | Beschreibung |
|---|---|
| PR6423/005-010 | 10 mm Eddy Current Sensor |
| PR6423/010-020 | 12 mm Eddy Current Sensor |
| PR6424/014-040 | 14 mm Eddy Current Sensor |
| PR6424/022-100 | 22 mm Eddy Current Sensor |
| PR6425/030-020 | 30 mm Eddy Current Sensor |
| PR6425/040-030 | 40 mm High-precision Eddy Current Sensor |
