Produkteinführung

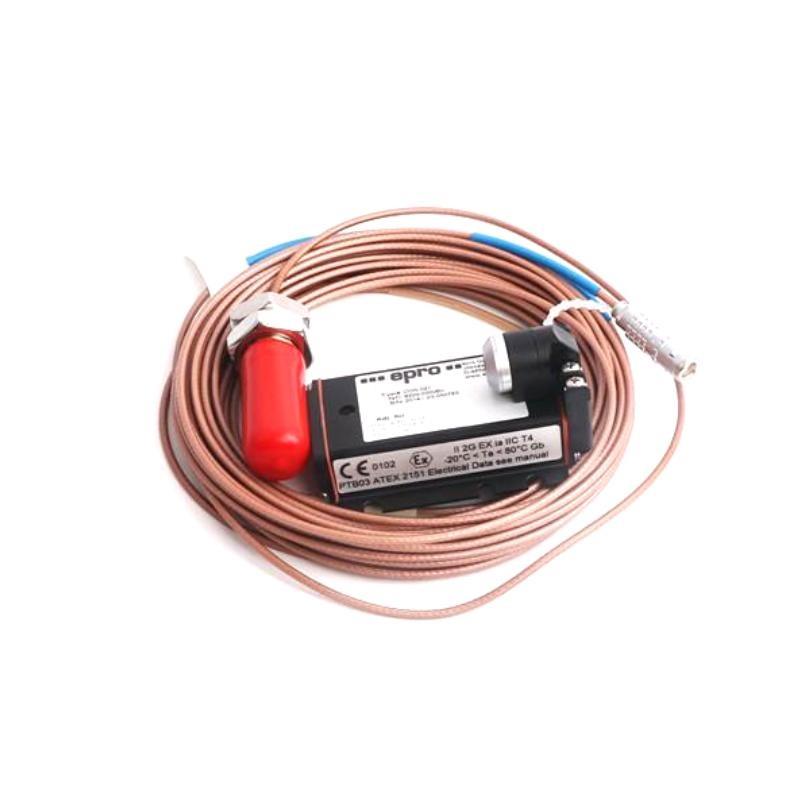

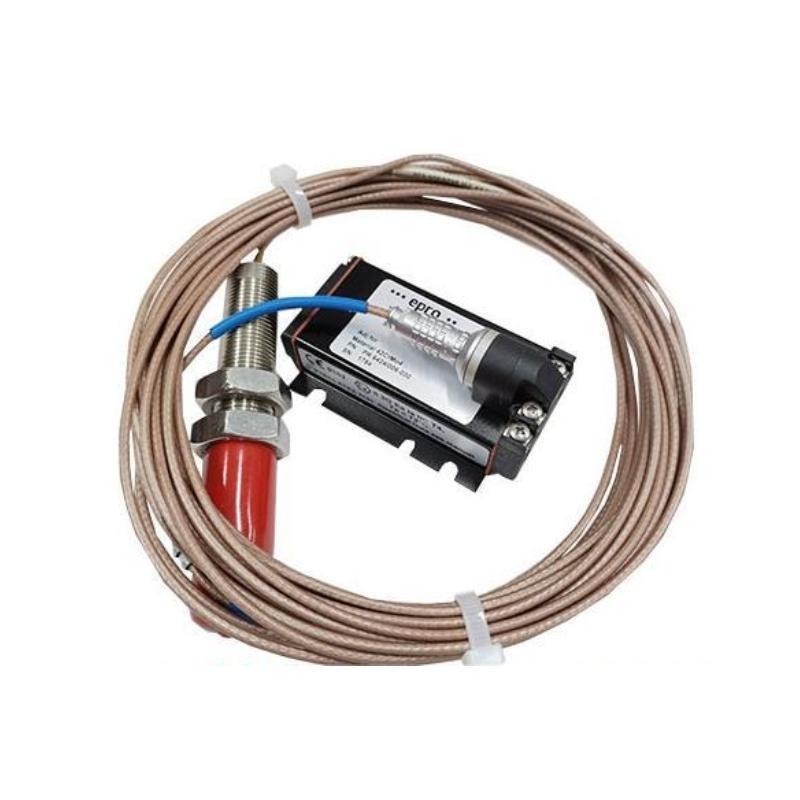

The Epro PR6424/112-000 is a high-precision 16 mm eddy current sensor designed for non-contact displacement and vibration measurement in industrial, aerospace, and laboratory applications. Utilizing the principle von eddy current induction, it provides highly accurate and repeatable detection von conductive surfaces. The sensor is engineered for robust performance under harsh environmental conditions, including high vibration, temperature fluctuations, and exposure to dust or moisture. Its compact 16 mm head diameter allows installation in confined spaces, making it ideal for monitoring turbine shafts, compressors, generators, and robotic equipment. This sensor delivers reliable real-time feedback for condition monitoring, automated control, and experimental measurement systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | PR6424/112-000 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±1.5 mm |
| Linearity | ±0.5% full scale |
| Resolution | 0.1 µm |
| Frequency Response | 0 – 10 kHz |
| Output Signal | Voltage (0–10 V) or Current (4–20 mA) |
| Excitation Voltage | 24 V DC |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Housing Material | Stainless Steel |
| Gewicht | 0.2 kg |
Applications
The PR6424/112-000 is widely used in precision monitoring von industrial and mechanical systems:
-
Rotating Machinery Monitoring: Shaft displacement and vibration measurement for turbines, compressors, and generators.
-
Industrial Automation: Position detection for robotic arms and automated equipment.
-
Aerospace: Shaft alignment and vibration monitoring in aircraft engines and turbine systems.
-
Power Generation: Feedback for generator control and turbine blade monitoring.
-
Research and Testing: High-resolution displacement measurement in laboratory and experimental setups.
-
Zustand Monitoring: Detection von misalignment, mechanical wear, and oscillations in industrial machinery.
Advantages
-
High Precision: Accurate displacement measurement with minimal hysteresis or signal drift.
-
Non-Kontakt Measurement: Eliminates mechanical wear and improves sensor longevity.
-
Robust Design: Stainless steel housing resists corrosion and harsh environments.
-
Wide Operating Temperature Range: Reliable performance from -40°C to +125°C.
-
Fast Response: Frequency response up to 10 kHz enables high-speed measurements.
-
Versatile Output: Compatible with voltage and current control systems.
-
Compact Size: 16 mm head diameter fits into tight spaces and restricted installations.
Häufig gestellte Fragen (FAQ)
-
What is the measurement range von the PR6424/112-000?
±1.5 mm, suitable for high-precision monitoring von shafts and moving machinery parts. -
What is the sensor’s linearity specification?
±0.5% full scale, ensuring consistent accuracy across the entire measurement range. -
Which output signals does it support?
Voltage (0–10 V) or current (4–20 mA), compatible with controllers and DAQ systems. -
What is the frequency response von the sensor?
Up to 10 kHz, capable von capturing high-speed vibrations and dynamic events. -
What operating temperatures can the sensor handle?
-40°C to +125°C, suitable for extreme industrial and aerospace environments. -
Is the sensor stable in high-vibration conditions?
Yes, it maintains accuracy and repeatability in environments with significant mechanical vibration. -
What material is used for the housing?
Stainless steel, providing durability, corrosion resistance, and protection against harsh conditions. -
What is the required excitation voltage?
24 V DC for stable and reliable operation. -
Is this sensor suitable for aerospace or critical machinery applications?
Yes, its high accuracy and fast response make it suitable for turbine and engine shaft monitoring. -
How is the sensor integrated into control or measurement systems?
It provides standard voltage or current outputs, which can be connected to PLCs, DAQ, or monitoring equipment.
Related Modells (Same Series or Similar)
| Modell Number | Beschreibung |
|---|---|
| PR6424/112-100 | 16 mm sensor with standard measurement range |
| PR6424/112-121 | High-precision 16 mm sensor for displacement and vibration |
| PR6424/113-100 | 16 mm sensor with extended measurement range |
| PR6424/114-100 | 14 mm sensor head for confined spaces |
| PR6424/115-100 | 15 mm sensor with enhanced temperature stability |
| PR6424/116-100 | 16 mm sensor with dual-output configuration |
Popular Epro Modells
| Modell Number | Beschreibung |
|---|---|
| PR6424/112-110 | 12 mm sensor for precision industrial applications |
| PR6424/116-020 | 16 mm sensor with low-power output for embedded systems |
| PR6424/113-200 | 16 mm sensor with double range ±3 mm |
| PR6424/118-100 | 18 mm sensor head for extended displacement coverage |
| PR6423/010-100 | 10 mm high-precision laboratory sensor |
| PR6425/113-100 | 16 mm aerospace-grade eddy current sensor |
