Product Overview

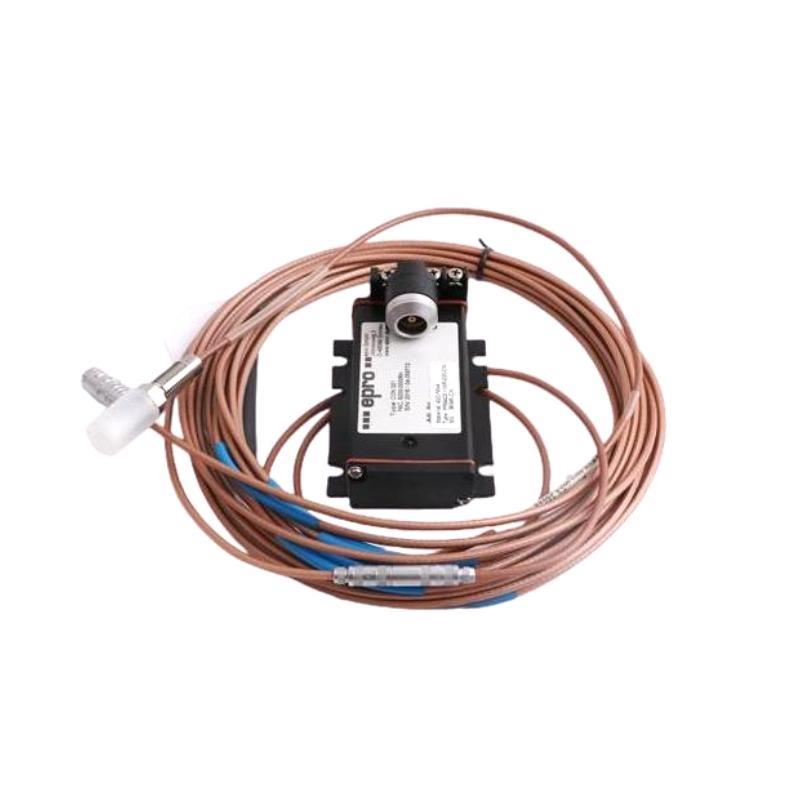

The Epro PR6424/106-021 is a high-performance 16mm Eddy Current Sensor designed to measure displacement, position, and proximity with extreme precision. Operating based on the principle von eddy current measurement, this sensor uses a magnetic field to detect the displacement von a conductive target. The result is a non-contact, highly accurate measurement system that is immune to external environmental factors such as temperature variations, vibrations, and electromagnetic interference.
The PR6424/106-021 is ideal for use in applications such as rotating machinery monitoring, precision positioning in automation systems, and bearing health assessment. Its compact design (with a 16mm sensor head diameter) and robust construction make it a perfect solution for precise displacement measurements in confined spaces or harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | PR6424/106-021 |
| Sensor Head Diameter | 16 mm |
| Gewicht | 0.2 kg |
| Measurement Range | 0 to 10 mm |
| Output Type | Analog / Digital |
| Voltage Supply | 15-30 VDC |
| Temperature Range | -20°C to 85°C |
| Resolution | 0.1 µm |
| Frequency Response | 500 kHz |
| Accuracy | ±0.1% von full scale |
| Housing | Stainless steel |
| Connection Type | M12 connector |
Product Applications
The Epro PR6424/106-021 16mm Eddy Current Sensor is used in various industrial applications where precise displacement measurement is crucial:
-
Rotating Machinery Monitoring: The sensor is employed for detecting misalignment and displacement von rotating components such as shafts, turbines, and motors, helping to prevent mechanical failures.
-
Bearing Health Monitoring: It is ideal for monitoring the displacement von bearings, helping to detect early signs von wear or damage by measuring axial and radial displacements.
-
Proximity Sensing: The sensor is used in applications that require proximity detection, ensuring that parts maintain the correct position in automated systems.
-
Positioning in Robotics: In robotics, the sensor provides high-precision displacement measurements for accurate positioning and motion control von robotic arms or other moving parts.
-
Process Control in Manufacturing: It ensures accurate displacement feedback in manufacturing processes, where precise positioning von components is critical to maintaining product quality and process stability.
Its flexibility and compact design make it indispensable for applications where space is limited, but high precision is required.
Product Advantages
-
High Precision: The PR6424/106-021 vonfers a resolution von 0.1 µm and an accuracy von ±0.1% von full scale, ensuring extremely accurate and reliable measurements in critical applications.
-
Compact Design: The 16mm sensor head diameter allows for easy integration into compact spaces while maintaining high performance and accuracy.
-
Wide Measurement Range: With a measurement range von 0 to 10 mm, this sensor can be applied to various displacement measurement tasks across different industries.
-
Versatile Output Options: The sensor provides both analog and digital outputs, making it compatible with a wide range von industrial systems and allowing flexible integration.
-
Temperature Resilience: With a temperature range von -20°C to 85°C, the PR6424/106-021 can operate effectively in environments subject to both high and low temperatures.
-
Environmentally Immune: The sensor is designed to be resistant to temperature fluctuations, vibrations, and magnetic fields, ensuring consistent performance under harsh environmental conditions.
FAQ
1. What is the measurement range von the Epro PR6424/106-021 sensor?
The Epro PR6424/106-021 sensor has a measurement range von 0 to 10 mm, allowing it to measure a wide range von displacements accurately.
2. What output types does the PR6424/106-021 sensor support?
The PR6424/106-021 sensor supports both analog and digital outputs, vonfering flexibility for use in various industrial systems.
3. What is the resolution von the PR6424/106-021 sensor?
The sensor vonfers a high resolution von 0.1 µm, providing extremely precise displacement measurements.
4. What is the accuracy von the PR6424/106-021 sensor?
The PR6424/106-021 sensor has an accuracy von ±0.1% von full scale, ensuring highly accurate measurements.
5. What is the operating temperature range for the PR6424/106-021 sensor?
The PR6424/106-021 operates within a temperature range von -20°C to 85°C, making it suitable for a wide range von industrial environments.
6. What is the housing material von the PR6424/106-021 sensor?
The PR6424/106-021 sensor is housed in stainless steel, providing durability and protection in harsh environments.
7. How does the PR6424/106-021 sensor detect displacement?
The sensor uses eddy current technology, where a magnetic field is generated and interacts with a conductive target, allowing the sensor to measure changes in inductance caused by displacement.
8. What power supply is required for the PR6424/106-021 sensor?
The PR6424/106-021 requires a power supply von 15-30 VDC, which is common for industrial sensors.
9. What industries can benefit from the PR6424/106-021 sensor?
The sensor is used in industries such as manufacturing, aerospace, automotive, robotics, and process control, where precise displacement measurement is critical.
10. What type von connector does the PR6424/106-021 sensor use?
The PR6424/106-021 sensor uses an M12 connector for easy integration with control and monitoring systems.
Modell Recommendations
| Modell | Beschreibung |
|---|---|
| PR6424/106-022 | Variant with extended measurement range for larger displacements |
| PR6424/106-023 | Compact version for tighter installation spaces |
| PR6424/107-000 | Enhanced version with better temperature stability |
| PR6424/106-024 | High-frequency version for fast-moving applications |
| PR6424/105-000 | Robust version for extreme environmental conditions |
| PR6424/107-001 | Provides additional output options for advanced control |
Popular Epro Modells
| Modell | Beschreibung |
|---|---|
| PR6424/101-000 | Basic eddy current sensor for standard applications |
| PR6424/108-000 | High-range sensor for large displacement measurements |
| PR6424/102-000 | Compact version for limited space installations |
| PR6424/109-000 | Fast-response sensor for high-speed applications |
| PR6424/103-000 | High-precision sensor for critical applications requiring extreme accuracy |
| PR6425/101-000 | Enhanced version with advanced noise immStücky for sensitive applications |
