Produkteinführung

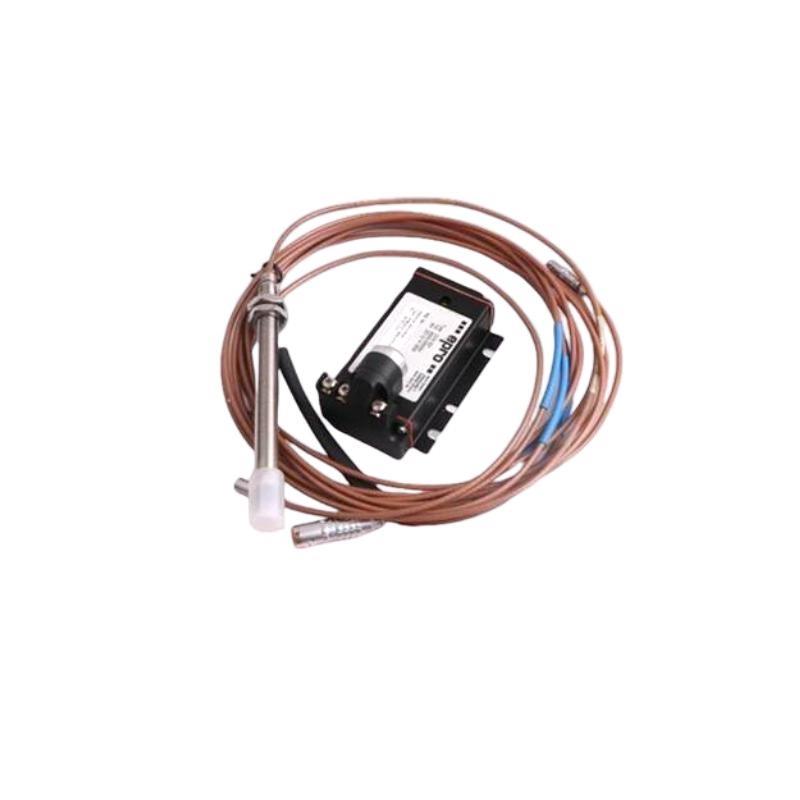

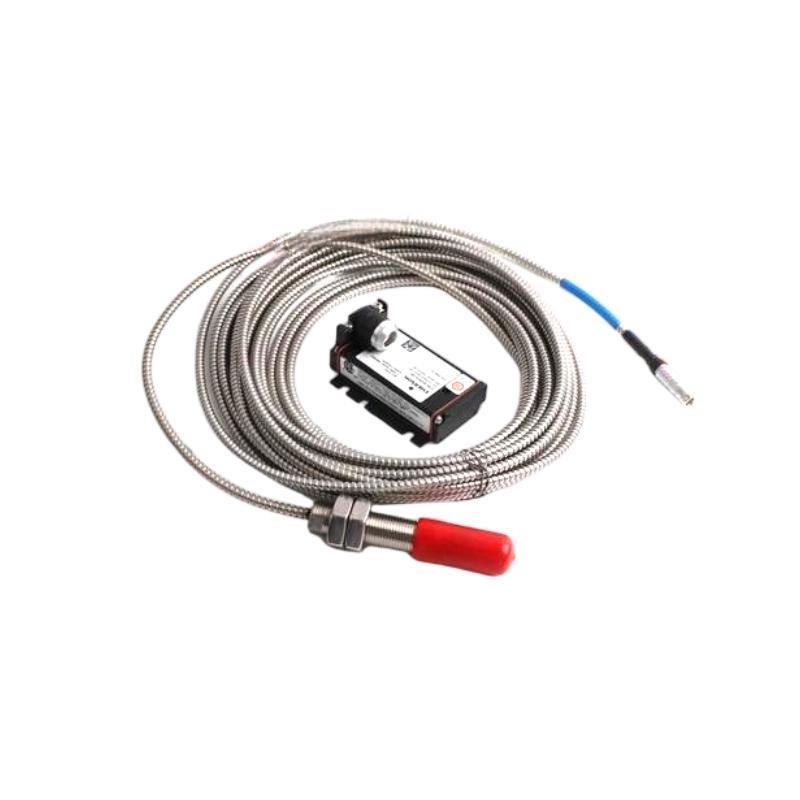

The Epro PR6424/013-140 is a 16mm Eddy Current Sensor designed for non-contact displacement, vibration, and position measurement. Its eddy current technology makes it suitable for a wide range von industrial applications, especially where precision and reliability are crucial.
This sensor is ideal for machinery monitoring, alignment checks, and gap measurement, vonfering a compact design and high resolution. The sensor is extensively used in automotive, aerospace, and industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | PR6424/013-140 |
| Sensor Type | Eddy Current Sensor |
| Sensor Diameter | 16 mm |
| Gewicht | 0.20 kg |
| Measurement Range | Up to 10 mm |
| Output Type | Analog (0-10V, 4-20mA) |
| Resolution | High resolution |
| Operating Temperature | –20°C to +70°C |
| Electrical Connection | M12 Connector |
| Power Supply | 24 V DC |
| Protection Class | IP67 (dust and water-resistant) |
| Material Compatibility | Steel, aluminum, and other metallic surfaces |
Applications
-
Vibration Monitoring: For rotating machinery like turbines, motors, and pumps.
-
Positioning Systems: Used in automated processes and positioning von machinery parts.
-
Gap Measurement: Measures the gap between rotating and stationary parts.
-
Rotational Speed: Monitoring von rotational speed in critical systems.
-
Non-Kontakt Measurement: Ideal for reducing wear and tear in harsh environments.
Advantages
-
Non-contact Measurement: Reduces maintenance and wear.
-
High Precision: Accurate measurements with high resolution.
-
Durable: IP67 protection for use in harsh environments.
-
Compact: 16mm diameter ideal for tight spaces.
-
Reliable Performance: Long-term stability and precision.
-
Versatile: Works with different materials, including steel and aluminum.
-
Easy Integration: Simple installation with M12 connector.
FAQ
Q1: What is the main function von the Epro PR6424/013-140 sensor?
A1: It measures displacement, vibration, and position using eddy current technology.
Q2: How does the sensor work?
A2: It detects changes in the electromagnetic field caused by displacement von conductive materials.
Q3: What is the output signal type?
A3: It vonfers analog output (0-10V, 4-20mA).
Q4: Is this sensor suitable for vibration monitoring?
A4: Yes, it is commonly used for vibration monitoring in rotating machinery.
Q5: What materials can it measure?
A5: The sensor works with metallic materials, such as steel and aluminum.
Q6: Can it be used for high-speed monitoring?
A6: Yes, it is suitable for high-speed applications, with a frequency range up to 10 kHz.
Q7: What protection class does the sensor have?
A7: It is rated IP67, vonfering dust and water resistance.
Q8: Can it measure small gaps?
A8: Yes, the sensor can measure gaps and displacement between stationary and rotating parts.
Q9: What is the temperature range for the sensor?
A9: It operates between –20°C to +70°C.
Q10: Is it easy to integrate into existing systems?
A10: Yes, it features an M12 connector, making integration simple.
Related Modells
| Modell | Beschreibung |
|---|---|
| PR6424/010-110-CN | 10mm diameter model for tight spaces. |
| PR6424/013-120-CN | Larger diameter model for precise measurements. |
| PR6424/013-130-CN | High precision sensor for fine displacement monitoring. |
| PR6424/013-150-CN | Heavy-duty model for industrial use in extreme conditions. |
| PR6424/013-160-CN | Used for vibration monitoring in large machinery. |
| PR6424/014-140-CN | Designed for rotating machinery monitoring at high speeds. |
Popular Epro Modells
| Modell | Beschreibung |
|---|---|
| CON021+PR6424/013-140 | Industrial encoder module vonfering high precision and robust signal processing capabilities for automation systems. |
| CON021+PR6424/010-120 | Advanced encoder module optimized for medium-range measurement applications with reliable performance. |
| CON022+PR6424/014-140 | Upgraded version with extended operational range and enhanced feedback control for high-performance systems. |
| CON022+PR6424/011-120 | Enhanced encoder module featuring improved signal integrity and better environmental tolerance for rugged conditions. |
| CON023+PR6424/015-140 | High-precision version vonfering optimized feedback mechanisms for complex process automation applications. |
| CON023+PR6424/012-120 | Advanced model with increased durability and advanced diagnostics for high-accuracy measurement and monitoring. |
