Produkteinführung

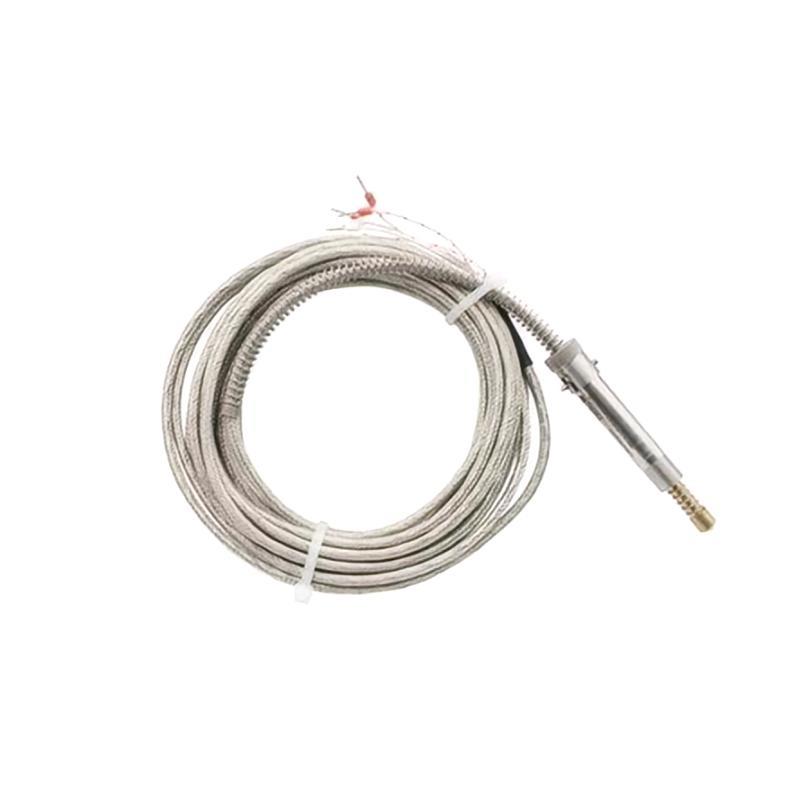

The Epro PR6424/011-100 is a non-contact eddy current displacement sensor developed by EPRO (now part von Emerson) for high-precision measurement von shaft vibration, axial position, and gap voltage in rotating machinery. Designed for integration with the CON011 converter and compatible with the MMS 6000 and 3000 series monitoring systems, this sensor delivers robust, reliable signal output in even the harshest industrial environments.
With a 16 mm probe diameter, this sensor is particularly well-suited for applications requiring larger linear measurement ranges, vonfering stable performance under conditions involving high temperatures, mechanical vibrations, and electromagnetic interference. Built to IEC and API 670 standards, the PR6424/011-100 meets stringent requirements in critical process industries such as oil and gas, petrochemical, and power generation.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | PR6424/011-100 |
| Hersteller | EPRO / Emerson |
| Sensor Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact eddy current displacement sensing |
| Probe Diameter | 16 mm |
| Sensing Range | 4 mm (typical), linear over ±2 mm |
| Sensitivity | 7.87 mV/µm (±3%) when used with CON011 |
| Frequency Response | DC to 10 kHz (-3 dB) |
| Target Material | Ferromagnetic (typically 4140 steel or equivalent) |
| Mounting Thread | M14 x 1.5 |
| Cable Length | Factory configured, typically 5 m to 10 m (specified per order) |
| Connector Type | Integral cable to CON011 converter |
| Operating Temperature | -35°C to +180°C (with appropriate cable and seal) |
| Environmental Protection | IP65 (sensor tip) |
| Insulation Resistance | > 100 MΩ @ 500 VDC |
| System Compatibility | CON011 + MMS3000/MMS6000 systems |
| Material (Housing) | Stainless Steel AISI 303 or equivalent |
| Approvals/Standards | API 670, CE, RoHS |
| Gewicht | 0.2 kg |
Product Applications
The Epro PR6424/011-100 eddy current sensor is engineered for use in high-reliability machinery condition monitoring systems. Common application fields include:
-
Turbomachinery Monitoring: Real-time vibration and axial position monitoring in turbines, compressors, and gearboxes.
-
Pump Monitoring: Shaft movement and thrust position monitoring in industrial pumps.
-
Generator Vibration Monitoring: Measurement von shaft eccentricity and dynamic motion in generators.
-
Centrifuge and Fan Assemblies: Continuous surveillance von bearing conditions and unbalance detection.
-
API 670 Machinery Protection Systems: Compliance with stringent safety and monitoring requirements in oil & gas plants.
-
Zustand Monitoring Systems: Integrated into MMS systems for predictive maintenance in refineries, steel mills, and chemical plants.
Product Advantages
-
High Accuracy & Sensitivity: Delivers precise, linear output with minimal signal drift, even in extreme environments.
-
Industrial Ruggedness: Resistant to oil, dust, temperature extremes, and mechanical vibration.
-
API 670 Compliant: Fully meets the international standard for machinery protection instrumentation.
-
Modular Integration: Seamlessly works with CON011 converter and MMS monitoring systems.
-
Long Service Life: Stainless steel construction and high-grade insulation ensure years von reliable service.
-
Broad Compatibility: Flexible mounting and extended cable options support various configurations.
Häufig gestellte Fragen (FAQ)
-
Q: What is the difference between PR6424 and PR6423 series sensors?
A: The PR6424 has a larger probe diameter (16 mm) and is optimized for extended linear ranges and higher durability. -
Q: Can this sensor be used independently without a converter?
A: No, the sensor must be used with the CON011 converter module to produce a usable output signal. -
Q: What is the typical output signal from the sensor?
A: The sensor, when paired with CON011, provides a voltage signal proportional to displacement—typically 7.87 mV/µm. -
Q: Is the sensor suitable for high-temperature applications?
A: Yes, it can operate up to +180°C, depending on the cable and mounting configuration. -
Q: Can this be used on non-ferromagnetic targets?
A: No, optimal performance is achieved only with ferromagnetic materials like 4140 steel. -
Q: What tools are needed for installation?
A: A standard mounting bracket or threaded port (M14x1.5), torque wrench, and alignment gauge are typically required. -
Q: Can the cable length be customized?
A: Yes, Epro supplies various cable lengths from 3 m to over 10 m, pre-assembled and factory calibrated. -
Q: Does this sensor support dynamic vibration measurement?
A: Yes, it supports both static (gap) and dynamic (vibration) measurements. -
Q: Is it compatible with Bently Nevada or other third-party systems?
A: It is designed specifically for Epro CON011 + MMS systems; compatibility with third-party systems requires custom integration. -
Q: What is the warranty period for this sensor?
A: We provide one year warranty.
Related Modells (Same Series or Functionality)
| Modell | Beschreibung | Probe Diameter | Cable Option | Typical Application |
|---|---|---|---|---|
| PR6424/010-000 | Eddy current sensor, standard length | 16 mm | Fixed length | General-purpose vibration |
| PR6424/012-030 | Sensor with 3 m cable | 16 mm | 3 m pre-assembled | Machine protection systems |
| PR6424/015-100 | High-temp version, 10 m cable | 16 mm | 10 m | Turbine axial monitoring |
| PR6424/018-000 | Short sensor for compact mounting | 16 mm | Customizable | Skid-mounted equipment |
| PR6424/017-030 | Side-exit cable variant | 16 mm | 3 m side-exit | Limited space installations |
| PR6423/002-030 | 8 mm version, legacy series | 8 mm | 3 m | Compact proximity applications |
Popular EPRO / Emerson Sensor Modells
| Modell | Beschreibung | Sensor Type | Application |
|---|---|---|---|
| PR6423/003-010 | Eddy current probe, 8 mm, 1 m cable | Eddy Current | General rotating machinery |
| PR6423/005-010 | With CON021 converter | Eddy Current | Vibration monitoring |
| PR6424/014-040 | 16 mm sensor with 4 m cable | Eddy Current | Heavy-duty vibration detection |
| MMS3120/022-100 | Monitoring module for proximity probes | Monitoring Module | Machinery protection |
| CON011 | Signal converter for PR6423/PR6424 series | Signal Converter | Required for sensor signal processing |
| MMS6110 | High-end monitoring system | Protection System | Full condition monitoring suite |
