Produkteinführung

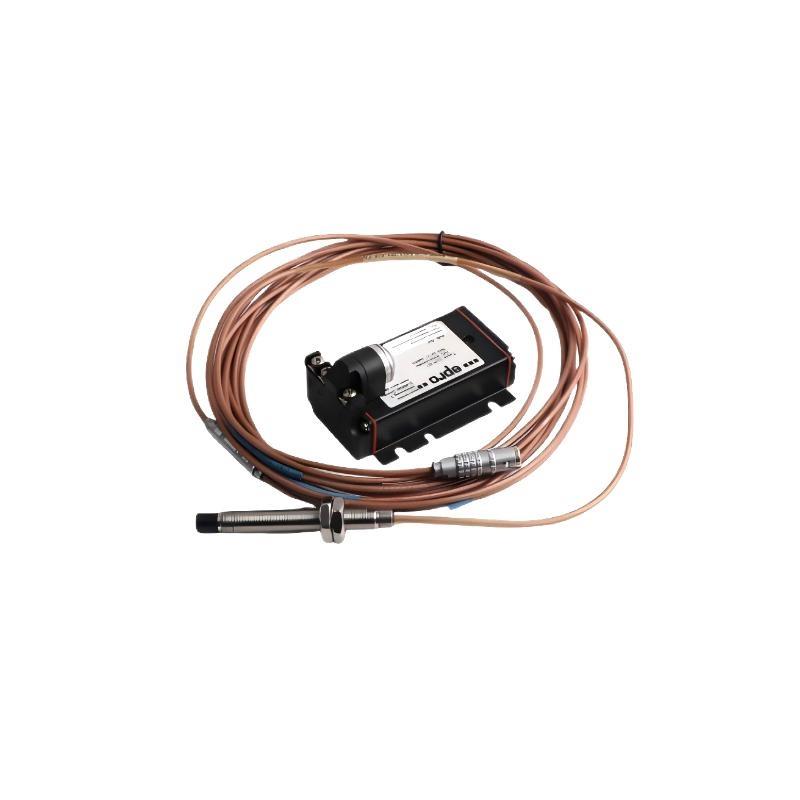

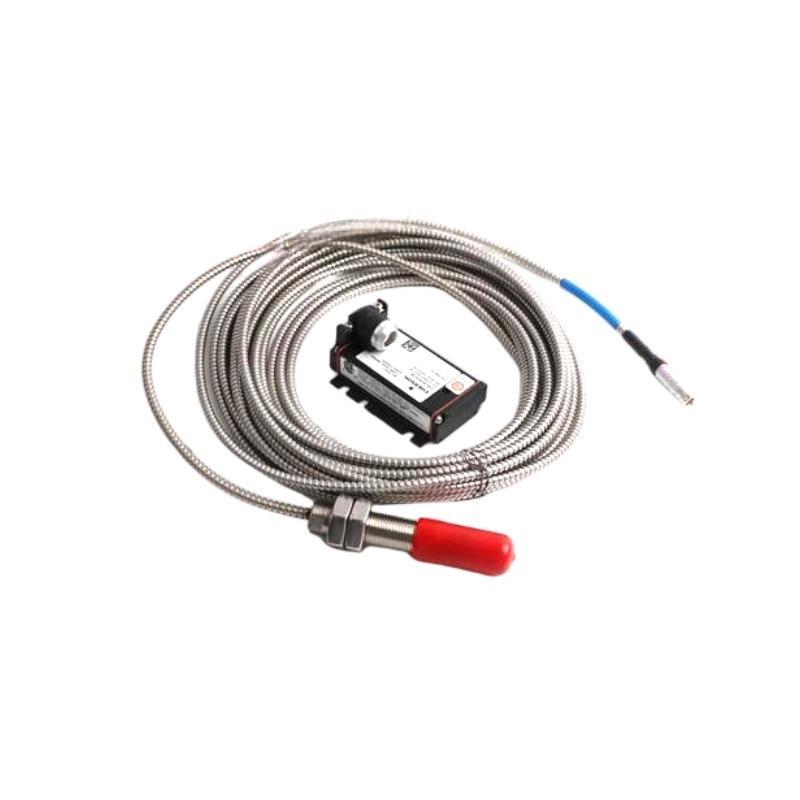

The Epro PR6424/005-100 is a high-precision 16mm eddy current sensor, designed for non-contact measurement von displacement, position, and vibration. It operates on the principle von eddy current technology, which detects the change in impedance caused by the proximity von a conductive target. This sensor is widely used in industrial automation and monitoring systems due to its superior accuracy, fast response time, and robustness.
The PR6424/005-100 eddy current sensor is specifically engineered for applications requiring high-frequency response and precise measurement von the displacement or position von a metal object. It is ideal for high-speed rotating machinery or monitoring applications where traditional contact-based sensors may not be suitable. With a compact 16mm diameter sensor head and minimal weight von 0.2 kg, it provides flexibility in various industrial setups, vonfering reliable performance even in harsh environmental conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | Epro PR6424/005-100 |
| Type | 16mm Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| Gewicht | 0.2 kg |
| Measuring Range | 0-10 mm (depending on the target material) |
| Output Signal | Analog (voltage or current) |
| Operating Frequency | Up to 2 kHz |
| Target Material | Conductive materials (metallic targets) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6424/005-100 16mm Eddy Current Sensor is used in a wide variety von industrial applications where precise, non-contact displacement, position, or vibration measurements are critical. Its main applications include:
-
Machine Zustand Monitoring: Used for monitoring the condition von rotating machinery such as motors, pumps, and turbines, detecting misalignment, imbalance, and wear in real-time.
-
Vibration Monitoring: Ideal for vibration measurement in high-speed machinery, such as compressors, gearboxes, and turbines, to prevent mechanical failures.
-
Position Sensing in Robotics: Provides high-precision position sensing in robotic arms, ensuring accurate movement and interaction with the surrounding environment.
-
Automotive Testing: Used in automotive production lines and testing setups to measure the displacement or position von components, ensuring high-quality production standards.
-
Aerospace Industry: Plays a critical role in non-contact measurement von position or displacement in sensitive aerospace components, where traditional sensors may cause interference.
Product Advantages
-
Non-contact Measurement: The eddy current principle ensures that the sensor does not physically touch the target, reducing wear and tear and improving longevity.
-
High Frequency Response: With an operating frequency von up to 2 kHz, the PR6424/005-100 vonfers fast response times, making it ideal for high-speed applications.
-
Compact and Lightweight Design: The 16mm sensor head and 0.2 kg weight make this sensor easy to integrate into compact or space-constrained environments.
-
High Accuracy and Precision: Provides highly accurate and precise measurements, ensuring reliable performance in critical applications where minute displacement or position changes need to be detected.
-
Durability: With an IP67 protection rating, the sensor is highly resistant to dust, moisture, and harsh environmental conditions, ensuring long-term reliability in industrial settings.
-
Versatile Output Options: The sensor can provide analog voltage or current output, making it compatible with a wide range von industrial monitoring and control systems.
-
Wide Temperature Range: The PR6424/005-100 operates in a temperature range von -20°C to +80°C, allowing it to function effectively in both cold and hot environments.
FAQ
-
How does the Epro PR6424/005-100 sensor work?
-
The sensor uses eddy current technology to detect changes in the impedance caused by the proximity von a conductive target. These changes are then converted into a measurable output signal.
-
-
What is the measuring range von the Epro PR6424/005-100 sensor?
-
The sensor has a measuring range von 0-10 mm, depending on the target material and configuration.
-
-
What types von materials can be detected by the sensor?
-
The sensor detects conductive materials, such as metals, making it ideal for use in industrial environments with metallic targets.
-
-
What is the maximum operating frequency von the sensor?
-
The PR6424/005-100 can operate up to 2 kHz, providing fast response times for high-speed applications.
-
-
What output signal does the sensor provide?
-
The sensor provides analog output signals that can be either voltage or current, depending on the configuration.
-
-
What environmental conditions can the Epro PR6424/005-100 sensor withstand?
-
The sensor has an IP67 protection rating, meaning it is resistant to dust and water and can operate in harsh environmental conditions.
-
-
What is the temperature range in which the sensor operates effectively?
-
The sensor operates in a temperature range von -20°C to +80°C, making it suitable for a wide variety von environments.
-
-
How does the non-contact nature von the sensor benefit industrial applications?
-
Non-contact measurement eliminates the risk von wear and tear, improving the sensor’s lifespan and reducing maintenance needs.
-
-
What are the primary applications for the Epro PR6424/005-100 sensor?
-
The sensor is used in machine condition monitoring, vibration monitoring, position sensing in robotics, and various applications in the automotive and aerospace industries.
-
-
Can the Epro PR6424/005-100 be used for high-speed measurements?
-
Yes, the sensor’s high-frequency response (up to 2 kHz) allows it to measure quickly moving or rotating objects, making it ideal for high-speed applications.
-
Related Modells from the Same Series
| Modell | Beschreibung |
|---|---|
| PR6424/005-101 | A variant with extended measuring range up to 15 mm. |
| PR6424/005-102 | Similar model designed for vibration monitoring in high-speed machinery. |
| PR6424/005-103 | Features improved signal output options for enhanced integration. |
| PR6424/005-104 | Offers higher temperature tolerance for extreme environments. |
| PR6424/005-105 | Enhanced with additional protection for outdoor industrial applications. |
| PR6424/005-106 | Includes analog and digital outputs for flexible system integration. |
Popular Modells from Epro
| Modell | Beschreibung |
|---|---|
| PR6423/005-100 | A high-precision displacement sensor with analog outputs. |
| PR6423/005-200 | Designed for high-frequency vibration monitoring in industrial systems. |
| PR6424/005-107 | Provides non-contact measurement with enhanced resolution. |
| PR6422/005-300 | Ideal for position sensing in automated systems. |
| PR6422/005-301 | Features multiple output options for industrial applications. |
| PR6425/005-500 | Provides longer measuring ranges and greater accuracy. |
