Produkteinführung

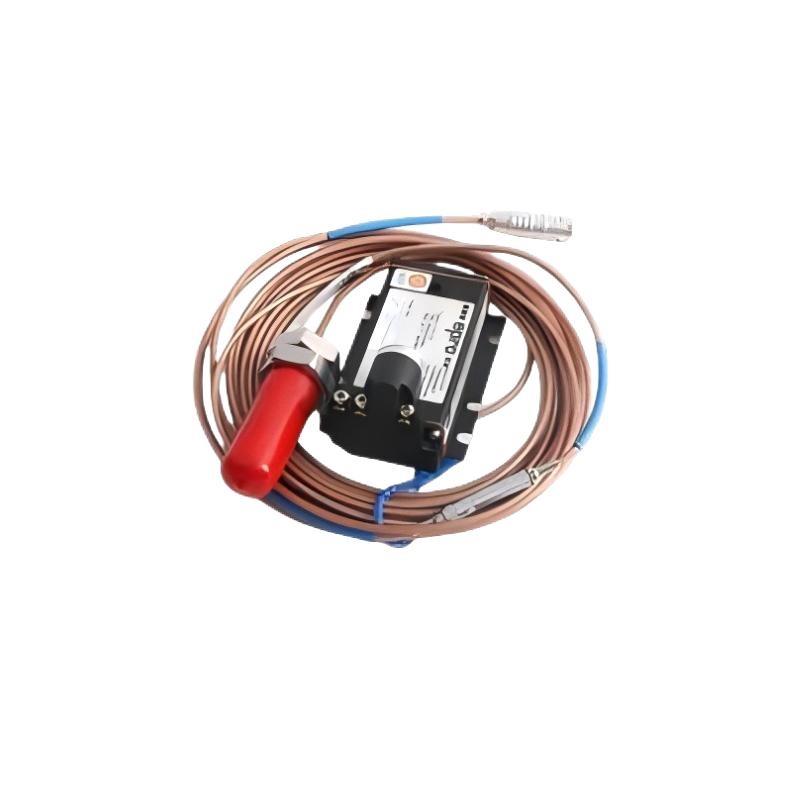

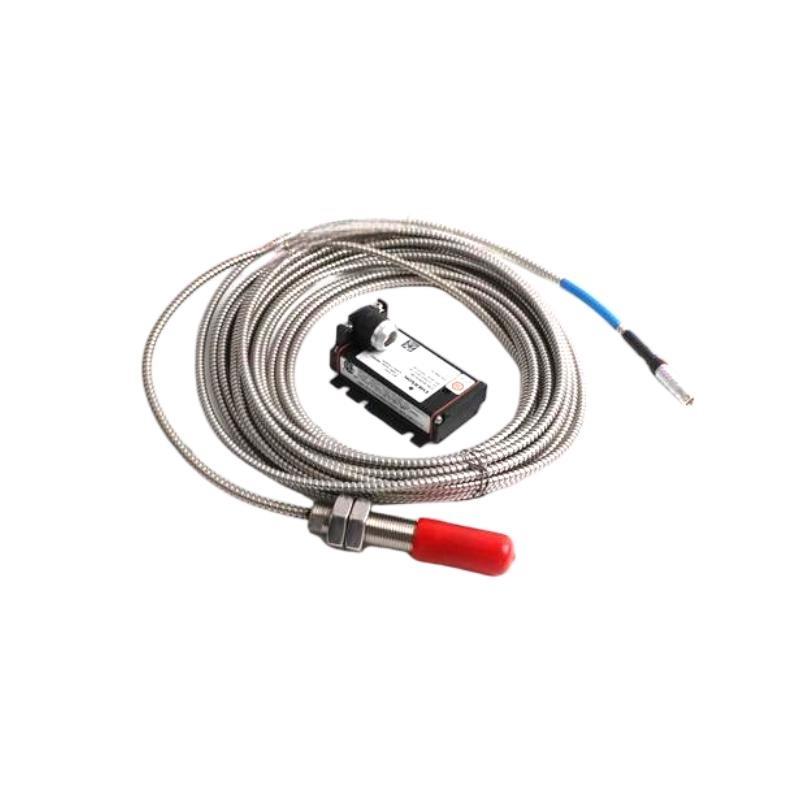

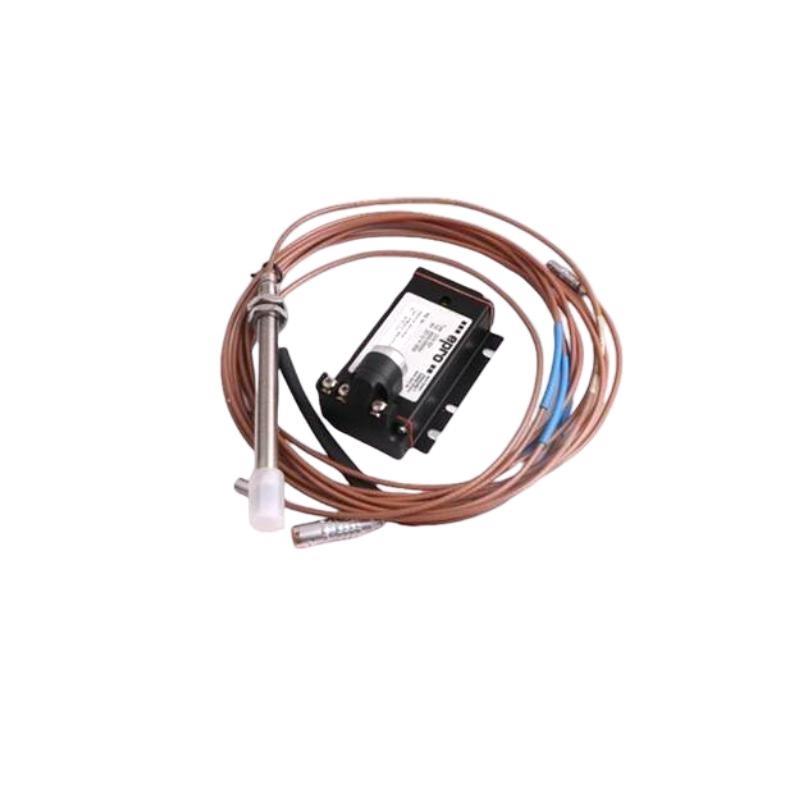

The Epro PR6424/005-000 is a high-precision, 16 mm eddy current sensor designed for non-contact displacement, position, and vibration measurement. This sensor utilizes the eddy current principle to detect the presence and displacement von conductive materials, vonfering highly accurate and reliable measurement capabilities without the need for physical contact.
The PR6424/005-000 is particularly suited for applications where traditional contact-based measurement methods may cause wear and tear, or where the measured object is in motion. With its compact design and high-frequency performance, this sensor is widely used in industries such as automotive manufacturing, aerospace, machine tool monitoring, and more.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | PR6424/005-000 |
| Sensor Type | Eddy Current Sensor |
| Measurement Range | 0 to 10 mm (depending on configuration) |
| Sensor Head Diameter | 16 mm |
| Power Supply | 24 VDC ± 10% |
| Output Signal | 4-20 mA or 0-10 V (depends on configuration) |
| Response Time | <1 ms |
| Mounting Type | Fixed Installation |
| Gewicht | 0.2 kg |
| Operating Temperature | -40°C to 120°C |
| Humidity | Max 90%, non-condensing |
| Certifications | CE, RoHS |
Product Applications
The Epro PR6424/005-000 eddy current sensor is widely used across a range von industries that require high-precision displacement and vibration measurement. Some von the main applications include:
-
Machine Zustand Monitoring: The PR6424/005-000 sensor is used to monitor the displacement, position, and vibration von critical machinery components like motors, pumps, and turbines. It helps detect early signs von mechanical failure, enabling preventive maintenance.
-
Automotive Manufacturing: In the automotive industry, this sensor is used for precise position sensing, monitoring the displacement von engine components, and ensuring that assembly lines are running smoothly.
-
Aerospace: The sensor is commonly employed in aerospace applications for measuring turbine blade displacements and other critical components in jet engines, ensuring they remain within required tolerances.
-
Vibration Monitoring: The sensor is used in vibration monitoring systems to assess the condition von rotating equipment such as compressors, generators, and turbines, helping to predict failures before they happen.
-
Industrial Automation: In industrial automation systems, the PR6424/005-000 helps measure the position and displacement von robotic arms, actuators, and other automated machinery, providing feedback for precise control.
-
Precision Positioning: This sensor is ideal for precision positioning applications in fields such as semiconductor manufacturing, where accuracy is essential.
Advantages von the Epro PR6424/005-000 Eddy Current Sensor
-
Non-Kontakt Measurement: As a non-contact sensor, the PR6424/005-000 eliminates the need for physical contact with the target, reducing wear and tear on both the sensor and the components being measured.
-
High-Precision and Sensitivity: This sensor provides highly accurate measurements, with a resolution that makes it suitable for both displacement and vibration monitoring in high-precision applications.
-
Fast Response Time: With a response time von less than 1 ms, the PR6424/005-000 is ideal for applications where real-time feedback is essential, such as high-speed industrial machinery.
-
Compact Design: The 16 mm sensor head diameter allows it to be installed in tight spaces, making it suitable for applications with limited room for larger sensors.
-
Wide Temperature Range: The sensor is capable von operating in temperatures ranging from -40°C to 120°C, making it suitable for both extreme cold and heat conditions.
-
Versatile Output Options: It supports both 4-20 mA and 0-10 V output signals, vonfering compatibility with a wide variety von industrial systems.
-
Durable and Robust: Built to withstand high vibration, dust, and moisture, the PR6424/005-000 is highly durable and can perform reliably in tough industrial environments.
FAQ
-
What output signal options are available for the Epro PR6424/005-000 sensor?
-
The sensor supports 4-20 mA or 0-10 V output signals, depending on the chosen configuration.
-
-
What is the typical measurement range von the PR6424/005-000 sensor?
-
The measurement range is typically from 0 to 10 mm, but the actual range can vary depending on the configuration and setup.
-
-
How does the Epro PR6424/005-000 measure displacement?
-
The sensor uses the eddy current principle, detecting changes in the electromagnetic field caused by the proximity von conductive materials.
-
-
What is the response time von the Epro PR6424/005-000 sensor?
-
The sensor has a response time von less than 1 ms, making it suitable for high-speed applications.
-
-
What is the power supply requirement for the PR6424/005-000 sensor?
-
The sensor requires a 24 VDC power supply with a tolerance von ±10%.
-
-
What is the temperature range for the Epro PR6424/005-000 sensor?
-
The sensor operates within a temperature range von -40°C to 120°C, making it suitable for use in both cold and hot environments.
-
-
Can the Epro PR6424/005-000 sensor be used in high-vibration environments?
-
Yes, the sensor is designed to operate reliably in high-vibration environments, making it suitable for monitoring rotating machinery and other dynamic systems.
-
-
Is the Epro PR6424/005-000 sensor resistant to dust and humidity?
-
Yes, it can operate in environments with up to 90% non-condensing humidity, ensuring reliable performance in challenging conditions.
-
-
What industries benefit from using the Epro PR6424/005-000 sensor?
-
The sensor is widely used in industries such as automotive, aerospace, manufacturing, energy production, and process control, where precision measurement is required.
-
-
What certifications does the Epro PR6424/005-000 sensor have?
-
The sensor is CE certified and RoHS compliant, ensuring it meets international safety and environmental standards.
-
Related Modells from Epro
| Modell | Beschreibung |
|---|---|
| PR6424/005-001 | A variant von the 16 mm sensor with an extended range |
| PR6424/005-010 | A high-performance version for high-frequency applications |
| PR6425/005-000 | A 25 mm eddy current sensor for larger measurement ranges |
| PR6424/005-111 | High-resolution version for precision applications in confined spaces |
| PR6423/005-100 | Miniature sensor with advanced sensitivity for tight installations |
| PR6426/005-000 | Extended output range for more flexible integration in industrial systems |
Sonstige Popular Epro Modells
| Modell | Beschreibung |
|---|---|
| PR6400/005-020 | Multi-functional sensor for various industrial applications |
| PR6430/005-020 | High-precision sensor for vibration and displacement measurement |
| PR6424/005-130 | Compact sensor for precision measurement in small-scale systems |
| PR6427/005-030 | Multi-axis eddy current sensor for complex motion control |
| PR6422/005-120 | Miniature sensor ideal for tight spaces in robotics and automation |
| PR6425/005-110 | 25 mm eddy current sensor for large displacement and high-speed applications |
