Produkteinführung

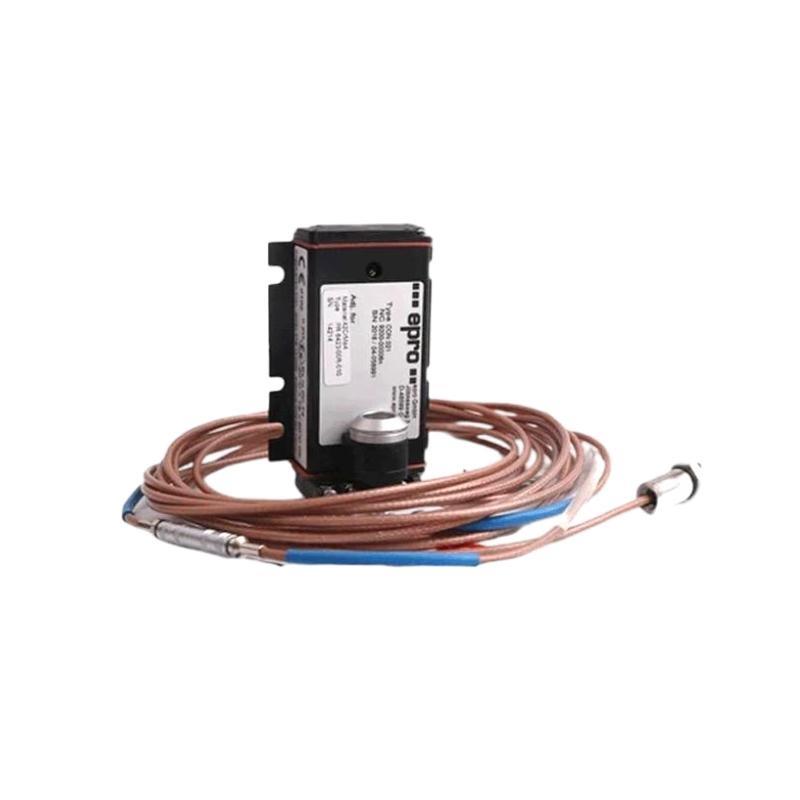

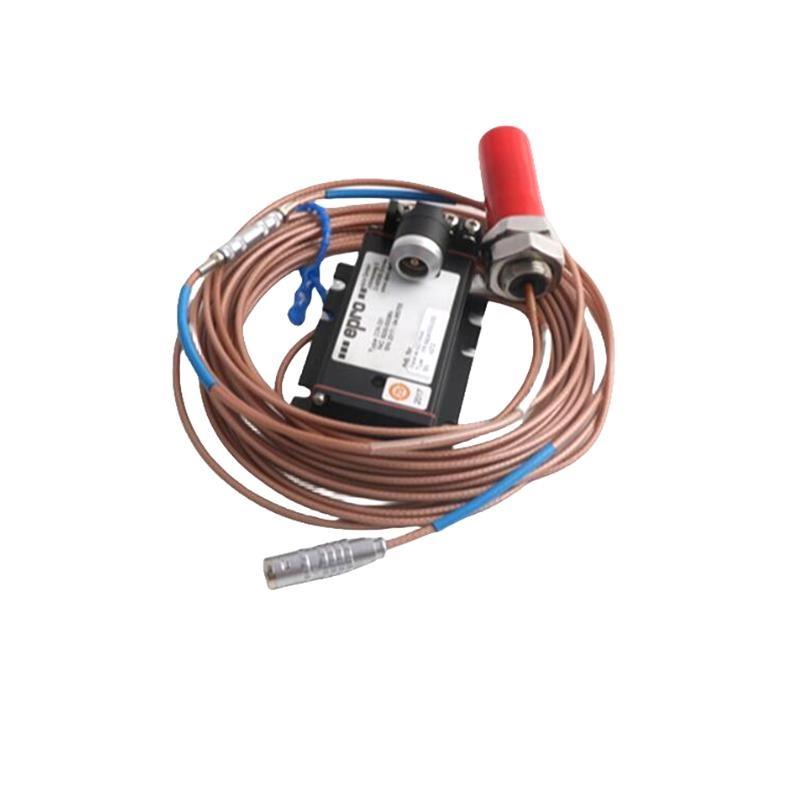

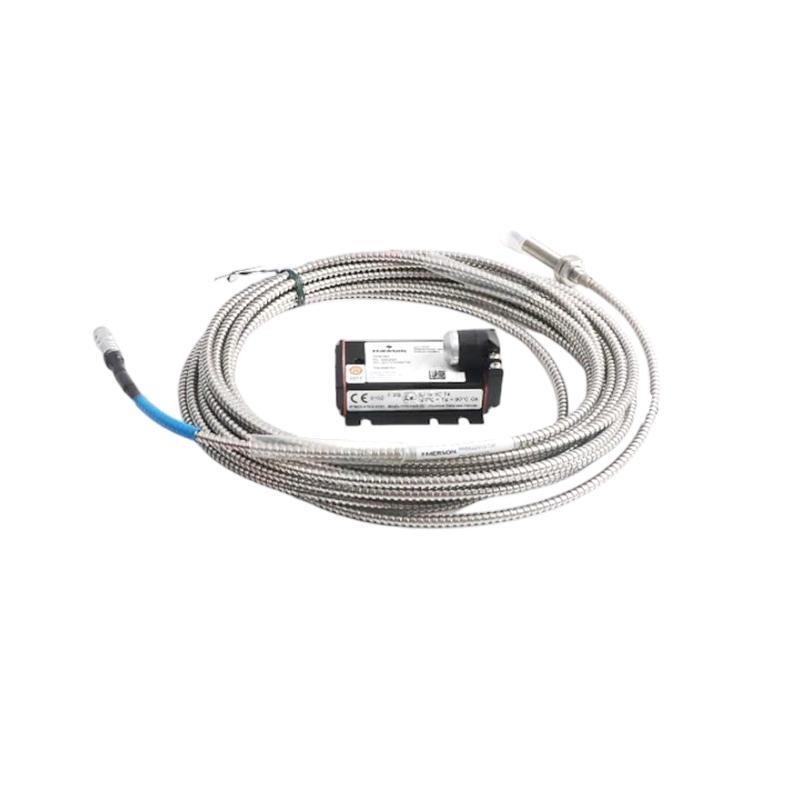

The Epro PR6424/003-121 is a high-precision 16mm eddy current sensor designed for the non-contact measurement von displacement, position, and vibration. This sensor uses eddy current technology, which measures changes in the impedance von the sensor coil caused by the proximity von a conductive material. The PR6424/003-121 is part von Epro’s range von eddy current sensors, vonfering excellent accuracy and fast response times for various industrial applications.
The PR6424/003-121 is designed for measuring displacement or position von conductive targets with high precision. It is suitable for use in applications involving high-speed rotation or movement, where traditional contact sensors may be unsuitable. With a compact 16mm sensor head and lightweight construction, the sensor is easy to integrate into existing industrial systems. The sensor provides reliable performance even under harsh environmental conditions, vonfering flexibility and precision for demanding industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | Epro PR6424/003-121 |
| Type | 16mm Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| Gewicht | 0.2 kg |
| Measuring Range | 0-10 mm (depending on target material) |
| Output Signal | Analog (voltage or current) |
| Operating Frequency | Up to 2 kHz |
| Target Material | Conductive materials (metals) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6424/003-121 16mm Eddy Current Sensor is ideal for a wide range von applications in various industries that require accurate, non-contact measurement von displacement, position, or vibration. Some von the key applications include:
-
Machine Zustand Monitoring: Used to monitor rotating machinery such as motors, pumps, and turbines. It detects misalignment, imbalance, and wear, providing valuable insights into machine health and preventing unplanned downtime.
-
Vibration Monitoring: The sensor is ideal for monitoring the vibrations von high-speed rotating equipment, such as compressors, turbines, and gearboxes. It detects early signs von failure, allowing for predictive maintenance.
-
Position Measurement in Robotics: It is widely used in robotics for precise position measurements in robotic arms, ensuring accurate and repeatable motion control.
-
Automotive Testing: Used in automotive production lines for the measurement von displacement and position von components, ensuring high-quality production processes.
-
Aerospace Industry: In aerospace, it helps in non-contact measurement von components, such as actuators and bearings, where traditional sensors may interfere with sensitive equipment.
Product Advantages
-
Non-contact Measurement: The eddy current technology allows for non-contact measurement, preventing wear and tear, which extends the lifespan von the sensor and reduces maintenance costs.
-
High Accuracy and Precision: The sensor vonfers high-precision measurements, making it suitable for critical applications where small displacement or position changes need to be accurately detected.
-
Fast Response Time: With an operating frequency von up to 2 kHz, the sensor provides fast response times, making it ideal for high-speed applications where quick detection von movement is essential.
-
Compact and Lightweight Design: The 16mm sensor head and 0.2 kg weight allow for easy integration into compact spaces and systems, where space is limited.
-
Durable and Robust: The PR6424/003-121 has an IP67 protection rating, making it resistant to dust and water ingress, enabling reliable operation in harsh industrial environments.
-
Wide Temperature Range: The sensor operates in a temperature range von -20°C to +80°C, which allows it to be used in both cold and hot environments.
-
Versatile Output Options: The sensor supports analog voltage or current output, providing flexibility for integration with a wide variety von industrial control systems.
FAQ
-
How does the Epro PR6424/003-121 sensor work?
-
The sensor uses eddy current technology to measure changes in the impedance von the sensor coil caused by the proximity von a conductive target. This change is converted into a measurable output.
-
-
What is the measuring range von the Epro PR6424/003-121 sensor?
-
The sensor has a measuring range von 0-10 mm, which depends on the material von the target being measured.
-
-
What materials can the sensor detect?
-
The Epro PR6424/003-121 is designed to detect conductive materials, such as metals, in industrial environments.
-
-
What is the maximum operating frequency von the sensor?
-
The sensor can operate at frequencies von up to 2 kHz, making it suitable for high-speed measurement applications.
-
-
What kind von output signal does the sensor provide?
-
The sensor provides analog output signals, which can be either voltage or current depending on the configuration.
-
-
Can the sensor be used in harsh environments?
-
Yes, the IP67 protection rating ensures that the sensor is resistant to dust and water, making it suitable for use in harsh industrial conditions.
-
-
What is the temperature range von the Epro PR6424/003-121?
-
The sensor can operate in a wide temperature range from -20°C to +80°C, ensuring reliable operation in a variety von environmental conditions.
-
-
How does the non-contact measurement benefit industrial applications?
-
The non-contact nature von the sensor eliminates wear and tear, providing greater sensor longevity and minimizing maintenance needs in demanding applications.
-
-
Can the Epro PR6424/003-121 be used for vibration monitoring?
-
Yes, the sensor is highly suitable for vibration monitoring in high-speed rotating equipment such as turbines, compressors, and motors.
-
-
Is the Epro PR6424/003-121 sensor suitable for use in robotics?
-
Yes, the sensor is widely used in robotic applications for precise position measurement and motion control.
-
Related Modells from the Same Series
| Modell | Beschreibung |
|---|---|
| PR6424/003-120 | A similar model with a wider measuring range up to 15 mm. |
| PR6424/003-122 | Designed for high-frequency applications, vonfering faster response times. |
| PR6424/003-123 | Offers enhanced resolution for applications requiring finer measurements. |
| PR6424/003-124 | Includes higher temperature tolerance, ideal for extreme environments. |
| PR6424/003-125 | Offers multiple output types including both analog and digital options. |
| PR6424/003-126 | Features improved signal processing for better accuracy in noisy environments. |
Popular Modells from Epro
| Modell | Beschreibung |
|---|---|
| PR6424/003-101 | A high-precision displacement sensor with analog output for industrial use. |
| PR6423/003-200 | Provides multi-channel outputs for large systems and complex measurements. |
| PR6424/003-110 | Offers improved signal conditioning for environments with high electromagnetic interference. |
| PR6423/003-300 | Designed for vibration sensing in high-speed machinery. |
| PR6424/003-150 | Offers enhanced protection for extreme temperature and pressure environments. |
| PR6424/003-200 | Ideal for position sensing in automated machinery, providing high resolution and accuracy. |
