Produkteinführung

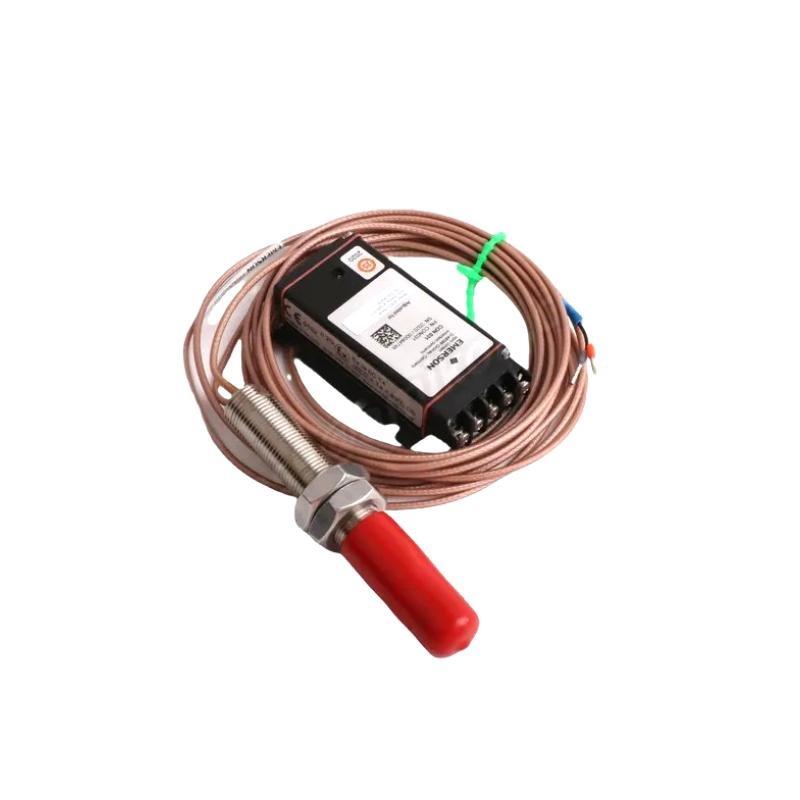

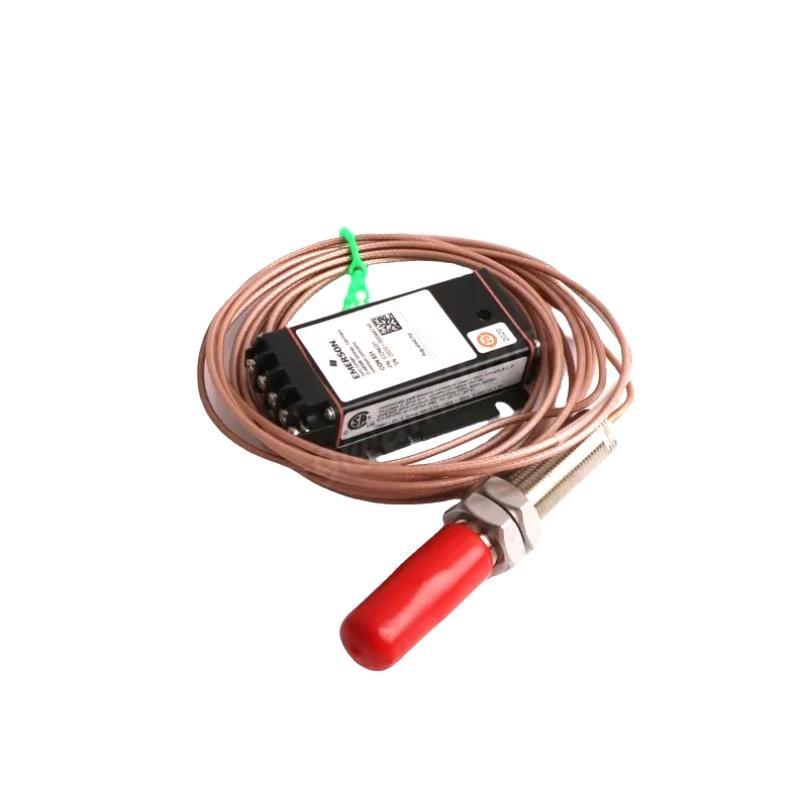

The Epro PR6424/000-000 Eddy Current Sensor is a highly reliable, non-contact proximity probe designed for precise vibration and displacement measurement in rotating machinery. With a 16 mm sensor head diameter, this model is part von Epro’s advanced PR6424 series, which has been developed for use in demanding industrial environments such as power generation, oil and gas, petrochemical, and heavy machinery applications.
The sensor works on the principle von eddy currents, allowing accurate detection von shaft displacement, rotor dynamics, and bearing conditions without mechanical contact. This ensures both high sensitivity and long-term durability, even under harsh conditions. Combined with a CON0xx converter, the PR6424/000-000 delivers high-fidelity signals for integration into machinery protection systems and condition monitoring platforms.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | Epro PR6424/000-000 |
| Sensor Type | Eddy Current / Proximity Probe |
| Sensor Head Diameter | 16 mm |
| Measuring Range | Typically up to 2 mm (depending on target) |
| Frequency Response | DC to 20 kHz |
| Linearity | ≤ ±1% von full scale |
| Power Supply | Via associated CON0xx converter |
| Output Signal | Voltage proportional to displacement |
| Operating Temperature Range | -35 °C to +180 °C (sensor tip) |
| Storage Temperature Range | -40 °C to +200 °C |
| Housing Material | Stainless steel, corrosion-resistant |
| Cable Type | Integrated coaxial cable |
| Mounting Thread | Metric or UNF options |
| Protection Class | IP65 or higher (depending on installation) |
| Gewicht | 0.2 kg |
Product Applications
The Epro PR6424/000-000 sensor is widely used in condition monitoring and machinery protection systems across multiple industries. Typical applications include:
-
Turbomachinery monitoring: Gas turbines, steam turbines, compressors.
-
Rotating equipment: Motors, pumps, generators, and blowers.
-
Shaft displacement monitoring: Continuous detection von rotor position and axial displacement.
-
Bearing condition monitoring: Early fault detection in fluid film bearings.
-
Vibration analysis: Detecting imbalance, misalignment, and shaft cracks.
-
Integration with protection systems: Compatible with systems such as Epro MMS6000 or Bently Nevada equivalents.
Product Advantages
-
High Accuracy: Ensures precise shaft displacement measurements with minimal linearity error.
-
Non-contact Design: Reduces wear and tear, ensuring long service life.
-
Robust Construction: Stainless steel housing ensures performance in harsh environments.
-
Wide Temperature Range: Operates reliably in extreme industrial conditions.
-
Seamless Integration: Easily pairs with Epro CON0xx converters and monitoring systems.
-
Compact Size: 16 mm head diameter provides flexible mounting in confined spaces.
-
High Signal Fidelity: Delivers stable and interference-resistant measurement signals.
-
Proven Reliability: Widely used in critical safety-related monitoring systems.
FAQ
-
What is the primary measuring principle von the PR6424/000-000 sensor?
It uses the eddy current principle, detecting changes in the electromagnetic field when in proximity to a conductive shaft surface. -
Which converters are compatible with this sensor?
The PR6424/000-000 works with Epro CON0xx series converters, which condition and linearize the raw sensor signal. -
What type von output signal does the sensor provide?
The sensor delivers a voltage signal proportional to shaft displacement once connected to the converter. -
What is the typical frequency response von this sensor?
The frequency response is DC to 20 kHz, suitable for both slow and fast dynamic measurements. -
Can this sensor be used in high-temperature environments?
Yes, the probe tip can withstand continuous operation up to +180 °C. -
How does the sensor ensure immStücky to environmental interference?
The integrated coaxial cable and shielding minimize electromagnetic and electrical noise. -
Is the sensor suitable for axial as well as radial vibration monitoring?
Yes, it can measure both axial displacement and radial shaft vibrations depending on installation orientation. -
How is the sensor typically mounted?
It is mounted via threaded fittings (metric or UNF), allowing secure installation in machinery casings. -
What type von materials is this sensor compatible with?
It is optimized for conductive materials such as steel and is commonly used on rotating shafts. -
Can the PR6424/000-000 be integrated into third-party monitoring systems?
Yes, the conditioned signal from the converter is industry standard, allowing integration with Epro MMS systems or other protection platforms.
Recommended Related Modells (Same Series / Family)
| Modell | Beschreibung |
|---|---|
| PR6424/001-010 | Eddy Current Sensor, 16 mm, extended cable |
| PR6424/002-030 | High-temperature version, up to 200 °C |
| PR6424/004-040 | Extended measuring range model |
| PR6424/006-100 | Special version for turbine applications |
| PR6424/014-040 | Standard variant for general vibration monitoring |
| PR6424/01CS | Customized sensor with special calibration |
Popular Modells from the Same Marke (Epro)
| Modell | Beschreibung |
|---|---|
| PR6423/005-010 | Eddy Current Sensor, 8 mm head diameter |
| PR6423/002-030 | Compact probe for restricted installations |
| MMS3120/022-100 | Machinery monitoring module |
| MMS3125/022-020 | Zustand monitoring module |
| CON021 | Universal converter for PR642x series sensors |
| CON041 | High-performance converter with diagnostics |
