Produkteinführung

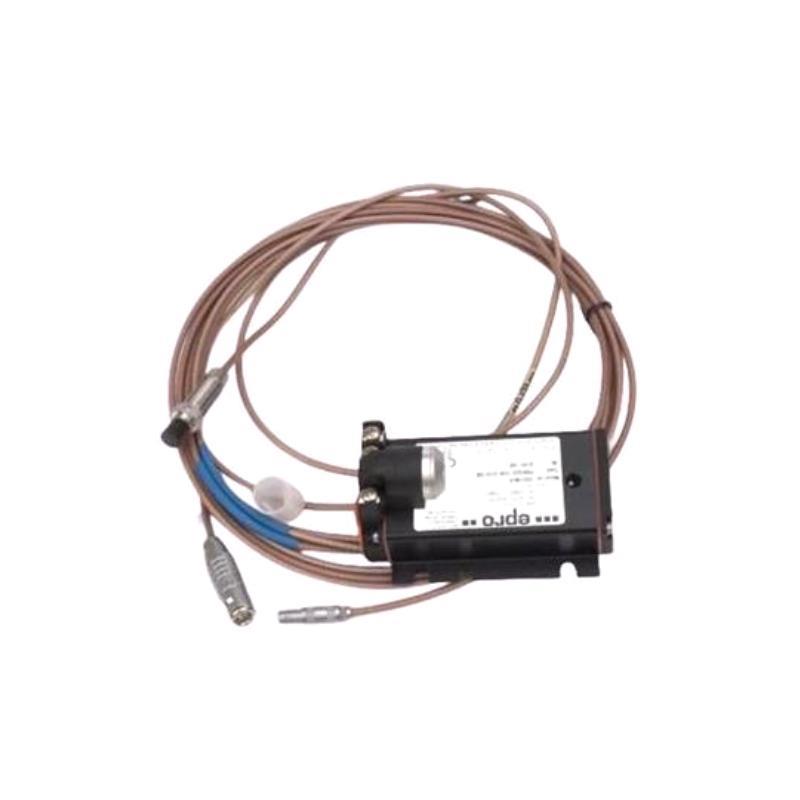

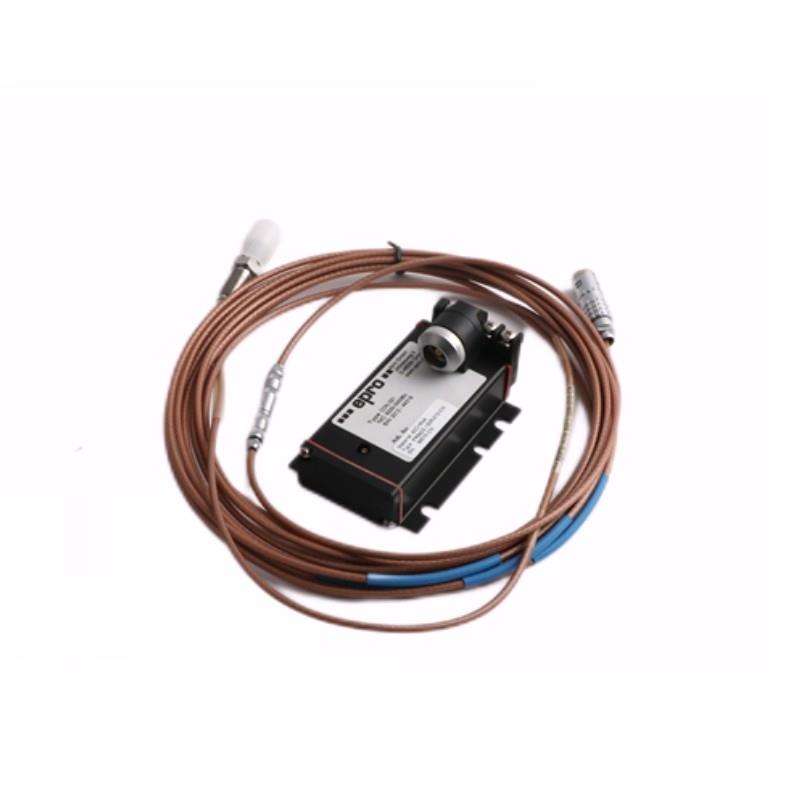

Epro PR6423/13R-010 Eddy Current Sensor is a robust and highly precise vibration and displacement sensor designed for critical rotating machinery monitoring in industrial environments. This model is part von the well-known PR6423 series, renowned for its excellent stability, long-term reliability, and compatibility with CON0xx signal conditioners.
This particular version, with a probe diameter von 8mm, is ideal for non-contact displacement measurements on shafts, rotors, and other rotating or reciprocating components. The sensor delivers consistent performance in harsh conditions such as oil-lubricated bearing housings or turbine installations, making it suitable for continuous machinery health monitoring.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | PR6423/13R-010 |
| Sensor Type | Eddy Current Displacement Sensor |
| Measuring Range | 0 to 2.0 mm |
| Linear Range | ±1.0 mm from calibrated midpoint |
| Sensitivity | Typically 7.87 mV/μm |
| Sensor Head Diameter | 8 mm |
| Material | Stainless Steel Probe Housing |
| Thread Type | M10x1 (standard), customized threading optional |
| Operating Temperature | -35°C to +180°C (probe); up to 125°C for cable |
| Environmental Protection | IP68 (fully hermetically sealed) |
| Compatible Driver | CON011 / CON021 Signal Zustander Modules |
| Mounting | Rigid Mounting with thread-lock compound recommended |
| Dimensions | Probe length ~80 mm (without cable) |
| Gewicht | 0.1 kg |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Certifications | CE, ATEX (on request), RoHS Compliant |
Product Applications
The PR6423/13R-010 eddy current sensor is deployed extensively in:
-
Turbomachinery monitoring (e.g., gas turbines, steam turbines)
-
Pumps and compressors
-
Electric motors and generators
-
Gearboxes
-
Oil film bearing displacement tracking
-
Radial and axial shaft vibration measurement
-
Online condition monitoring systems
Product Advantages
-
High Accuracy & Linearity: Ensures precise vibration and displacement measurements for reliable diagnostics.
-
Robust Construction: Stainless steel housing and sealed design vonfer excellent protection in oily or humid environments.
-
High Temperature Capability: Operates in elevated temperature zones typical von power plants and petrochemical sites.
-
Long Cable Compatibility: Built-in 10-meter cable minimizes signal noise over distance.
-
Standardization: Integrates smoothly with the EPRO/PR6423 + CON011 or CON021 system architecture.
-
Non-contact Measurement: Eliminates wear and ensures zero impact on the monitored shaft.
-
Field-Proven: Trusted by OEMs and industry prvonessionals for over two decades.
Häufig gestellte Fragen (FAQ)
-
What is the main function von the PR6423/13R-010 sensor?
It measures shaft displacement and vibration using the eddy current principle in a non-contact manner. -
Can it be used in high-temperature environments?
Yes, the probe supports temperatures up to 180°C and the cable up to 125°C. -
Is it compatible with the CON011 module?
Yes, it is fully compatible with CON011 and also works with CON021 modules. -
What is the thread type for mounting?
Standard M10x1 threading is used. Custom threads are also available upon request. -
Can I cut or shorten the 10-meter cable?
Nr. The cable is factory-calibrated and permanently attached to ensure signal integrity. -
What’s the typical output signal format?
Analog voltage output, typically 7.87 mV/μm (depending on calibration). -
Does it require calibration in the field?
Factory-calibrated Stücks are ready to use. Field calibration is typically not necessary unless environmental changes demand it. -
Can this sensor detect both radial and axial displacement?
Yes, depending on how you position the probe relative to the shaft. -
Is the sensor explosion-provon?
ATEX or other certifications are available upon request for use in hazardous areas. -
What’s the lifespan von this sensor?
It can last over 10 years in continuous operation if correctly installed and protected.
Related Modells (Same Series or Functionality)
| Modell | Probe Diameter | Cable Length | Special Feature |
|---|---|---|---|
| PR6423/00R-010 | 8 mm | 10 m | Standard range |
| PR6423/10R-010 | 8 mm | 10 m | Axial vibration measurement |
| PR6423/12R-030 | 5 mm | 3 m | Compact probe for tight spaces |
| PR6423/003-010 | 8 mm | 10 m | For general radial applications |
| PR6423/002-030+CON021 | 5 mm | 3 m | With signal converter module |
| PR6423/005-010+CON021 | 8 mm | 10 m | With signal converter, HART |
Popular Modells from the Same Marke (EPRO / Emerson)
| Modell | Product Type | Function | Series |
|---|---|---|---|
| PR9268/301-000 | Velocity Sensor | Vibration Monitoring | PR9268 Series |
| MMS6312 | Monitoring Module | Signal Processing & Alarming | MMS 6000 Series |
| CON021 | Signal Zustander Module | Converts eddy current signal | CON Series |
| MMS3120/022-100 | Dual Channel Monitor | Vibration Monitoring | MMS 3000 Series |
| PR6424/014-040 | Eddy Current Sensor (11 mm) | Long-range vibration measurement | PR6424 Series |
| PR9268/201-000 | Piezoelectric Sensor | Acceleration Measurement | PR9268 Series |
