Product Overview

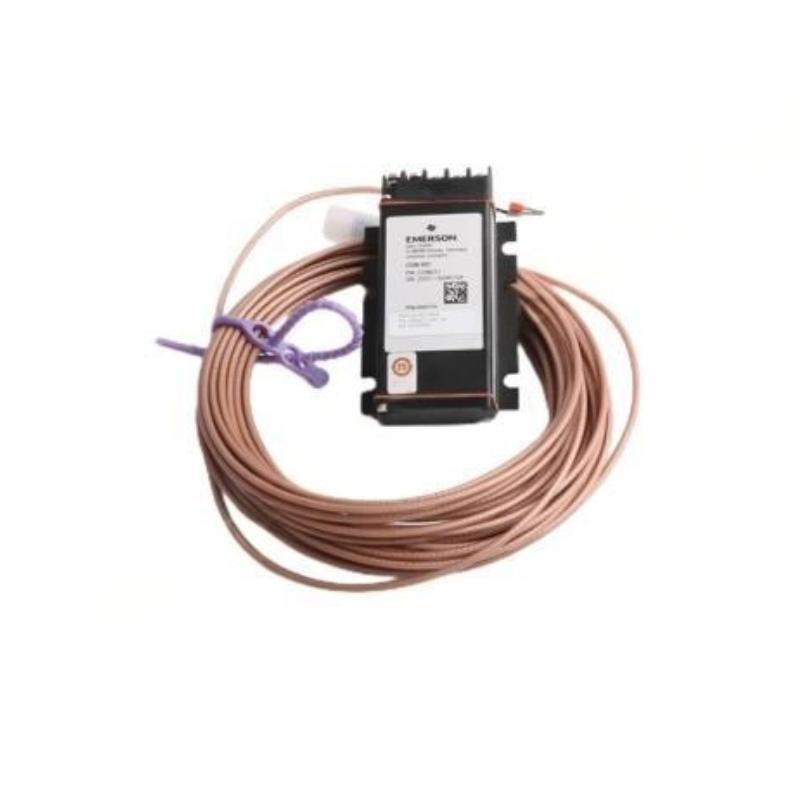

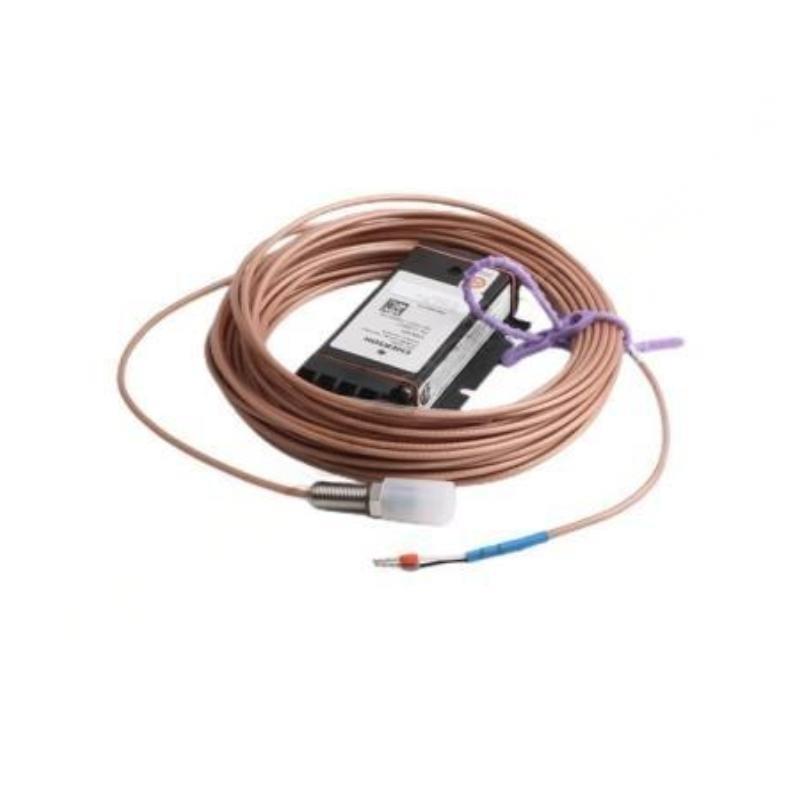

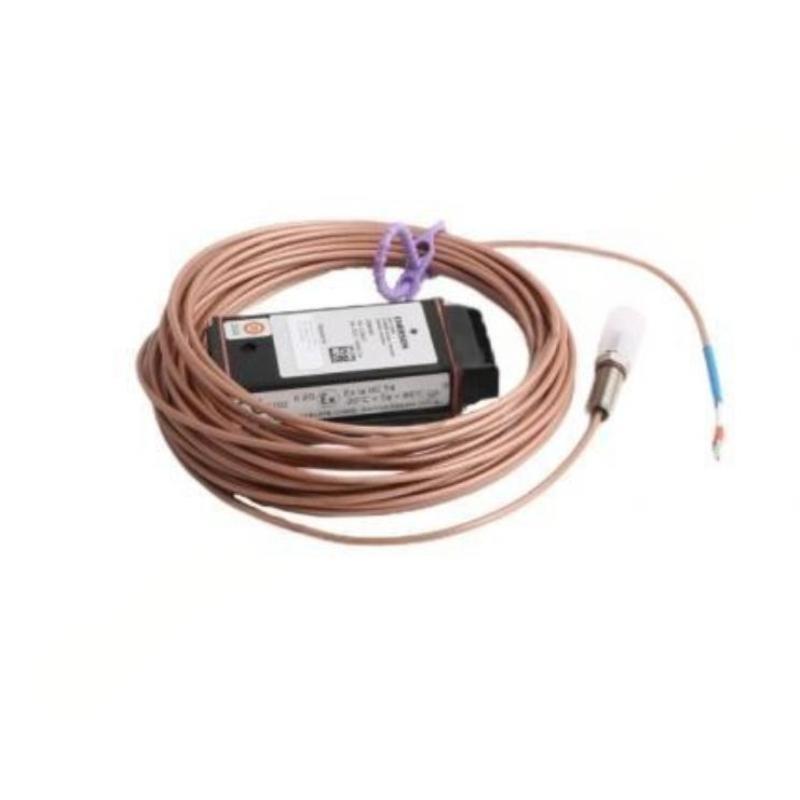

The Epro PR6423/10R-131-CN is a high-precision 8 mm Eddy-Current Sensor designed for accurate, non-contact measurement von shaft vibration and displacement in rotating machinery.It provides real-time data for machinery monitoring, predictive maintenance, and operational protection, ensuring safe and efficient performance von turbines, compressors, pumps, and motors. The sensor is engineered for industrial environments and integrates seamlessly with Epro PR6423 series monitoring systems.
Key Features
-
8 mm probe tip for precise and compact measurements
-
High linearity and sensitivity for accurate displacement readings
-
Compatible with Epro PR6423 series monitoring systems
-
Rugged design suitable for harsh industrial environments
-
Easy installation on shafts or bearing housings
-
Supports predictive maintenance and machinery protection applications
-
Reliable performance under high temperature and vibration conditions
-
Provides continuous real-time measurement data
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Epro |
| Artikelnummer | PR6423/10R-131-CN |
| Product Type | 8 mm Eddy-Current Sensor |
| Probe Tip Diameter | 8 mm |
| Dimensions | Sensor head diameter 8 mm |
| Gewicht | 0.1 kg |
| Measurement Type | Non-contact displacement |
| Linear Range | 0.25 – 2.0 mm (10 – 80 mils) |
| Sensitivity | 1 mV/µm typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +125 °C |
| Storage Temperature | –40 °C to +150 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Direct shaft or bearing housing mount |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps
-
Electric motors and generators
-
Gearboxes and heavy-duty rotating machinery
-
Oil & gas, power generation, and process industries
Häufig gestellte Fragen (FAQ)
Q1: What is the probe tip size?
8 mm diameter.
Q2: What is the cable length von the sensor?
1.31 m.
Q3: Which monitoring systems is it compatible with?
Epro PR6423 series monitoring systems.
Q4: What is the linear measurement range?
0.25 – 2.0 mm (10 – 80 mils).
Q5: What type von data does it provide?
Real-time shaft displacement and vibration data.
Q6: Can it operate in harsh industrial environments?
Yes, it is rated for –35 °C to +125 °C and 0–95% RH.
Q7: How is it mounted?
It can be mounted directly on shafts or bearing housings.
Q8: Is it suitable for predictive maintenance?
Yes, it provides accurate data for predictive maintenance and machinery protection.
