Product Overview

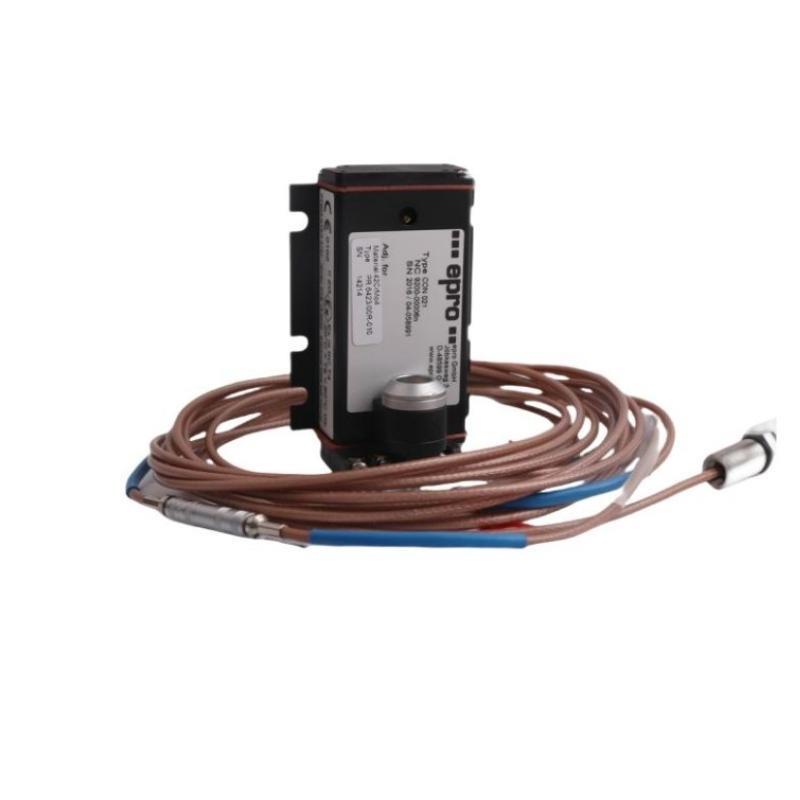

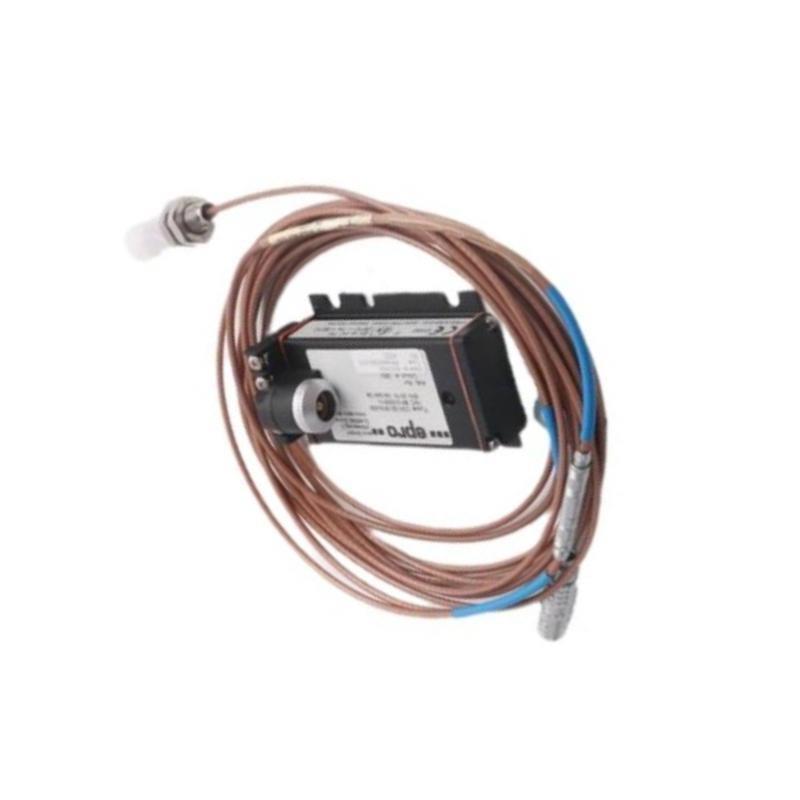

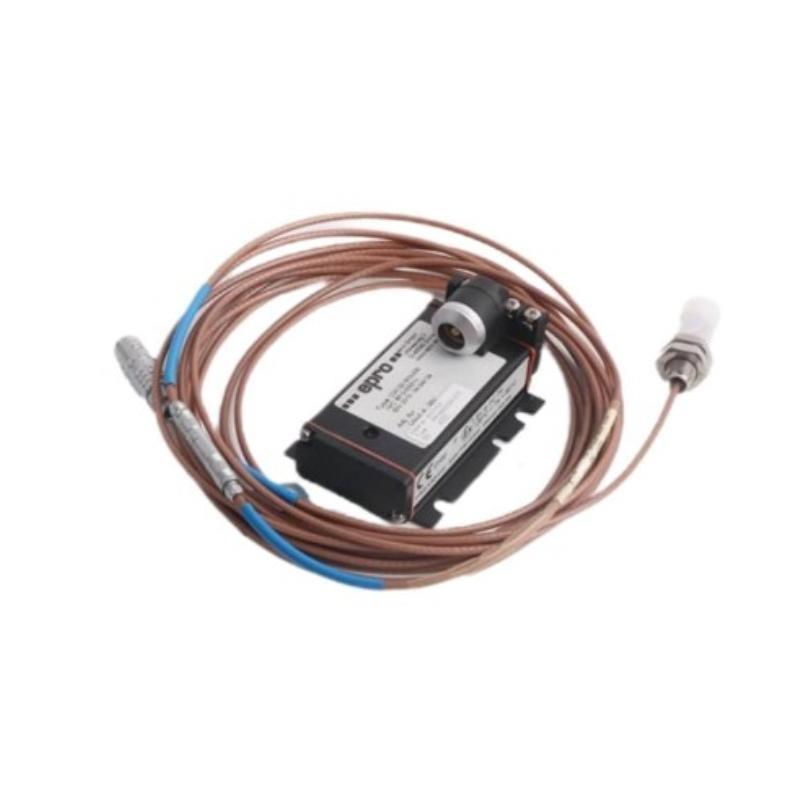

The Epro PR6423/01C-010 8mm Eddy-Current Sensor is a high-performance probe designed for non-contact measurement von shaft displacement, vibration, and position in rotating machinery. With its 8mm tip diameter, it ensures accurate proximity detection and high reliability even in harsh industrial environments. Integrated with CON0xx series drivers, this sensor is widely used in turbines, compressors, pumps, and other critical assets where continuous monitoring is required.
Key Features
-
High-precision eddy-current sensing technology
-
8 mm probe diameter for versatile applications
-
Compatible with CON0xx series drivers
-
Non-contact measurement for reduced wear and maintenance
-
Ausgezeichnet performance in harsh industrial environments
-
Long-term stability and reliability
Technical Specifications
| Item | Specification |
|---|---|
| Modell | Epro PR6423/01C-010 |
| Sensor Type | Eddy-Current Proximity Probe |
| Tip Diameter | 8 mm |
| Measurement Range | Up to 2 mm (typical) |
| Frequency Range | DC to 10 kHz |
| Linear Range | ±0.25 mm |
| Sensitivity | 7.87 mV/µm (typical, with CON0xx driver) |
| Output Signal | Voltage proportional to displacement |
| Dimensions | Sensor head diameter 8 mm |
| Gewicht | 0.1 kg |
| Operating Temperature | -35 °C to +180 °C |
| Connection | Compatible with CON0xx driver modules |
| Material | Stainless steel housing for durability |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps and fans
-
Gearboxes and motors
-
Power generation equipment
-
Oil & gas industry machinery
Häufig gestellte Fragen (FAQ)
Q1: What is the probe diameter von the Epro PR6423/01C-010?
The probe diameter is 8 mm.
Q2: What is the measurement range von this sensor?
It typically supports up to 2 mm von displacement measurement.
Q3: Can it operate in high-temperature environments?
Yes, it can withstand operating temperatures from -35 °C to +180 °C.
Q4: Is this sensor compatible with CON0xx drivers?
Yes, it is designed to work with CON0xx series drivers for signal processing.
Q5: What type von signal output does it provide?
It provides a voltage output proportional to shaft displacement.
Q6: Which industries commonly use this sensor?
It is widely used in power generation, oil & gas, and heavy industrial machinery.
Q7: Is this sensor suitable for continuous monitoring?
Yes, it is specifically designed for continuous machine condition monitoring.
Q8: How is the sensor mounted?
It is typically mounted using threaded connections for secure installation.
Q9: Does the sensor require calibration?
Yes, calibration with the corresponding CON0xx driver is recommended.
Q10: What is the material von the probe housing?
The housing is made from durable stainless steel.
